Pahiatua Details

PropertyValue
Rupture Count675
Ruptures Above Sect Min Mag674
Ruptures w/ Nonzero Rates1
Magnitude Range[6.88, 8.16]
Length Range[22, 423] km
Total Rate3.4591794E-6 /yr
Multi-Fault Rate3.4591794E-6 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults59

Table Of Contents

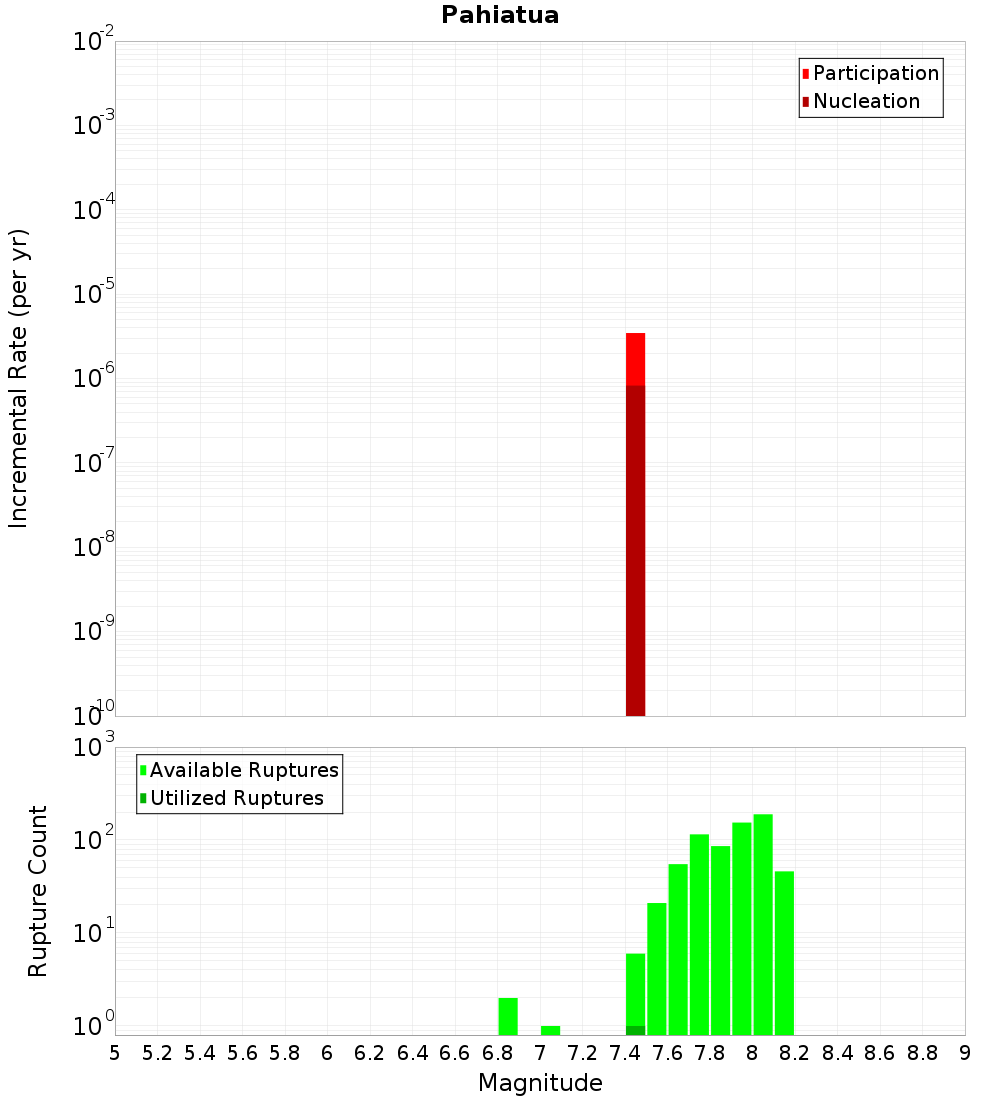

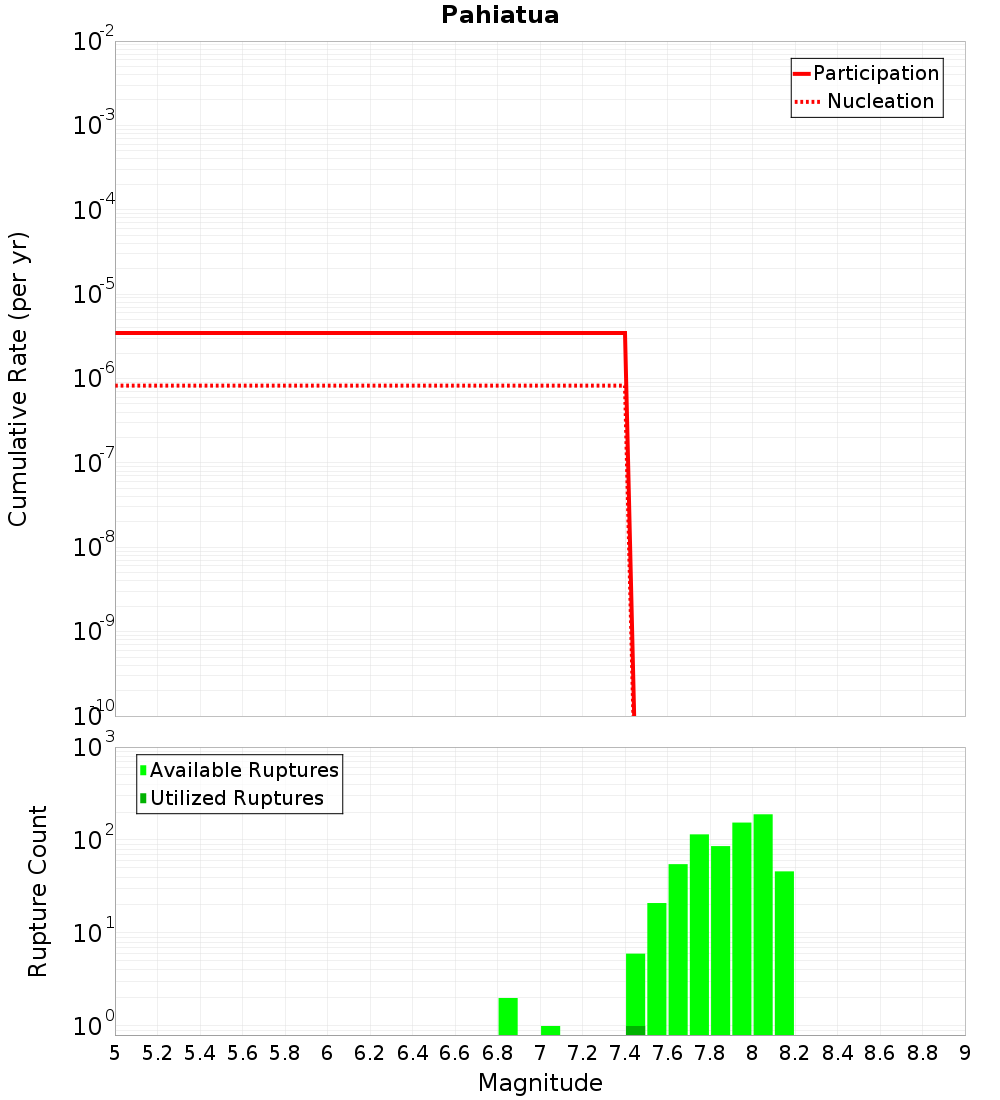

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

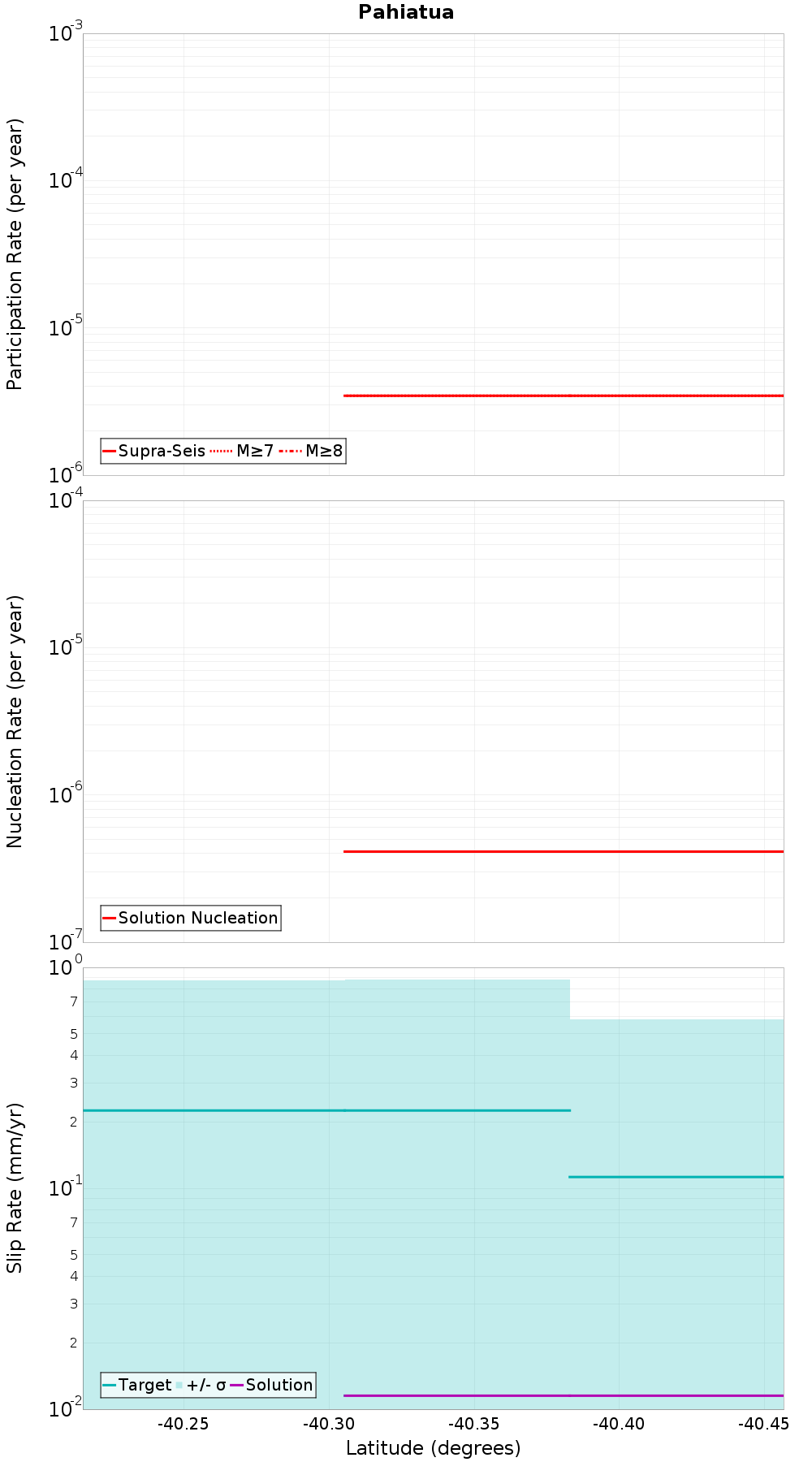

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

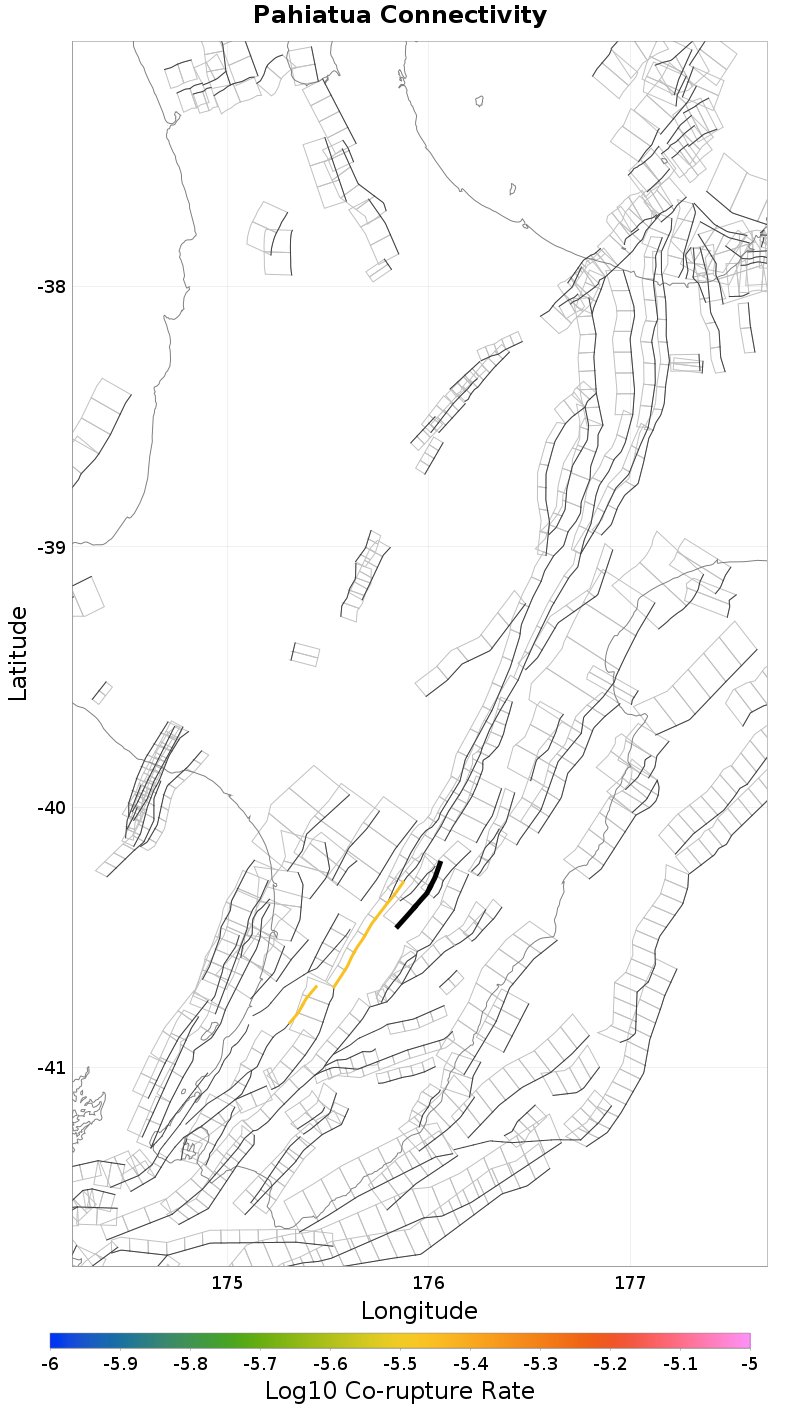

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Woodville, 1.02 km awayAlfredton North, 12.97 km away
Maunga, 3.3 km awayTokomaru, 13.13 km away
Mohaka: South, 4.19 km awayClear Hills - Waikopiro, 13.79 km away
Wellington: Pahiatua, 5.52 km awayPa Valley, 14.33 km away
Ruahine: South, 5.89 km awayRuataniwha, 14.64 km away
Rangefront, 9.78 km awayNorthern Ohariu, 15.16 km away
Waewaepa, 11.57 km awayOruawharo - Mangatoro, 16.13 km away
Makuri - Waewaepa, 12.67 km awayPohangina, 17.63 km away

Woodville, 1.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Maunga, 3.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: South, 4.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.19 km
Min Rate-Weighted Dist5.88 km
Co-rupture Count473
Co-rupture Rate3.4591794E-6

Wellington: Pahiatua, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count151
Co-rupture Rate3.4591794E-6

Ruahine: South, 5.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.89 km
Co-rupture Count343
Co-rupture Rate0.0

Rangefront, 9.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Waewaepa, 11.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Makuri - Waewaepa, 12.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alfredton North, 12.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tokomaru, 13.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clear Hills - Waikopiro, 13.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pa Valley, 14.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruataniwha, 14.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Oruawharo - Mangatoro, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pohangina, 17.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
