Pakarae Details

Property	Value
Rupture Count	33
Ruptures Above Sect Min Mag	32
Ruptures w/ Nonzero Rates	1
Magnitude Range	[5.89, 7.44]
Length Range	[4, 106] km
Total Rate	2.9324898E-5 /yr
Multi-Fault Rate	2.9324898E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	4

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

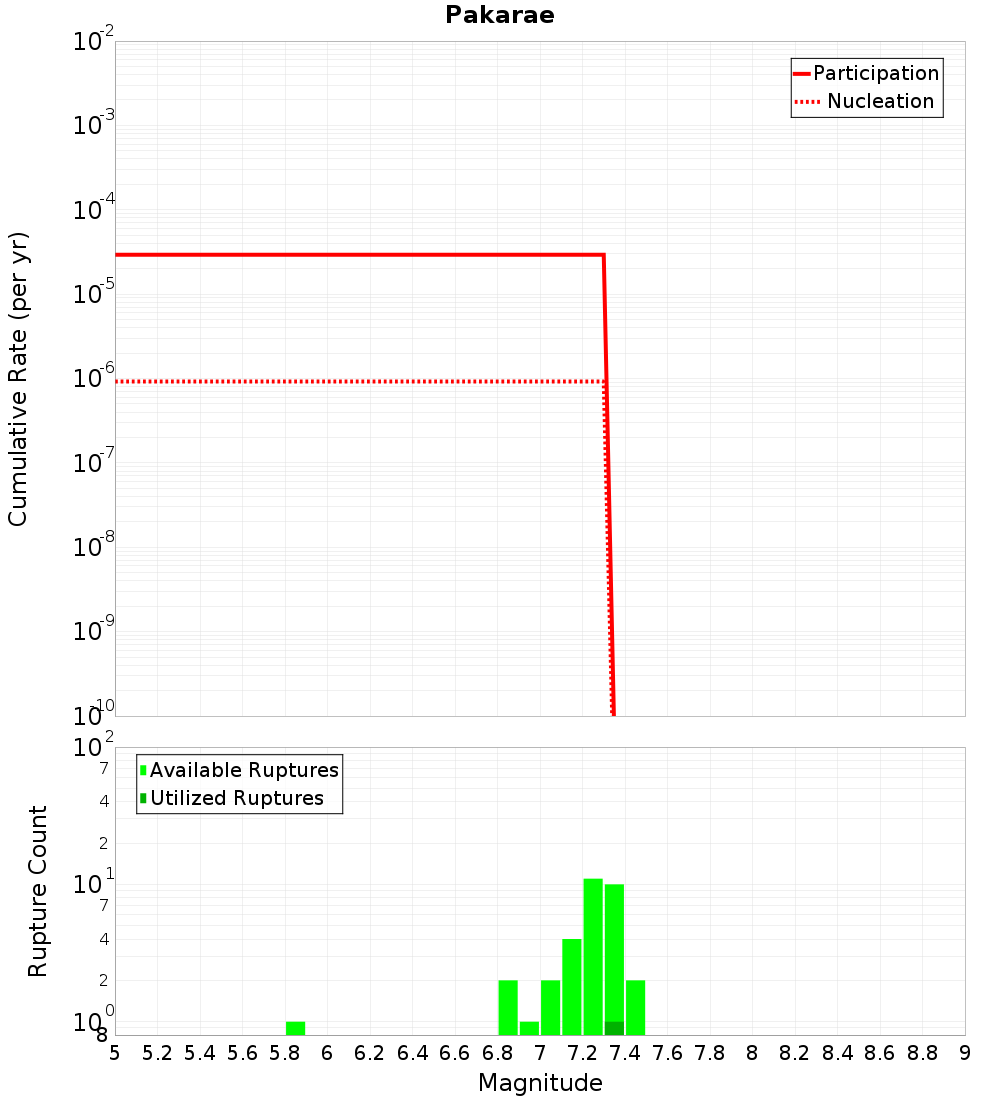

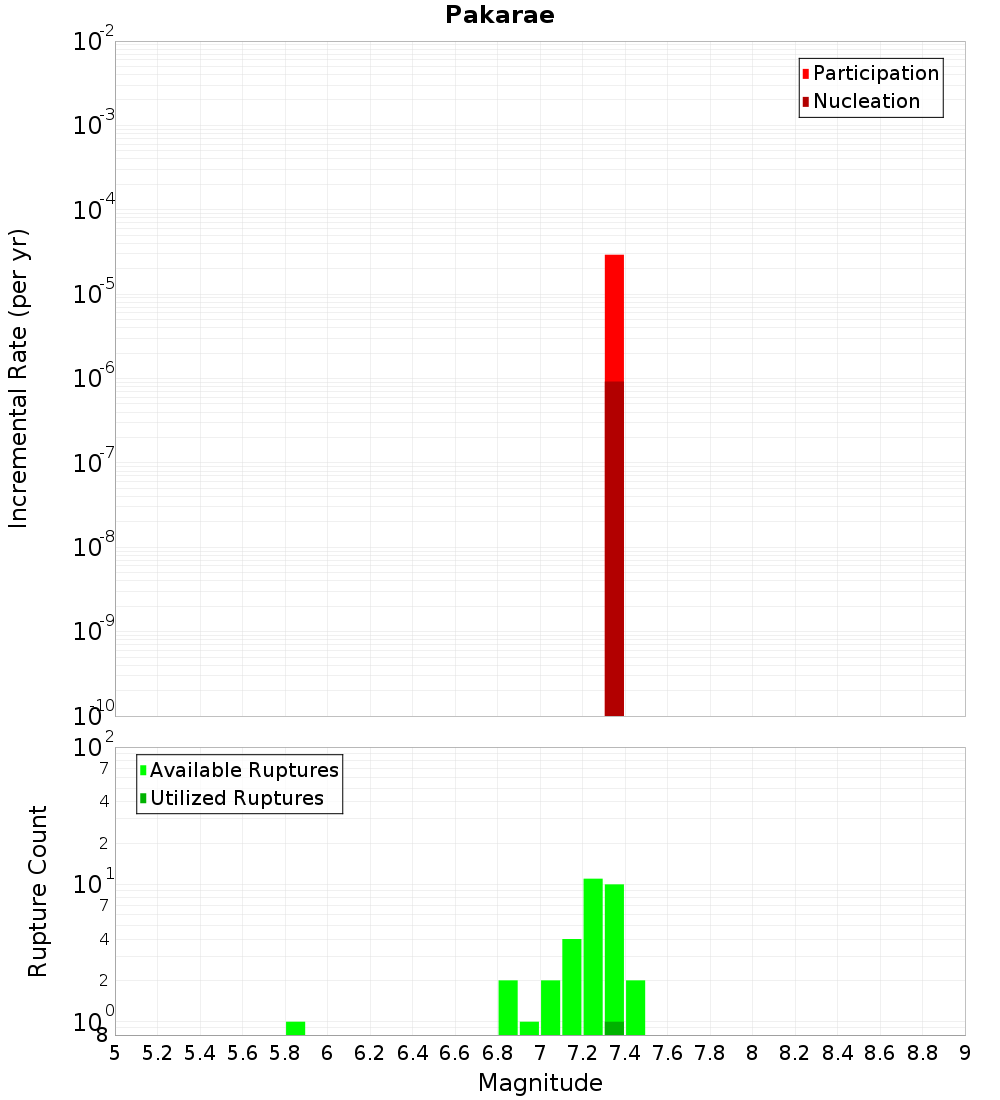

Magnitude-Frequency Distribution

Incremental	Cumulative

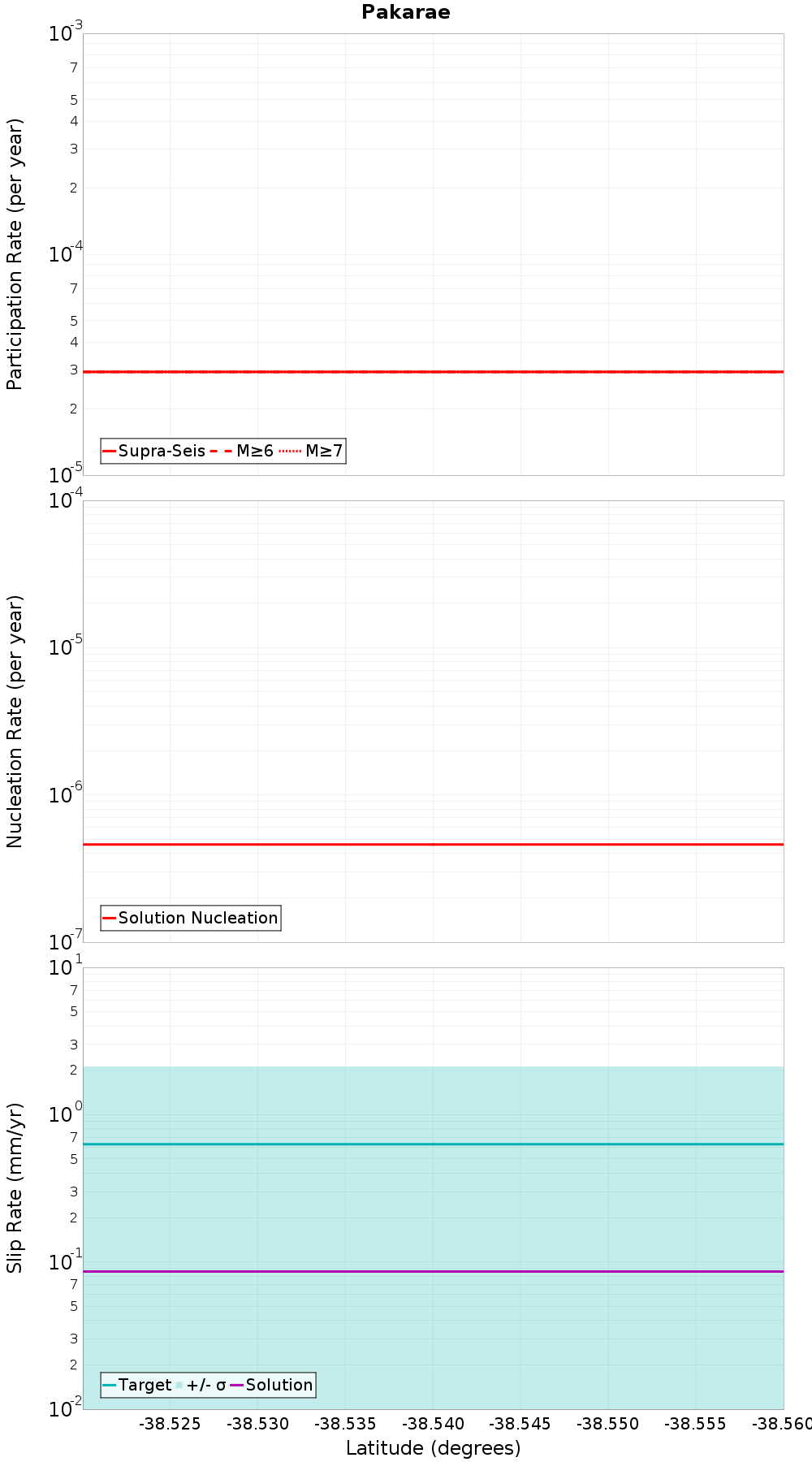

Along-Strike Values

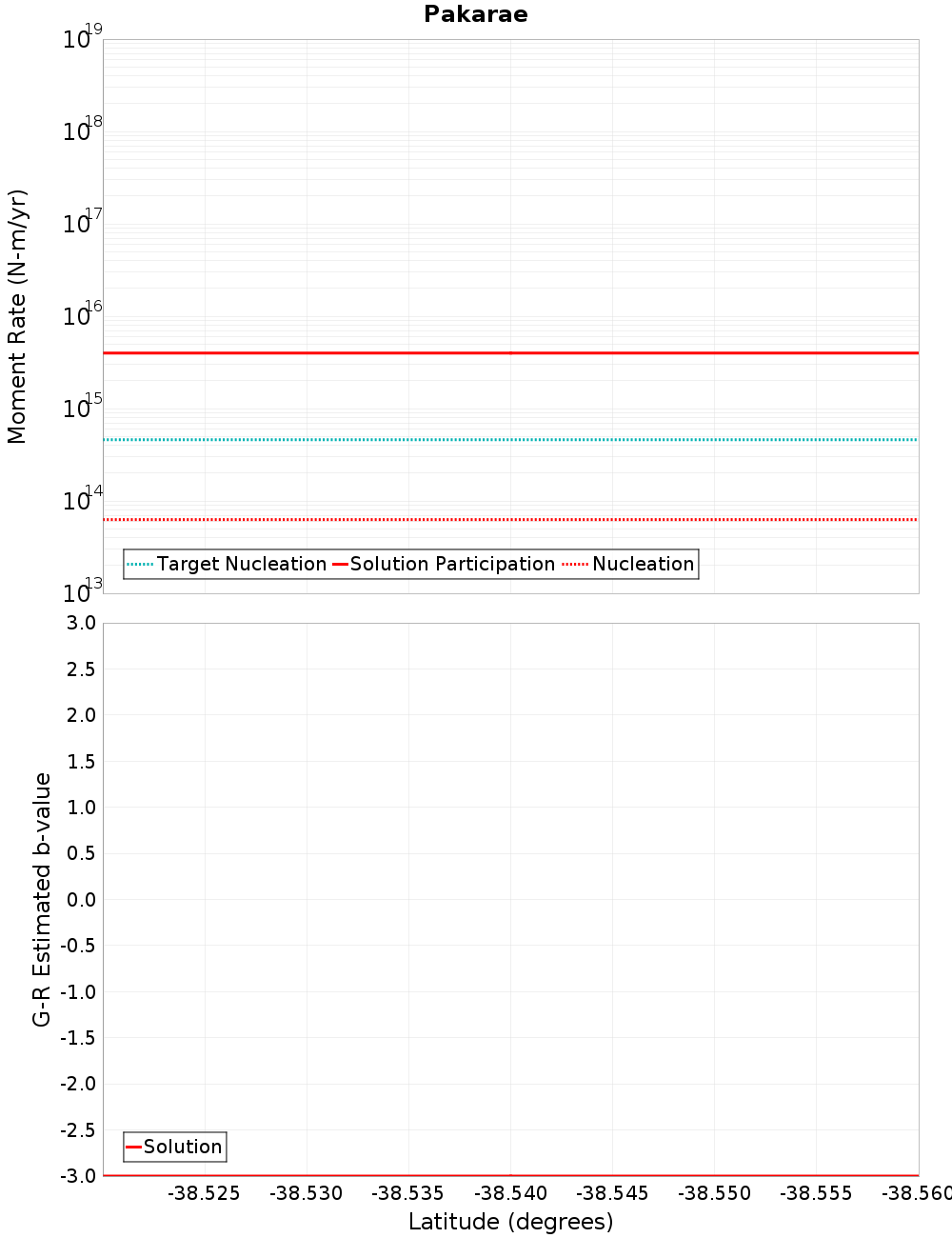

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Gable End North, 0.38 km away
Te Ikaarongamai, 1.64 km away
Ariel Bank 2, 3.93 km away
Gable End South, 5.55 km away
Ariel Bank, 10.5 km away
Ariel East, 19.45 km away

Gable End North, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.38 km
Min Rate-Weighted Dist	0.38 km
Co-rupture Count	23
Co-rupture Rate	2.9324898E-5

Te Ikaarongamai, 1.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ariel Bank 2, 3.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.93 km
Co-rupture Count	30
Co-rupture Rate	2.9324898E-5

Gable End South, 5.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ariel Bank, 10.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ariel East, 19.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
