Takapu Details
| Property | Value |
|---|---|
| Rupture Count | 18 |
| Ruptures Above Sect Min Mag | 17 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [7.17, 7.77] |
| Length Range | [28, 119] km |
| Total Rate | 1.1457432E-5 /yr |
| Multi-Fault Rate | 1.1457432E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

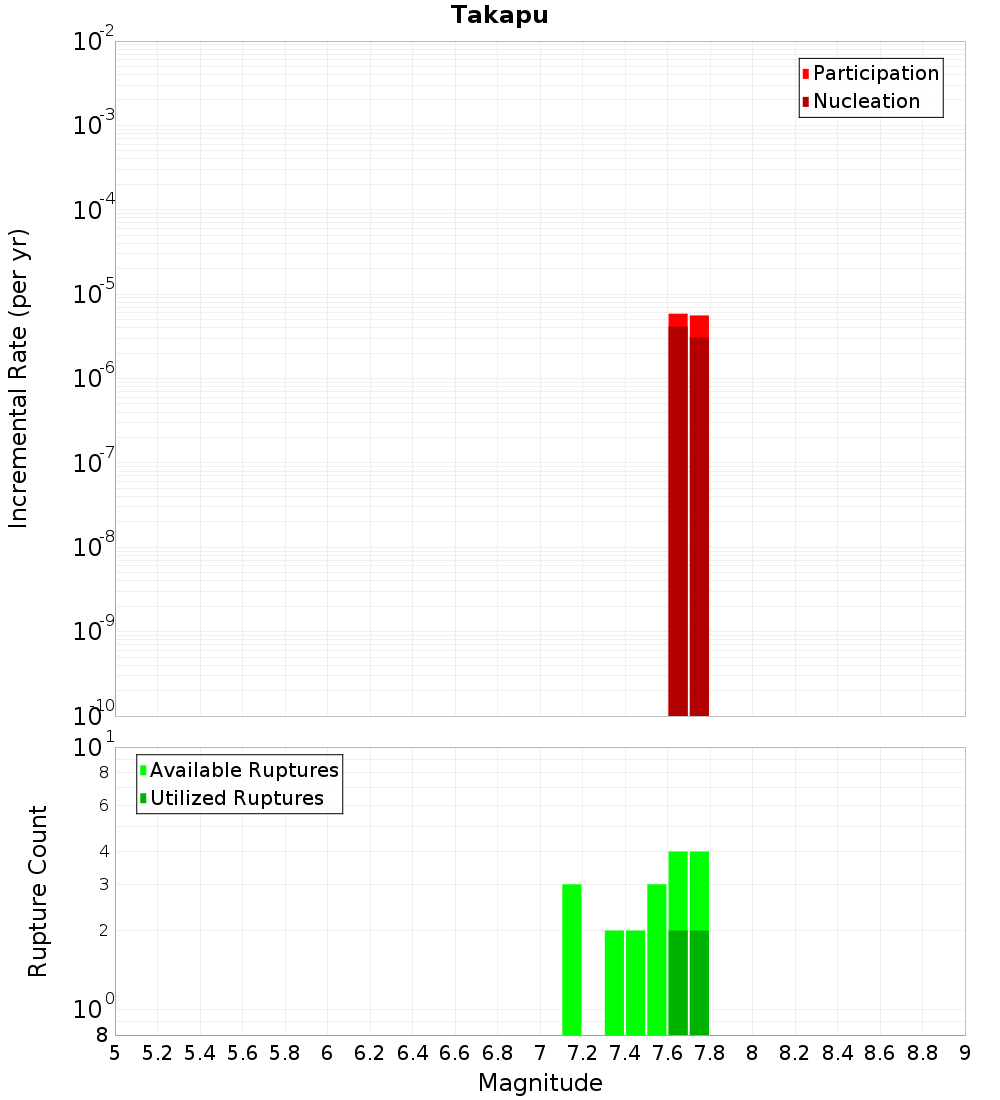

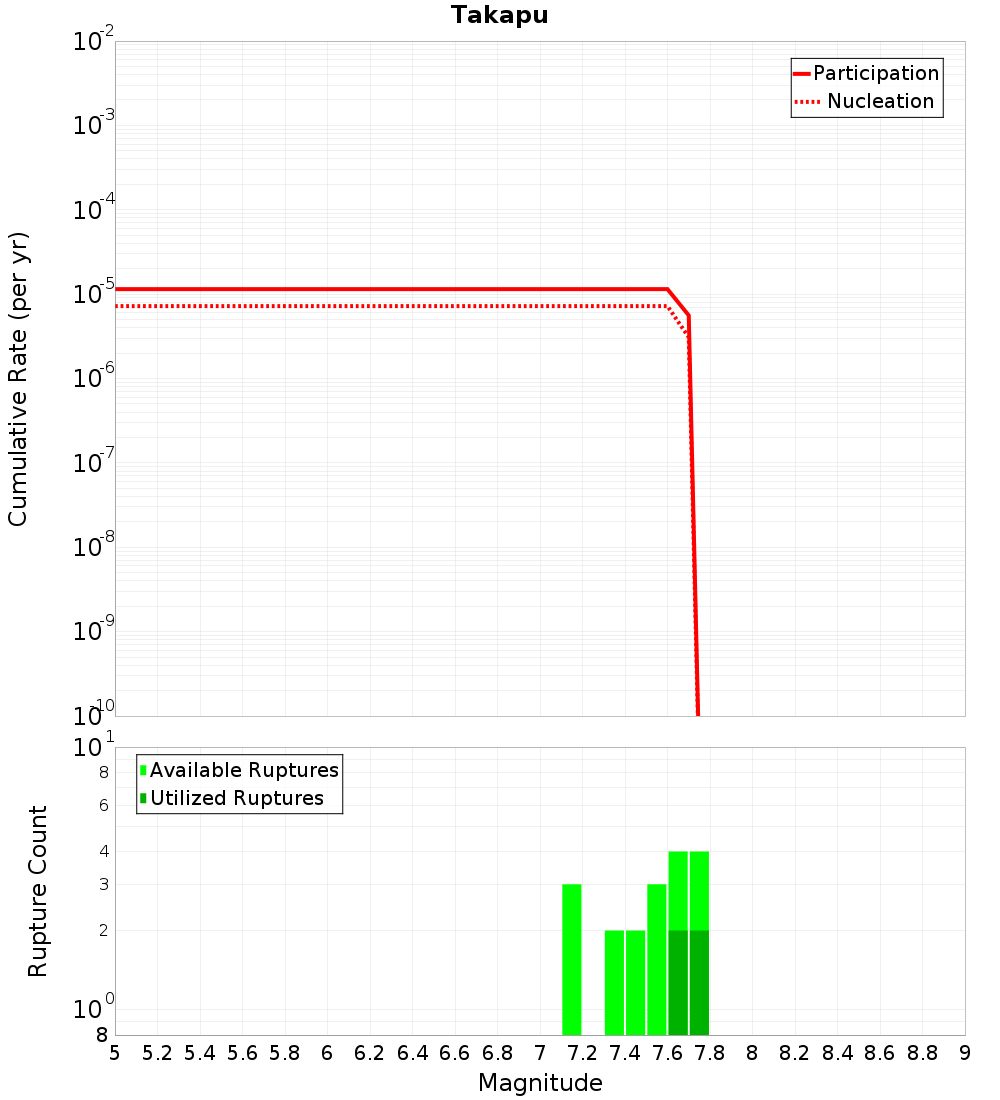

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

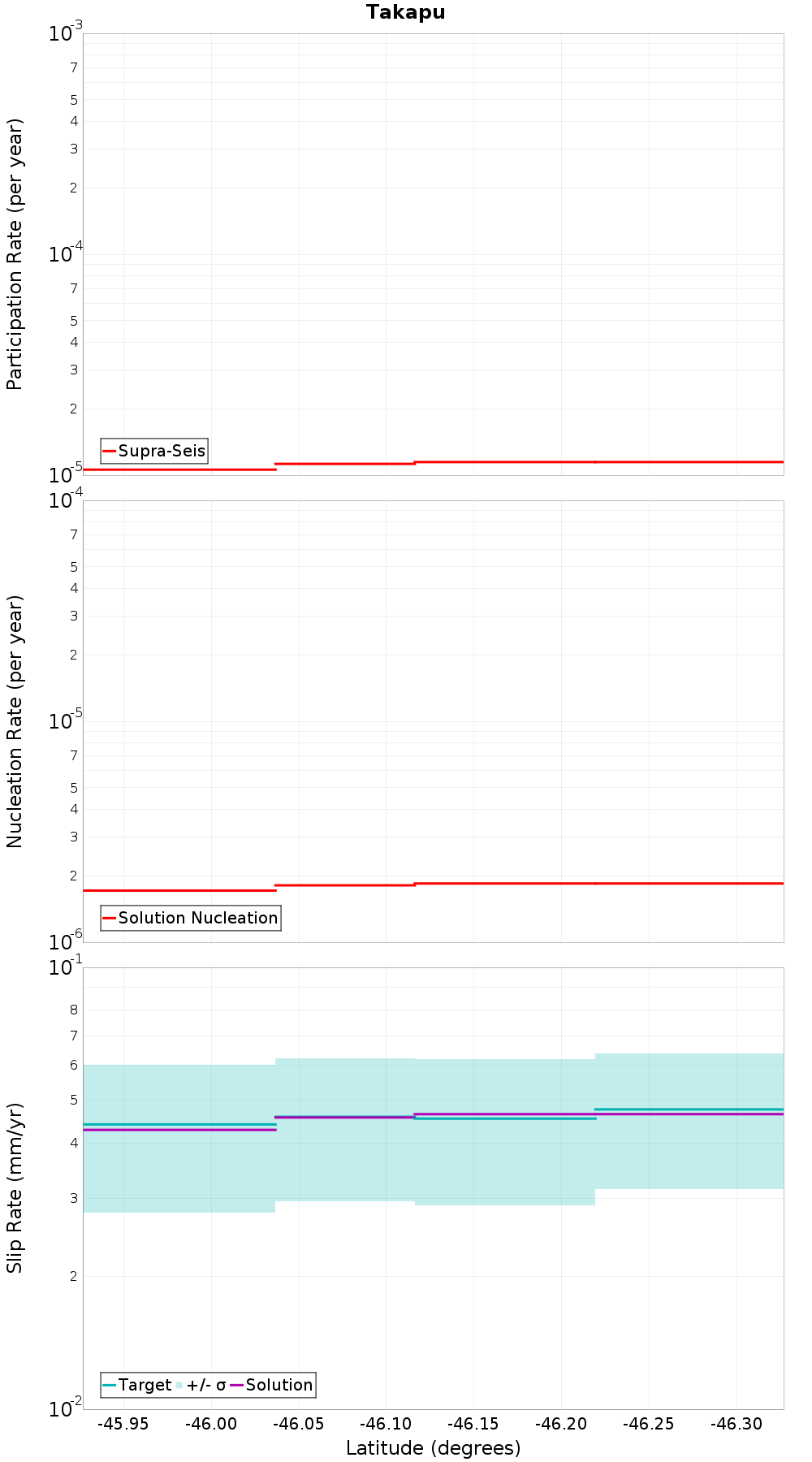

Along-Strike Values

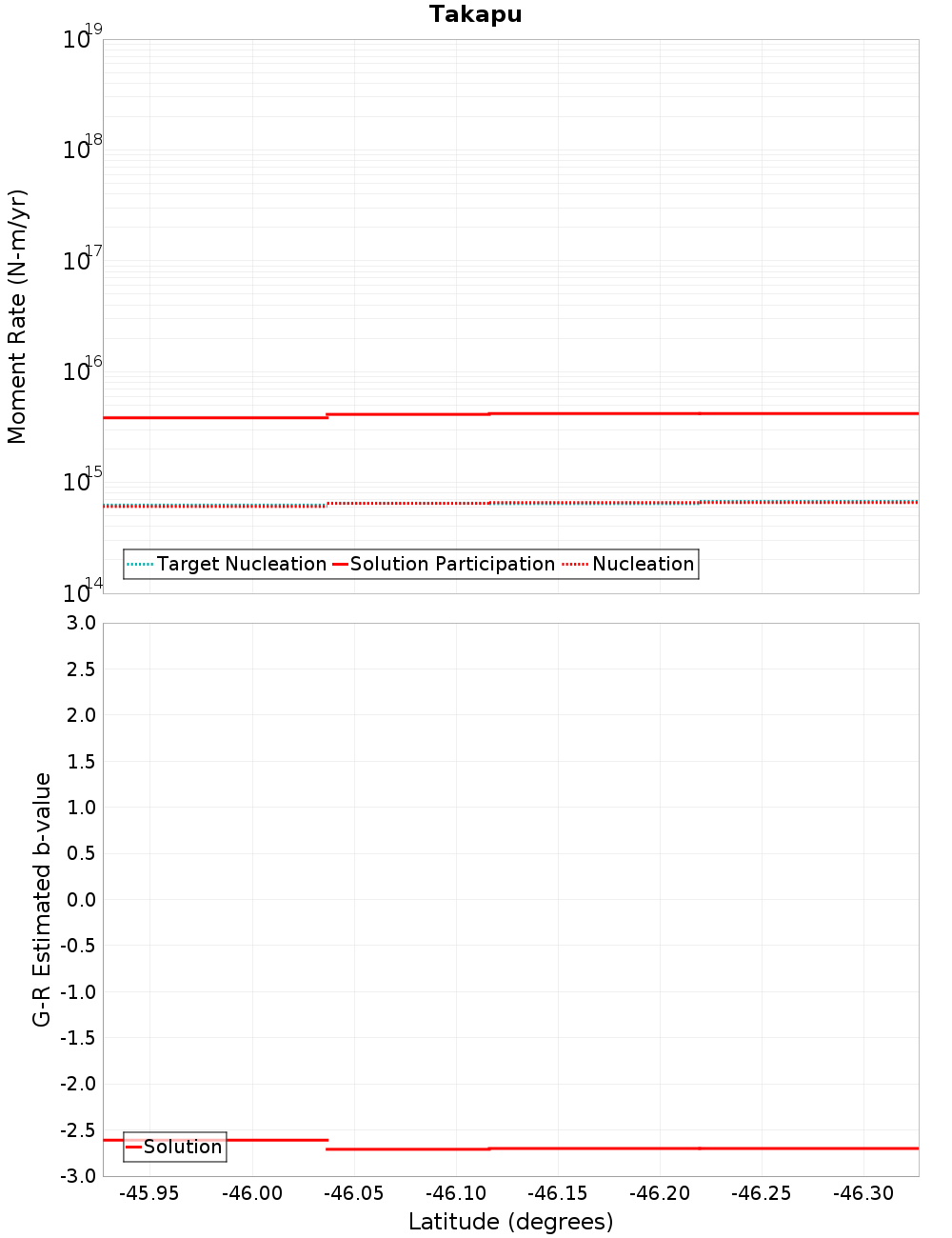

Moment-Rates and b-Values

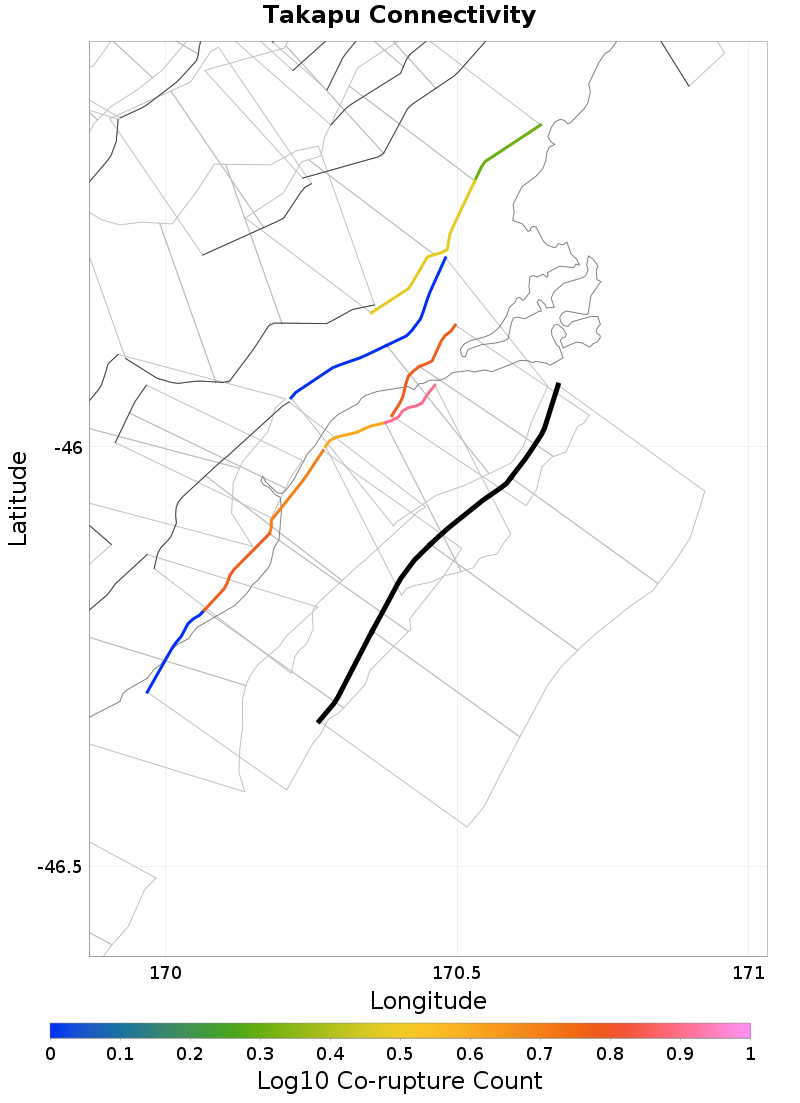

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Green Island, 10.64 km away |
| Kaikorai, 11.17 km away |
| Akatore, 12.82 km away |
| Titri North, 15.38 km away |
| Titri Central, 18.87 km away |
Green Island, 10.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.64 km |
| Min Rate-Weighted Dist | 10.64 km |
| Co-rupture Count | 8 |
| Co-rupture Rate | 1.1457432E-5 |
Kaikorai, 11.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 1.1457432E-5 |
Akatore, 12.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 12.82 km |
| Min Rate-Weighted Dist | 12.82 km |
| Co-rupture Count | 6 |
| Co-rupture Rate | 8.748962E-7 |
Titri North, 15.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Titri Central, 18.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
