Te Rapa 1 Details
| Property | Value |
|---|---|
| Rupture Count | 30,713 |
| Ruptures Above Sect Min Mag | 30,705 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.31, 8.54] |
| Length Range | [10, 1,156] km |
| Total Rate | 2.7723197E-4 /yr |
| Multi-Fault Rate | 2.7723197E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 97 |
Table Of Contents

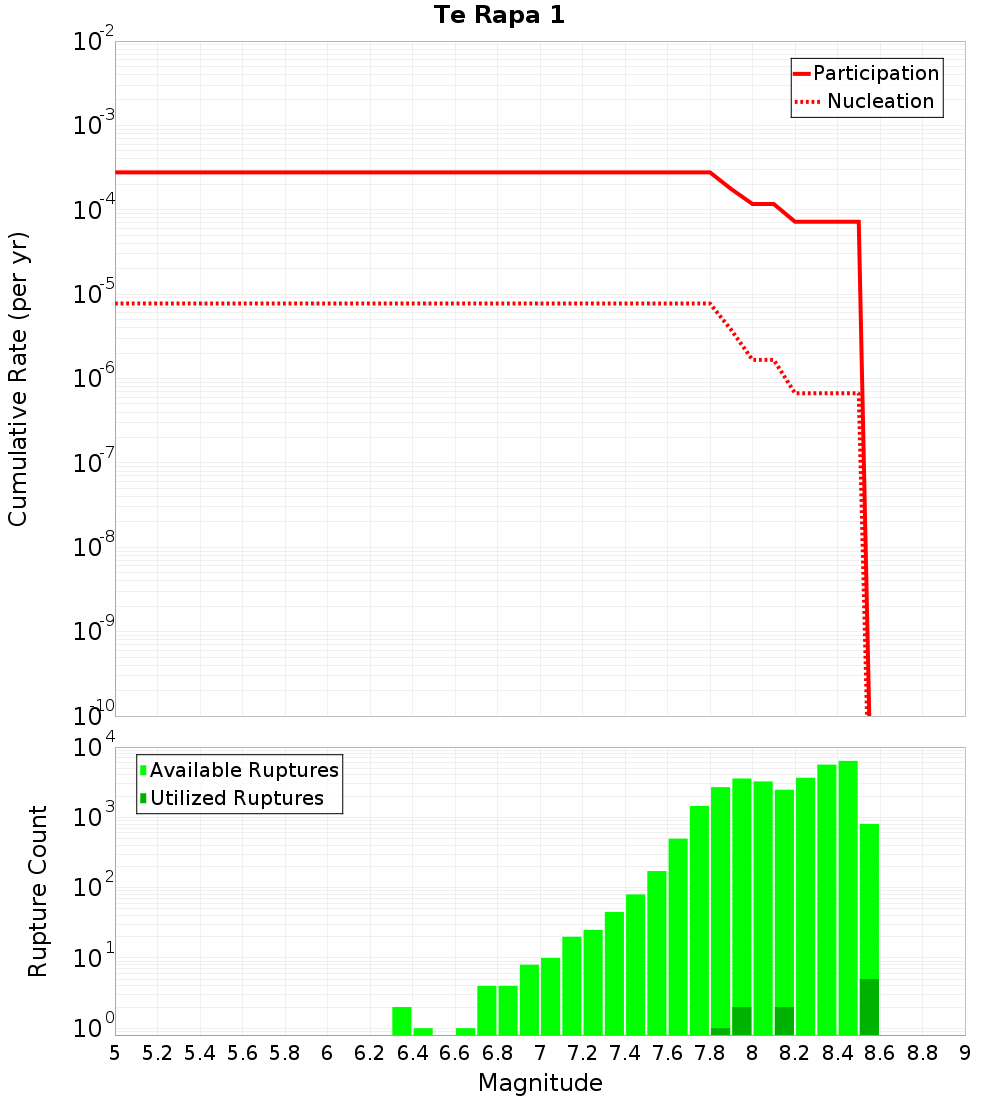

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

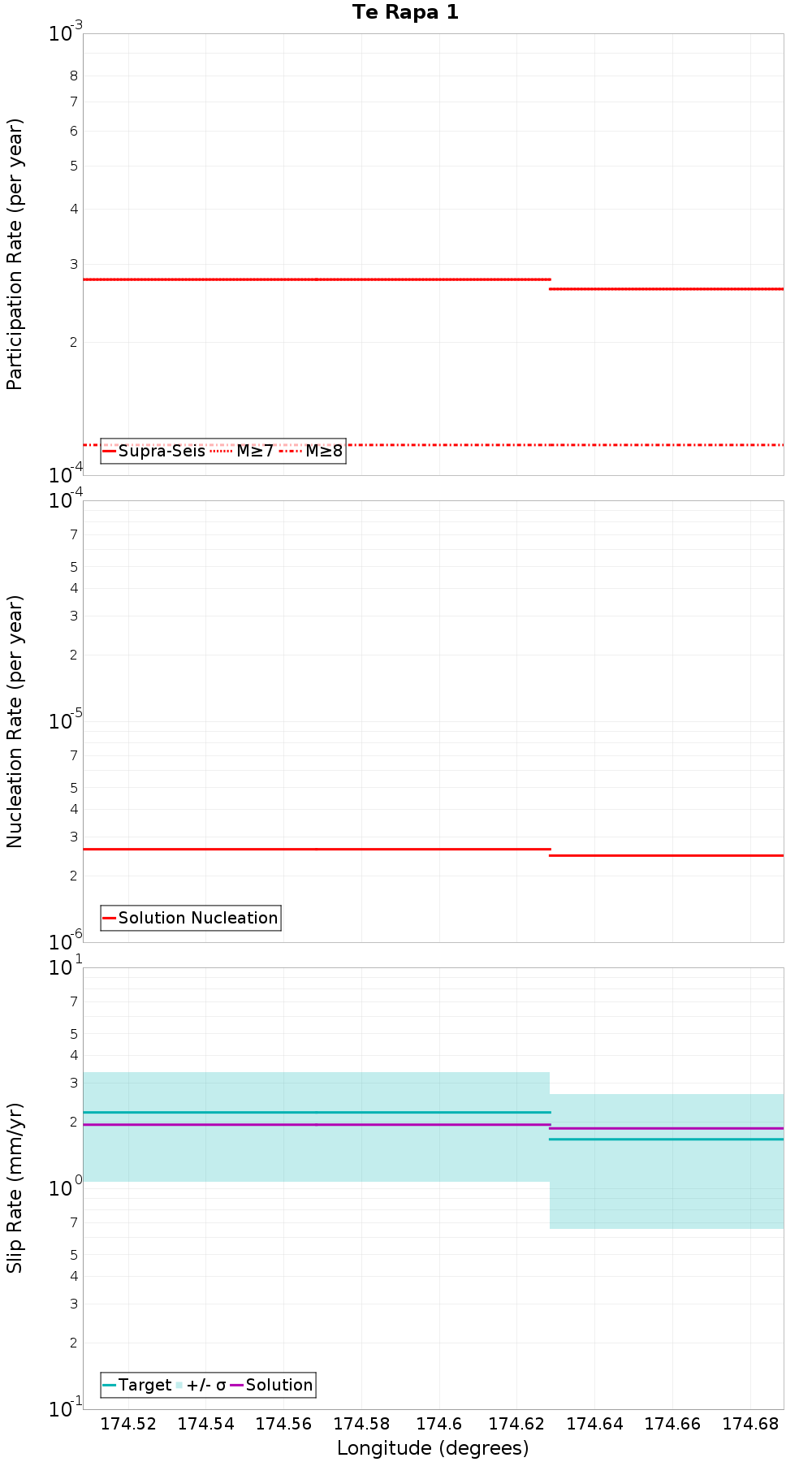

Along-Strike Values

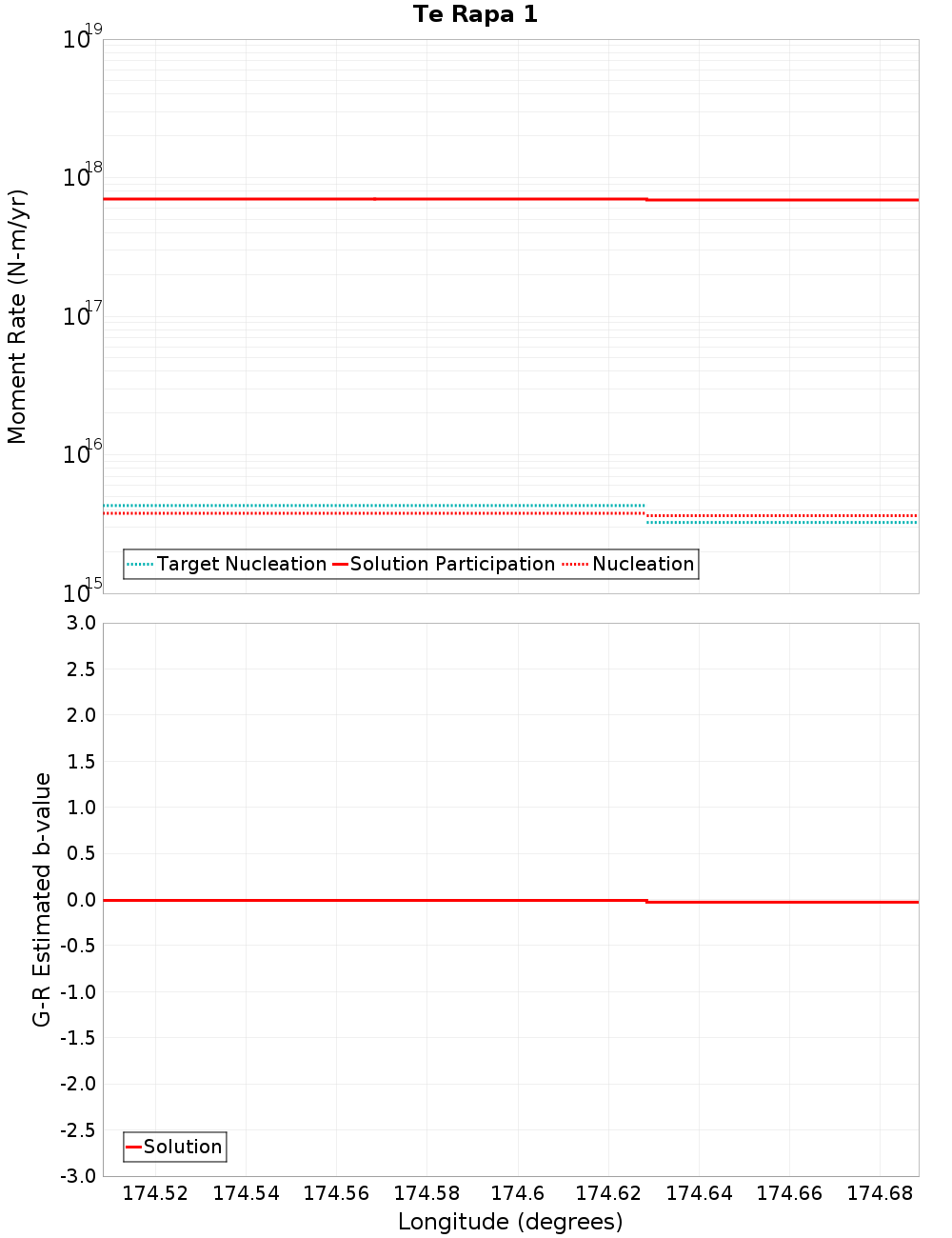

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Hope: Te Rapa, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 29,923 |
| Co-rupture Rate | 2.7723197E-4 |
Te Rapa 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 24,433 |
| Co-rupture Rate | 2.1844282E-4 |
Upper Slope, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kekerengu Bank, 3.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.66 km |
| Min Rate-Weighted Dist | 3.66 km |
| Co-rupture Count | 1,507 |
| Co-rupture Rate | 2.6557283E-16 |
Campbell Bank, 4.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wharanui, 5.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Chancet, 8.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Needles East 2, 17.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
London Hill, 18.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 127 |
| Co-rupture Rate | 0.0 |
