Tirohanga Details
| Property | Value |
|---|---|
| Rupture Count | 3 |
| Ruptures Above Sect Min Mag | 3 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [7.01, 7.52] |
| Length Range | [25, 84] km |
| Total Rate | 2.3479838E-4 /yr |
| Multi-Fault Rate | 2.3479838E-4 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

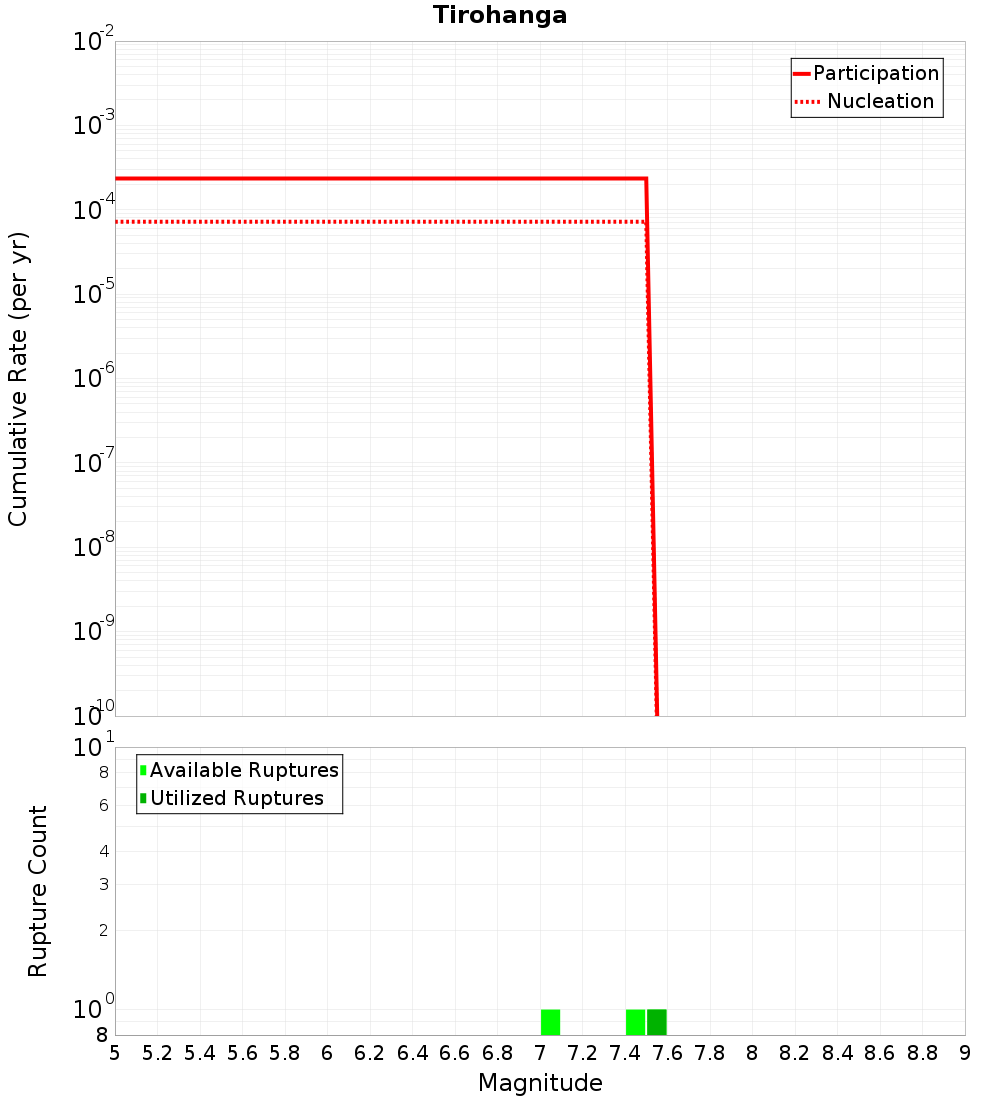

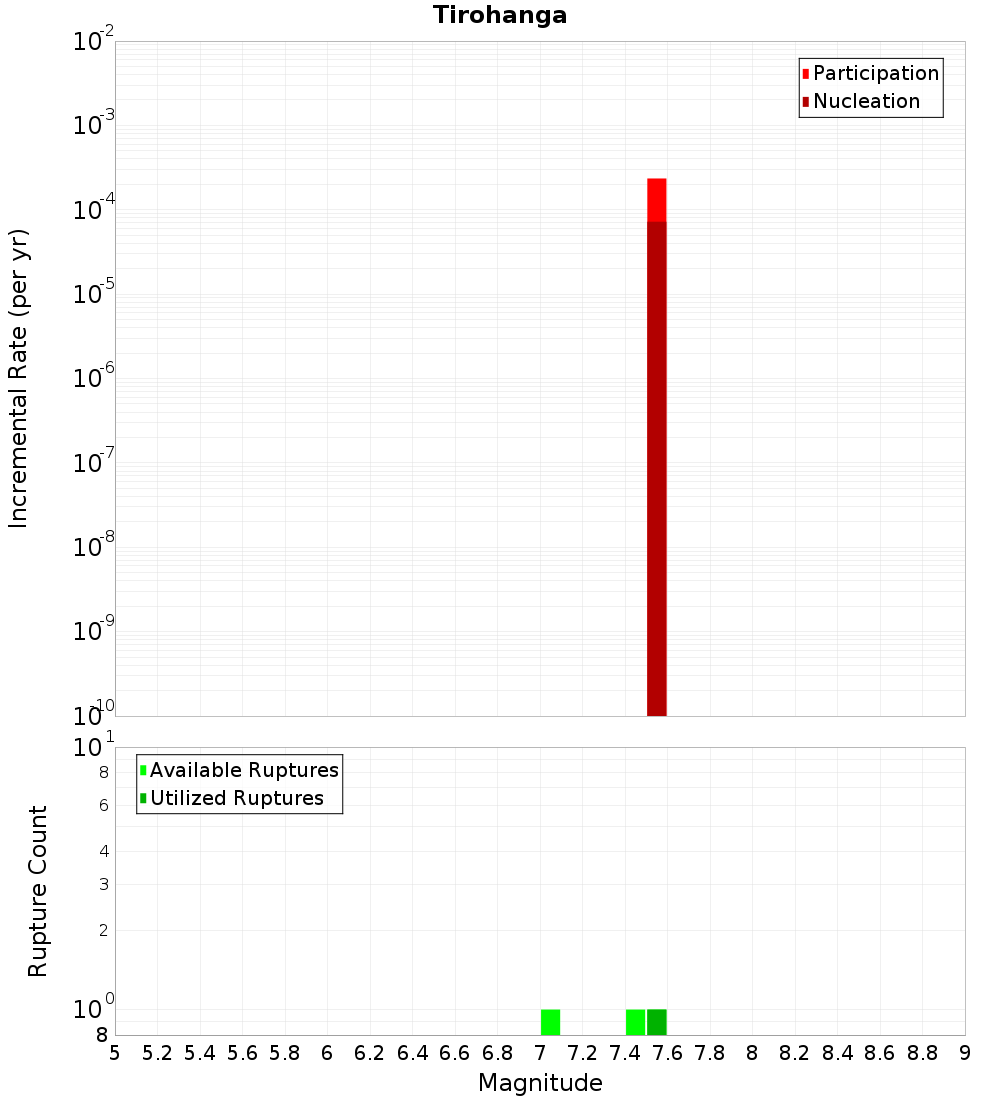

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

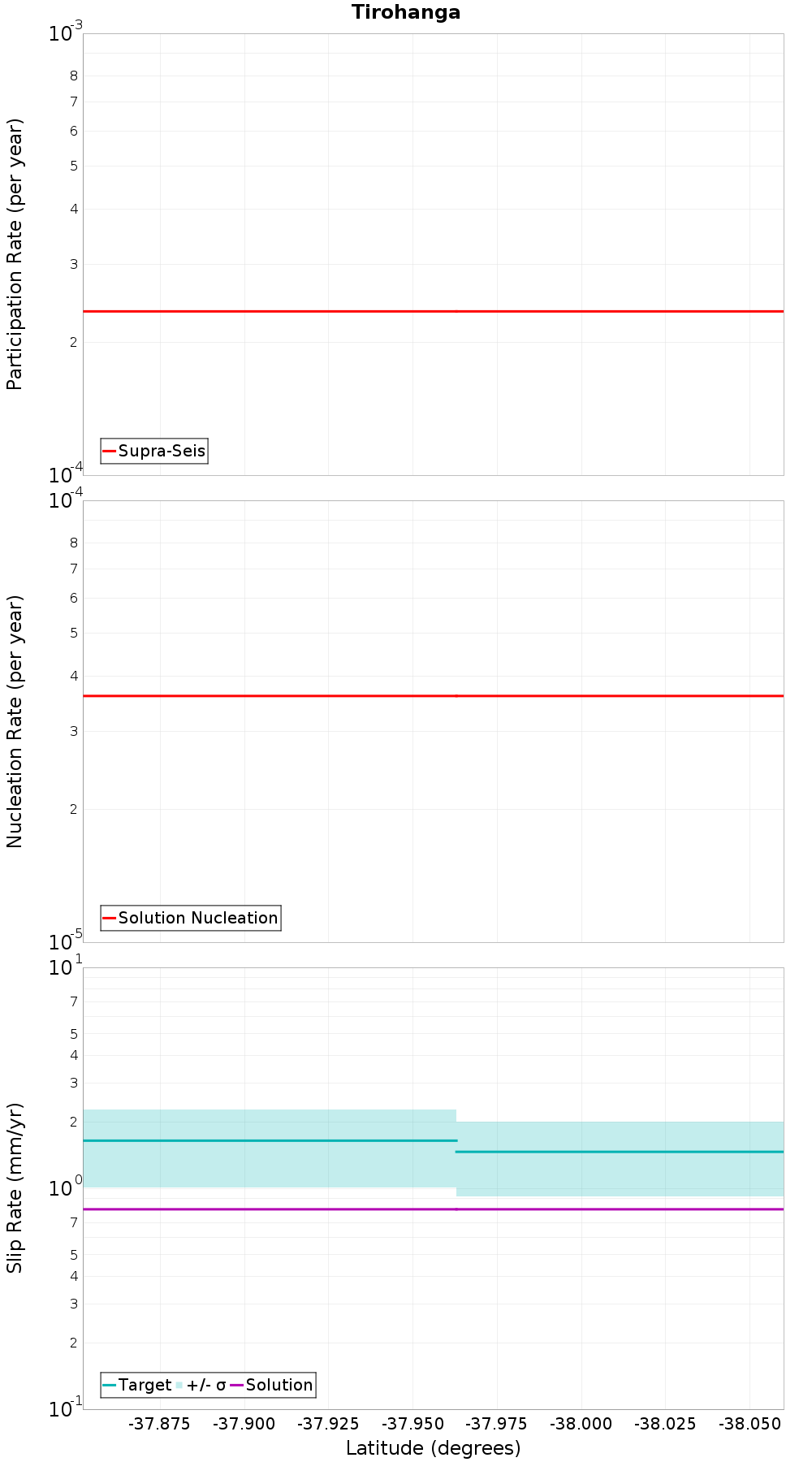

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Ohae 2, 0.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohae 1, 0.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kotare - Moutuhora, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.32 km |
| Min Rate-Weighted Dist | 0.32 km |
| Co-rupture Count | 2 |
| Co-rupture Rate | 2.3479838E-4 |
Opotiki 2, 1.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opotiki 3, 3.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opape 1, 4.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 16, 4.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motu, 5.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 18, 6.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motu River, 10.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohae 3, 11.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimana - Waikaremoana, 12.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 17, 12.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waiotahi: North, 13.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimana: North, 14.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Island 2, 17.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 21, 18.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
