Uruti North Details

Property	Value
Rupture Count	3,781
Ruptures Above Sect Min Mag	3,772
Ruptures w/ Nonzero Rates	8
Magnitude Range	[6.43, 8.49]
Length Range	[12, 1,015] km
Total Rate	3.3961097E-4 /yr
Multi-Fault Rate	3.3961097E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	49

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

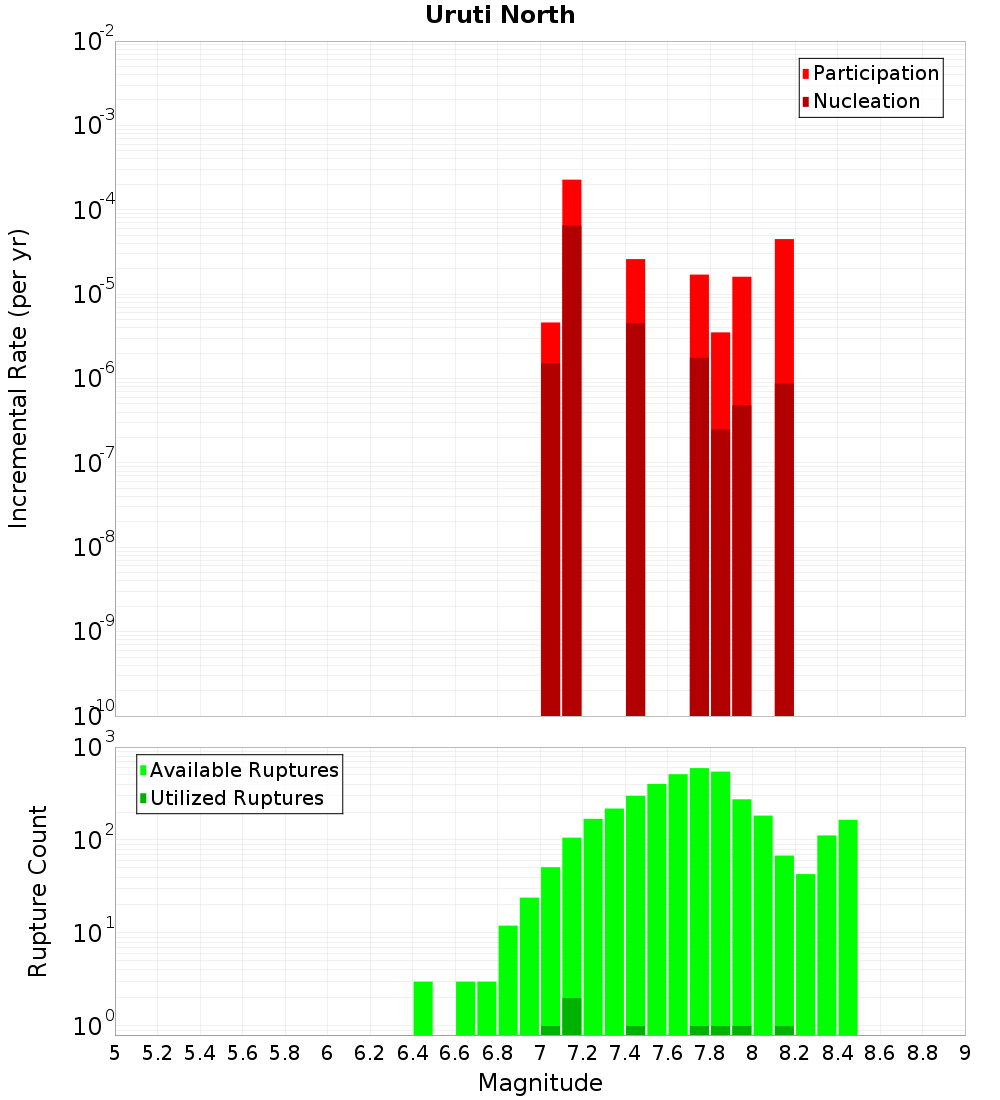

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

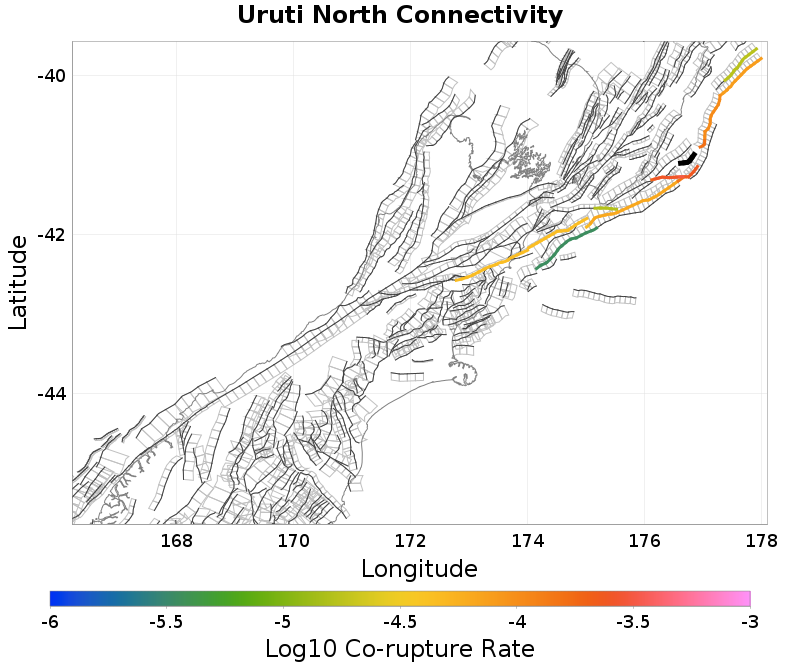

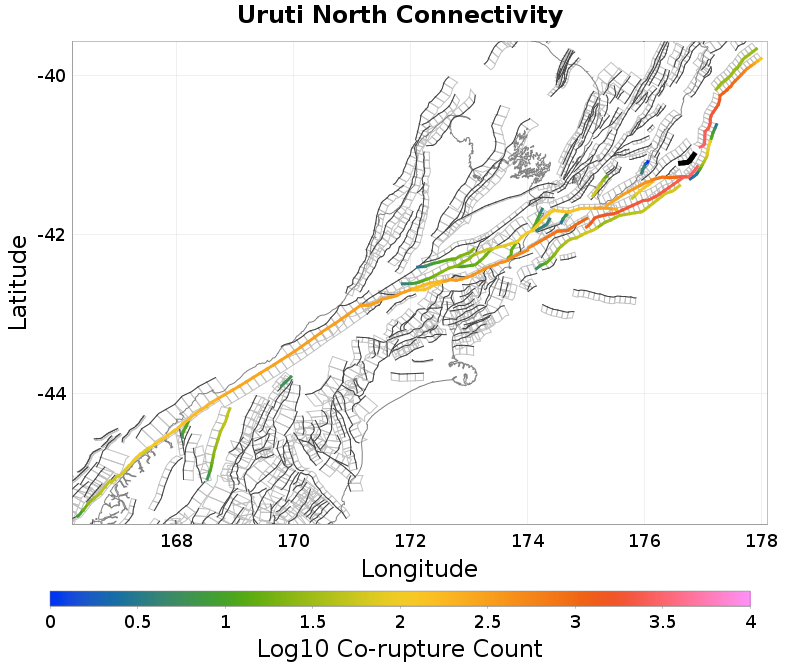

Connectivity

Nearby Sections

Fault Section
Whareama Bank, 5.83 km away
Madden Banks, 6.83 km away
Uruti Basin 2, 8.46 km away
Uruti Ridge 2, 8.85 km away
Uruti East - PorWest 1, 11.16 km away
Opouawe - Uruti, 13.55 km away
Uruti Basin, 18.96 km away

Whareama Bank, 5.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Madden Banks, 6.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	6.83 km
Min Rate-Weighted Dist	6.83 km
Co-rupture Count	2,862
Co-rupture Rate	1.5818319E-4

Uruti Basin 2, 8.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Uruti Ridge 2, 8.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	8.85 km
Min Rate-Weighted Dist	8.85 km
Co-rupture Count	2,806
Co-rupture Rate	2.3888041E-4

Uruti East - PorWest 1, 11.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	false
Co-rupture Count	99
Co-rupture Rate	0.0

Opouawe - Uruti, 13.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	13.55 km
Min Rate-Weighted Dist	13.55 km
Co-rupture Count	2,643
Co-rupture Rate	1.4466183E-4

Uruti Basin, 18.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	false
Co-rupture Count	2,064
Co-rupture Rate	3.1904413E-4
