Uruti Ridge 2 Details
| Property | Value |
|---|---|
| Rupture Count | 13,676 |
| Ruptures Above Sect Min Mag | 13,648 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [6.29, 8.43] |
| Length Range | [10, 953] km |
| Total Rate | 4.0114057E-4 /yr |
| Multi-Fault Rate | 4.0114057E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 58 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

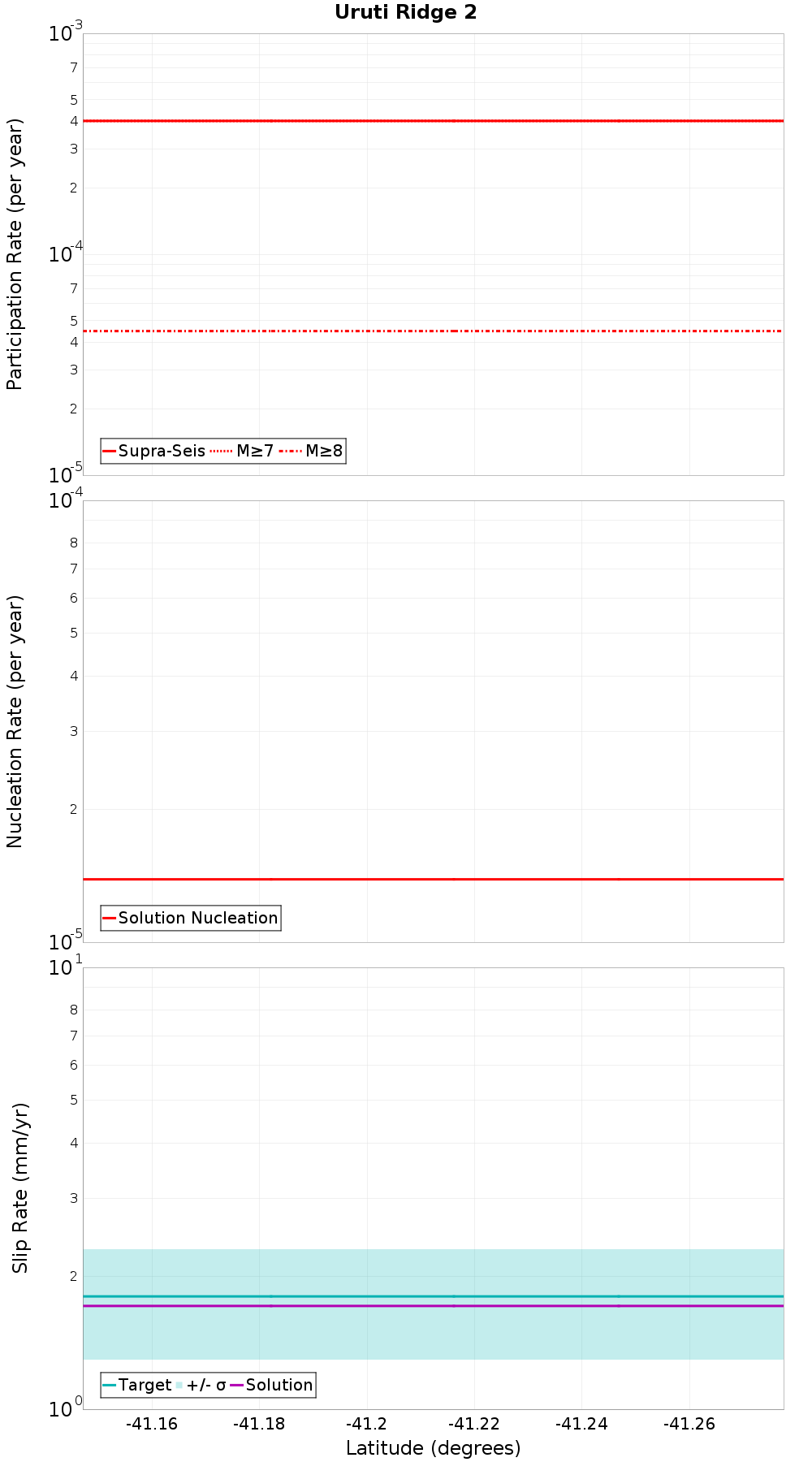

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Uruti Basin, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 7,839 |
| Co-rupture Rate | 4.0114057E-4 |
Uruti East - PorWest 1, 2.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.03 km |
| Min Rate-Weighted Dist | 3.29 km |
| Co-rupture Count | 9,774 |
| Co-rupture Rate | 1.20942306E-4 |
Opouawe - Uruti, 4.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.33 km |
| Co-rupture Count | 8,161 |
| Co-rupture Rate | 9.0499685E-5 |
Uruti Basin 2, 7.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Uruti North, 8.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.85 km |
| Min Rate-Weighted Dist | 8.85 km |
| Co-rupture Count | 2,806 |
| Co-rupture Rate | 2.3888041E-4 |
Pahaua, 13.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,622 |
| Co-rupture Rate | 0.0 |
Whareama Bank, 19.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
