Waimana: South Details
| Property | Value |
|---|---|
| Rupture Count | 20,119 |
| Ruptures Above Sect Min Mag | 20,115 |
| Ruptures w/ Nonzero Rates | 25 |
| Magnitude Range | [6.83, 8.42] |
| Length Range | [21, 758] km |
| Total Rate | 4.1176507E-4 /yr |
| Multi-Fault Rate | 3.6892862E-4 /yr (89.60%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 110 |
Table Of Contents

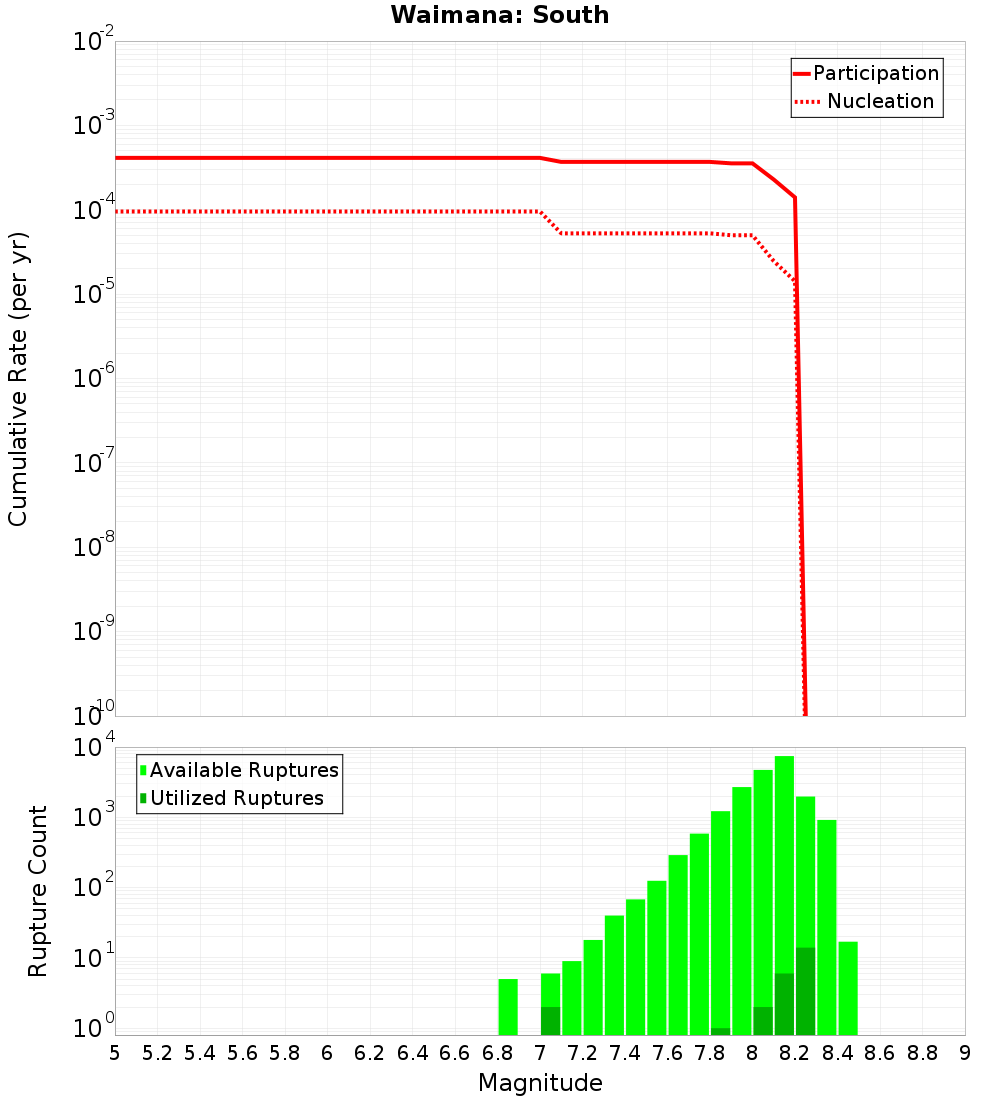

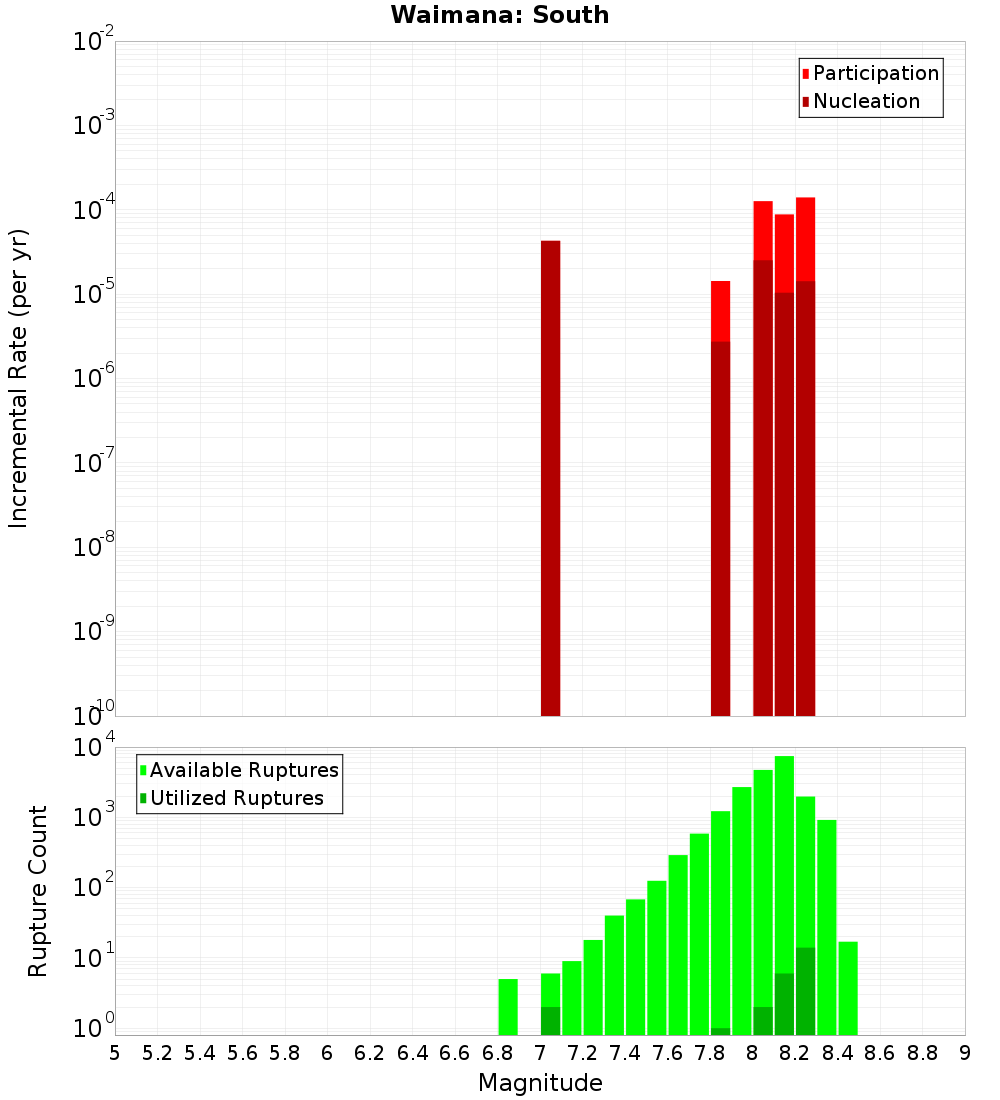

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

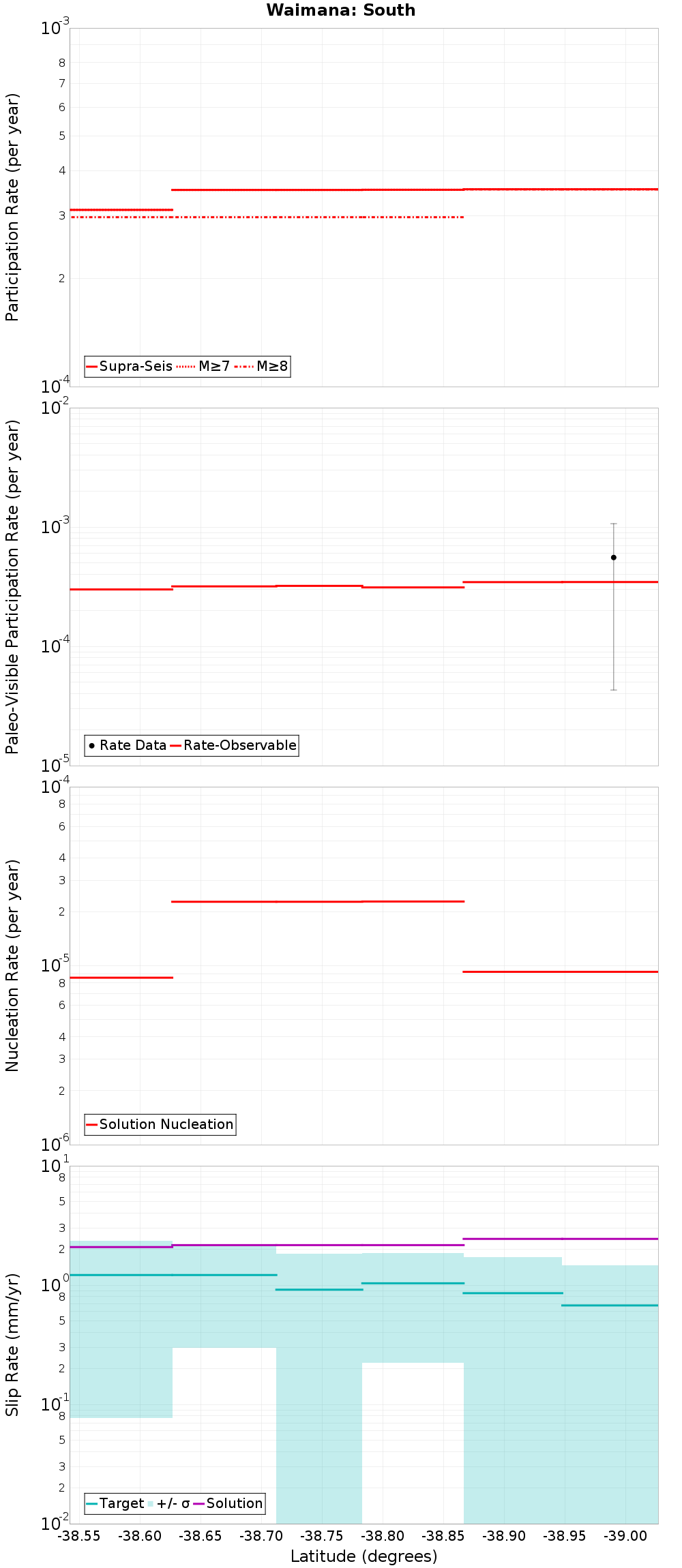

Along-Strike Values
Moment-Rates and b-Values

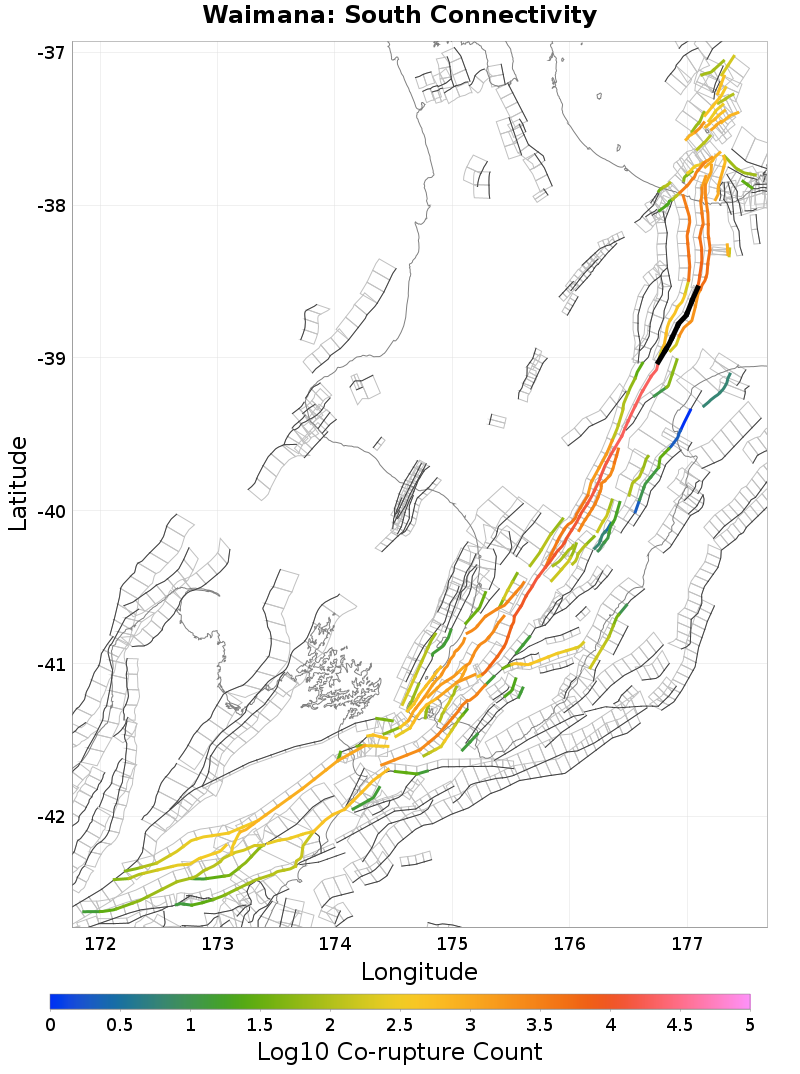

Connectivity
 |  |
|---|
Nearby Sections
Whakatane: South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.45 km |
| Co-rupture Count | 657 |
| Co-rupture Rate | 0.0 |
Mohaka: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 19,515 |
| Co-rupture Rate | 3.546154E-4 |
Waimana: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 6,779 |
| Co-rupture Rate | 1.4620328E-4 |
Waiotahi: South, 2.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.41 km |
| Min Rate-Weighted Dist | 5.24 km |
| Co-rupture Count | 2,038 |
| Co-rupture Rate | 5.802175E-5 |
Waiotahi: North, 2.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.4 km |
| Min Rate-Weighted Dist | 2.4 km |
| Co-rupture Count | 5,511 |
| Co-rupture Rate | 1.9017087E-4 |
Waiohau: South, 8.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Whakatane: North, 8.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.54 km |
| Min Rate-Weighted Dist | 8.54 km |
| Co-rupture Count | 4,566 |
| Co-rupture Rate | 3.2554442E-5 |
Patoka - Rangiora, 10.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 52 |
| Co-rupture Rate | 0.0 |
Ruahine: North, 11.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 121 |
| Co-rupture Rate | 0.0 |
Wheao: South, 14.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Whaiti South, 14.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awanui, 15.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 29 |
| Co-rupture Rate | 1.0310307E-4 |
Waiohau: North, 17.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
