Waimarama 3 & 4 Details
| Property | Value |
|---|---|
| Rupture Count | 97 |
| Ruptures Above Sect Min Mag | 96 |
| Ruptures w/ Nonzero Rates | 0 |
| Magnitude Range | [6.76, 7.63] |
| Length Range | [18, 144] km |
| Total Rate | 0.0 /yr |
| Multi-Fault Rate | 0.0 /yr (NaN) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 6 |
Table Of Contents
Along-Strike Values

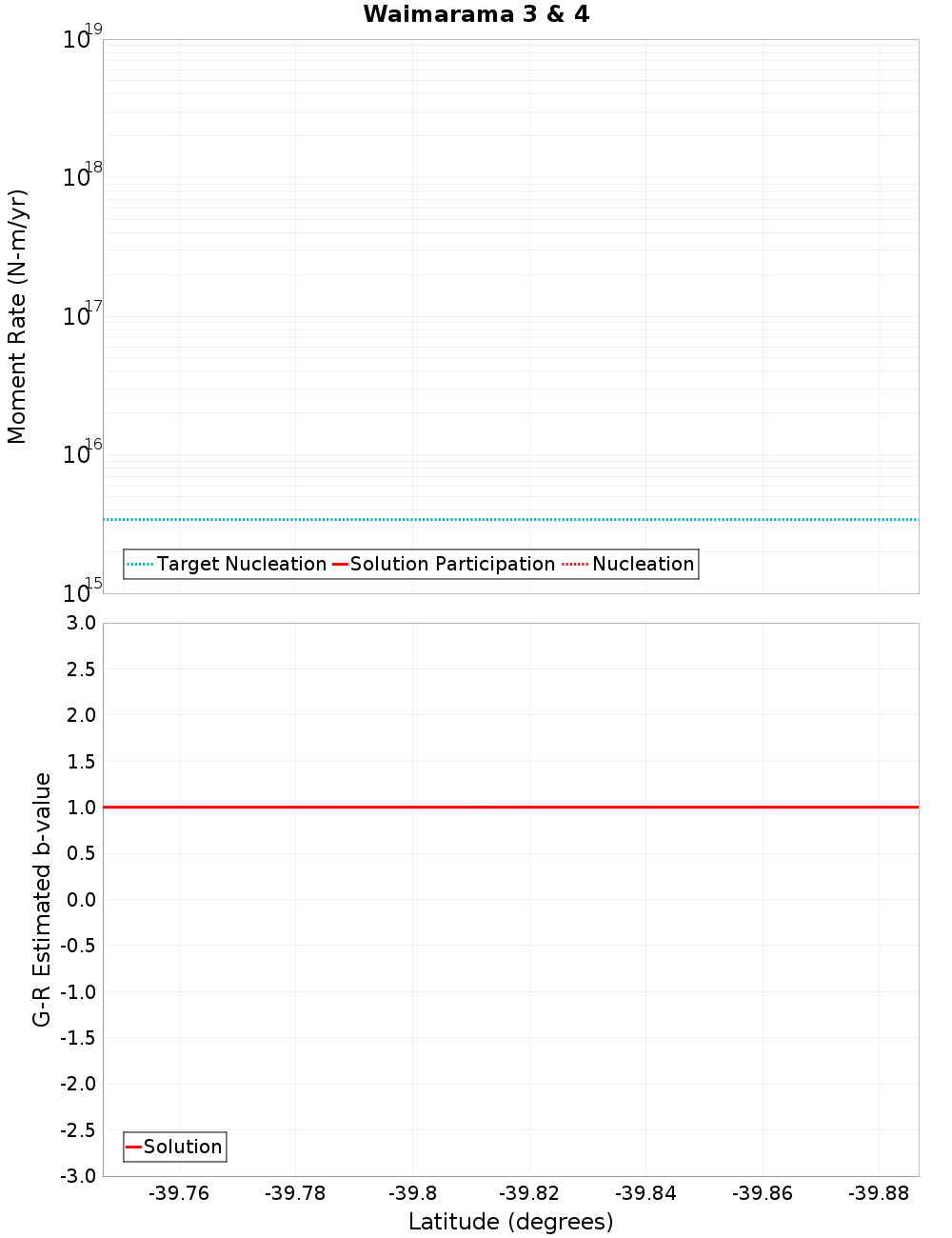

Moment-Rates and b-Values

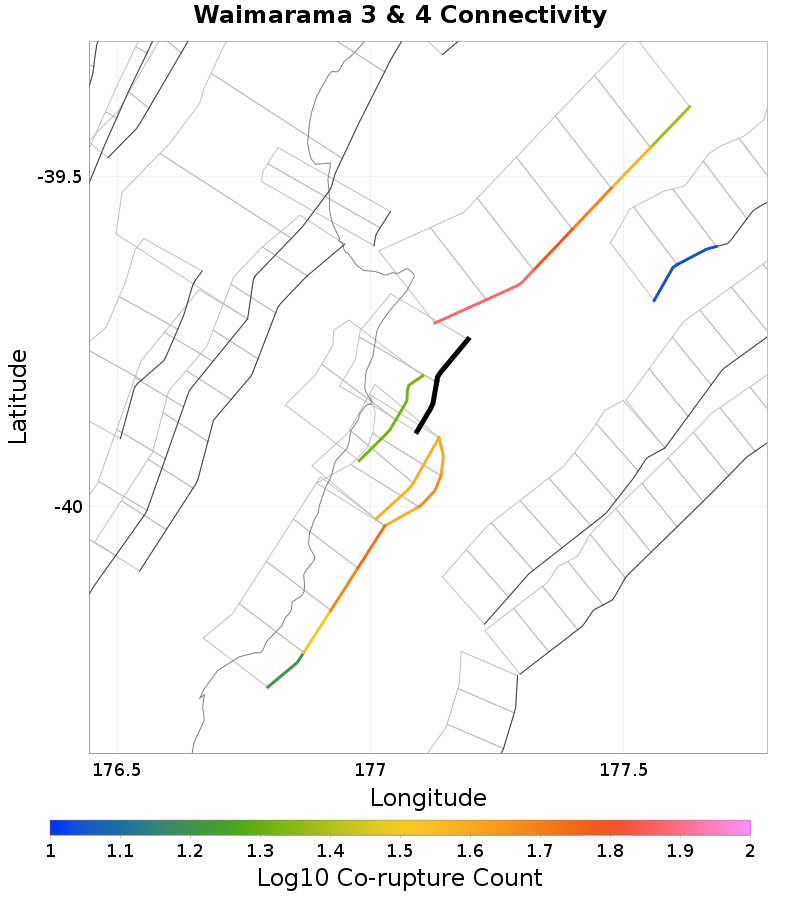

Connectivity
 |  |
|---|
Nearby Sections
Waimarama 1 & 2, 1.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.47 km |
| Co-rupture Count | 21 |
| Co-rupture Rate | 0.0 |
Kairakau 2, 2.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.38 km |
| Co-rupture Count | 46 |
| Co-rupture Rate | 0.0 |
Kairakau North, 2.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.41 km |
| Co-rupture Count | 38 |
| Co-rupture Rate | 0.0 |
Kidnappers Ridge, 3.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.47 km |
| Co-rupture Count | 76 |
| Co-rupture Rate | 0.0 |
Kairakau South, 15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 54 |
| Co-rupture Rate | 0.0 |
Hawke Bay 8, 15.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tukituki Thrust, 16.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
