Waverley - Okaia 1 Details
| Property | Value |
|---|---|
| Rupture Count | 476 |
| Ruptures Above Sect Min Mag | 402 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.29, 7.32] |
| Length Range | [11, 120] km |
| Total Rate | 2.7740555E-4 /yr |
| Multi-Fault Rate | 2.7740555E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

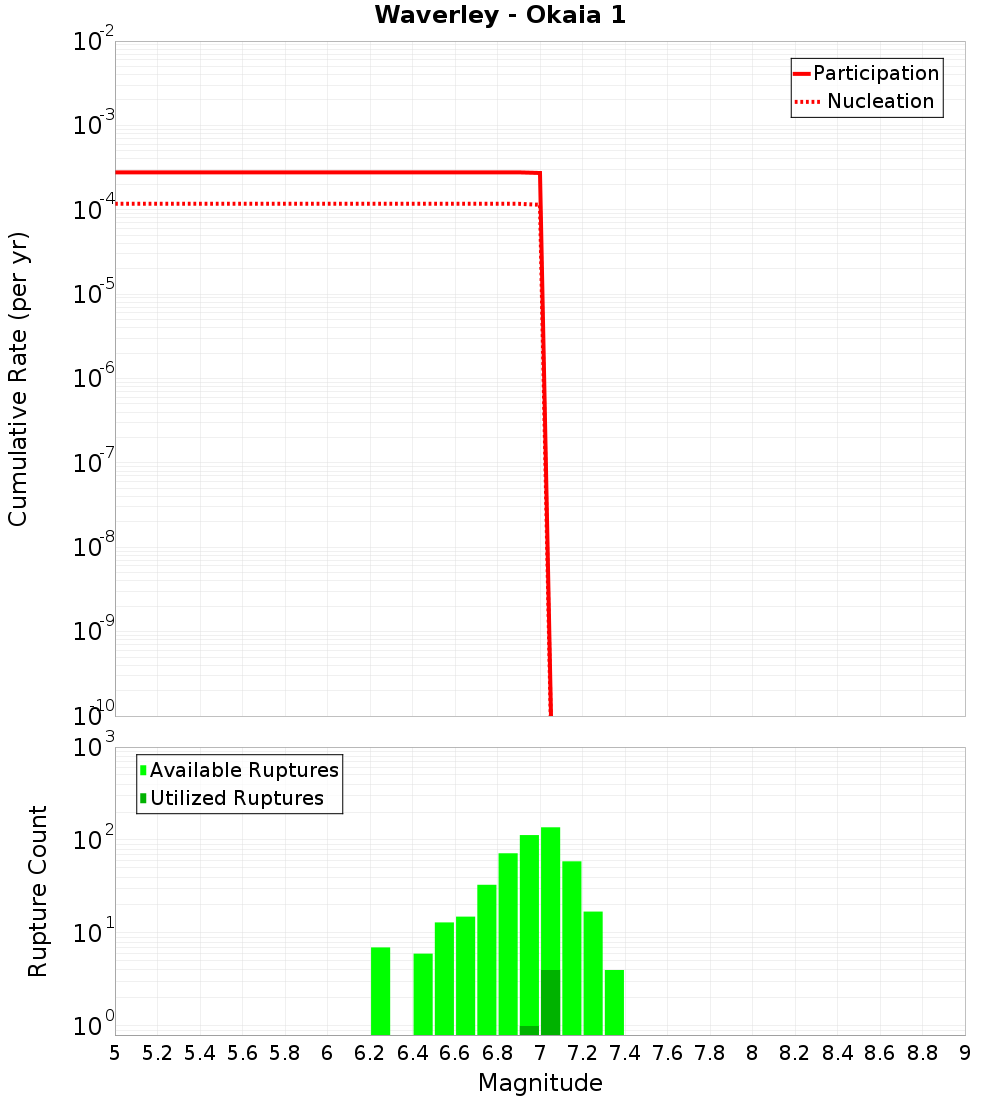

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Ridge Road - Okaia 2, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.26 km |
| Min Rate-Weighted Dist | 1.26 km |
| Co-rupture Count | 189 |
| Co-rupture Rate | 9.199282E-5 |
Okaia 5, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.1 km |
| Min Rate-Weighted Dist | 0.1 km |
| Co-rupture Count | 198 |
| Co-rupture Rate | 8.712029E-5 |
Waitotara 10 & 11, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.33 km |
| Co-rupture Count | 179 |
| Co-rupture Rate | 0.0 |
Waitotara 8 & 9, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.29 km |
| Min Rate-Weighted Dist | 1.9 km |
| Co-rupture Count | 217 |
| Co-rupture Rate | 2.618495E-4 |
Okaia 3, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.89 km |
| Co-rupture Count | 184 |
| Co-rupture Rate | 0.0 |
Moumahaki - Okaia 4, 0.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.23 km |
| Co-rupture Count | 58 |
| Co-rupture Rate | 4.8725333E-6 |
Nukumuru - Waitotara 1-6, 9.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 25 |
| Co-rupture Rate | 7.643676E-5 |
