Alpine: Jacksons to Kaniere Details
| Property | Value |
|---|---|
| Rupture Count | 172,732 |
| Ruptures Above Sect Min Mag | 172,716 |
| Ruptures w/ Nonzero Rates | 121 |
| Magnitude Range | [6.92, 8.54] |
| Length Range | [22, 1,156] km |
| Total Rate | 0.0036989832 /yr |
| Multi-Fault Rate | 0.0032210168 /yr (87.08%) |
| Directly-Connected Faults | 10 |
| All Co-Rupturing Faults | 108 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

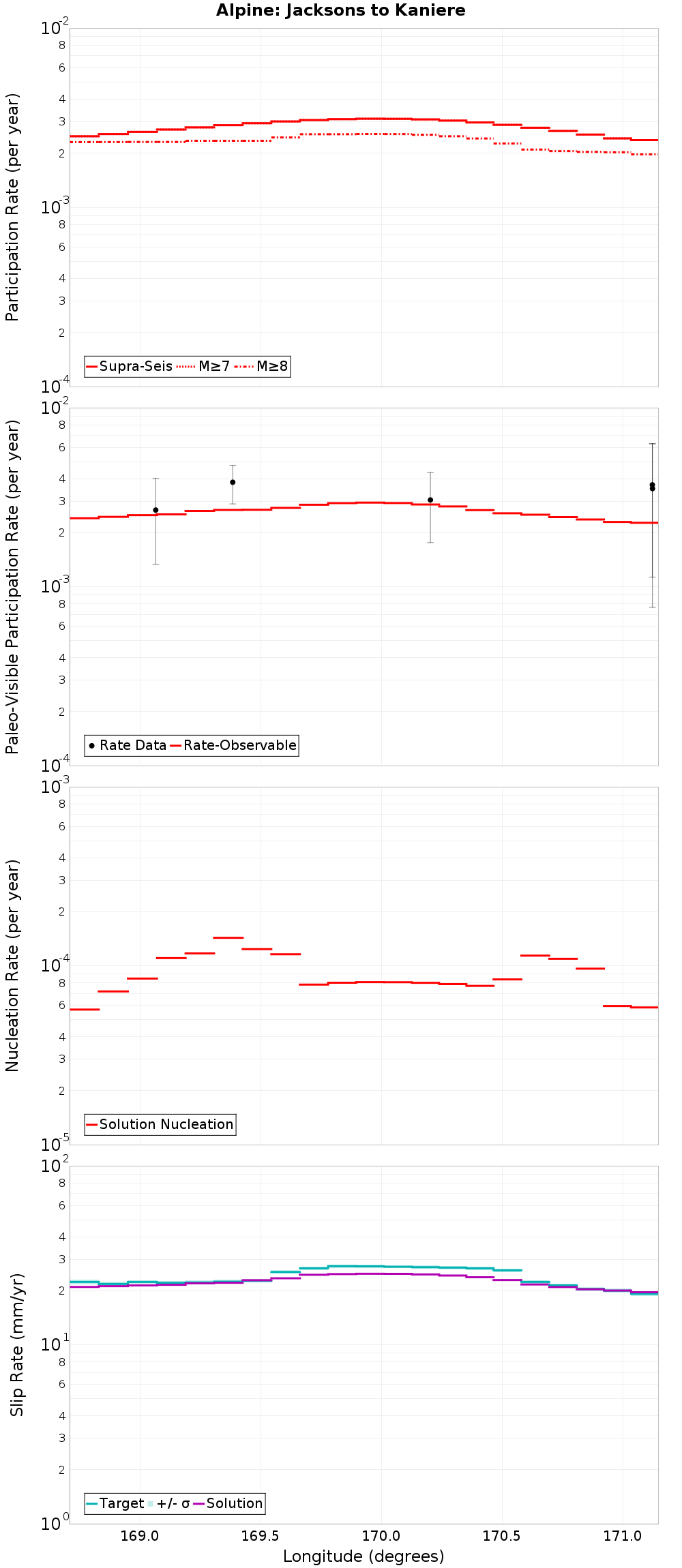

Along-Strike Values
Moment-Rates and b-Values

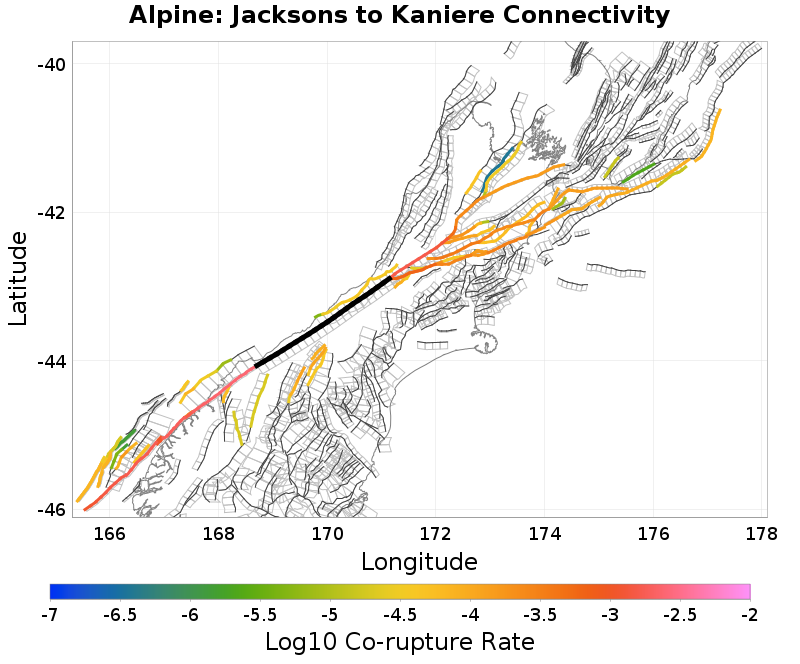

Connectivity
 |  |
|---|
Nearby Sections
Alpine: George to Jacksons, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 130,768 |
| Co-rupture Rate | 0.002468028 |
Kelly, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 103,505 |
| Co-rupture Rate | 6.300468E-4 |
Alpine: Kaniere to Springs Junction, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 43,354 |
| Co-rupture Rate | 0.00162412 |
Hohonu: South, 0.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.83 km |
| Min Rate-Weighted Dist | 0.83 km |
| Co-rupture Count | 2,010 |
| Co-rupture Rate | 3.6797464E-5 |
Browning Pass, 0.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.87 km |
| Min Rate-Weighted Dist | 0.87 km |
| Co-rupture Count | 18,849 |
| Co-rupture Rate | 8.8344386E-5 |
Moonlight North, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.51 km |
| Min Rate-Weighted Dist | 1.51 km |
| Co-rupture Count | 9,105 |
| Co-rupture Rate | 1.9311254E-5 |
Huxley, 2.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.42 km |
| Min Rate-Weighted Dist | 2.42 km |
| Co-rupture Count | 1,183 |
| Co-rupture Rate | 8.6235865E-5 |
Hopkins, 6.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.17 km |
| Min Rate-Weighted Dist | 6.17 km |
| Co-rupture Count | 4,545 |
| Co-rupture Rate | 1.13564856E-4 |
Barrier Range, 9.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.41 km |
| Min Rate-Weighted Dist | 9.41 km |
| Co-rupture Count | 2,166 |
| Co-rupture Rate | 3.878151E-5 |
Barn, 10.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,763 |
| Co-rupture Rate | 7.0573838E-6 |
Ostler North, 14.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,010 |
| Co-rupture Rate | 0.0 |
Hunter Valley, 15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 15 km |
| Min Rate-Weighted Dist | 15 km |
| Co-rupture Count | 1,860 |
| Co-rupture Rate | 1.2042416E-4 |
Wanaka, 15.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lake Heron, 17.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maimai: South, 18.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
