Hohonu: South Details
| Property | Value |
|---|---|
| Rupture Count | 6,179 |
| Ruptures Above Sect Min Mag | 6,169 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [6.95, 8.41] |
| Length Range | [23, 761] km |
| Total Rate | 8.529388E-5 /yr |
| Multi-Fault Rate | 5.2584997E-5 /yr (61.65%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 76 |
Table Of Contents

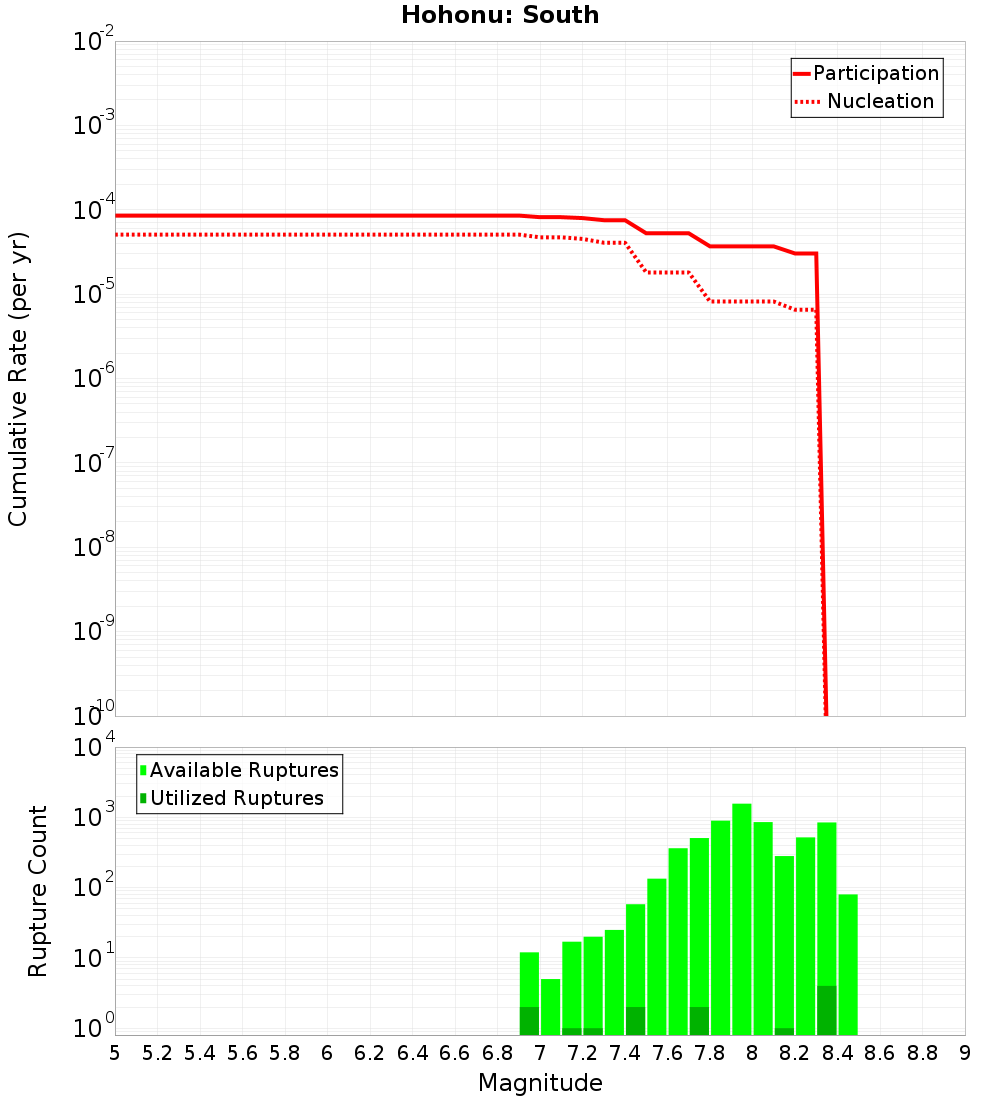

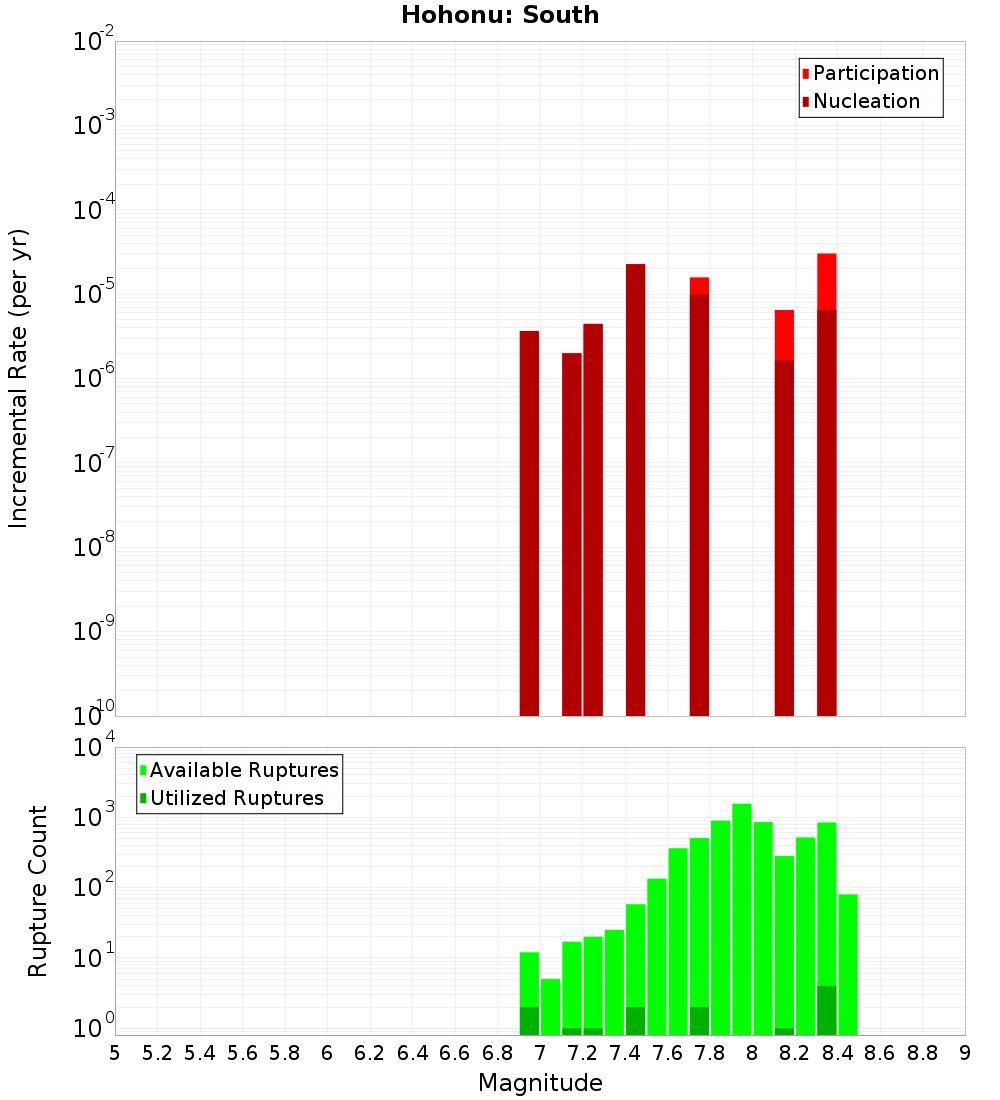

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

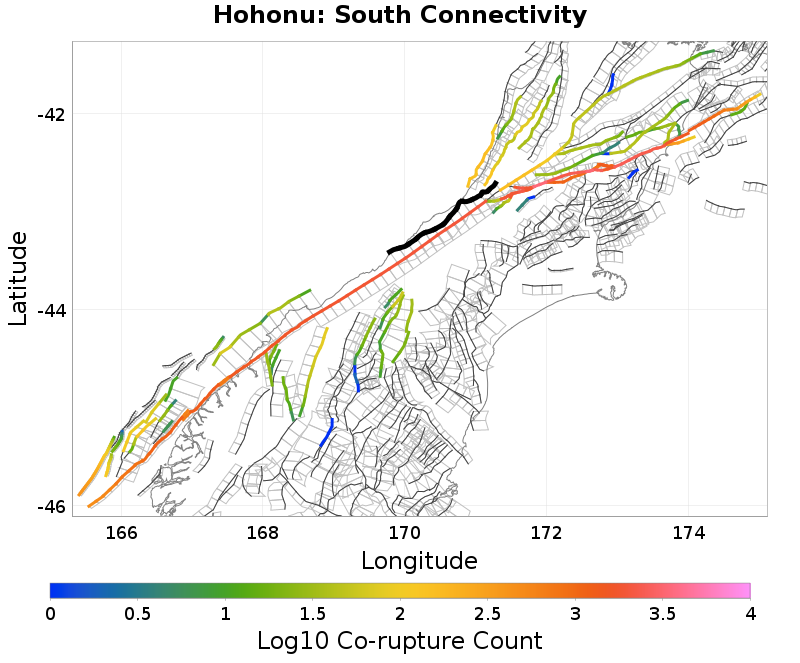

Connectivity
 |  |
|---|
Nearby Sections
Alpine: Kaniere to Springs Junction, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.26 km |
| Co-rupture Count | 161 |
| Co-rupture Rate | 0.0 |
Kelly, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.17 km |
| Co-rupture Count | 2,287 |
| Co-rupture Rate | 0.0 |
Alpine: Jacksons to Kaniere, 0.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.83 km |
| Min Rate-Weighted Dist | 0.83 km |
| Co-rupture Count | 2,010 |
| Co-rupture Rate | 3.6797464E-5 |
Browning Pass, 3.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.12 km |
| Co-rupture Count | 1,742 |
| Co-rupture Rate | 0.0 |
Maimai: South, 7.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.36 km |
| Co-rupture Count | 128 |
| Co-rupture Rate | 0.0 |
Hope: Taramakau, 10.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,211 |
| Co-rupture Rate | 0.0 |
Cape Foulwind 1, 14.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 14.49 km |
| Min Rate-Weighted Dist | 14.49 km |
| Co-rupture Count | 186 |
| Co-rupture Rate | 1.5787535E-5 |
