Maleme Details

Property	Value
Rupture Count	4,831
Ruptures Above Sect Min Mag	4,673
Ruptures w/ Nonzero Rates	6
Magnitude Range	[6.09, 7.66]
Length Range	[9, 181] km
Total Rate	5.475679E-4 /yr
Multi-Fault Rate	5.475679E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	23

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

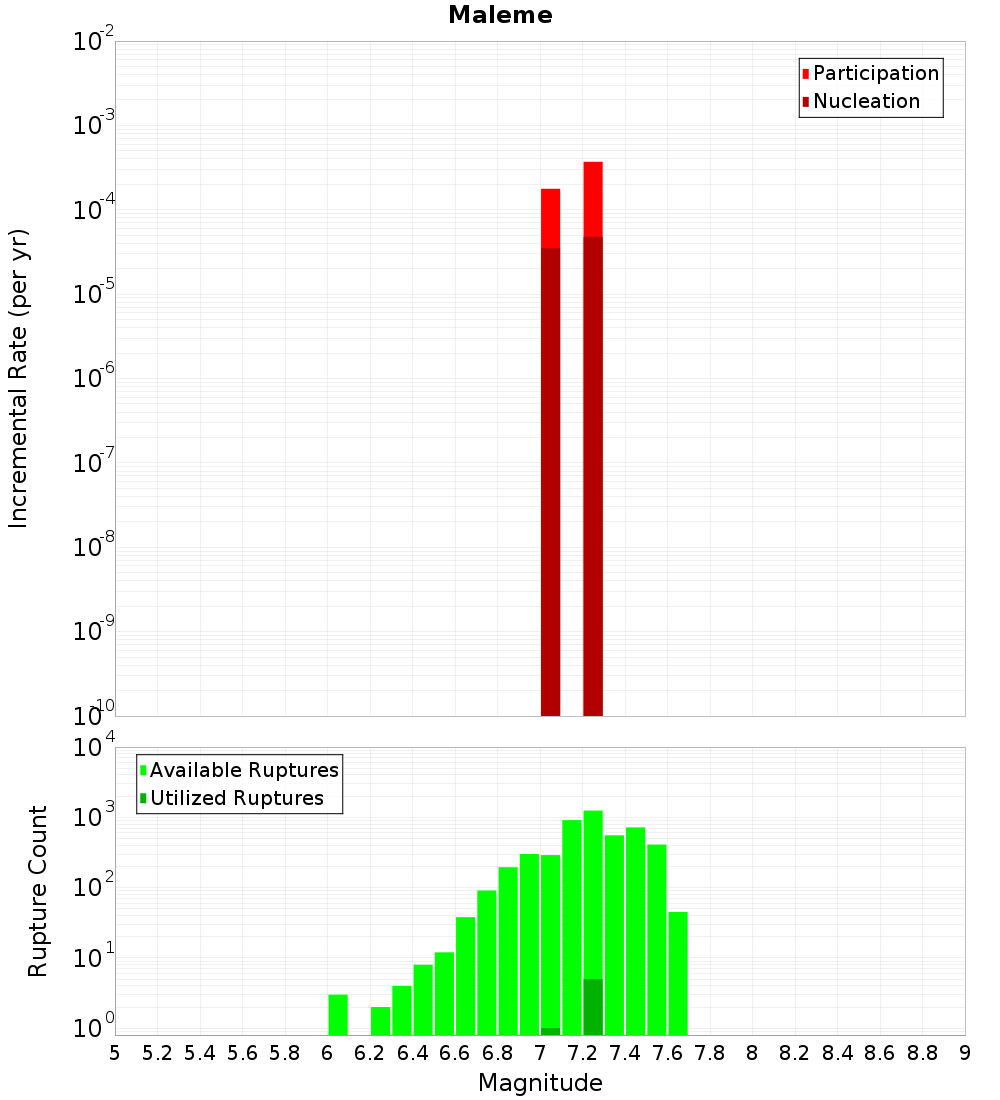

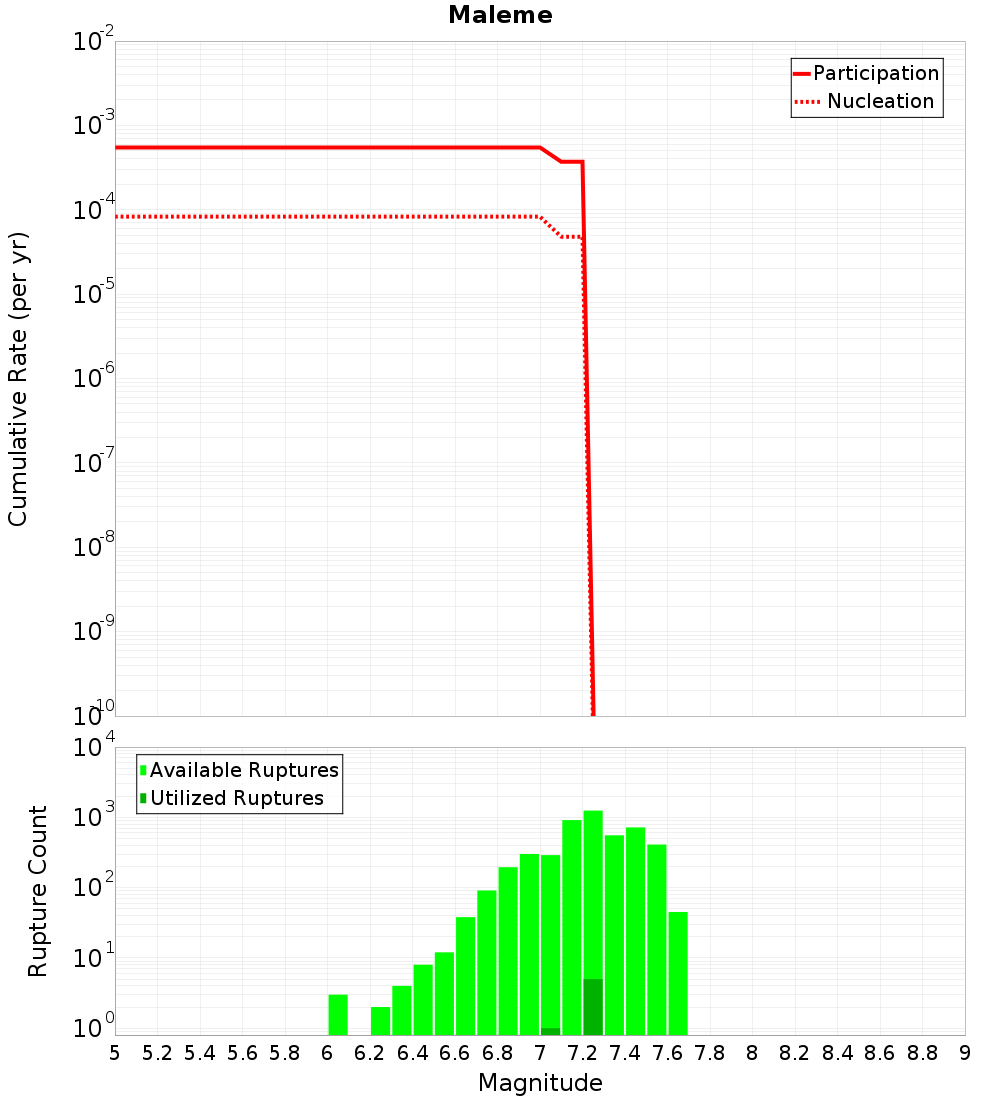

Magnitude-Frequency Distribution

Incremental	Cumulative

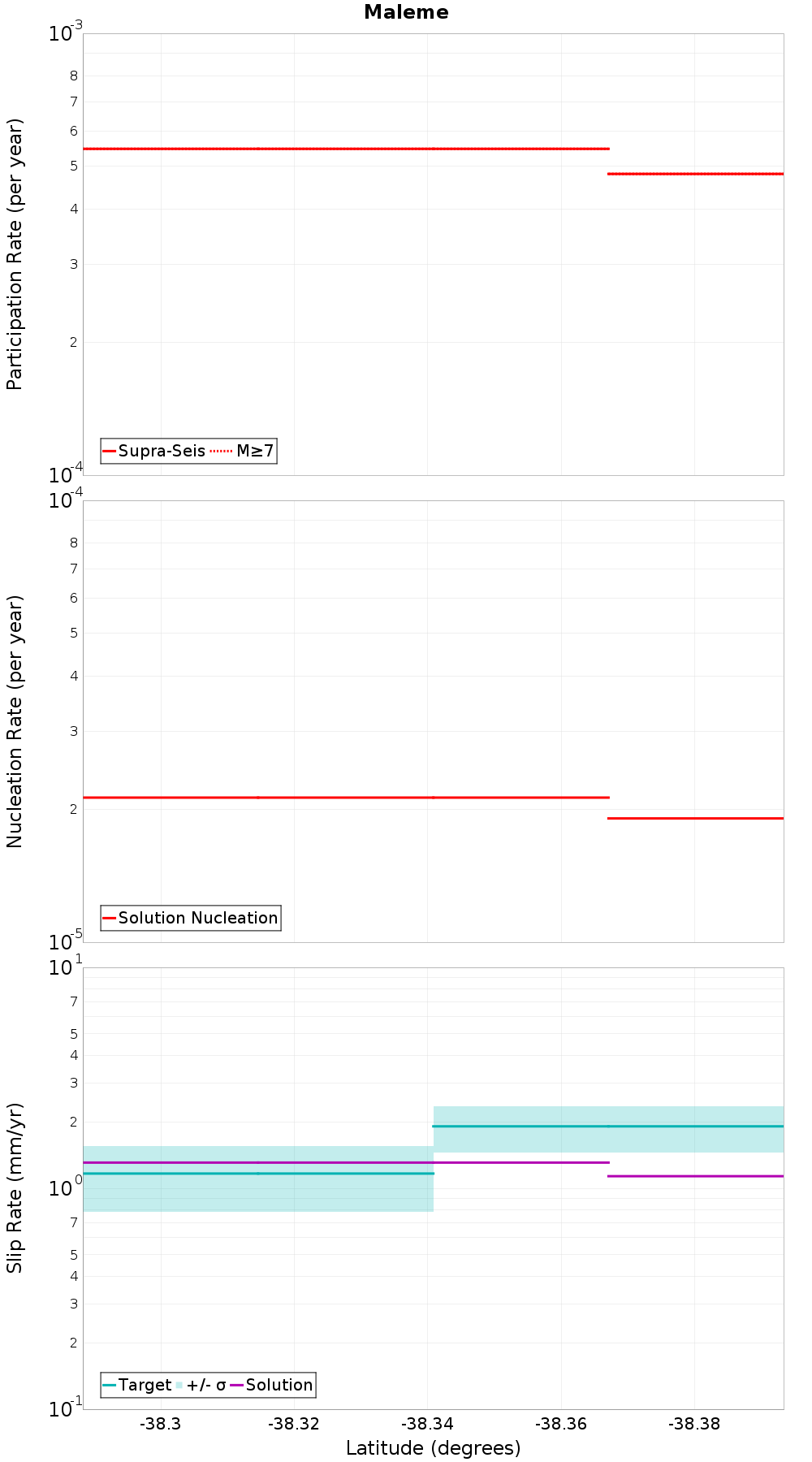

Along-Strike Values

Moment-Rates and b-Values

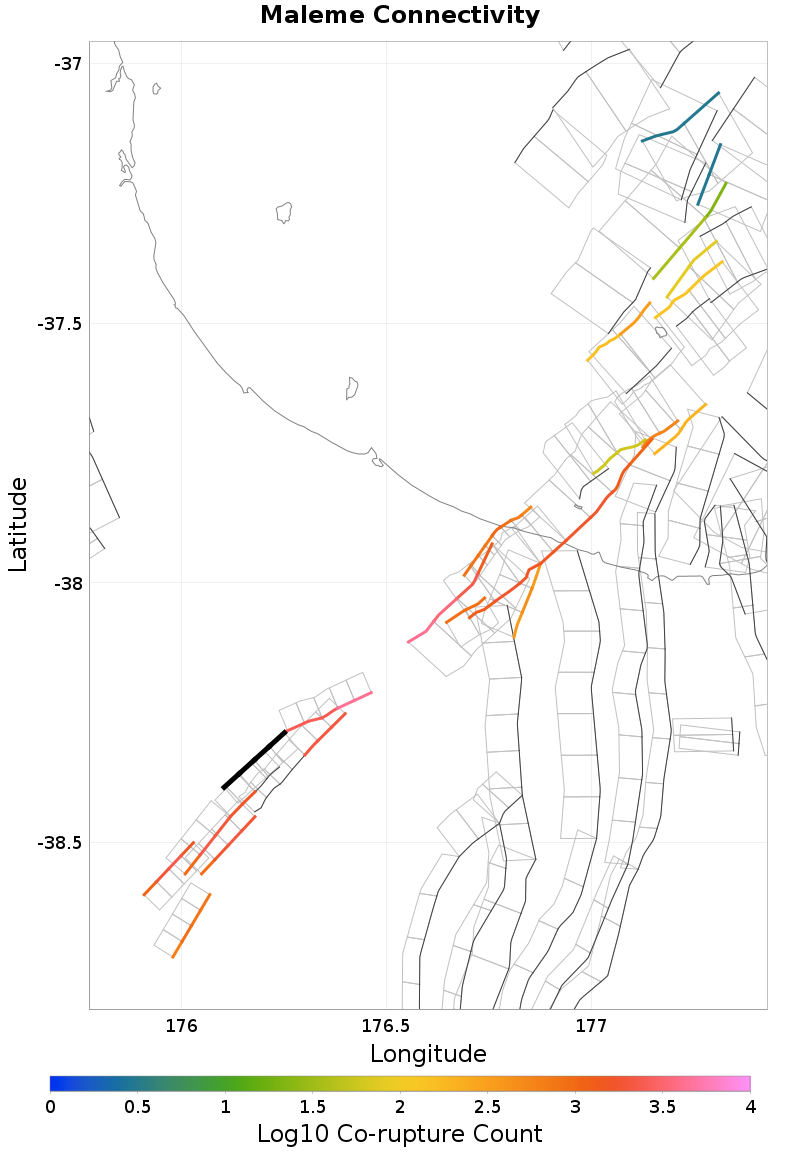

Connectivity

Nearby Sections

Fault Section
Puketerata North, 0.17 km away
Paeroa, 0.33 km away
Orakeikorako, 0.38 km away
EarthquakeFlat - Tumunui, 0.79 km away
Puketerata, 3.57 km away
Whangamata West, 13.07 km away
Kaiapo, 19.73 km away

Puketerata North, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.29 km
Min Rate-Weighted Dist	0.29 km
Co-rupture Count	1,625
Co-rupture Rate	6.7085086E-5

Paeroa, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.45 km
Co-rupture Count	2,140
Co-rupture Rate	0.0

Orakeikorako, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.38 km
Min Rate-Weighted Dist	0.38 km
Co-rupture Count	2,159
Co-rupture Rate	2.8198306E-4

EarthquakeFlat - Tumunui, 0.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.79 km
Min Rate-Weighted Dist	0.79 km
Co-rupture Count	4,505
Co-rupture Rate	5.475679E-4

Puketerata, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.57 km
Min Rate-Weighted Dist	3.57 km
Co-rupture Count	2,267
Co-rupture Rate	8.8364504E-5

Whangamata West, 13.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	false
Co-rupture Count	2,643
Co-rupture Rate	5.71388E-5

Kaiapo, 19.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	false
Co-rupture Count	1,161
Co-rupture Rate	3.7034755E-4
