Moonlight North Details
| Property | Value |
|---|---|
| Rupture Count | 9,427 |
| Ruptures Above Sect Min Mag | 9,422 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.93, 8.44] |
| Length Range | [23, 926] km |
| Total Rate | 6.0793533E-5 /yr |
| Multi-Fault Rate | 6.0793533E-5 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 83 |
Table Of Contents

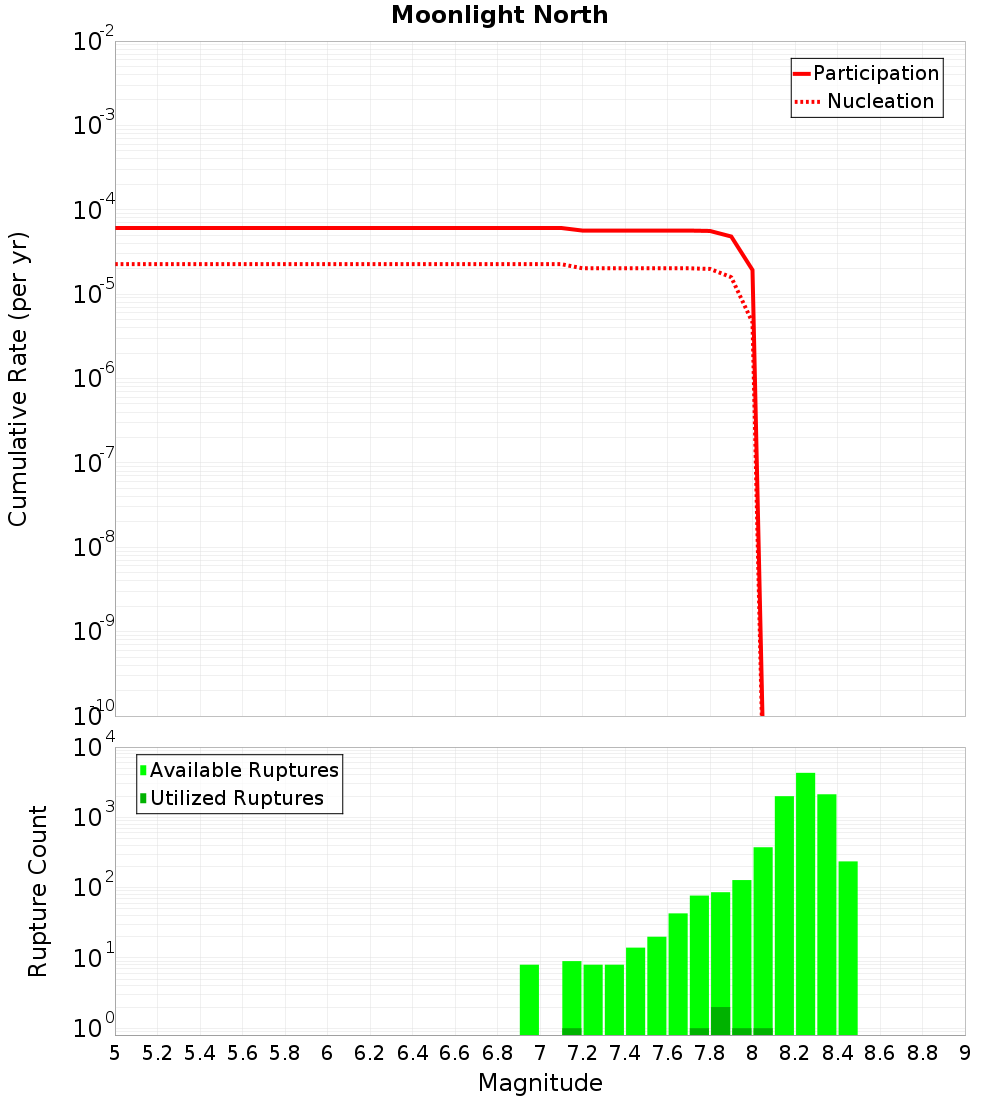

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
West Wakatipu, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.2 km |
| Min Rate-Weighted Dist | 0.2 km |
| Co-rupture Count | 199 |
| Co-rupture Rate | 1.9311254E-5 |
Alpine: Jacksons to Kaniere, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.51 km |
| Min Rate-Weighted Dist | 1.51 km |
| Co-rupture Count | 9,105 |
| Co-rupture Rate | 1.9311254E-5 |
Moonlight South, 4.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.72 km |
| Min Rate-Weighted Dist | 4.72 km |
| Co-rupture Count | 28 |
| Co-rupture Rate | 3.7311085E-5 |
Livingstone, 7.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.91 km |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Alpine: George to Jacksons, 8.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.52 km |
| Min Rate-Weighted Dist | 8.52 km |
| Co-rupture Count | 206 |
| Co-rupture Rate | 4.1711937E-6 |
Barn, 13.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 13.98 km |
| Min Rate-Weighted Dist | 13.98 km |
| Co-rupture Count | 38 |
| Co-rupture Rate | 3.237571E-5 |
Motatapu, 19.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
