Sailor Details

Property	Value
Rupture Count	117
Ruptures Above Sect Min Mag	114
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.66, 8.00]
Length Range	[16, 311] km
Total Rate	2.3179198E-5 /yr
Multi-Fault Rate	3.4447976E-6 /yr (14.86%)
Directly-Connected Faults	1
All Co-Rupturing Faults	14

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

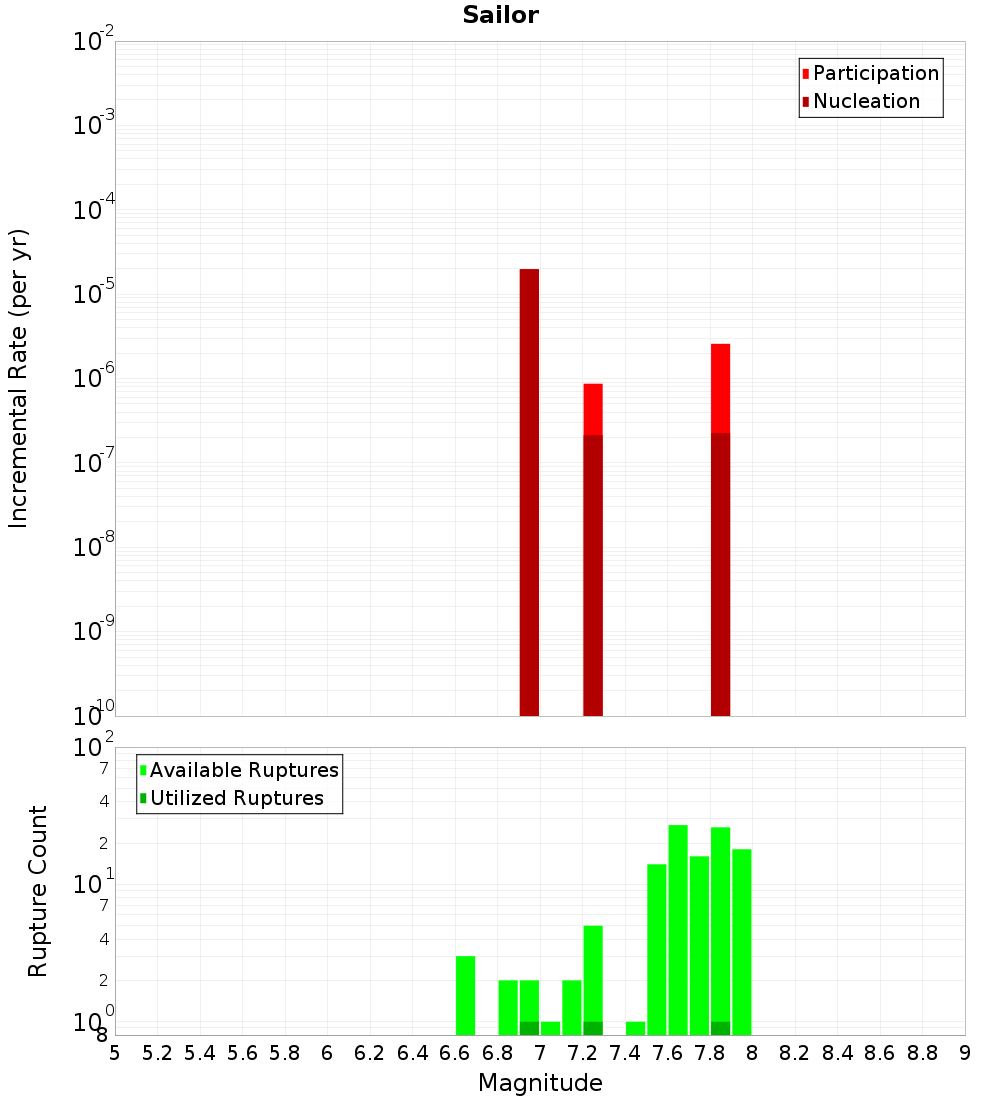

Magnitude-Frequency Distribution

Incremental	Cumulative

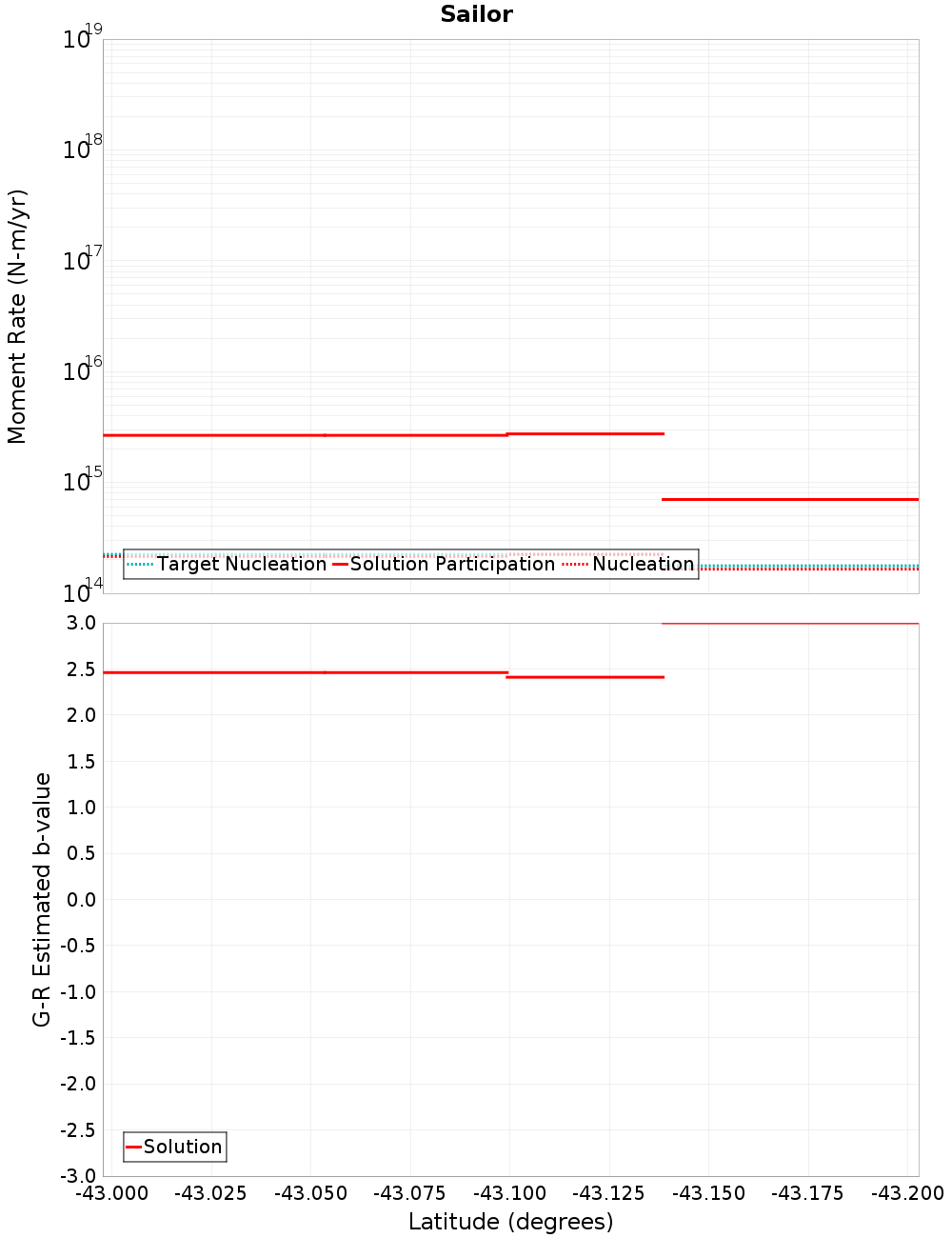

Along-Strike Values

Moment-Rates and b-Values

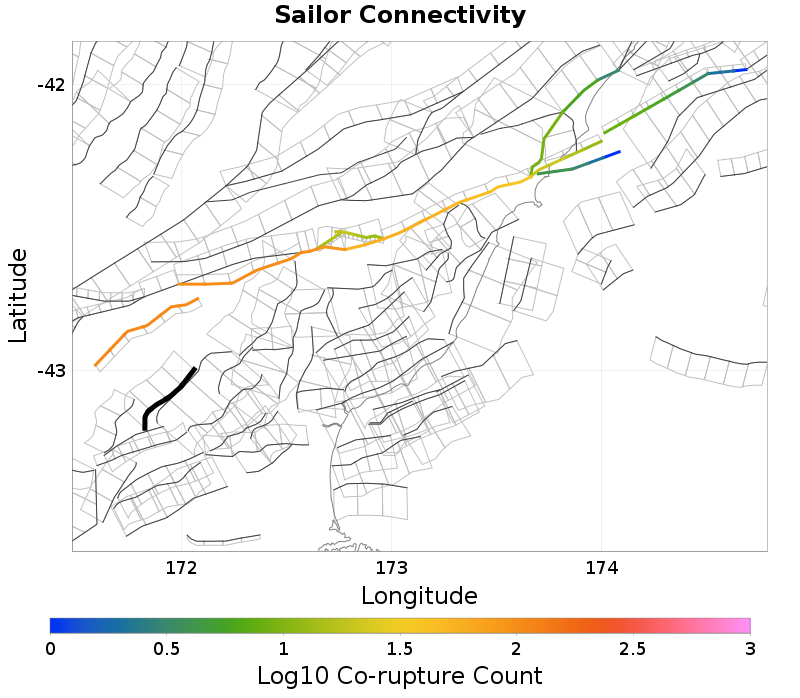

Connectivity

Nearby Sections

Fault Section
Esk South, 0.7 km away
Torlesse, 1.39 km away
Cheeseman, 4.41 km away
Porters Pass, 7.26 km away
Pancake, 10.92 km away
Poulter, 11.28 km away
Big Ben, 13.73 km away
Lees Valley, 14.17 km away
Esk North, 15.62 km away
Kowai - View Hill, 16.35 km away

Esk South, 0.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Torlesse, 1.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cheeseman, 4.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Porters Pass, 7.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pancake, 10.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Poulter, 11.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	11.28 km
Min Rate-Weighted Dist	11.87 km
Co-rupture Count	111
Co-rupture Rate	3.4447976E-6

Big Ben, 13.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lees Valley, 14.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Esk North, 15.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kowai - View Hill, 16.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
