Starvation - Ashley Details

Property	Value
Rupture Count	273
Ruptures Above Sect Min Mag	271
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.86, 7.98]
Length Range	[21, 234] km
Total Rate	2.7408332E-5 /yr
Multi-Fault Rate	2.7408332E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	12

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

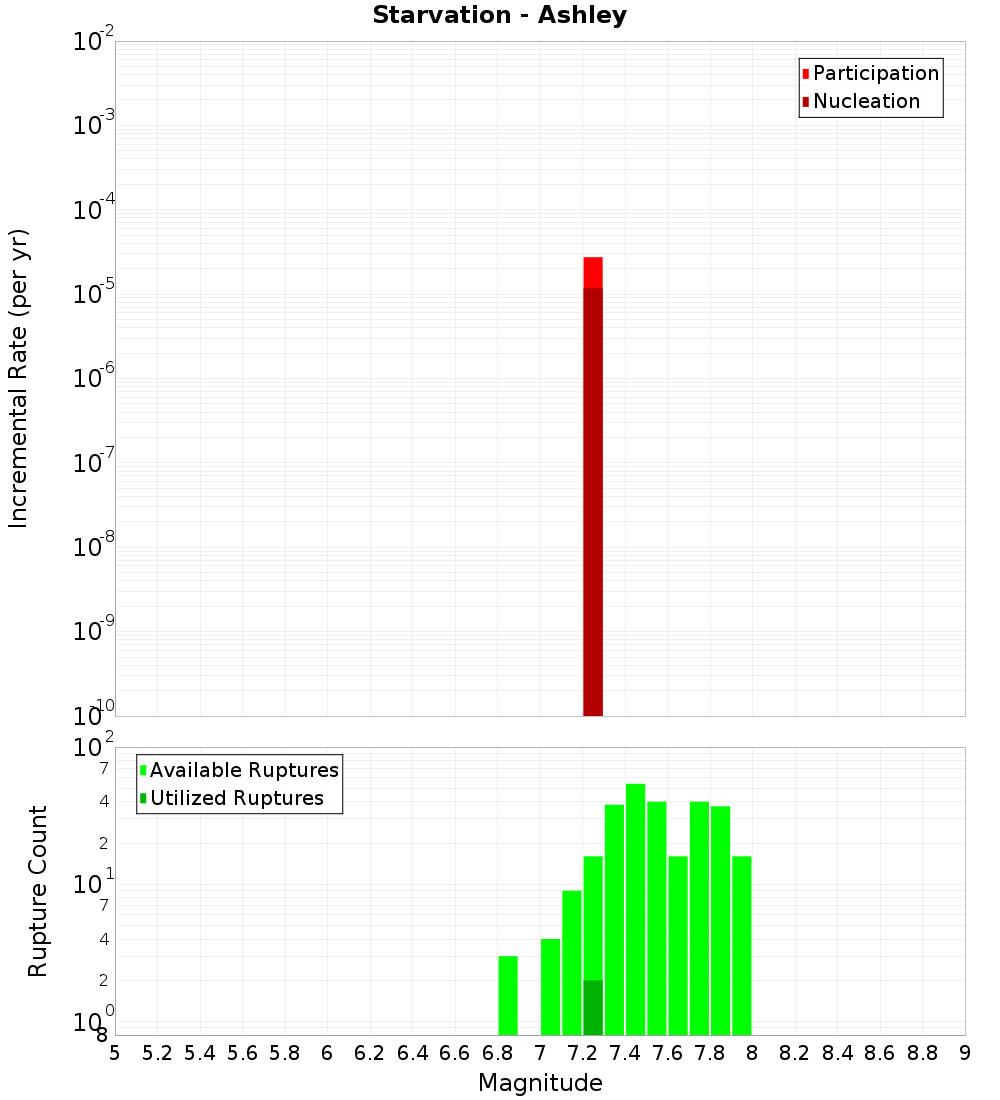

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

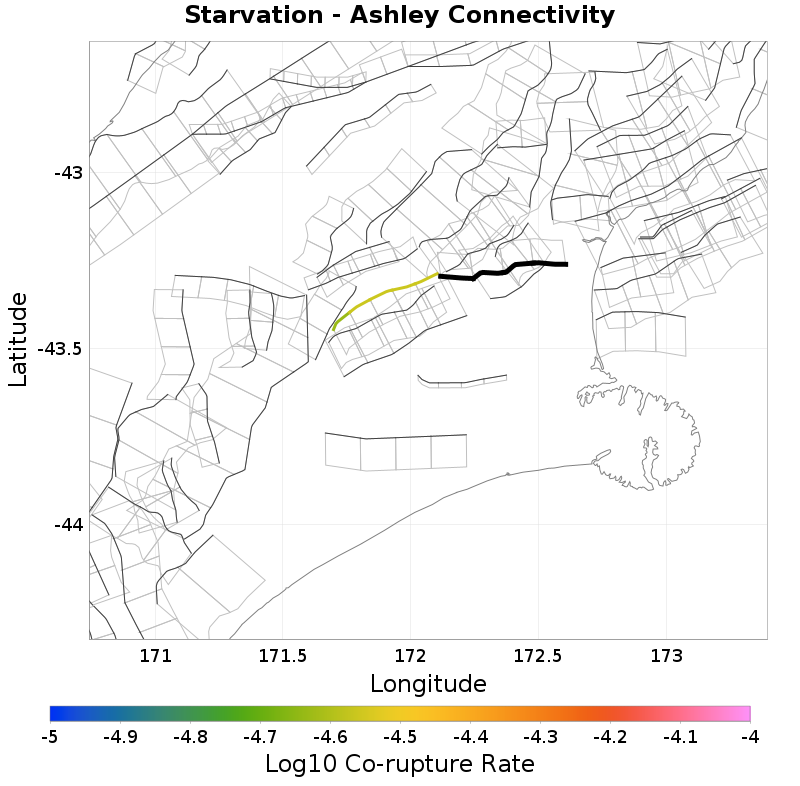

Connectivity

Nearby Sections

Fault Section	Fault Section
Springbank, 0.18 km away	AmberBlyth, 7.86 km away
Mt Lawry, 0.19 km away	Doctors, 8.76 km away
Pancake, 0.28 km away	Porters Pass, 10.32 km away
Lees Valley, 0.28 km away	Waikuku, 11.22 km away
Esk South, 0.31 km away	Pegasus Bay, 12.18 km away
Kowai - View Hill, 0.87 km away	Torlesse, 12.46 km away
Knowles Top, 1.58 km away	Kaiwara South, 14.42 km away
High Peak - Sheffield, 3.73 km away	Mt Arden, 16.2 km away
Boby Stream, 5.05 km away	Lowry, 19.22 km away
Hororata, 5.87 km away

Springbank, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.18 km
Co-rupture Count	74
Co-rupture Rate	0.0

Mt Lawry, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.48 km
Co-rupture Count	10
Co-rupture Rate	0.0

Pancake, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lees Valley, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.28 km
Co-rupture Count	61
Co-rupture Rate	0.0

Esk South, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kowai - View Hill, 0.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.87 km
Min Rate-Weighted Dist	0.87 km
Co-rupture Count	50
Co-rupture Rate	2.7408332E-5

Knowles Top, 1.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	6.55 km
Co-rupture Count	2
Co-rupture Rate	0.0

High Peak - Sheffield, 3.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.73 km
Co-rupture Count	67
Co-rupture Rate	0.0

Boby Stream, 5.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hororata, 5.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	5.87 km
Co-rupture Count	108
Co-rupture Rate	0.0

AmberBlyth, 7.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Doctors, 8.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Porters Pass, 10.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	false
Co-rupture Count	47
Co-rupture Rate	0.0

Waikuku, 11.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pegasus Bay, 12.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Torlesse, 12.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	12.46 km
Co-rupture Count	128
Co-rupture Rate	0.0

Kaiwara South, 14.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Arden, 16.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lowry, 19.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
