Te Rapa 2 Details
| Property | Value |
|---|---|
| Rupture Count | 25,798 |
| Ruptures Above Sect Min Mag | 25,786 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.41, 8.54] |
| Length Range | [13, 1,156] km |
| Total Rate | 1.4977294E-4 /yr |
| Multi-Fault Rate | 1.4977294E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 85 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

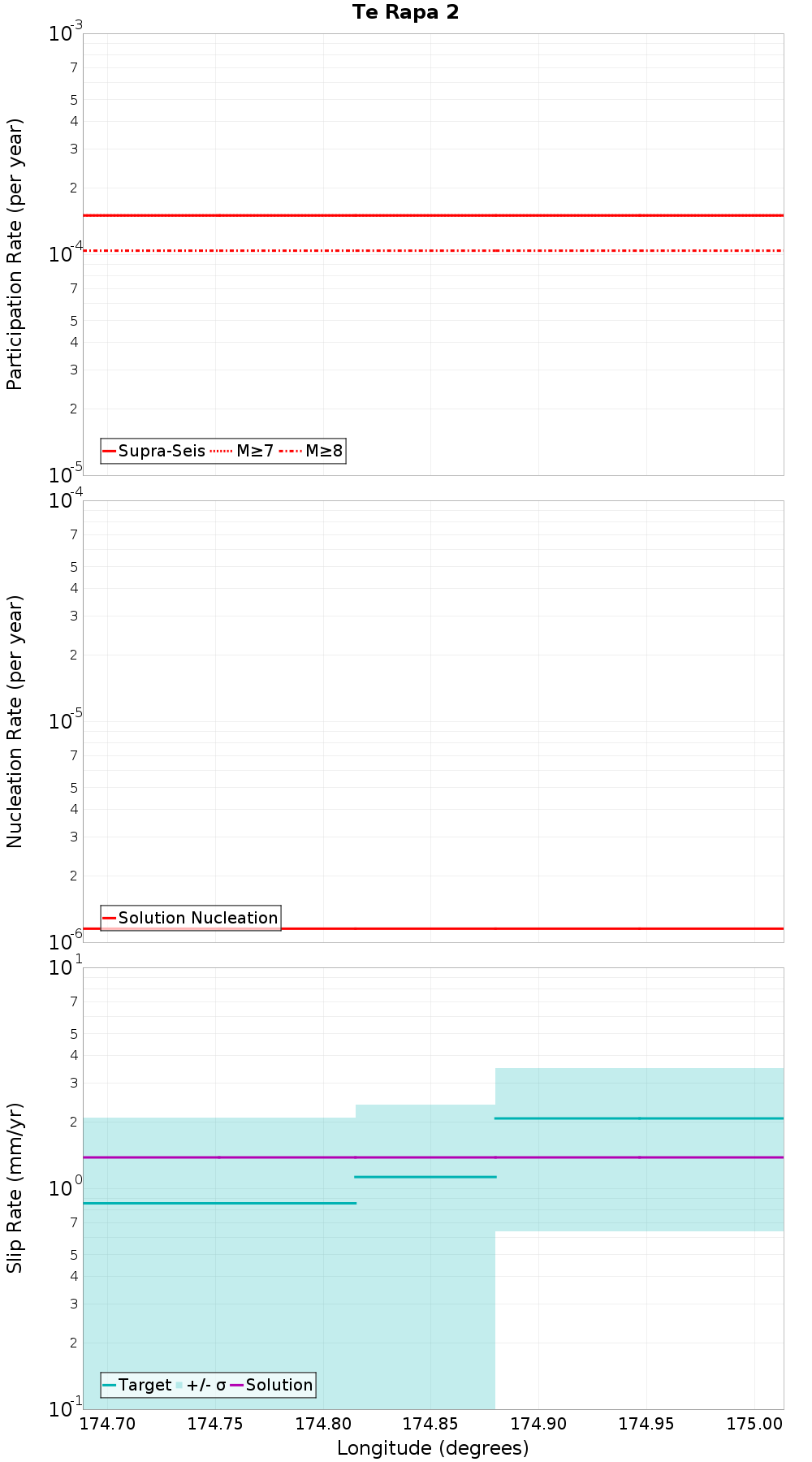

Along-Strike Values
Moment-Rates and b-Values

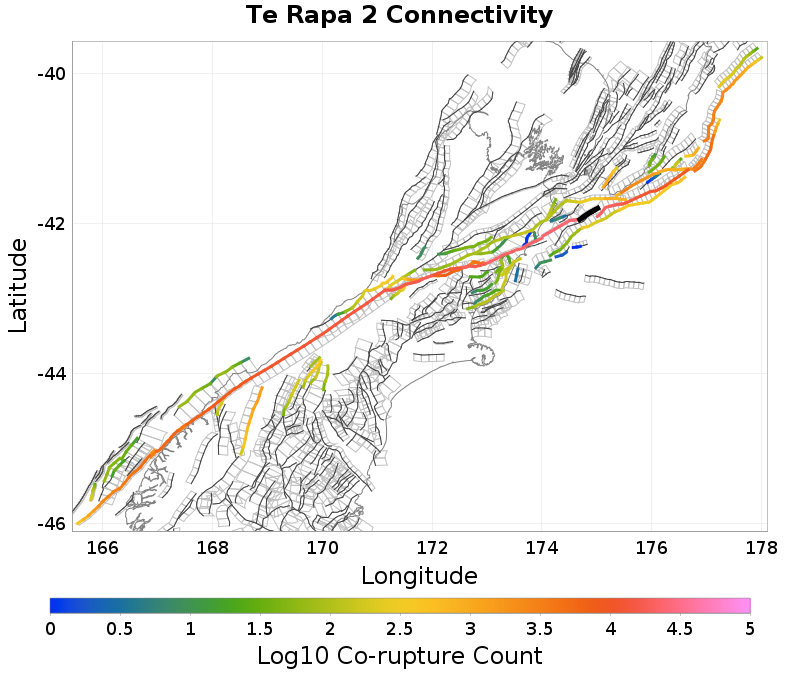

Connectivity
 |  |
|---|
Nearby Sections
Te Rapa 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 24,433 |
| Co-rupture Rate | 1.4977294E-4 |
Upper Slope, 0.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opouawe - Uruti, 0.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.63 km |
| Min Rate-Weighted Dist | 0.63 km |
| Co-rupture Count | 20,923 |
| Co-rupture Rate | 1.4977294E-4 |
Campbell Bank, 3.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kekerengu Bank, 5.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.36 km |
| Co-rupture Count | 296 |
| Co-rupture Rate | 0.0 |
Chancet, 11.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Pahaua, 11.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 769 |
| Co-rupture Rate | 1.3711887E-5 |
BooBoo, 13.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,030 |
| Co-rupture Rate | 4.597092E-5 |
Hope: Te Rapa, 14.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 23,895 |
| Co-rupture Rate | 1.4977294E-4 |
Wharanui, 18.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDYz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
