Alpine: Resolution - Dagg Details

Property	Value
Rupture Count	107,258
Ruptures Above Sect Min Mag	107,253
Ruptures w/ Nonzero Rates	100
Magnitude Range	[6.79, 8.44]
Length Range	[22, 1,156] km
Total Rate	0.004181287 /yr
Multi-Fault Rate	0.004181287 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	92

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

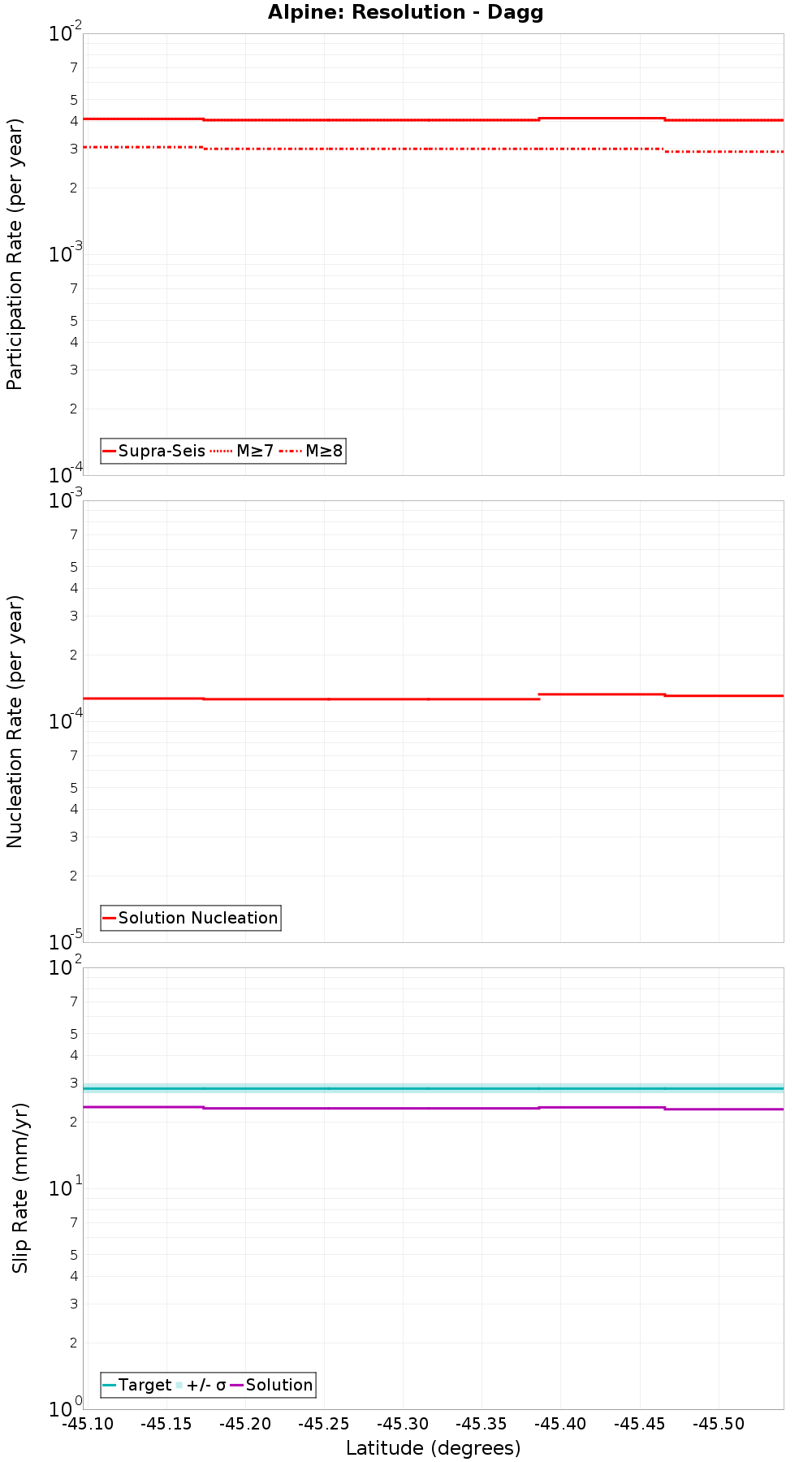

Along-Strike Values

Moment-Rates and b-Values

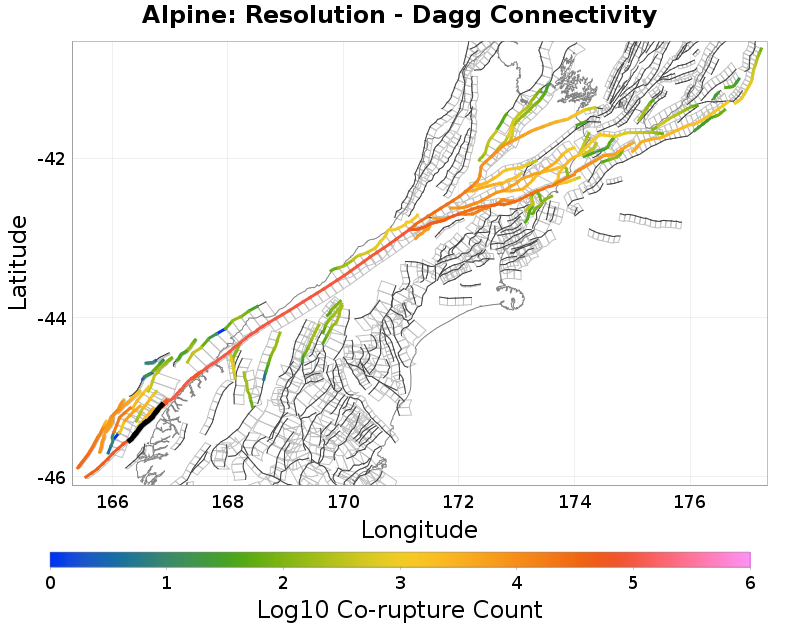

Connectivity

Nearby Sections

Fault Section
Alpine: Resolution - Charles, 0 km away
South Wedge 1, 0.07 km away
South Wedge 2, 0.17 km away
Alpine: Resolution - Five Fingers, 0.91 km away
South Wedge 3-6-10, 1.76 km away
Alpine: Nancy, 2.58 km away
Central Wedge 4 - South Wedge 411, 4.03 km away
South Wedge 5, 5.57 km away
Alpine: Caswell, 11.24 km away
Central Wedge 1 & 2 & 3, 12.75 km away
Five Fingers, 18.37 km away

Alpine: Resolution - Charles, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	0 km
Co-rupture Count	42,493
Co-rupture Rate	0.0022959404

South Wedge 1, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.07 km
Min Rate-Weighted Dist	1.54 km
Co-rupture Count	2,931
Co-rupture Rate	9.5073774E-5

South Wedge 2, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.17 km
Min Rate-Weighted Dist	0.17 km
Co-rupture Count	2,781
Co-rupture Rate	8.476238E-5

Alpine: Resolution - Five Fingers, 0.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.91 km
Min Rate-Weighted Dist	0.91 km
Co-rupture Count	63,405
Co-rupture Rate	0.0038398486

South Wedge 3-6-10, 1.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	1.76 km
Min Rate-Weighted Dist	2.8 km
Co-rupture Count	6,605
Co-rupture Rate	2.5414088E-4

Alpine: Nancy, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.58 km
Min Rate-Weighted Dist	2.58 km
Co-rupture Count	63,053
Co-rupture Rate	0.0017616269

Central Wedge 4 - South Wedge 411, 4.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	2,381
Co-rupture Rate	0.0

South Wedge 5, 5.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	5.57 km
Min Rate-Weighted Dist	8.18 km
Co-rupture Count	19,804
Co-rupture Rate	1.7215738E-4

Alpine: Caswell, 11.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	104,999
Co-rupture Rate	0.0033035958

Central Wedge 1 & 2 & 3, 12.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	348
Co-rupture Rate	0.0

Five Fingers, 18.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
