Browning Pass Details
| Property | Value |
|---|---|
| Rupture Count | 24,052 |
| Ruptures Above Sect Min Mag | 24,027 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.19, 8.39] |
| Length Range | [11, 895] km |
| Total Rate | 9.0101785E-5 /yr |
| Multi-Fault Rate | 9.0101785E-5 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 65 |
Table Of Contents

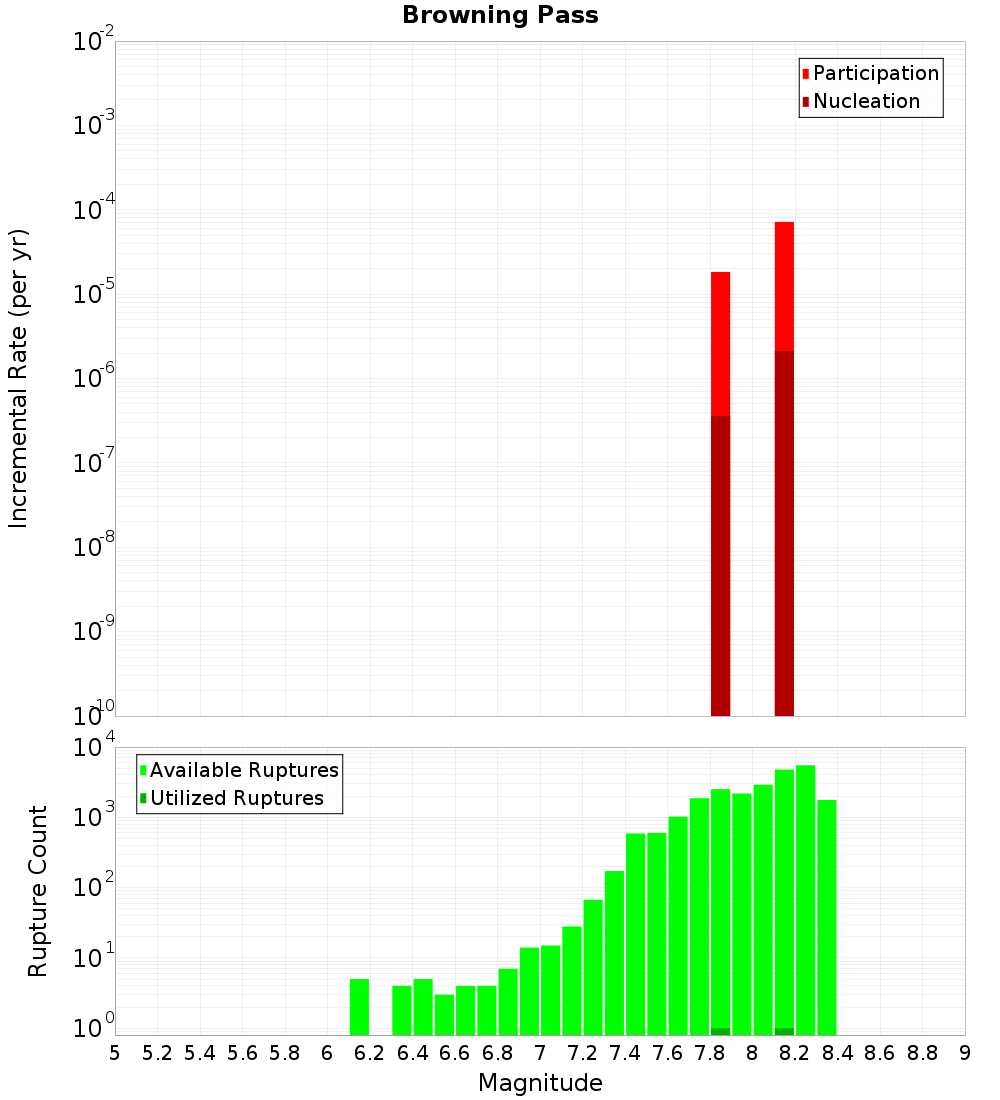

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

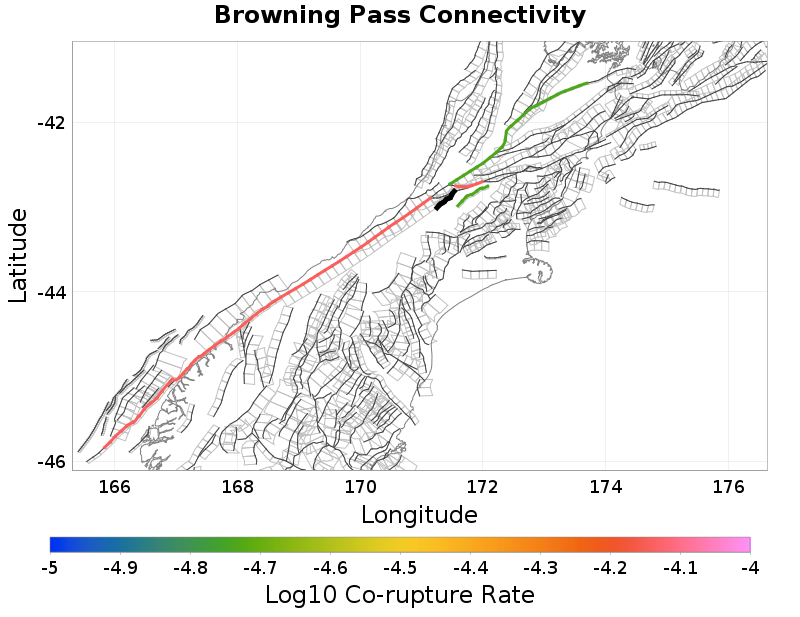

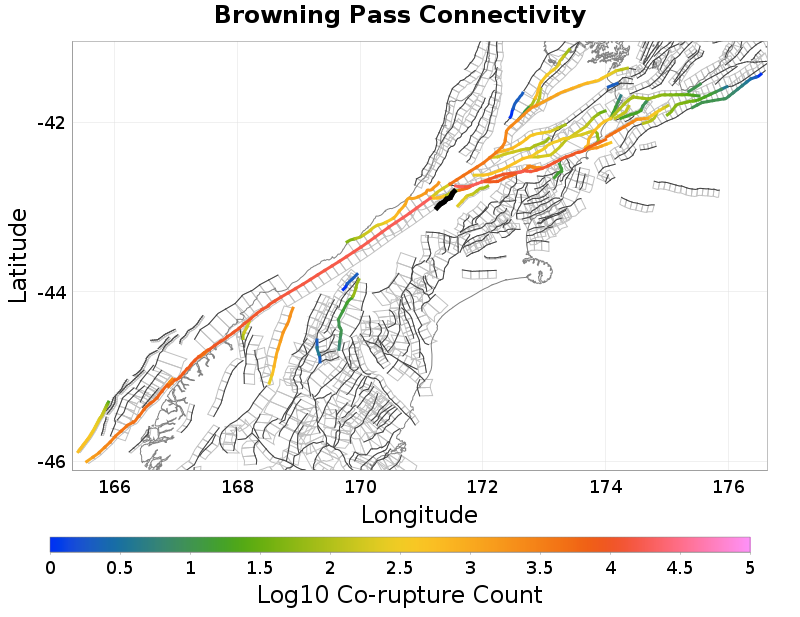

Connectivity
 |  |
|---|
Nearby Sections
Kelly, 0.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.08 km |
| Co-rupture Count | 5,495 |
| Co-rupture Rate | 0.0 |
Alpine: Kaniere to Springs Junction, 0.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.55 km |
| Min Rate-Weighted Dist | 1.55 km |
| Co-rupture Count | 4,479 |
| Co-rupture Rate | 1.8315506E-5 |
Alpine: Jacksons to Kaniere, 0.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.87 km |
| Min Rate-Weighted Dist | 0.87 km |
| Co-rupture Count | 18,849 |
| Co-rupture Rate | 7.178628E-5 |
Hohonu: South, 3.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.12 km |
| Co-rupture Count | 1,742 |
| Co-rupture Rate | 0.0 |
Hope: Taramakau, 6.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.14 km |
| Min Rate-Weighted Dist | 7.14 km |
| Co-rupture Count | 18,263 |
| Co-rupture Rate | 7.178628E-5 |
Poulter, 14.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 14.55 km |
| Min Rate-Weighted Dist | 14.55 km |
| Co-rupture Count | 219 |
| Co-rupture Rate | 1.8315506E-5 |
