Caswell High 5 Details

PropertyValue
Rupture Count18,691
Ruptures Above Sect Min Mag14,942
Ruptures w/ Nonzero Rates28
Magnitude Range[5.58, 8.38]
Length Range[5, 888] km
Total Rate5.178939E-4 /yr
Multi-Fault Rate5.178939E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults41

Table Of Contents

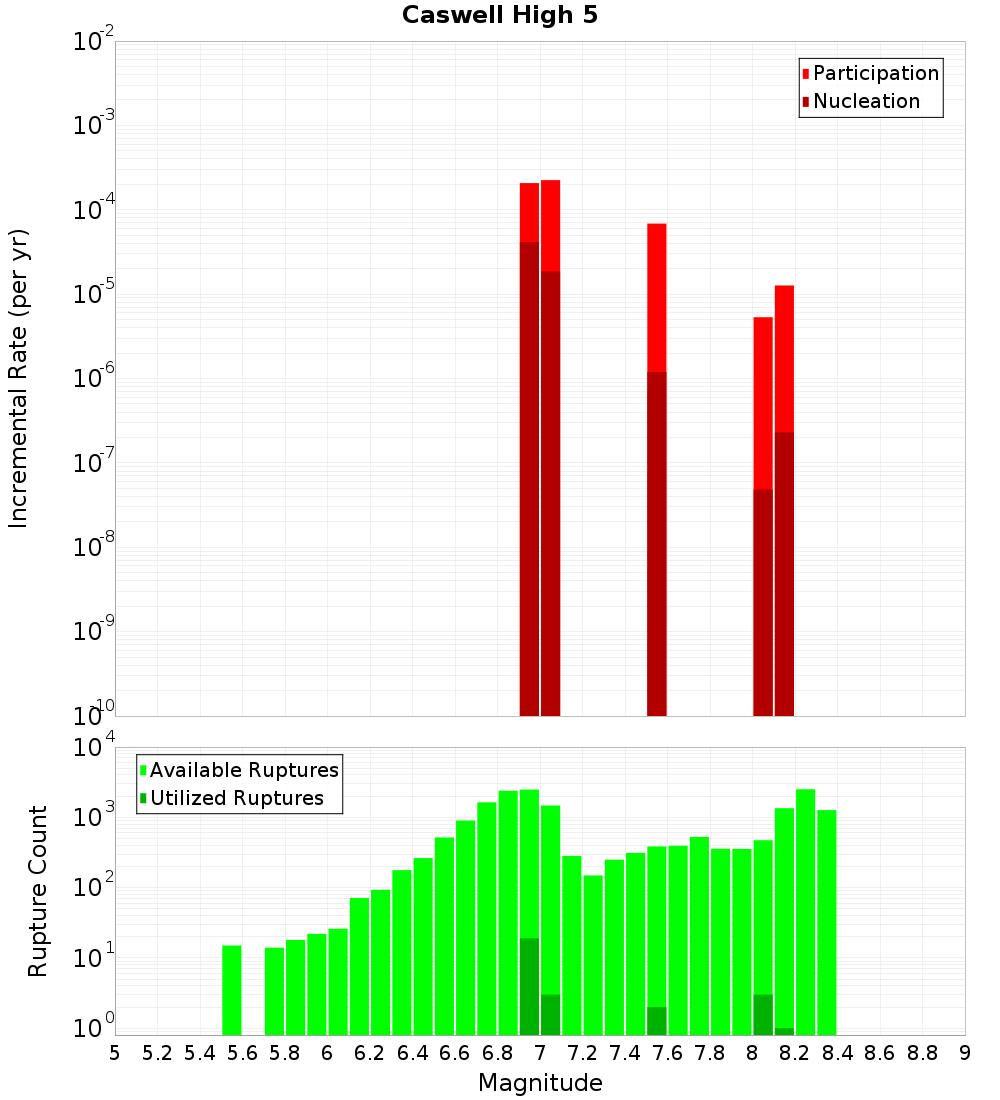

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

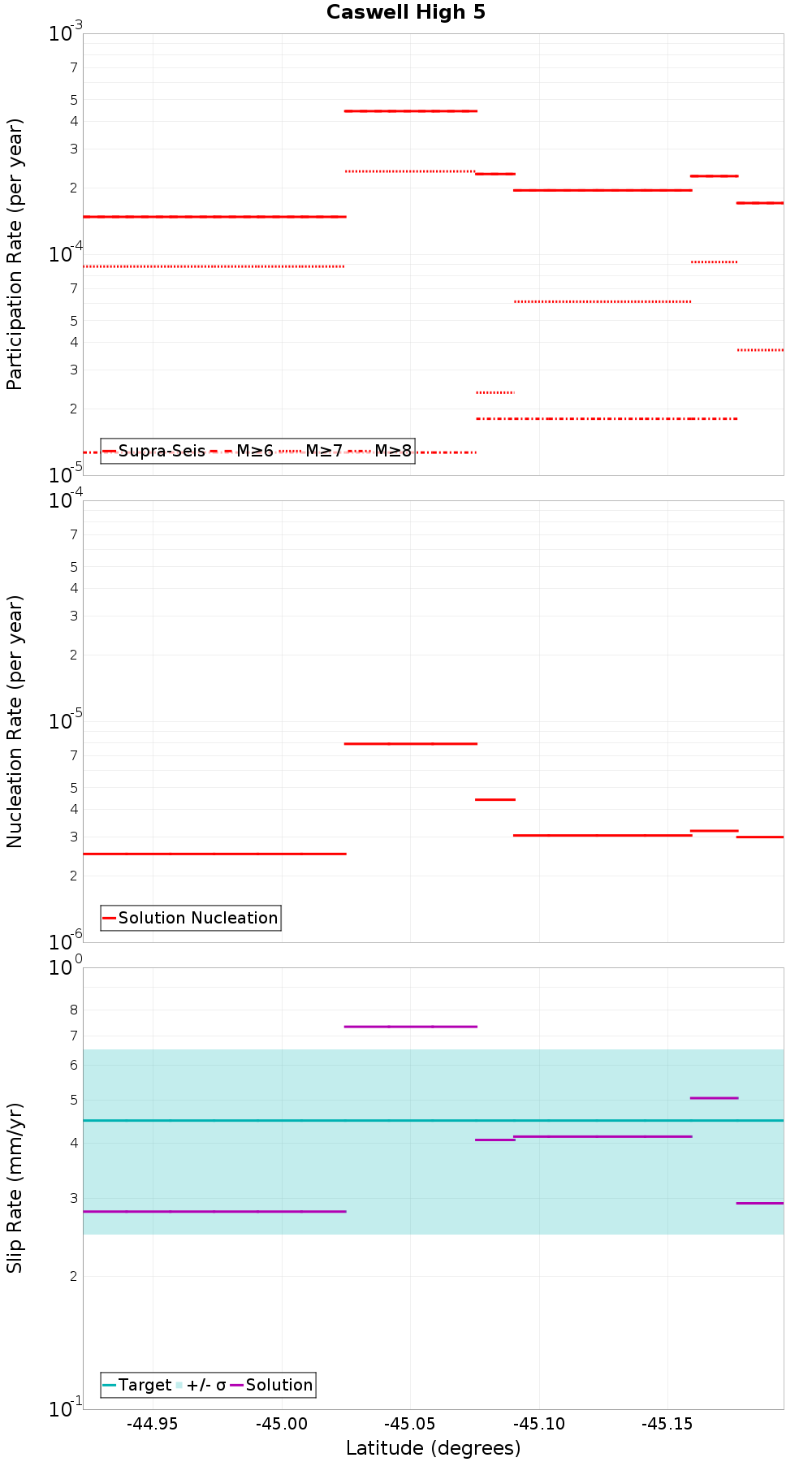

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

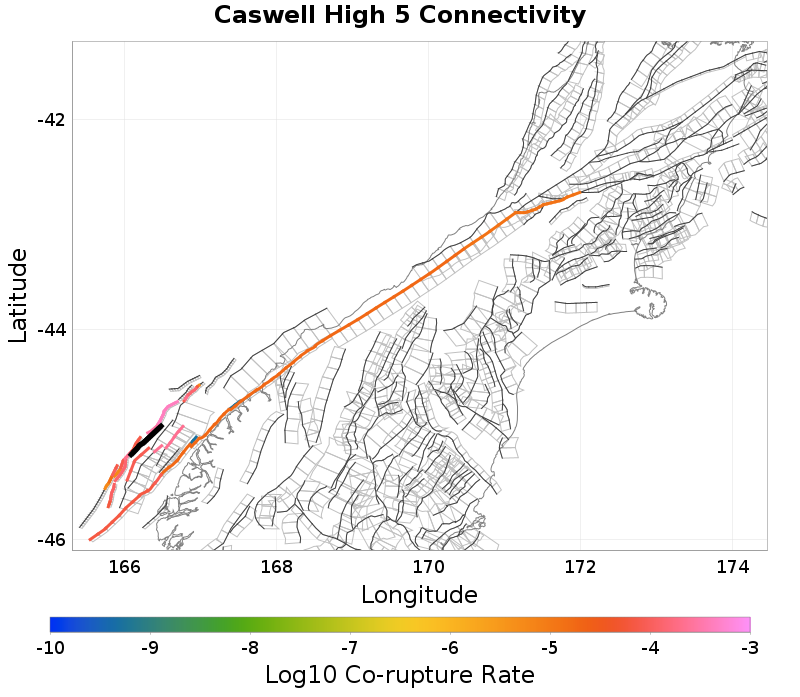

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Caswell High 4, 1.68 km away
Caswell High 67, 2.62 km away
Central Wedge 4 - South Wedge 411, 4.8 km away
South Wedge 5, 6.15 km away
Caswell High 3, 6.38 km away
Central Wedge 1 & 2 & 3, 10.73 km away
South Wedge 3-6-10, 12.89 km away
South Wedge 2, 15.79 km away
Caswell High 1, 17.85 km away

Caswell High 4, 1.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.68 km
Min Rate-Weighted Dist2.68 km
Co-rupture Count10,040
Co-rupture Rate2.1264084E-4

Caswell High 67, 2.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.78 km
Min Rate-Weighted Dist4.02 km
Co-rupture Count8,648
Co-rupture Rate4.313661E-4

Central Wedge 4 - South Wedge 411, 4.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count684
Co-rupture Rate0.0

South Wedge 5, 6.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.15 km
Min Rate-Weighted Dist6.28 km
Co-rupture Count7,289
Co-rupture Rate8.6527754E-5

Caswell High 3, 6.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count2,095
Co-rupture Rate1.3114534E-4

Central Wedge 1 & 2 & 3, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count1,313
Co-rupture Rate0.0

South Wedge 3-6-10, 12.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist12.89 km
Min Rate-Weighted Dist12.98 km
Co-rupture Count1,431
Co-rupture Rate2.1872527E-4

South Wedge 2, 15.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count764
Co-rupture Rate2.1872527E-4

Caswell High 1, 17.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count6,124
Co-rupture Rate1.075007E-4
