Gable End North Details

PropertyValue
Rupture Count227
Ruptures Above Sect Min Mag218
Ruptures w/ Nonzero Rates3
Magnitude Range[6.47, 7.52]
Length Range[15, 157] km
Total Rate1.629924E-4 /yr
Multi-Fault Rate1.629924E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults10

Table Of Contents

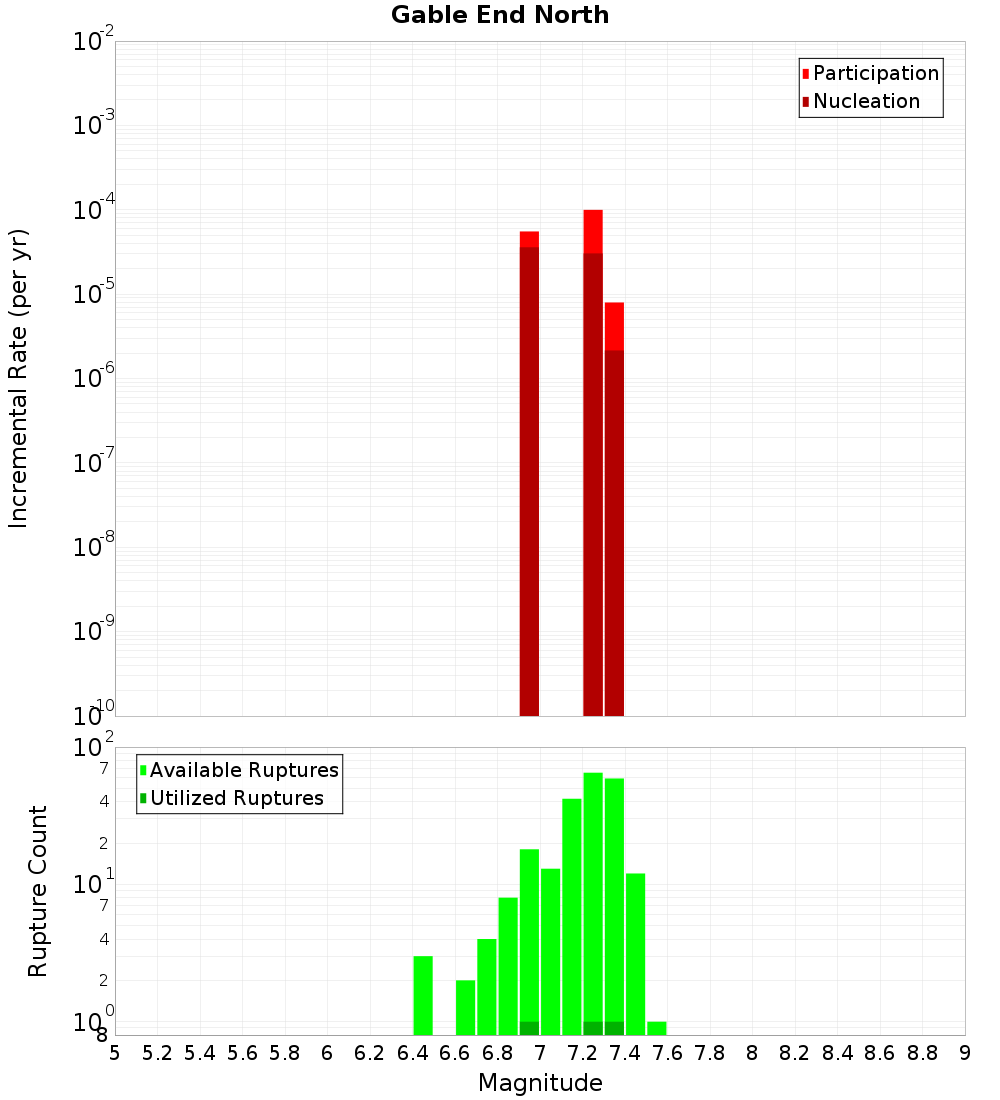

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

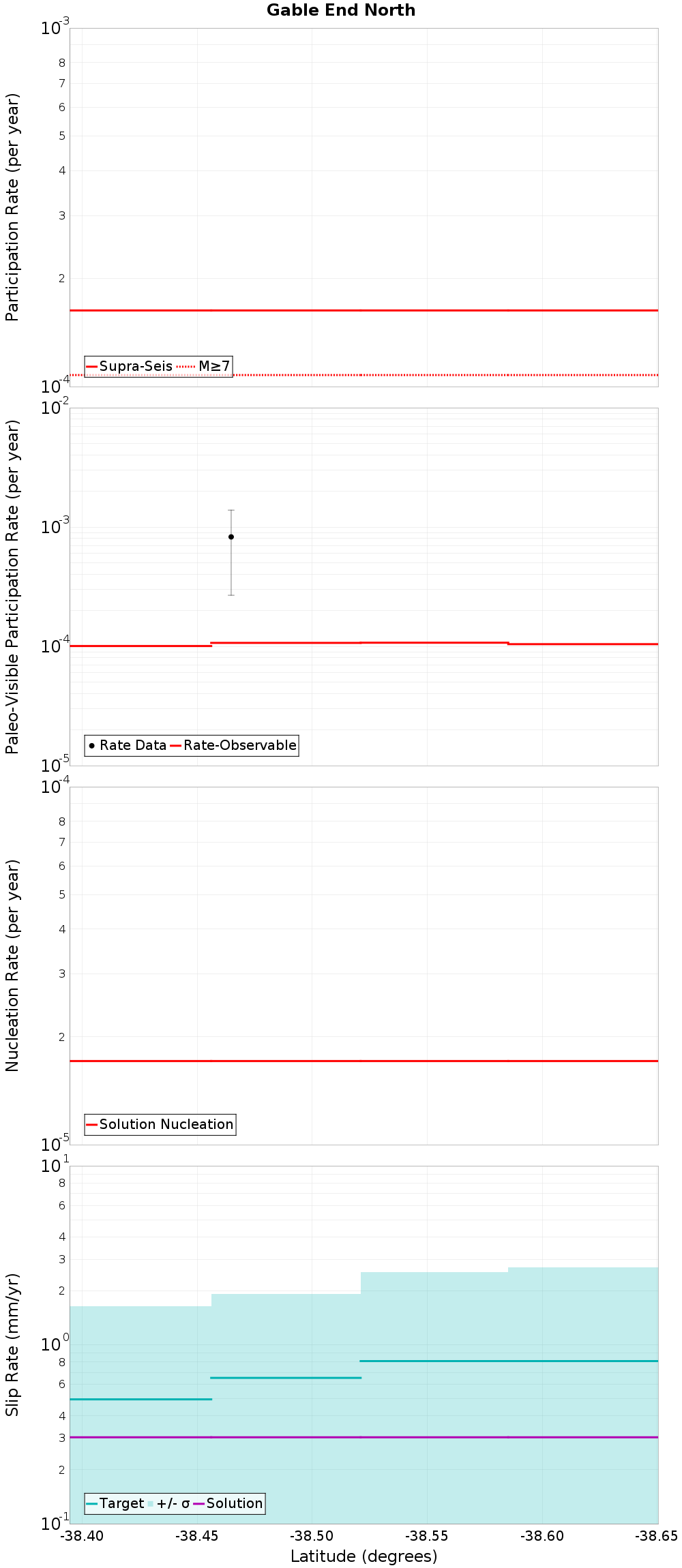

Along-Strike Values

(top)

Along-strike plot

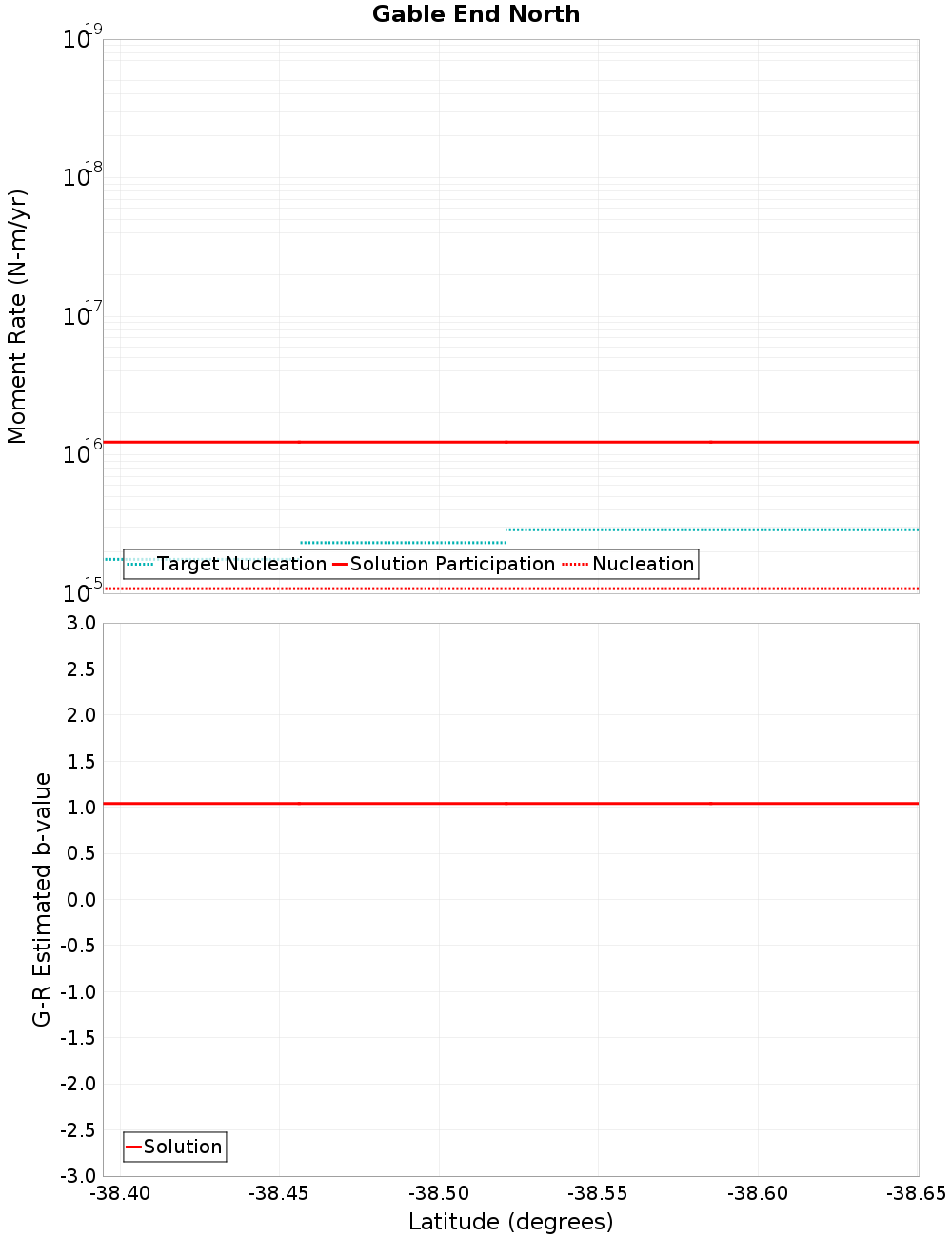

Moment-Rates and b-Values

(top)

Along-strike plot

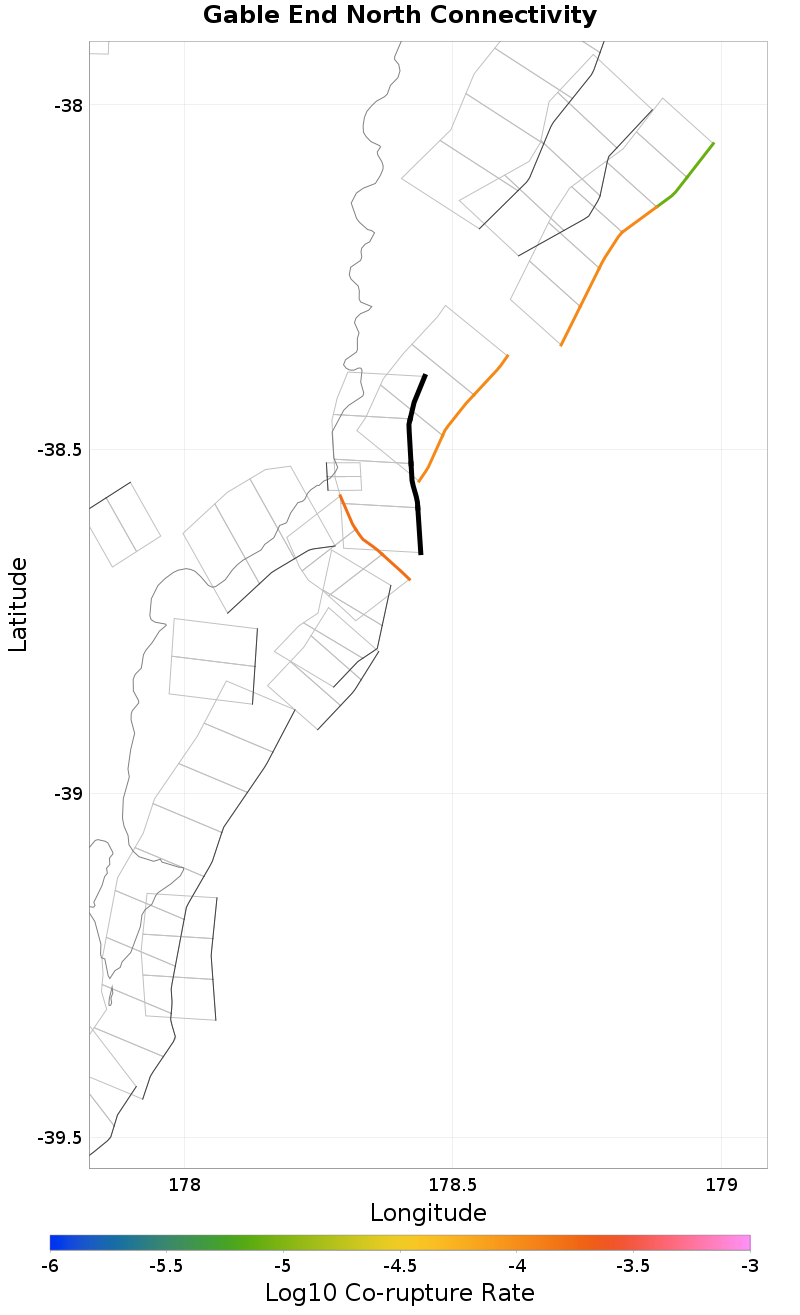

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pakarae, 0.38 km away
Ariel Bank 2, 0.91 km away
Ariel Bank, 2.26 km away
Te Ikaarongamai, 3.53 km away
Gable End South, 5.71 km away
Ariel East, 9.99 km away

Pakarae, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.38 km
Co-rupture Count23
Co-rupture Rate0.0

Ariel Bank 2, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.91 km
Min Rate-Weighted Dist0.91 km
Co-rupture Count145
Co-rupture Rate1.0766881E-4

Ariel Bank, 2.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.26 km
Co-rupture Count102
Co-rupture Rate0.0

Te Ikaarongamai, 3.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.53 km
Min Rate-Weighted Dist3.53 km
Co-rupture Count36
Co-rupture Rate1.629924E-4

Gable End South, 5.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.71 km
Co-rupture Count40
Co-rupture Rate0.0

Ariel East, 9.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count51
Co-rupture Rate0.0
