Gibson Details

Property	Value
Rupture Count	49
Ruptures Above Sect Min Mag	48
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.85, 7.67]
Length Range	[19, 138] km
Total Rate	1.1112012E-4 /yr
Multi-Fault Rate	1.1112012E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

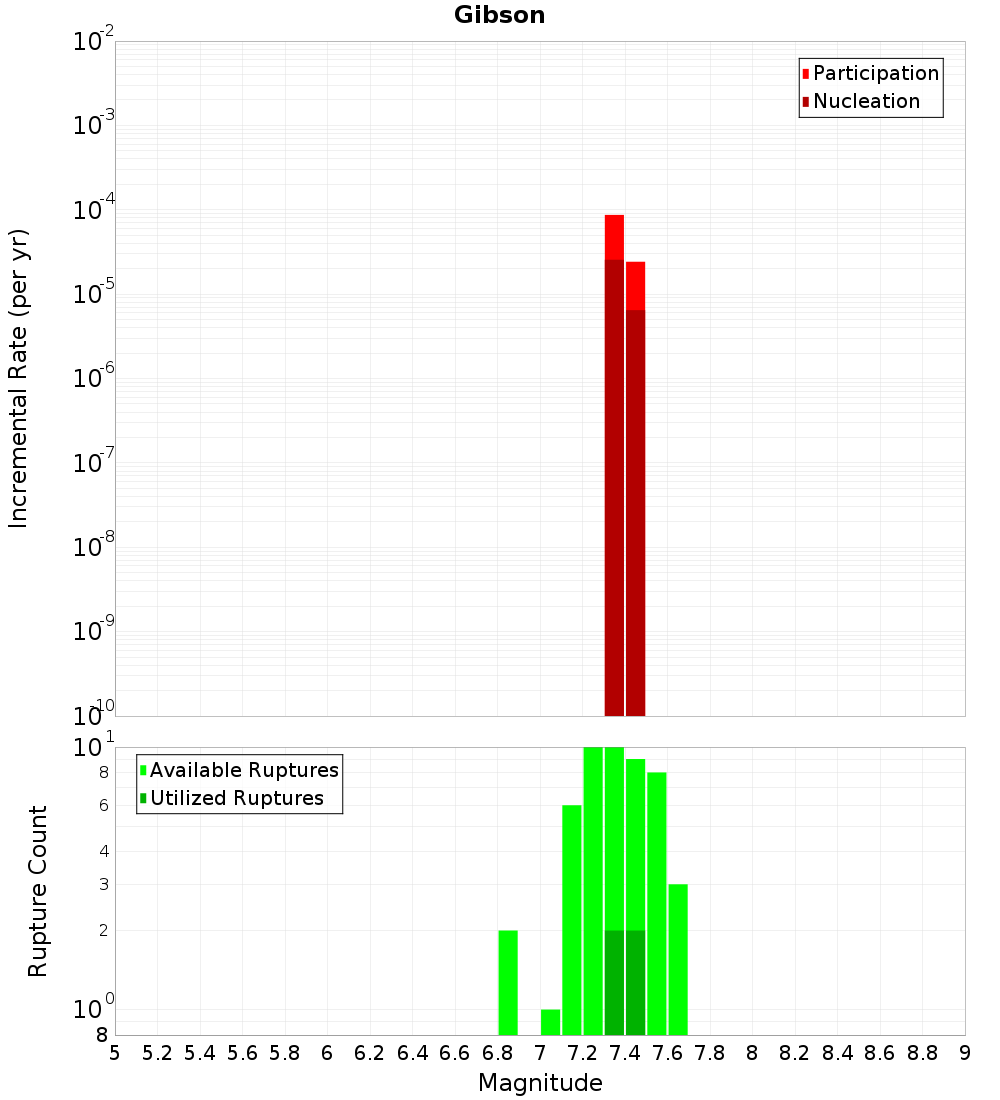

Magnitude-Frequency Distribution

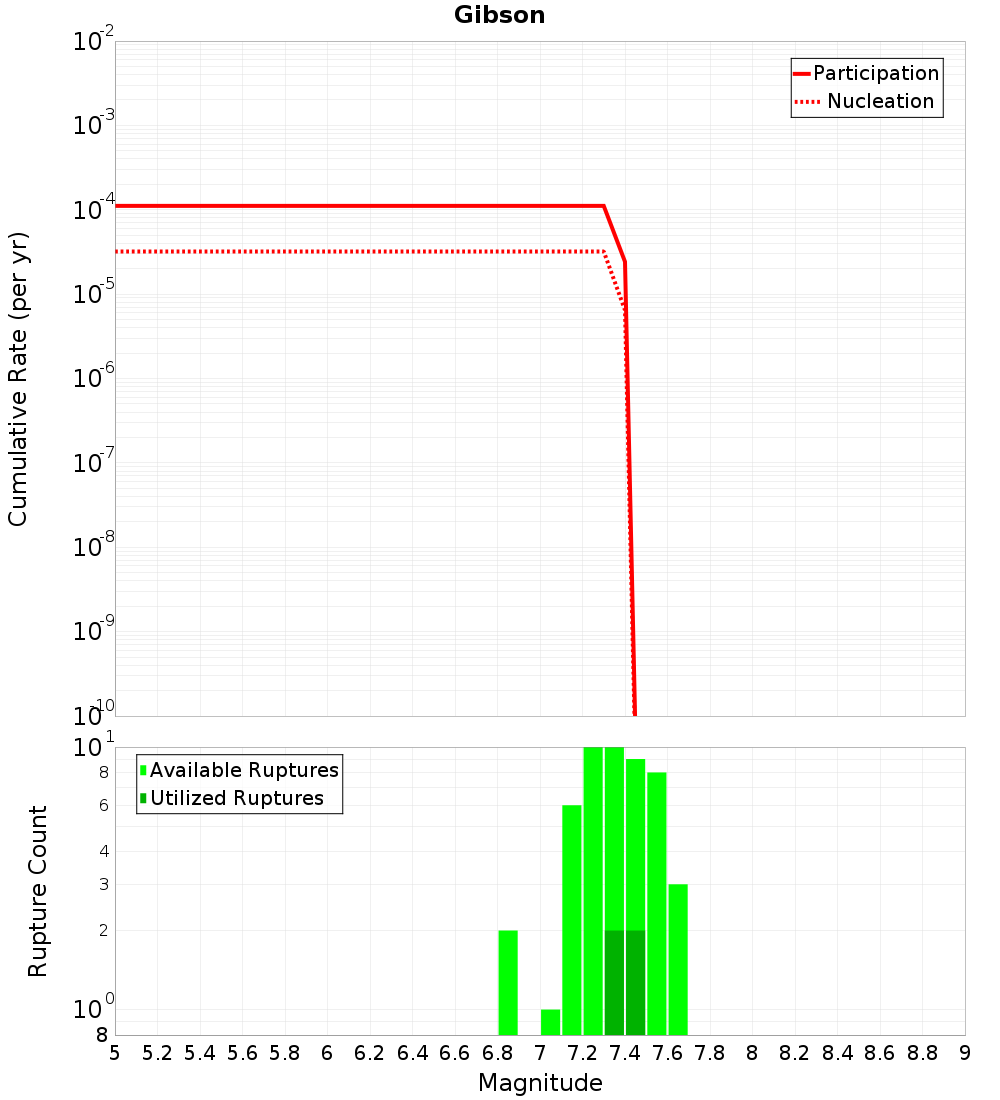

Incremental	Cumulative

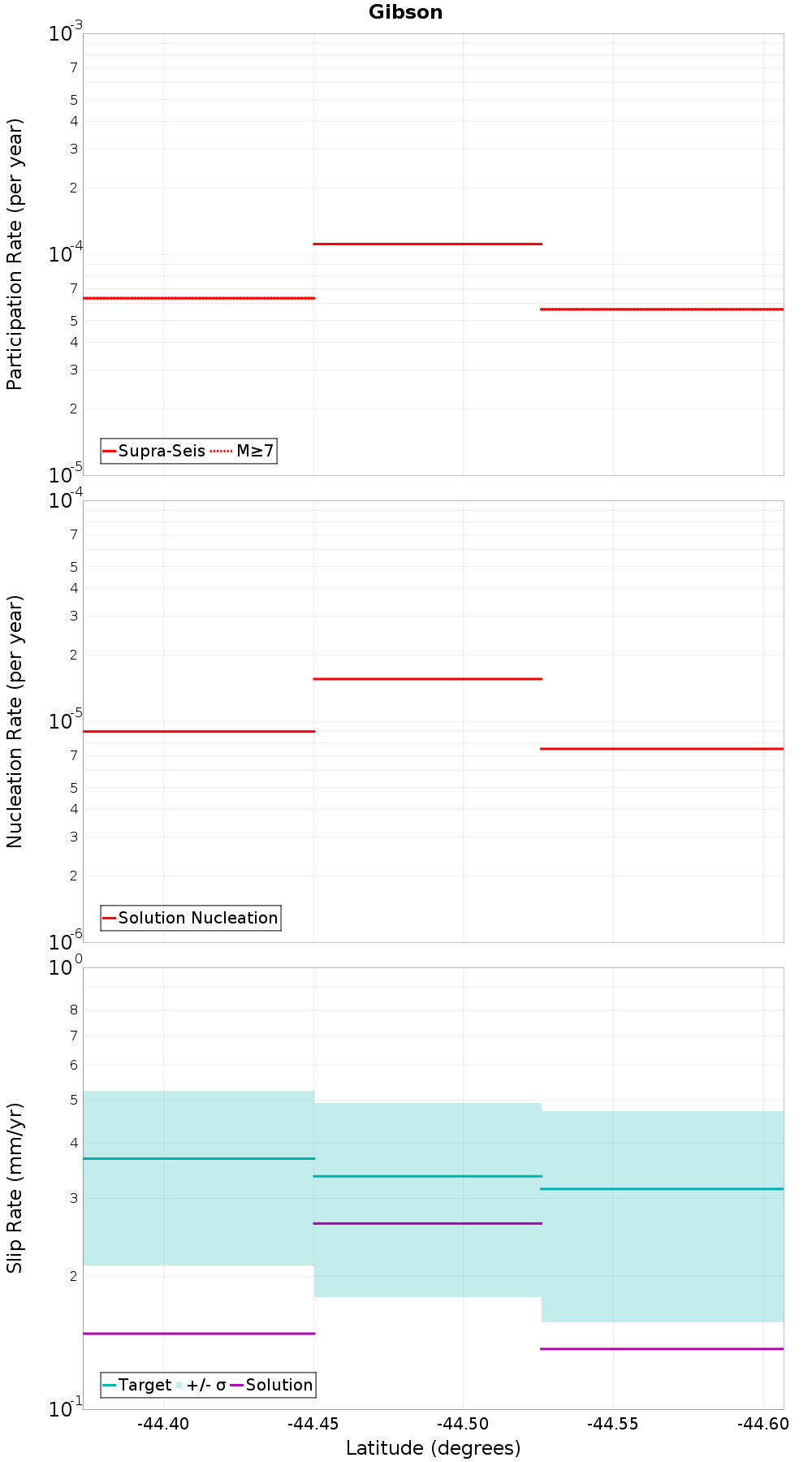

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Fern Gully, 0.31 km away
Middle Range, 0.48 km away
Waitangi, 0.56 km away
Falstone, 1.45 km away
Omarama Saddle, 1.46 km away
Hawkdun, 2.13 km away
Mt Sutton, 2.84 km away
Dryburgh, 3.37 km away
Grampian, 6.31 km away
Awahokomo, 10.93 km away
Blue Lake, 13.56 km away
Kirkliston, 14.93 km away
Ostler South, 16.59 km away
Stonewall, 17.07 km away

Fern Gully, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.31 km
Co-rupture Count	2
Co-rupture Rate	0.0

Middle Range, 0.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.48 km
Min Rate-Weighted Dist	0.48 km
Co-rupture Count	34
Co-rupture Rate	1.1112012E-4

Waitangi, 0.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Falstone, 1.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	1.45 km
Min Rate-Weighted Dist	1.45 km
Co-rupture Count	14
Co-rupture Rate	1.027302E-4

Omarama Saddle, 1.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkdun, 2.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Sutton, 2.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.91 km
Co-rupture Count	9
Co-rupture Rate	0.0

Dryburgh, 3.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grampian, 6.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	6.31 km
Co-rupture Count	9
Co-rupture Rate	0.0

Awahokomo, 10.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Blue Lake, 13.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kirkliston, 14.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ostler South, 16.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Stonewall, 17.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
