Hope: Hanmer SW Details

PropertyValue
Rupture Count93,863
Ruptures Above Sect Min Mag93,782
Ruptures w/ Nonzero Rates10
Magnitude Range[6.51, 8.44]
Length Range[11, 1,156] km
Total Rate4.2884043E-4 /yr
Multi-Fault Rate4.2884043E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults132

Table Of Contents

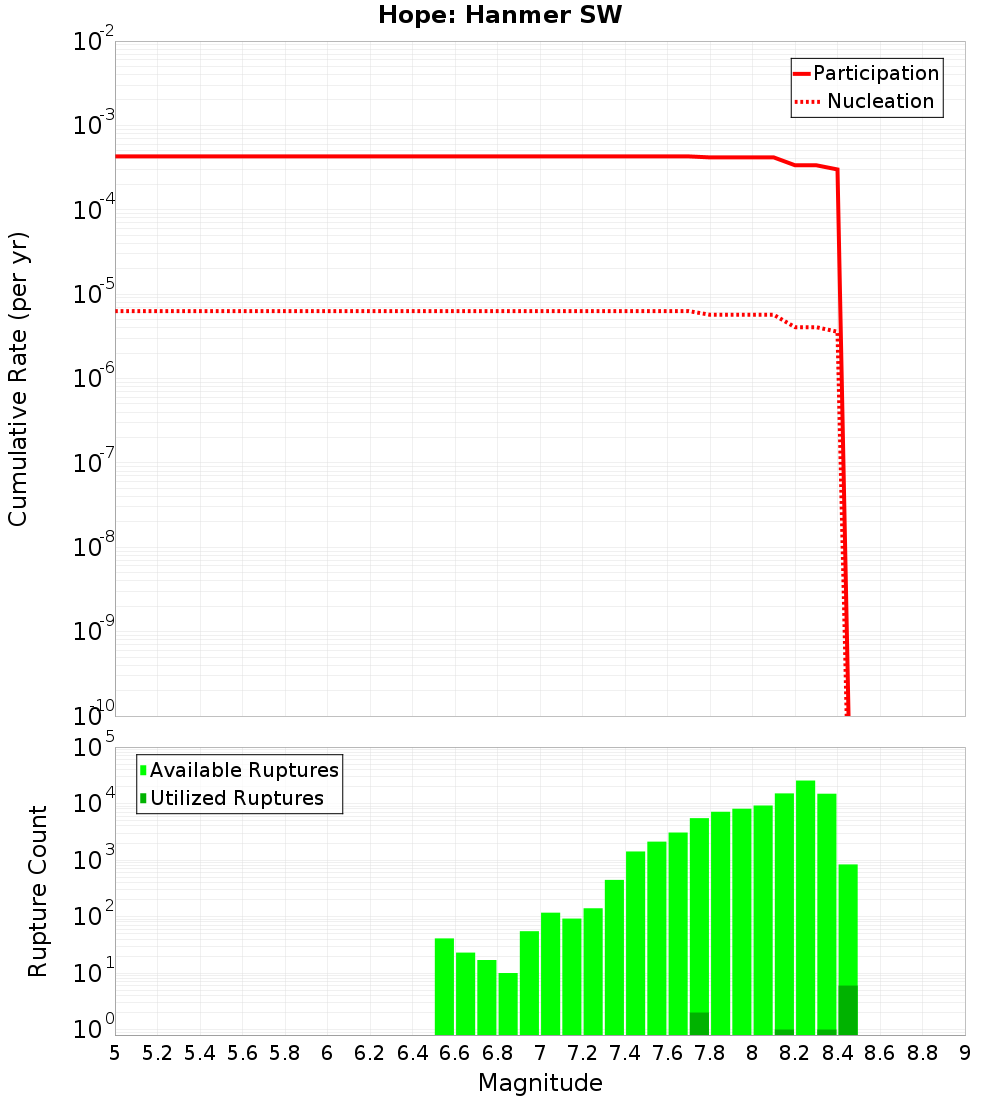

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

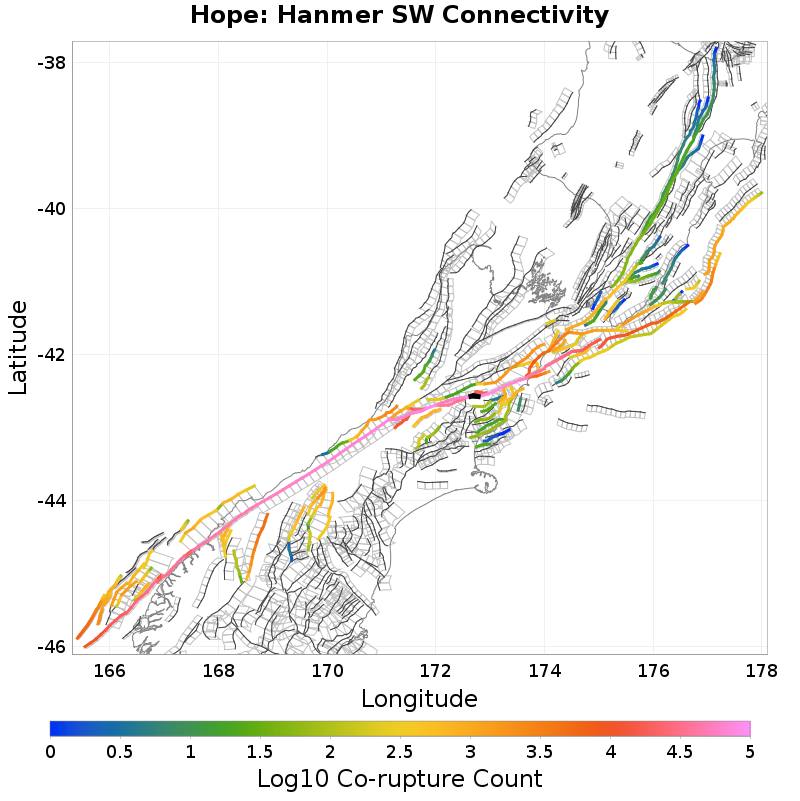

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Hanmer SE, 0 km away
Hope: Kakapo-2-Hamner, 0 km away
Hope: Hanmer NW, 0 km away
Hanmer, 3.33 km away
Hope: Hope River, 6.3 km away
Kakapo, 6.3 km away
Esk North, 9.97 km away
The Humps, 10.61 km away
Hope: Conway, 13.51 km away
Clarence: Southwest, 13.89 km away
Hurunui Peak, 14.89 km away
Mt Culverden, 15.12 km away
Balmoral, 15.69 km away
Clarence: Central, 17.73 km away
Elliott, 17.88 km away

Hope: Hanmer SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count71,439
Co-rupture Rate4.2473493E-4

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count91,561
Co-rupture Rate4.2884043E-4

Hope: Hanmer NW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Co-rupture Count10,647
Co-rupture Rate0.0

Hanmer, 3.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.33 km
Min Rate-Weighted Dist3.33 km
Co-rupture Count21,503
Co-rupture Rate4.1054873E-6

Hope: Hope River, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count59,258
Co-rupture Rate1.2401385E-4

Kakapo, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count39,546
Co-rupture Rate3.0482656E-4

Esk North, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 10.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Hope: Conway, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count80,749
Co-rupture Rate4.2884043E-4

Clarence: Southwest, 13.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count211
Co-rupture Rate0.0

Hurunui Peak, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 15.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count95
Co-rupture Rate0.0

Balmoral, 15.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Central, 17.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Elliott, 17.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count2,014
Co-rupture Rate1.8337082E-4
