Hope: Te Rapa Details
| Property | Value |
|---|---|
| Rupture Count | 46,601 |
| Ruptures Above Sect Min Mag | 46,574 |
| Ruptures w/ Nonzero Rates | 16 |
| Magnitude Range | [6.39, 8.44] |
| Length Range | [13, 1,156] km |
| Total Rate | 0.0010266743 /yr |
| Multi-Fault Rate | 0.0010266743 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 100 |
Table Of Contents

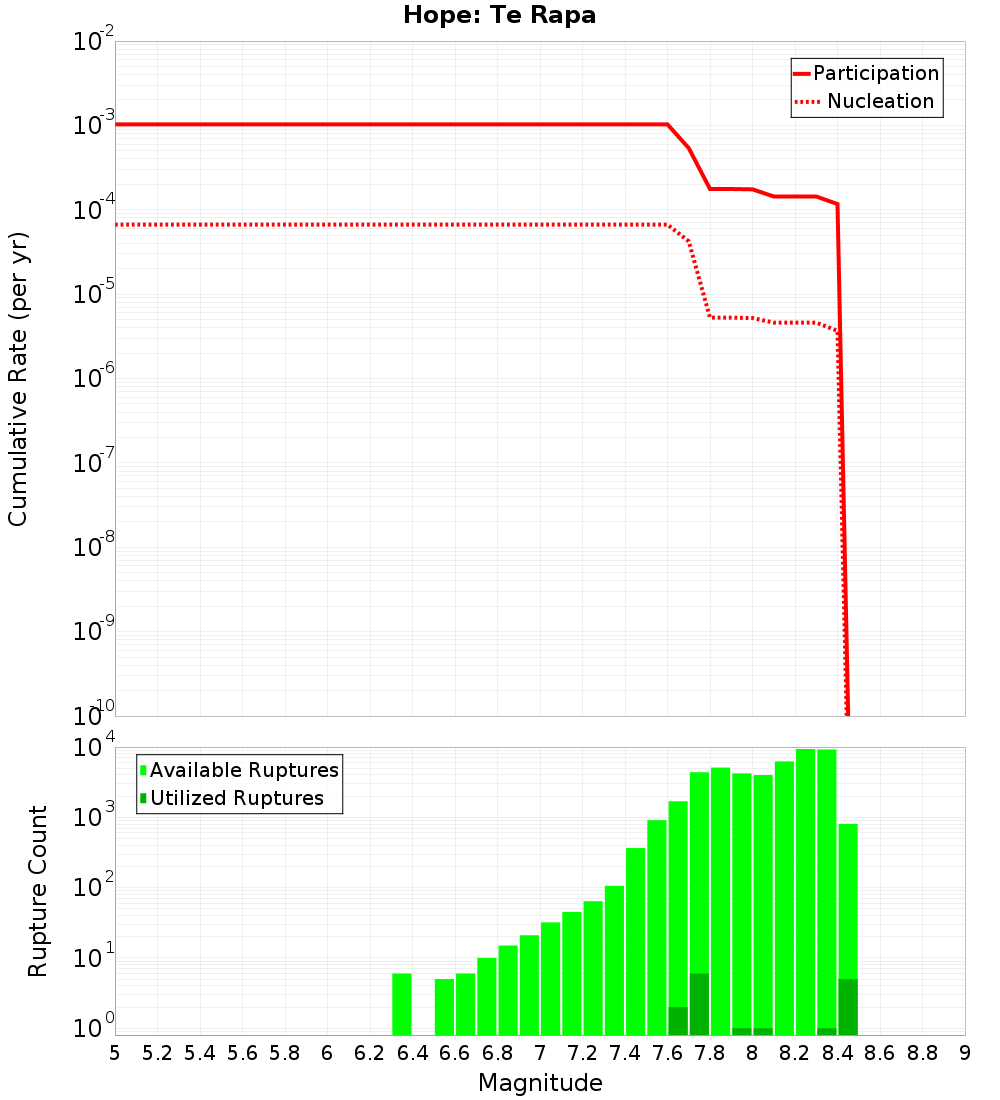

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Te Rapa 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 29,923 |
| Co-rupture Rate | 2.9442666E-4 |
Upper Slope, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.41 km |
| Co-rupture Count | 921 |
| Co-rupture Rate | 0.0 |
Hope: Seaward, 3.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.47 km |
| Min Rate-Weighted Dist | 3.47 km |
| Co-rupture Count | 44,409 |
| Co-rupture Rate | 0.0010266743 |
Wharanui, 4.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
London Hill, 5.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.18 km |
| Min Rate-Weighted Dist | 6.7 km |
| Co-rupture Count | 1,078 |
| Co-rupture Rate | 1.5319978E-4 |
Chancet, 8.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.16 km |
| Co-rupture Count | 563 |
| Co-rupture Rate | 0.0 |
Kaikoura - Mangamaunu, 8.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kekerengu Bank, 9.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.62 km |
| Co-rupture Count | 1,351 |
| Co-rupture Rate | 0.0 |
Papatea, 11.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 17 |
| Co-rupture Rate | 0.0 |
Campbell Bank, 12.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 228 |
| Co-rupture Rate | 0.0 |
Te Rapa 2, 14.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 23,895 |
| Co-rupture Rate | 2.9442666E-4 |
Needles East 2, 15.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12 |
| Co-rupture Rate | 0.0 |
Fidget, 16.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 110 |
| Co-rupture Rate | 0.0 |
Kekerengu 1, 17.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 23 |
| Co-rupture Rate | 0.0 |
Needles, 18.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
Jordan, 18.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
