Opouawe - Uruti Details
| Property | Value |
|---|---|
| Rupture Count | 34,329 |
| Ruptures Above Sect Min Mag | 34,281 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [6.56, 8.44] |
| Length Range | [17, 1,156] km |
| Total Rate | 3.6115633E-4 /yr |
| Multi-Fault Rate | 3.6115633E-4 /yr (100.00%) |
| Directly-Connected Faults | 12 |
| All Co-Rupturing Faults | 86 |
Table Of Contents

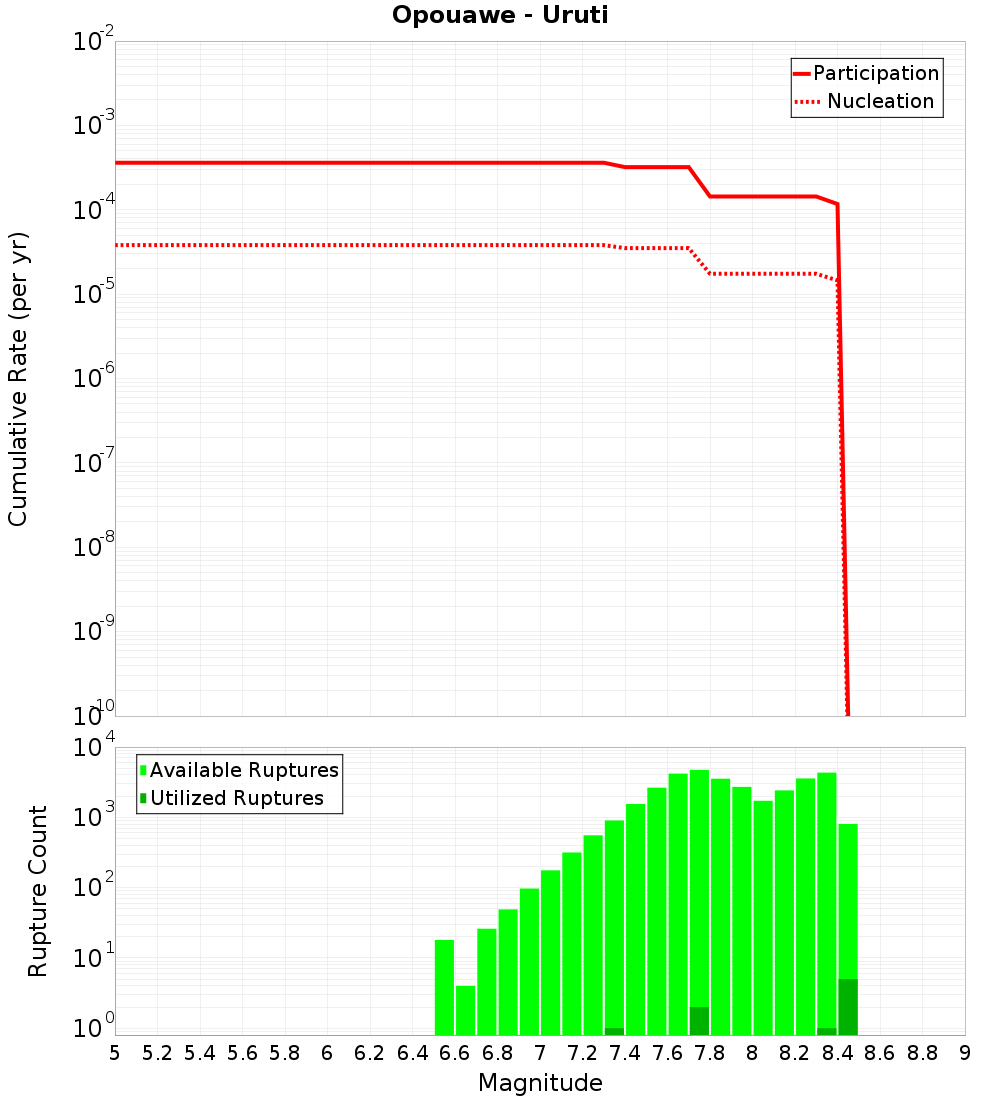

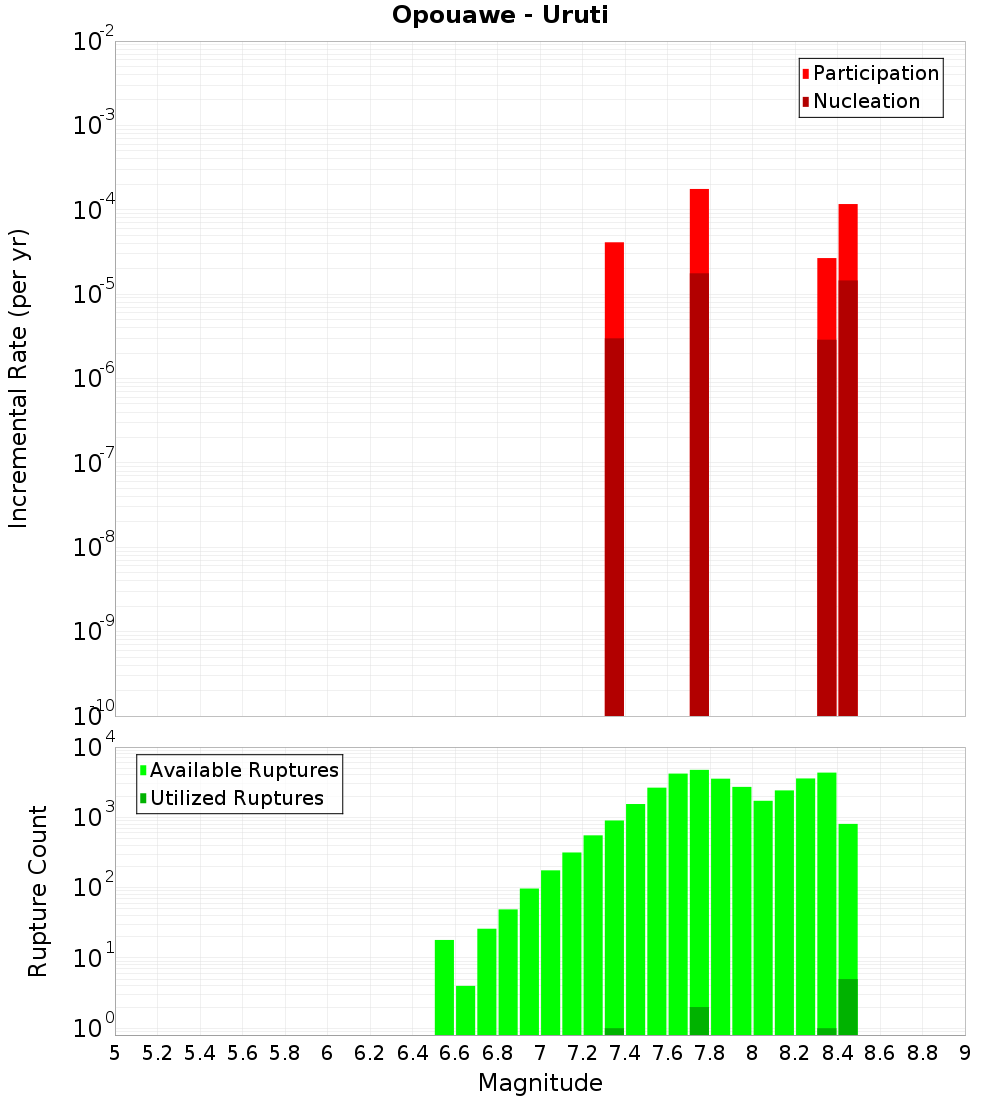

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

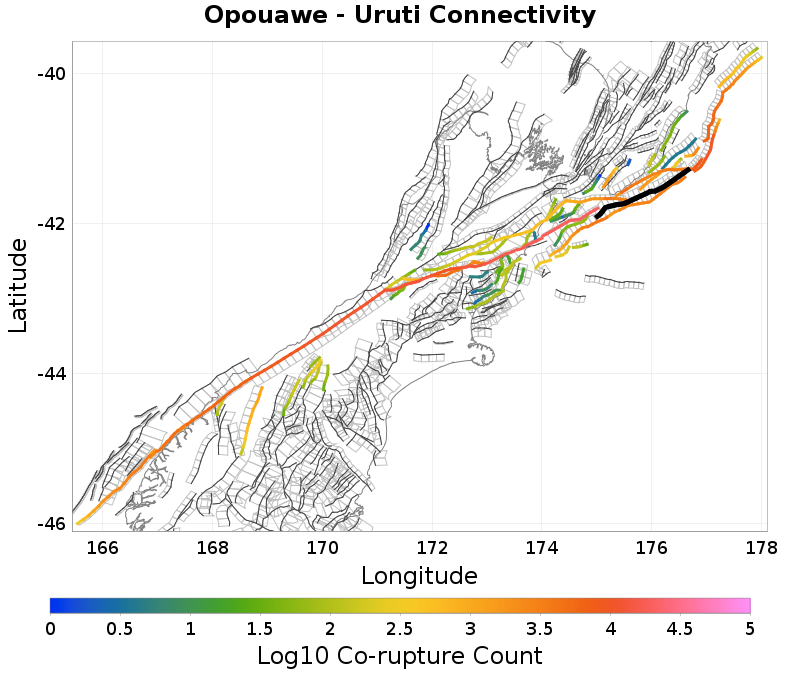

Connectivity
 |  |
|---|
Nearby Sections
BooBoo, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.14 km |
| Min Rate-Weighted Dist | 8.2 km |
| Co-rupture Count | 4,261 |
| Co-rupture Rate | 1.5080613E-4 |
Uruti Basin, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.2 km |
| Min Rate-Weighted Dist | 0.26 km |
| Co-rupture Count | 5,952 |
| Co-rupture Rate | 6.6729655E-5 |
Uruti Basin 2, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.38 km |
| Min Rate-Weighted Dist | 0.38 km |
| Co-rupture Count | 321 |
| Co-rupture Rate | 3.2535292E-5 |
Te Rapa 2, 0.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.63 km |
| Min Rate-Weighted Dist | 0.63 km |
| Co-rupture Count | 20,882 |
| Co-rupture Rate | 2.9442666E-4 |
Pahaua, 2.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.7 km |
| Co-rupture Count | 4,017 |
| Co-rupture Rate | 0.0 |
Uruti Ridge 2, 4.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.33 km |
| Co-rupture Count | 8,149 |
| Co-rupture Rate | 0.0 |
Kekerengu Bank, 5.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.24 km |
| Min Rate-Weighted Dist | 5.24 km |
| Co-rupture Count | 3,940 |
| Co-rupture Rate | 2.5569294E-5 |
Uruti East - PorWest 1, 5.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.71 km |
| Min Rate-Weighted Dist | 5.71 km |
| Co-rupture Count | 12,837 |
| Co-rupture Rate | 1.0990192E-4 |
Honeycomb, 5.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.9 km |
| Min Rate-Weighted Dist | 5.9 km |
| Co-rupture Count | 1,474 |
| Co-rupture Rate | 2.5569294E-5 |
Palliser - Kaiwhata, 8.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.63 km |
| Co-rupture Count | 5,239 |
| Co-rupture Rate | 1.5080613E-4 |
Otaraia, 11.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.1 km |
| Co-rupture Count | 1,515 |
| Co-rupture Rate | 1.5080613E-4 |
Upper Slope, 13.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 61 |
| Co-rupture Rate | 0.0 |
Uruti North, 13.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 13.55 km |
| Min Rate-Weighted Dist | 13.55 km |
| Co-rupture Count | 2,643 |
| Co-rupture Rate | 4.1160358E-5 |
Whareama Bank, 15.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Dry River - Huangarua: 1, 15.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Campbell Bank, 16.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 36 |
| Co-rupture Rate | 0.0 |
Riversdale, 19.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 65 |
| Co-rupture Rate | 0.0 |
