Paddys Ridge Details
| Property | Value |
|---|---|
| Rupture Count | 52 |
| Ruptures Above Sect Min Mag | 52 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.83, 8.03] |
| Length Range | [21, 255] km |
| Total Rate | 9.768391E-5 /yr |
| Multi-Fault Rate | 9.768391E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 26 |
Table Of Contents

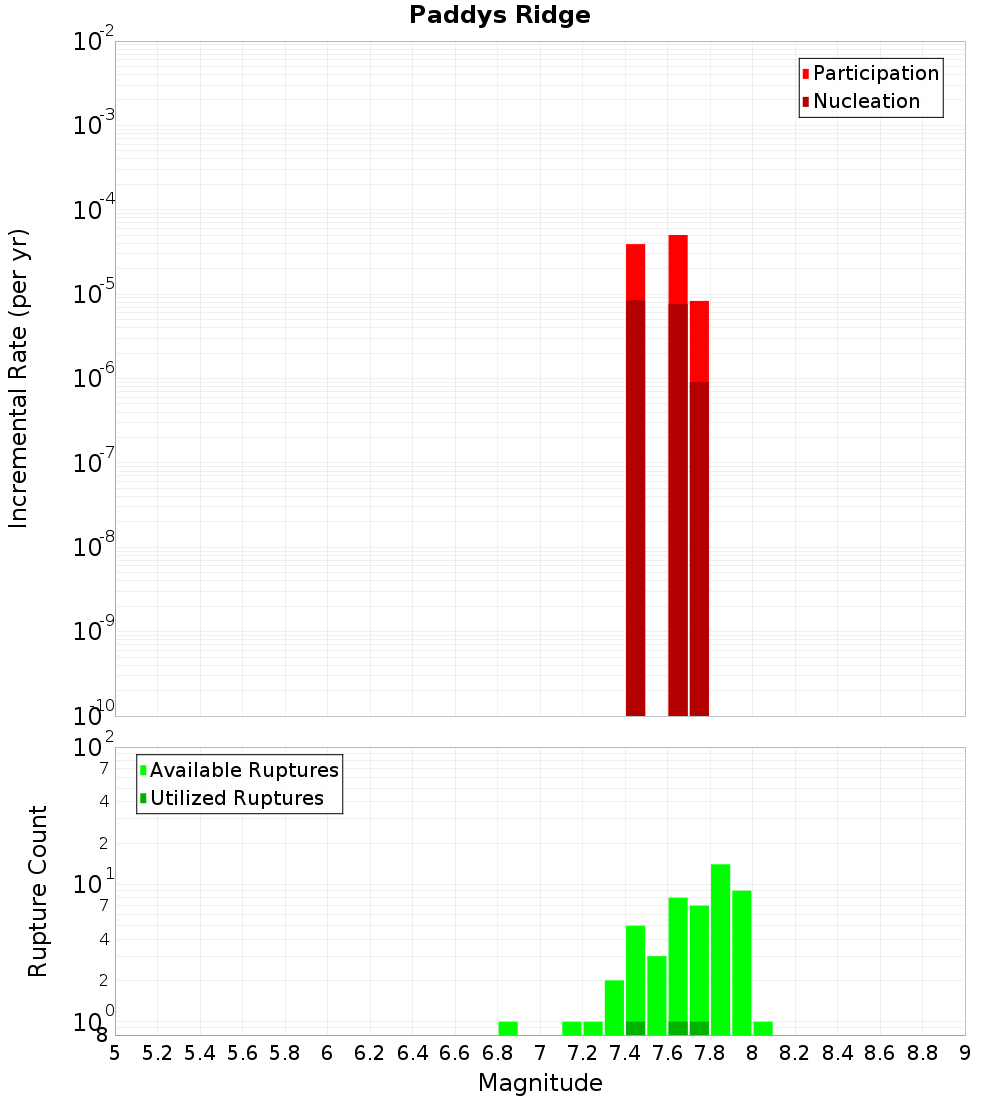

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

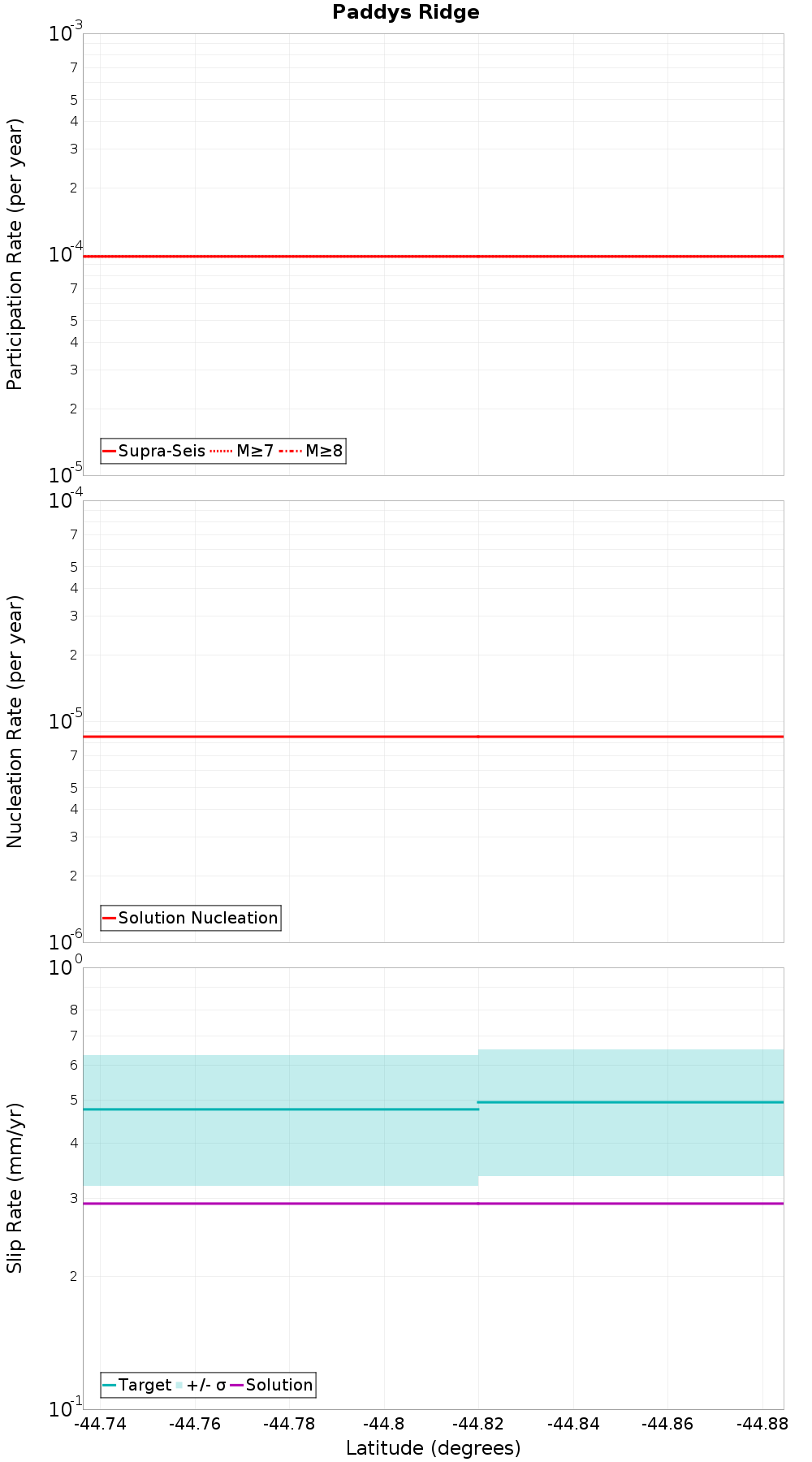

Along-Strike Values

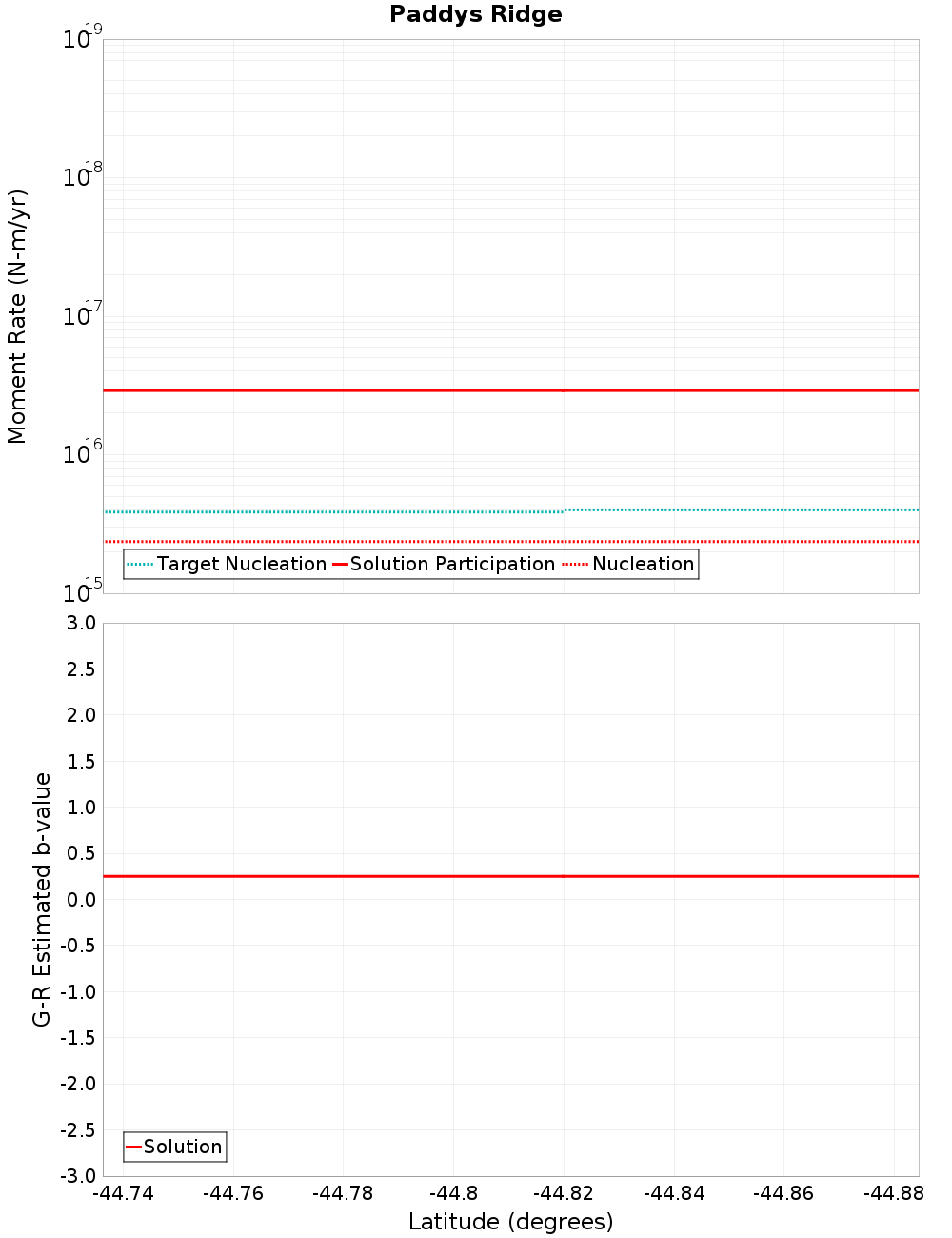

Moment-Rates and b-Values

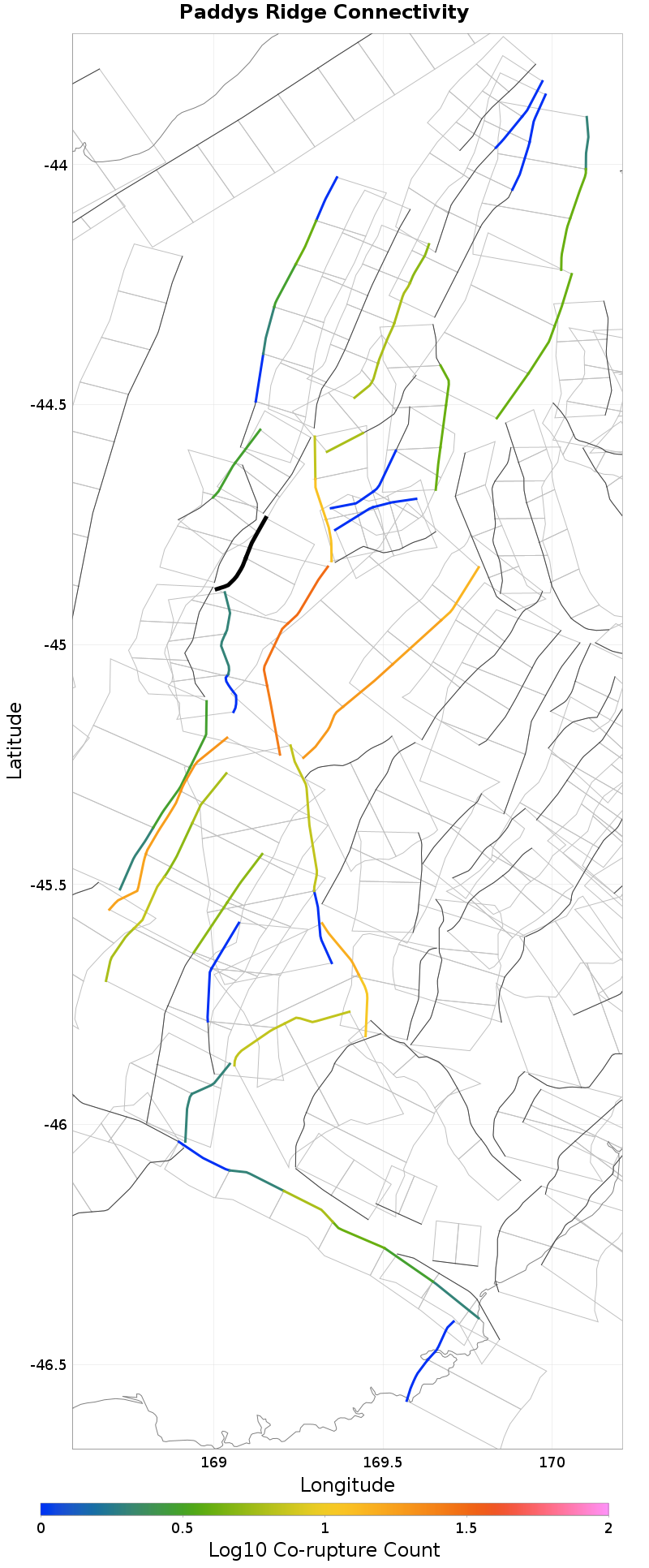

Connectivity
 |  |
|---|
Nearby Sections
Pisa, 0.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.27 km |
| Min Rate-Weighted Dist | 0.27 km |
| Co-rupture Count | 31 |
| Co-rupture Rate | 5.0241375E-5 |
Roaring Meg, 0.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 5.0241375E-5 |
NW Cardrona South, 1.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cardrona - Hawea, 1.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
NW Cardrona North, 1.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dunstan, 4.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.63 km |
| Min Rate-Weighted Dist | 4.63 km |
| Co-rupture Count | 19 |
| Co-rupture Rate | 4.744253E-5 |
Cluden, 5.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motatapu, 10.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.99 km |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Goodger, 11.69 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 3.91297E-5 |
Grandview, 12.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12 |
| Co-rupture Rate | 8.312828E-6 |
Lindis River, 13.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Wanaka, 16.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 8.312828E-6 |
Dromedary, 19.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
