Patoka - Rangiora Details

PropertyValue
Rupture Count3,063
Ruptures Above Sect Min Mag3,060
Ruptures w/ Nonzero Rates1
Magnitude Range[6.83, 8.22]
Length Range[22, 589] km
Total Rate1.4501715E-5 /yr
Multi-Fault Rate1.4501715E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults76

Table Of Contents

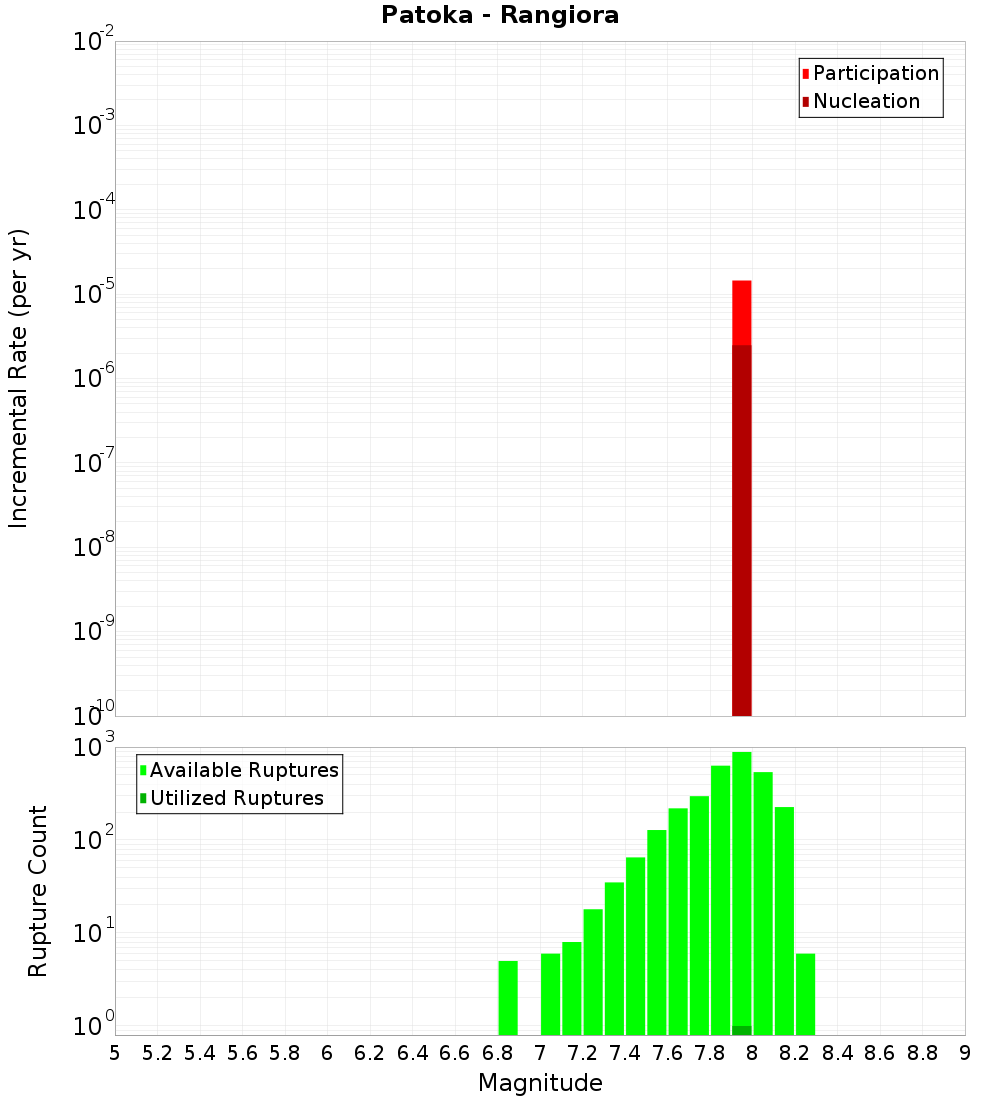

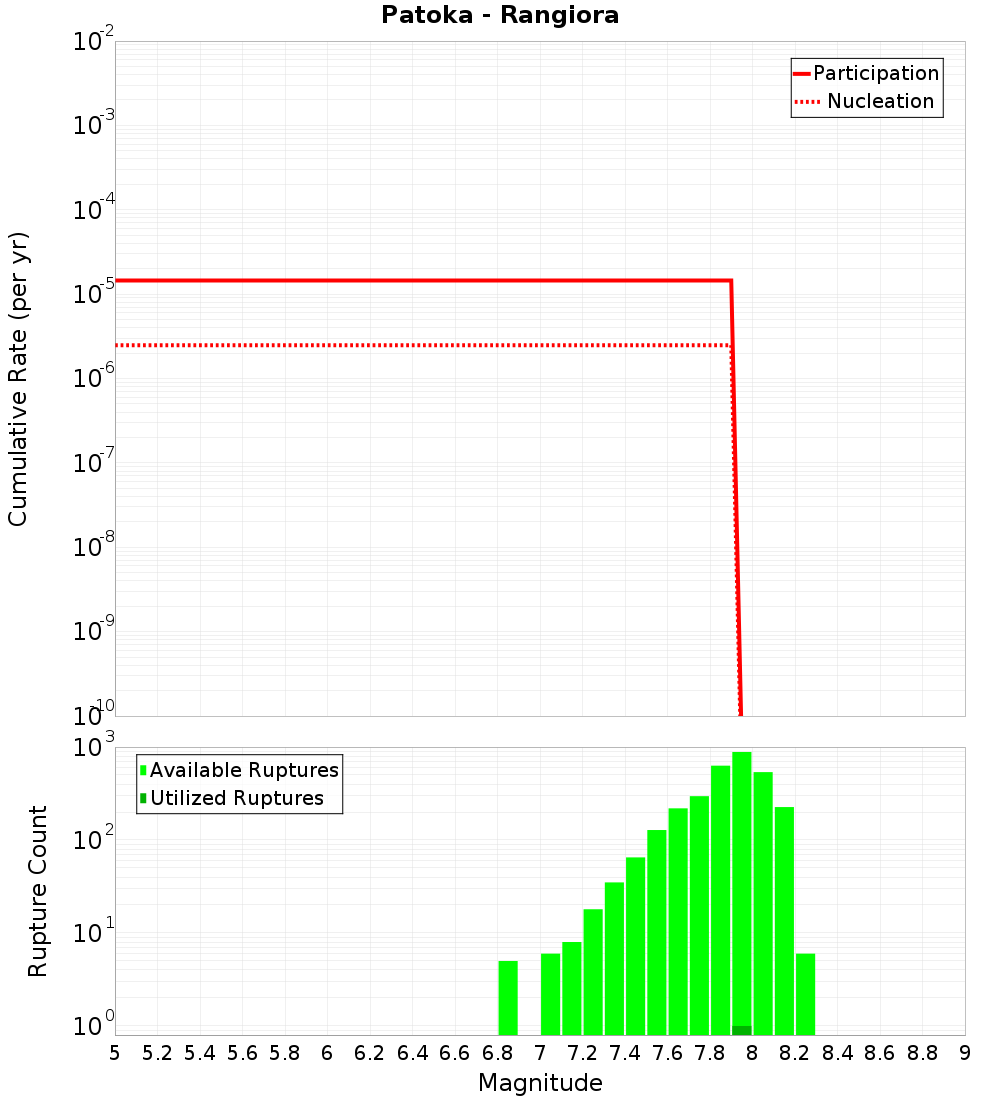

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

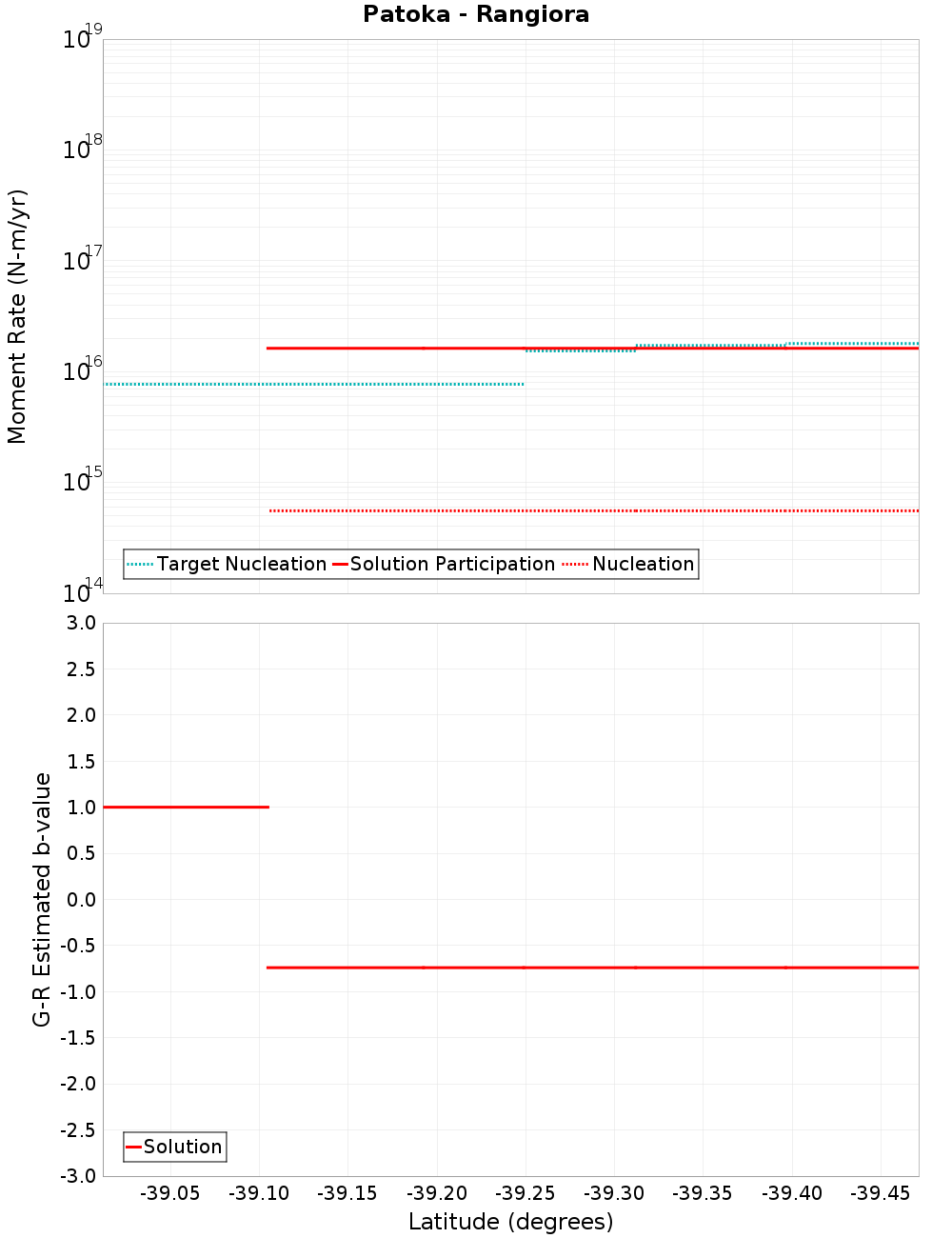

Moment-Rates and b-Values

(top)

Along-strike plot

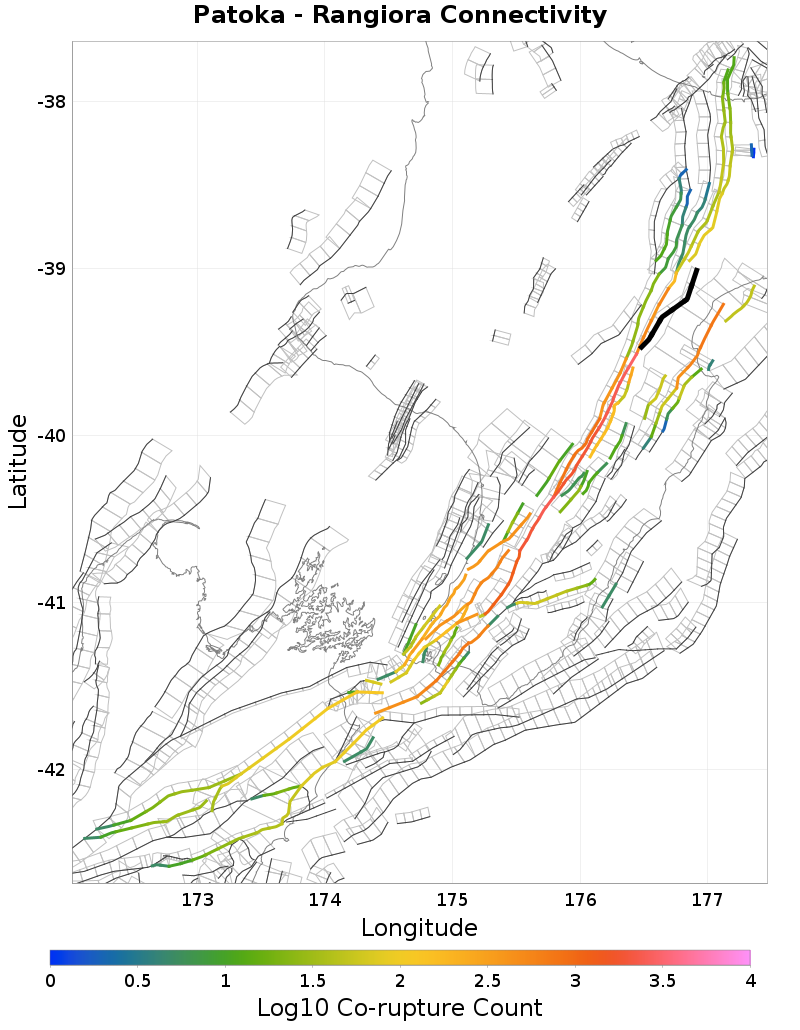

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awanui, 0.4 km away
Mohaka: North, 0.47 km away
Mohaka: South, 5.52 km away
Ruahine: North, 6.53 km away
Waiotahi: South, 7.71 km away
Hawke Bay 1, 8.15 km away
Waimana: South, 10.75 km away
Whakatane: South, 12.36 km away
Ruahine: Central, 12.66 km away
Wakarara, 14.99 km away
Kaweka, 15.89 km away
Te Heka, 17.85 km away
Waiohau: South, 19.65 km away

Awanui, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.4 km
Co-rupture Count744
Co-rupture Rate0.0

Mohaka: North, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.75 km
Co-rupture Count729
Co-rupture Rate0.0

Mohaka: South, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.52 km
Min Rate-Weighted Dist5.52 km
Co-rupture Count2,970
Co-rupture Rate1.4501715E-5

Ruahine: North, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate0.0

Waiotahi: South, 7.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate0.0

Hawke Bay 1, 8.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.15 km
Min Rate-Weighted Dist8.15 km
Co-rupture Count48
Co-rupture Rate1.4501715E-5

Waimana: South, 10.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count52
Co-rupture Rate0.0

Whakatane: South, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Ruahine: Central, 12.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count400
Co-rupture Rate0.0

Wakarara, 14.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count293
Co-rupture Rate0.0

Kaweka, 15.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Heka, 17.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate0.0

Waiohau: South, 19.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0
