Ruby Bay - Moutere Details
| Property | Value |
|---|---|
| Rupture Count | 115 |
| Ruptures Above Sect Min Mag | 113 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.91, 8.35] |
| Length Range | [24, 797] km |
| Total Rate | 3.8183274E-4 /yr |
| Multi-Fault Rate | 1.1833199E-4 /yr (30.99%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 15 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

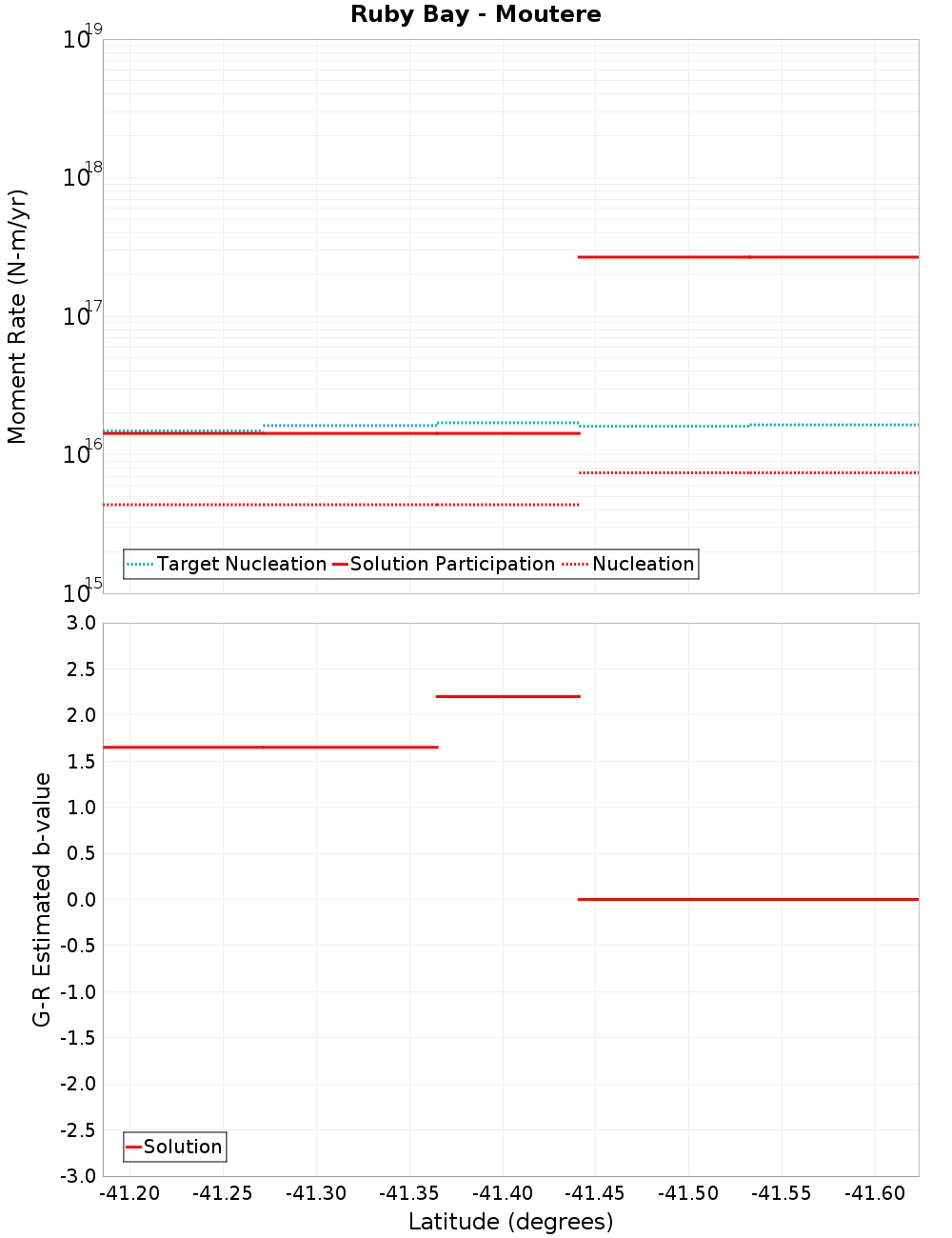

Moment-Rates and b-Values

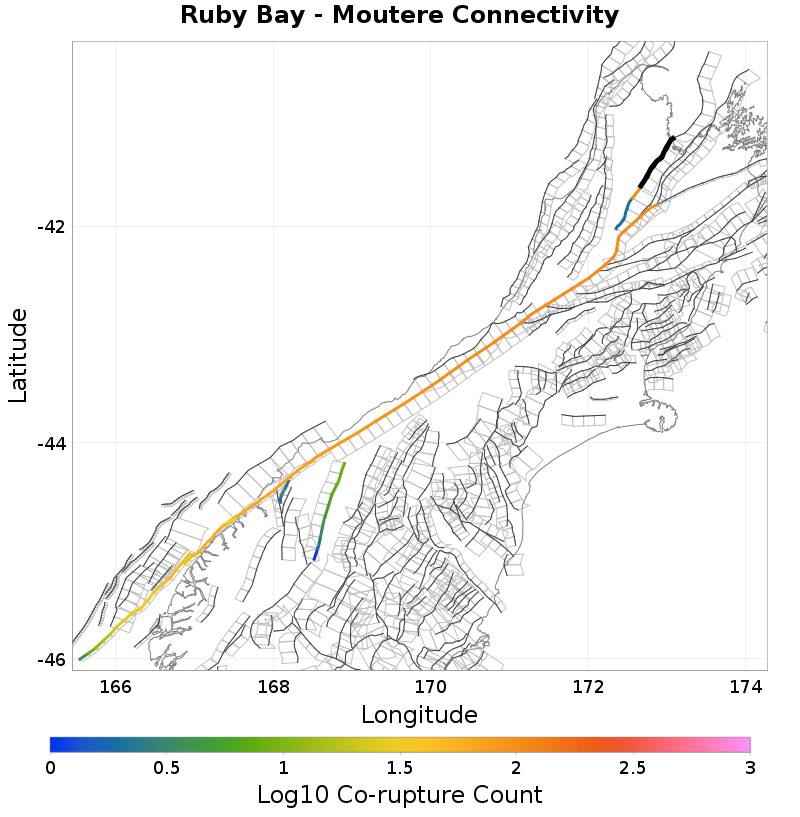

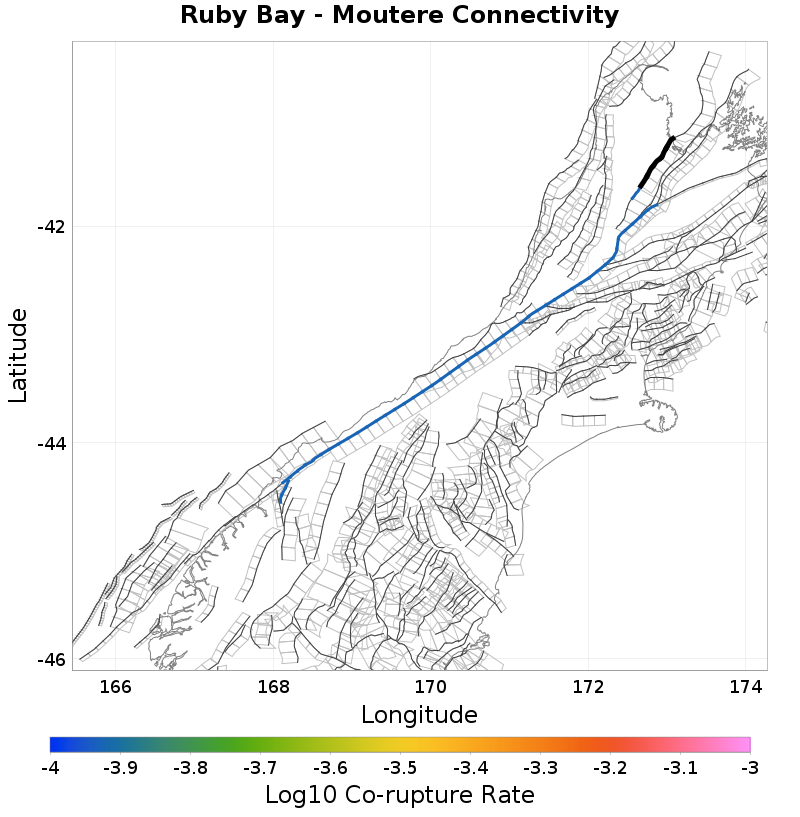

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Surville, 0.09 km away |
| Tutaki, 3.43 km away |
| Flaxmore - Waimea - Tahunanui, 9.46 km away |
| Wairau, 15.07 km away |
| Whangamoa, 15.39 km away |
Surville, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tutaki, 3.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.43 km |
| Min Rate-Weighted Dist | 3.43 km |
| Co-rupture Count | 105 |
| Co-rupture Rate | 1.1833199E-4 |
Flaxmore - Waimea - Tahunanui, 9.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau, 15.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Whangamoa, 15.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
