Tuatoru 1 Details
| Property | Value |
|---|---|
| Rupture Count | 6,768 |
| Ruptures Above Sect Min Mag | 6,765 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.38, 8.17] |
| Length Range | [9, 550] km |
| Total Rate | 6.8852096E-4 /yr |
| Multi-Fault Rate | 6.8852096E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 62 |
Table Of Contents

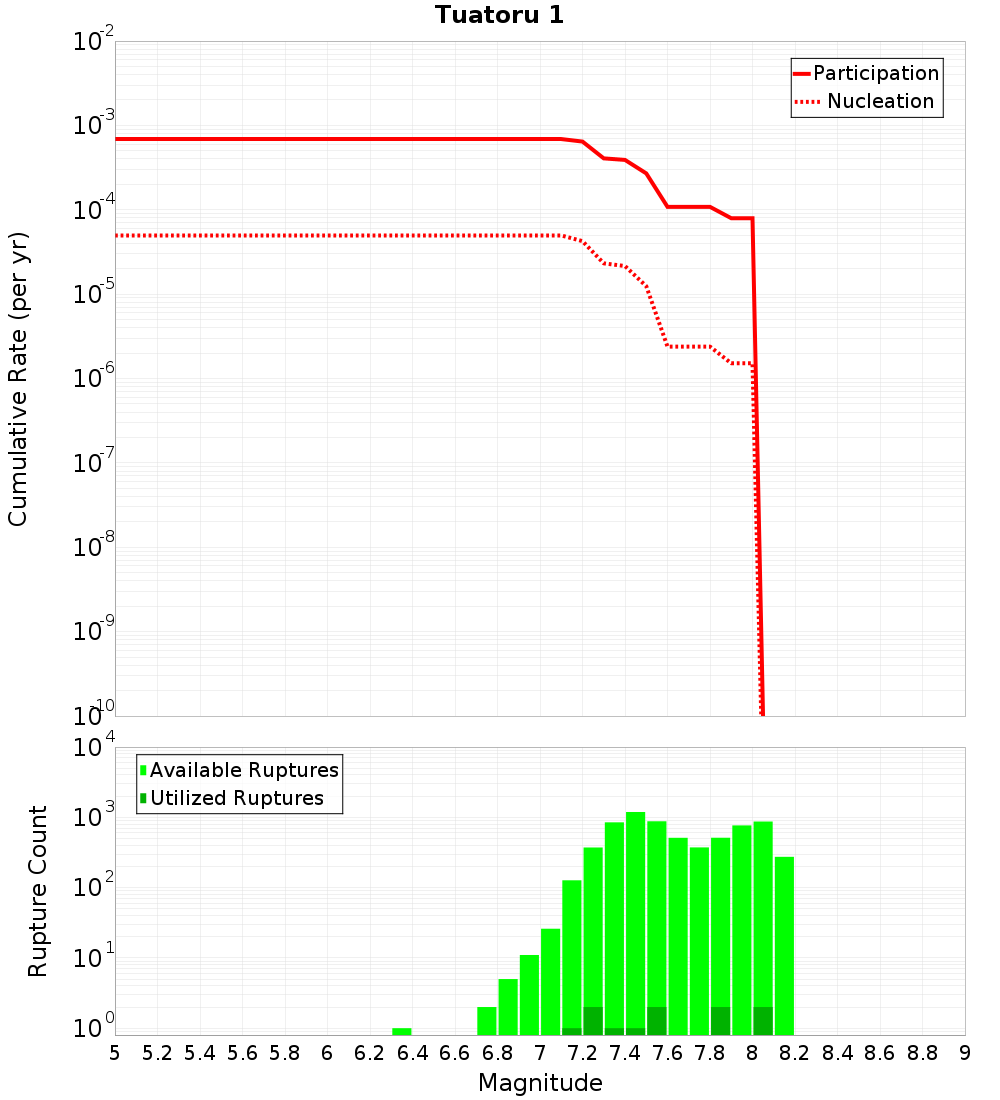

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

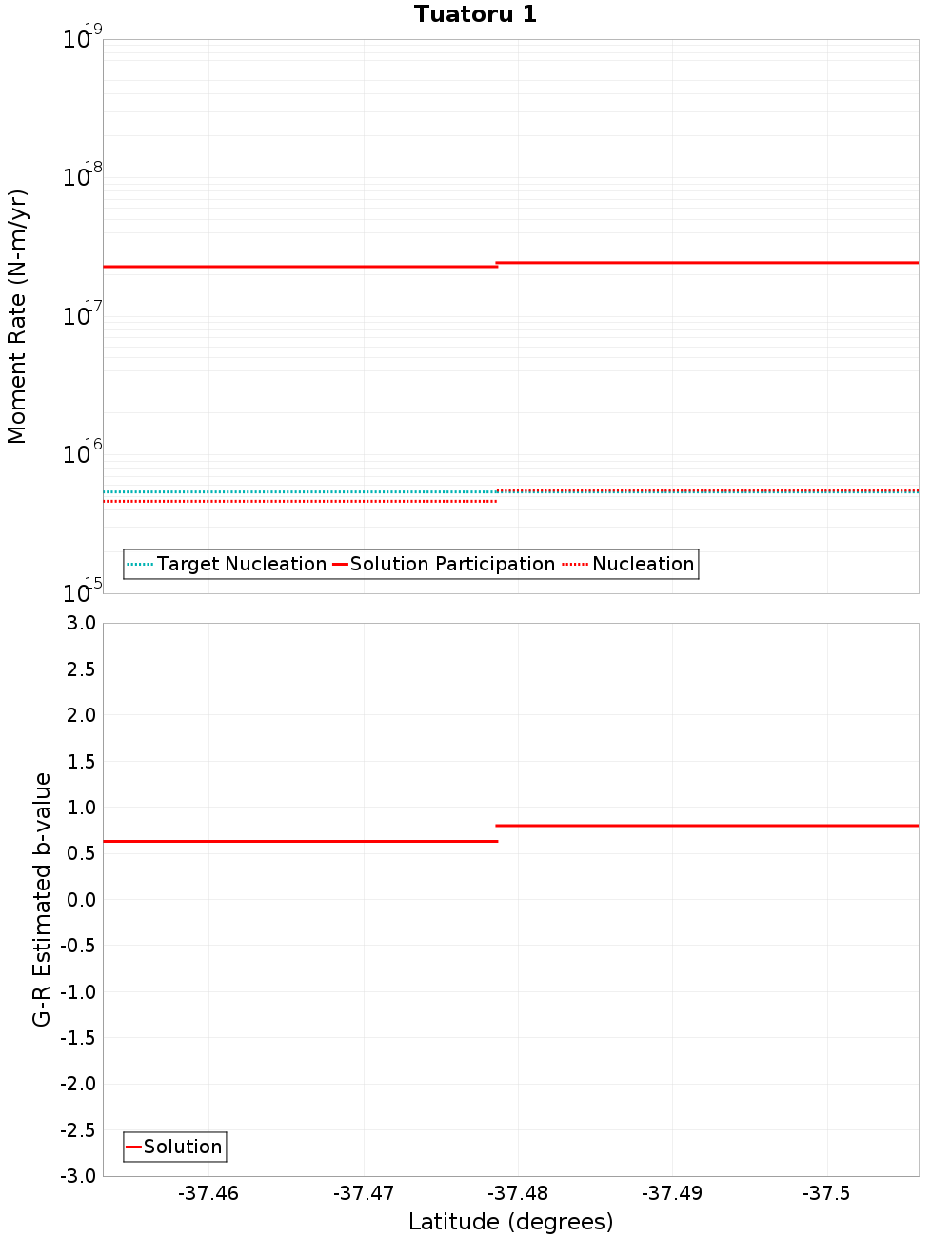

Moment-Rates and b-Values

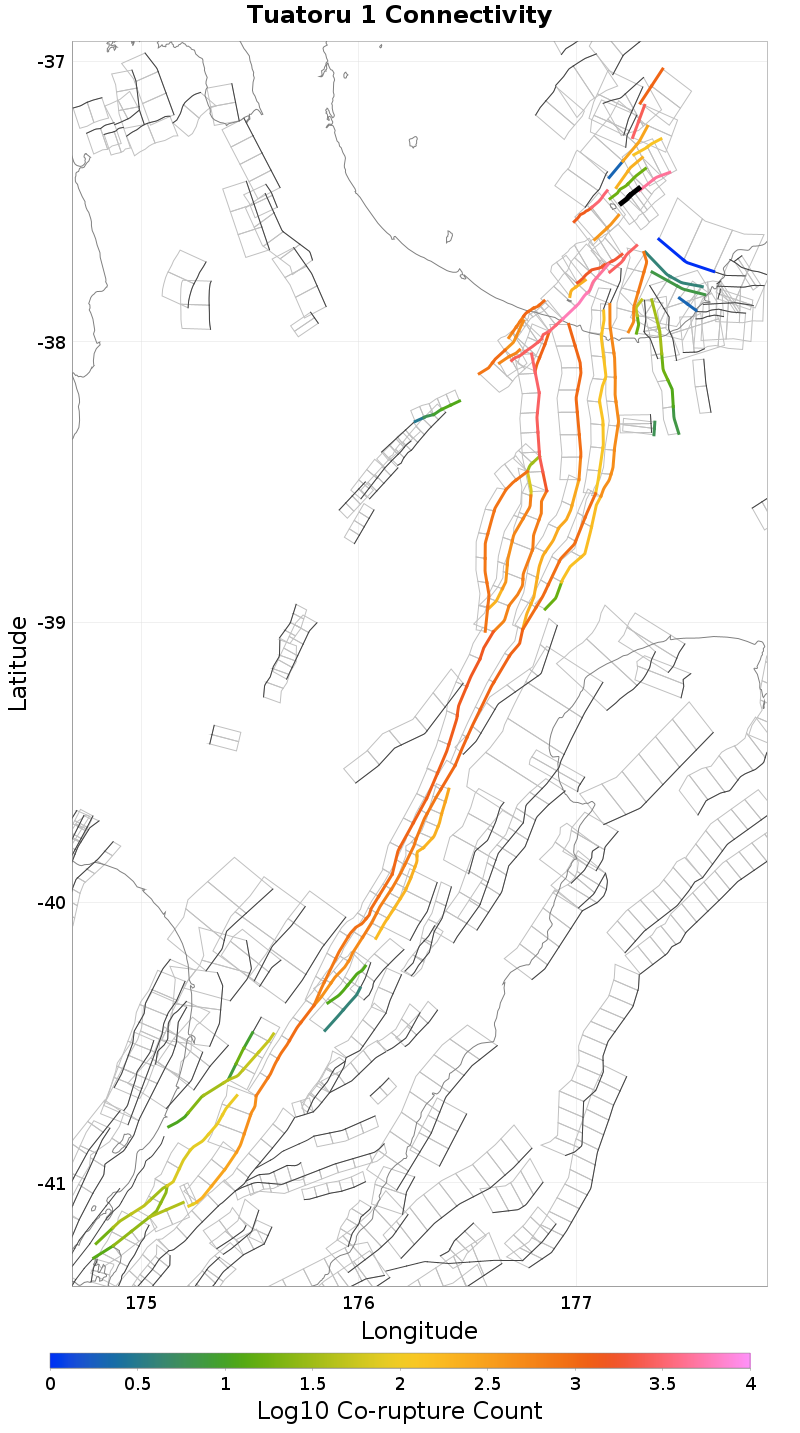

Connectivity
 |  |
|---|
Nearby Sections
Tuatoru 2, 0.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.42 km |
| Min Rate-Weighted Dist | 0.42 km |
| Co-rupture Count | 4,502 |
| Co-rupture Rate | 4.5216322E-4 |
Te Arawa 1, 3.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 17 |
| Co-rupture Rate | 1.561728E-4 |
Calypso 2, 3.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.86 km |
| Min Rate-Weighted Dist | 3.86 km |
| Co-rupture Count | 394 |
| Co-rupture Rate | 2.9895612E-4 |
Te Arawa 2, 4.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.63 km |
| Min Rate-Weighted Dist | 4.63 km |
| Co-rupture Count | 218 |
| Co-rupture Rate | 8.0184924E-5 |
Hariki, 5.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
White Island 2, 5.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.83 km |
| Min Rate-Weighted Dist | 5.83 km |
| Co-rupture Count | 2,857 |
| Co-rupture Rate | 2.8826857E-5 |
Whakaari 4, 5.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.85 km |
| Co-rupture Count | 3,212 |
| Co-rupture Rate | 0.0 |
Opotiki 3, 8.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.71 km |
| Min Rate-Weighted Dist | 8.71 km |
| Co-rupture Count | 732 |
| Co-rupture Rate | 5.1691075E-4 |
Te Arawa 3, 10.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 137 |
| Co-rupture Rate | 2.0200455E-4 |
Volkner 3, 10.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Volkner 4, 11.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 281 |
| Co-rupture Rate | 8.0184924E-5 |
Ohiwa 1, 11.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,875 |
| Co-rupture Rate | 0.0 |
Ohae 1, 16.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.2847636E-4 |
Otara West 1, 17.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimana - Waikaremoana, 18.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rangitaiki 2, 19.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,605 |
| Co-rupture Rate | 1.676664E-5 |
Otara East 1, 19.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,908 |
| Co-rupture Rate | 3.323417E-4 |
