Wakamarama Details

PropertyValue
Rupture Count78
Ruptures Above Sect Min Mag73
Ruptures w/ Nonzero Rates2
Magnitude Range[6.66, 7.62]
Length Range[18, 148] km
Total Rate1.5630473E-4 /yr
Multi-Fault Rate1.5630473E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults5

Table Of Contents

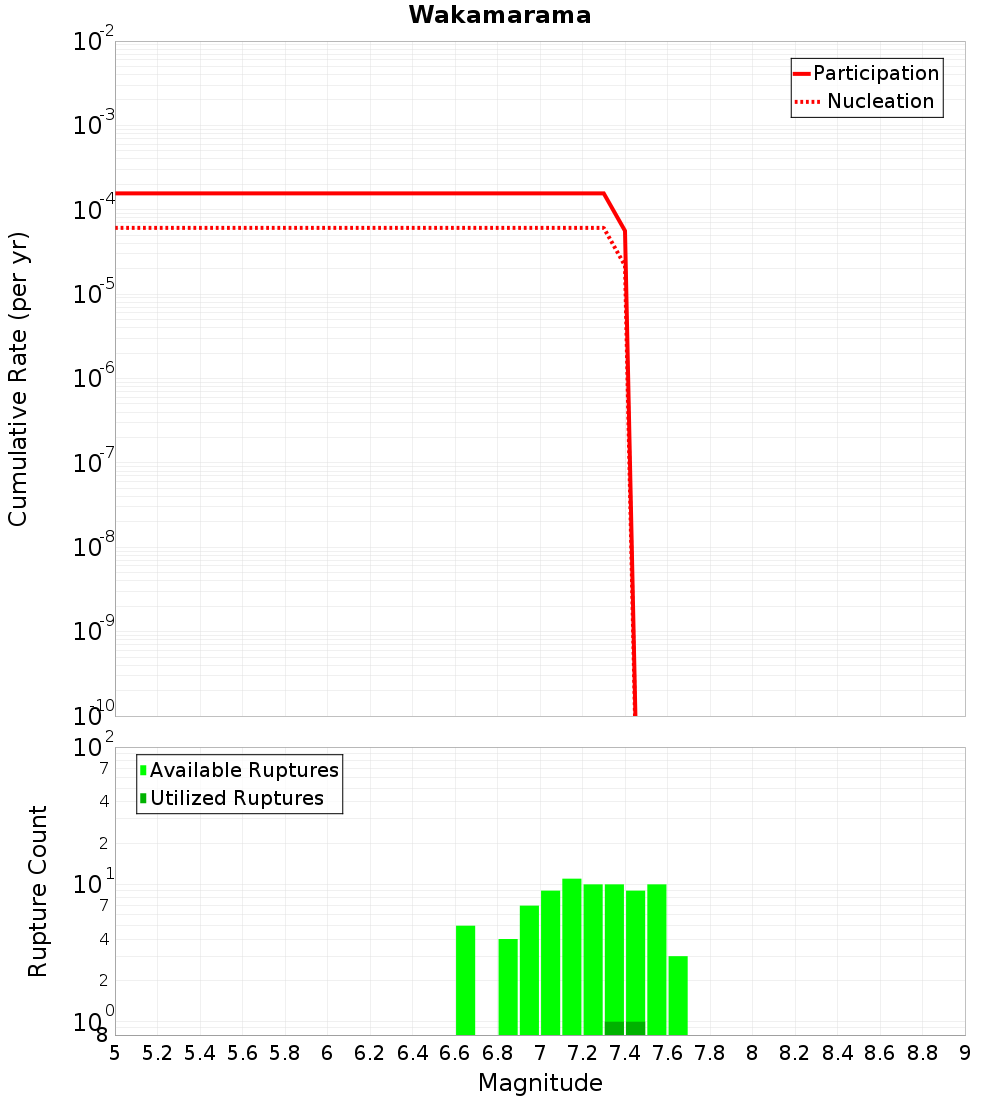

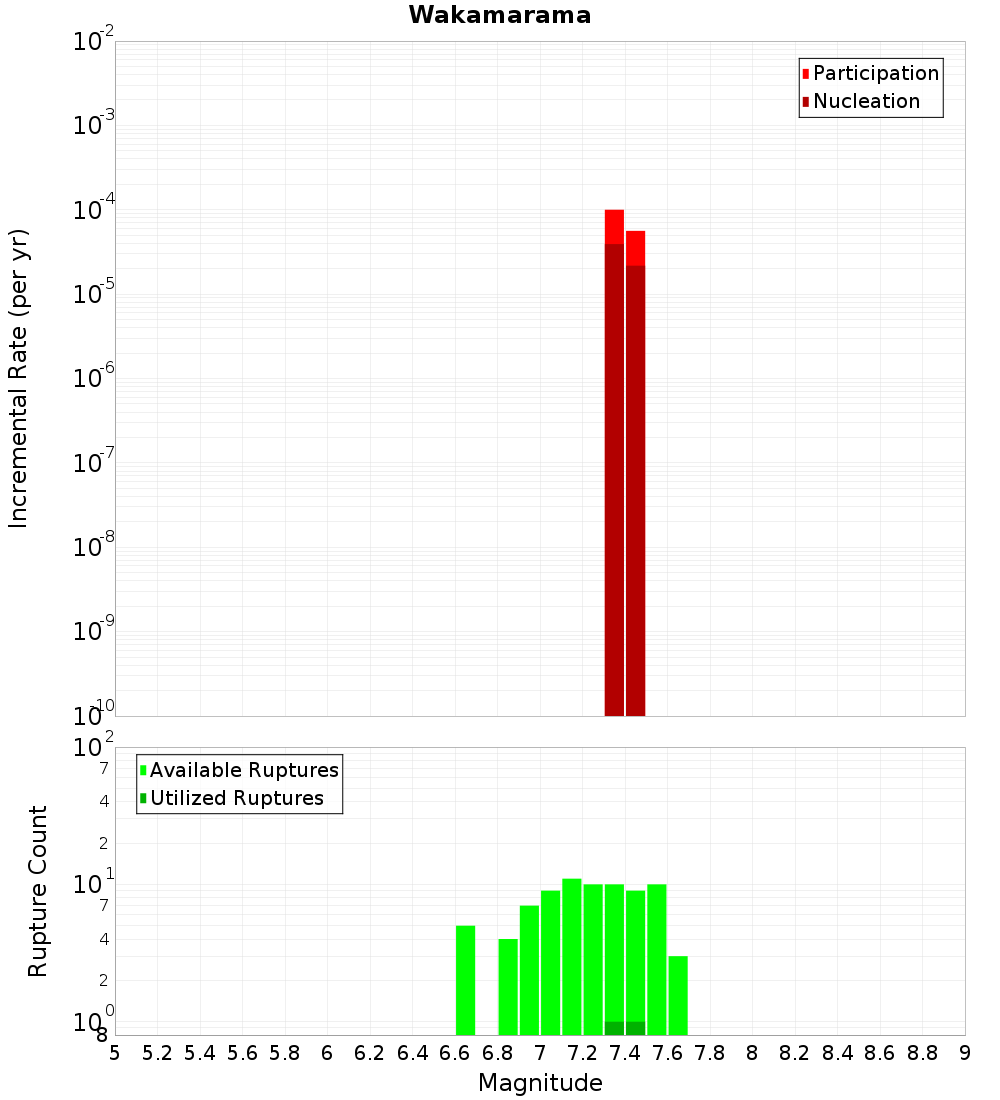

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

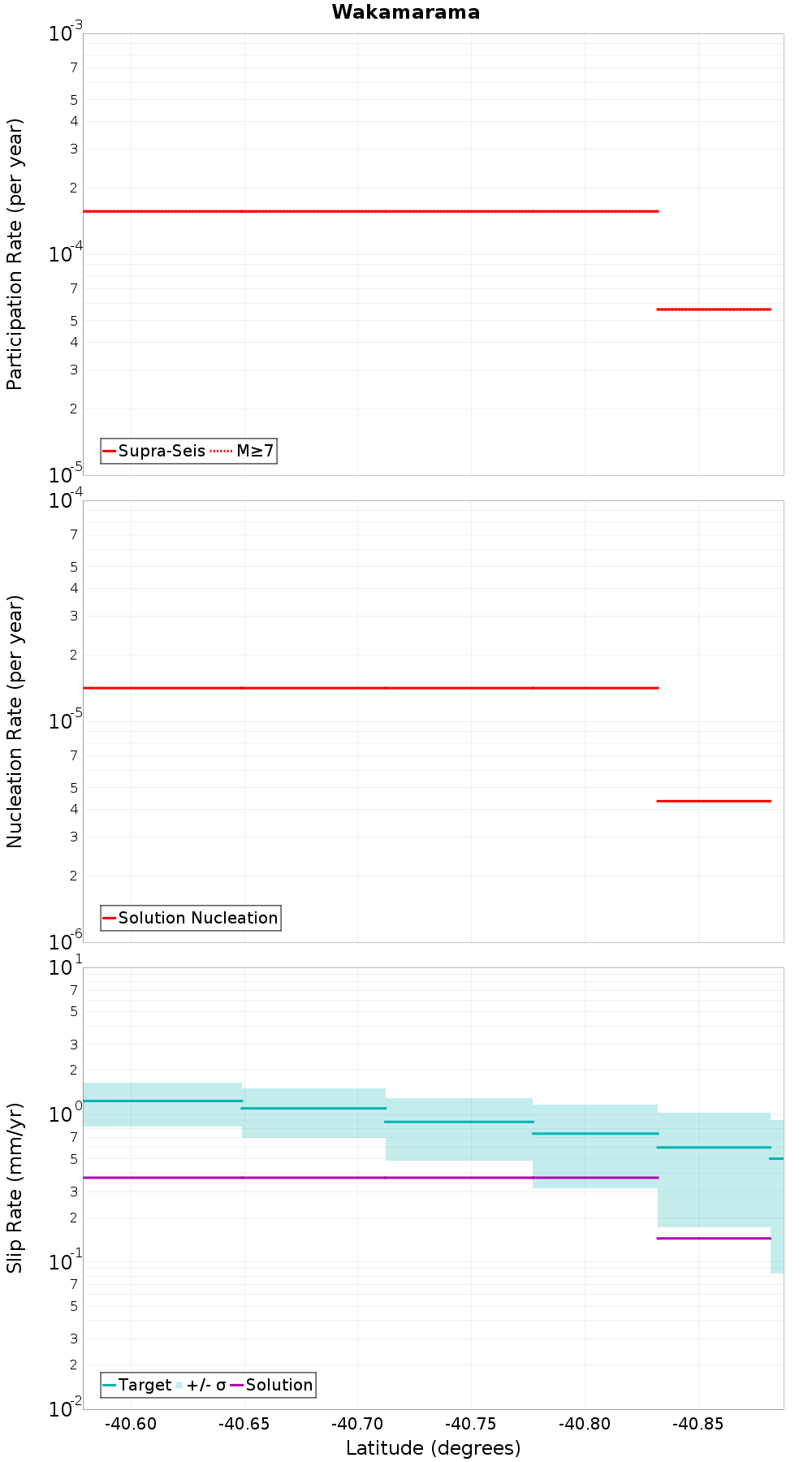

Along-Strike Values

(top)

Along-strike plot

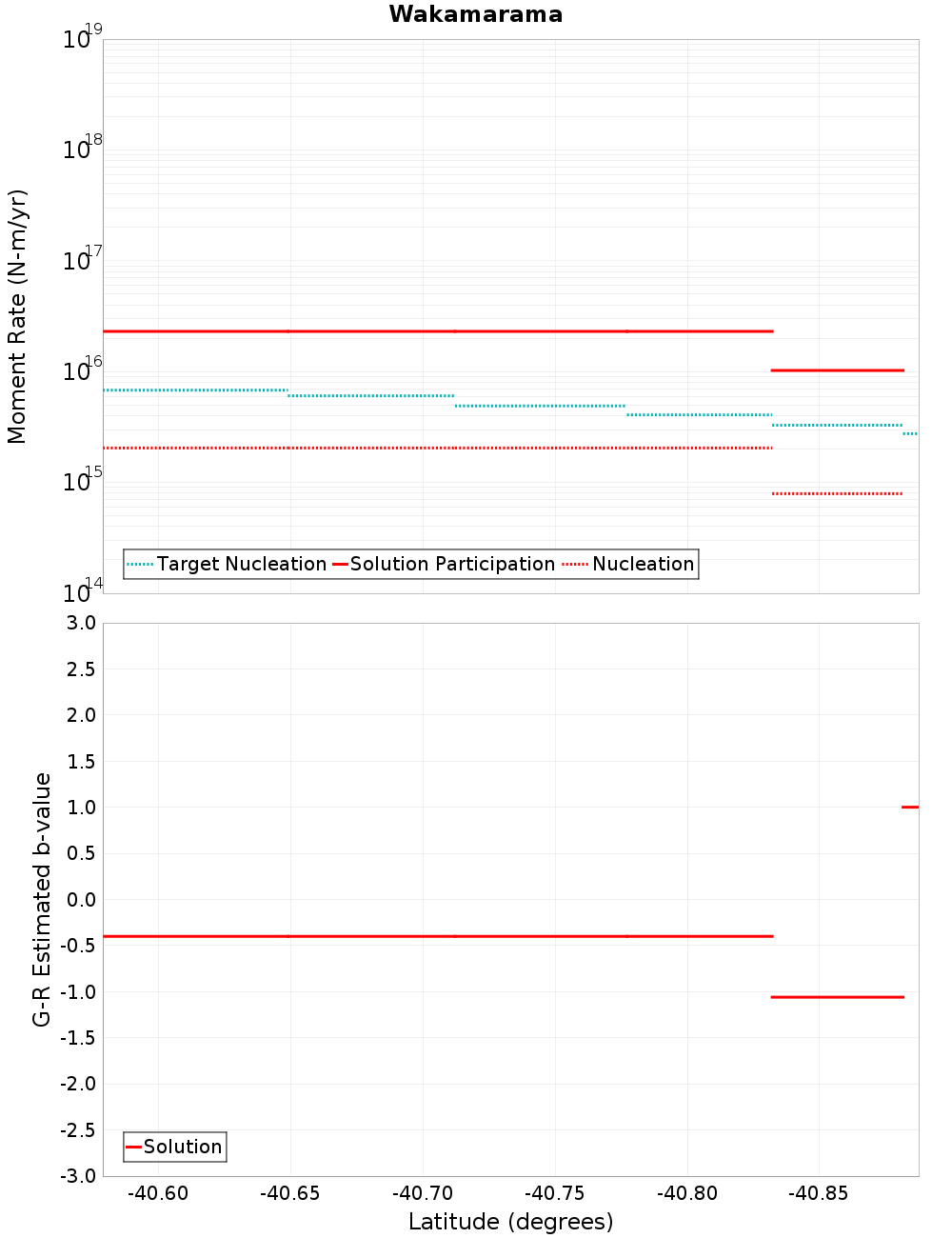

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wakamarama Offshore, 0 km away
Kongahau, 0.14 km away
Farewell, 0.29 km away
Kahurangi, 0.33 km away
Cape Foulwind 4, 1.47 km away
Kohaihai, 9.33 km away

Wakamarama Offshore, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count28
Co-rupture Rate1.5630473E-4

Kongahau, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.14 km
Co-rupture Count11
Co-rupture Rate0.0

Farewell, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.29 km
Co-rupture Count12
Co-rupture Rate0.0

Kahurangi, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.33 km
Min Rate-Weighted Dist2.14 km
Co-rupture Count20
Co-rupture Rate5.622775E-5

Cape Foulwind 4, 1.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Kohaihai, 9.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
