Wakamarama Offshore Details
| Property | Value |
|---|---|
| Rupture Count | 79 |
| Ruptures Above Sect Min Mag | 75 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.76, 7.75] |
| Length Range | [21, 194] km |
| Total Rate | 1.7970956E-4 /yr |
| Multi-Fault Rate | 1.7970956E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 4 |
Table Of Contents

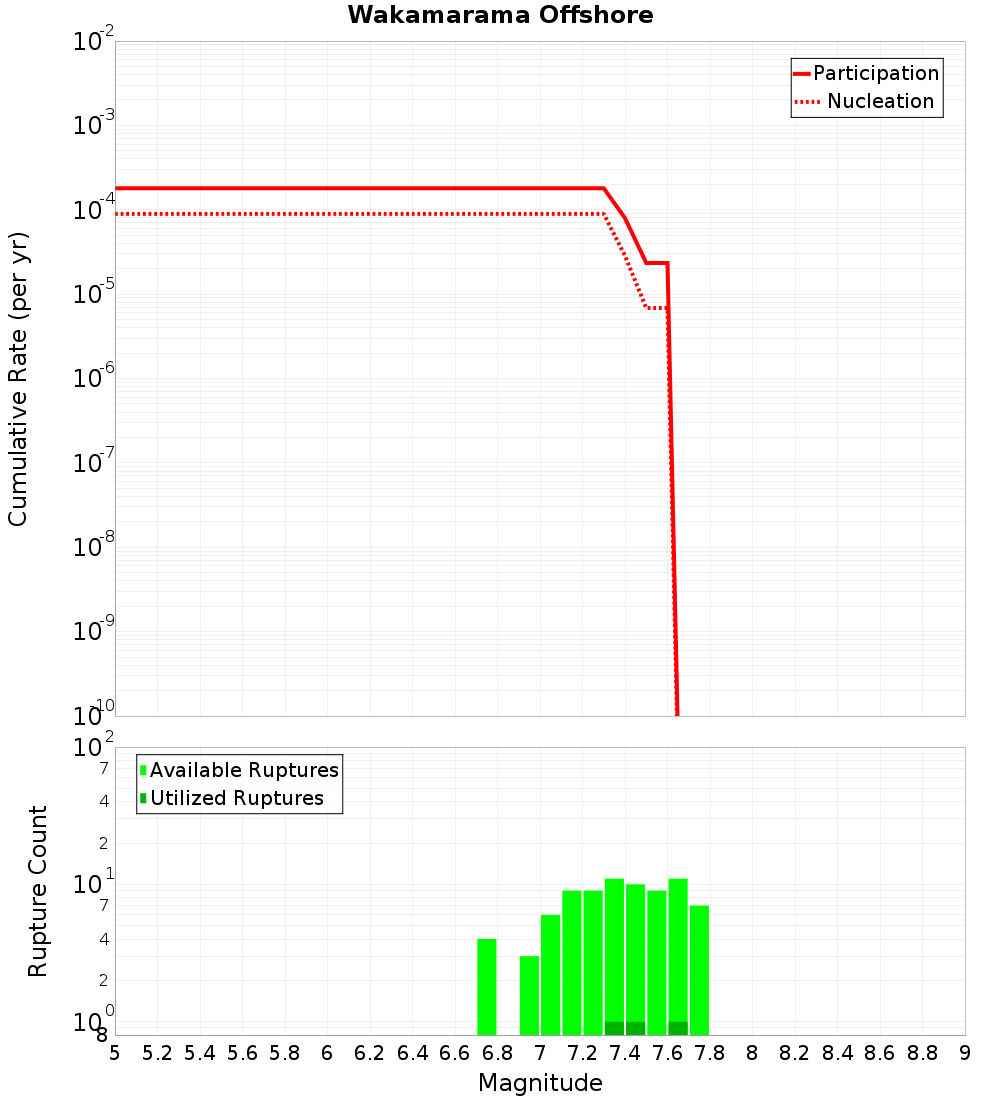

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

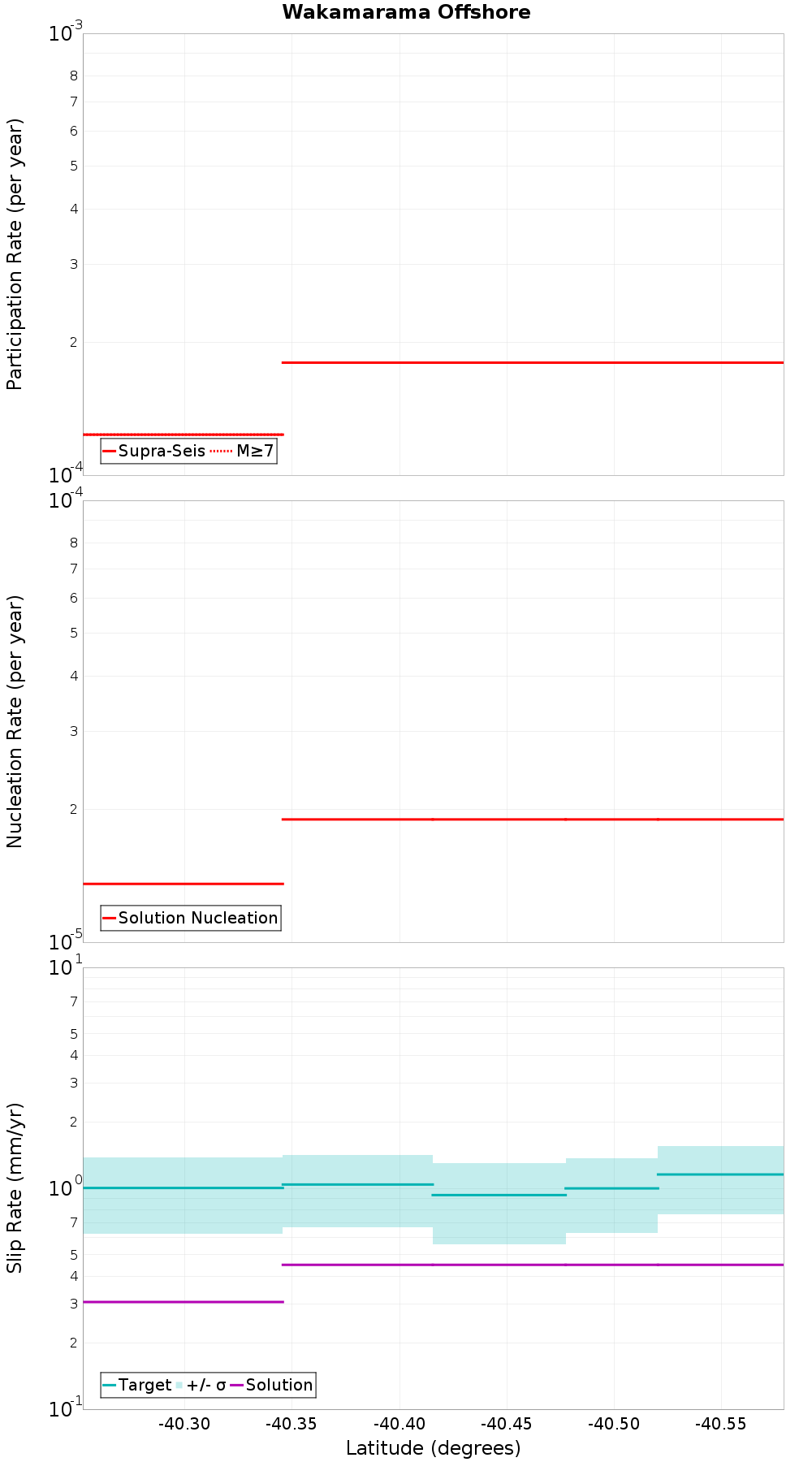

Along-Strike Values

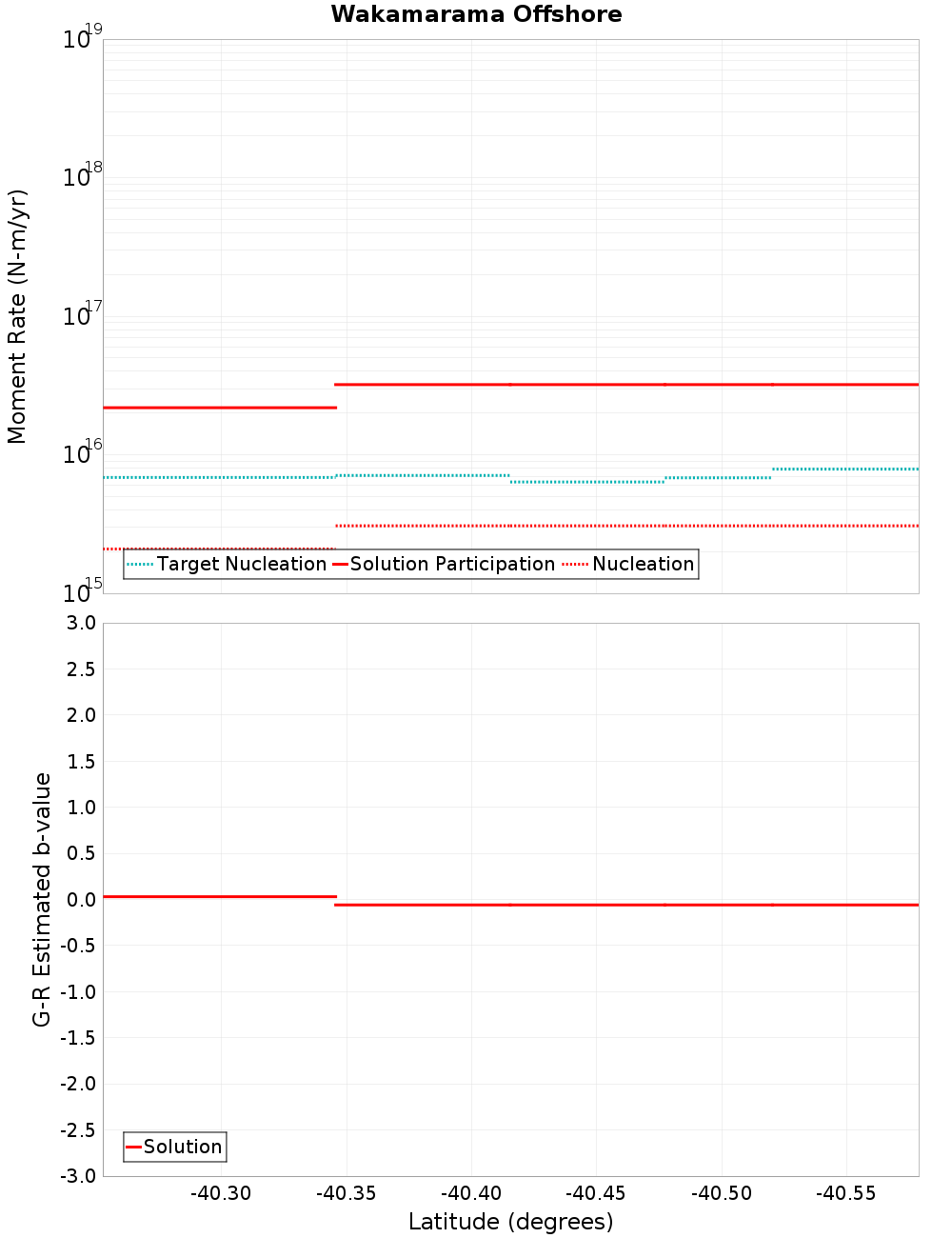

Moment-Rates and b-Values

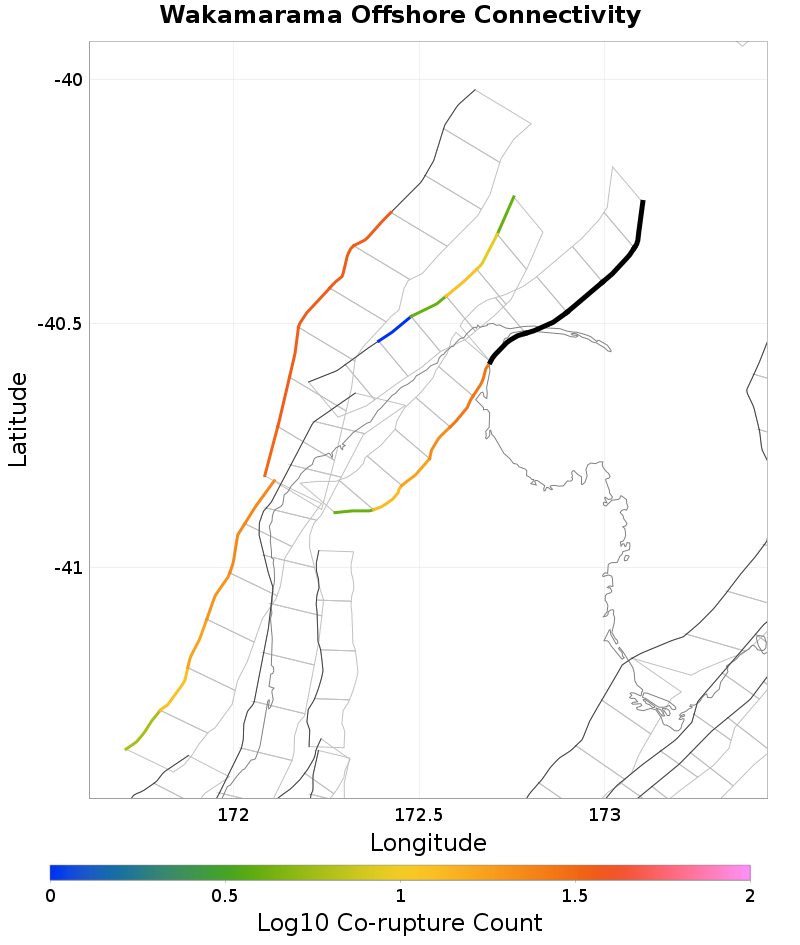

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Wakamarama, 0 km away |
| Farewell, 0.4 km away |
| Kahurangi, 14.24 km away |
Wakamarama, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 28 |
| Co-rupture Rate | 1.5630473E-4 |
Farewell, 0.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.4 km |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
Kahurangi, 14.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 14.24 km |
| Min Rate-Weighted Dist | 14.24 km |
| Co-rupture Count | 41 |
| Co-rupture Rate | 7.9632584E-5 |
