Alpine: Caswell - South George Details

Property	Value
Rupture Count	117,154
Ruptures Above Sect Min Mag	117,151
Ruptures w/ Nonzero Rates	68
Magnitude Range	[6.50, 8.44]
Length Range	[15, 1,156] km
Total Rate	0.002491527 /yr
Multi-Fault Rate	0.002491527 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	89

Table Of Contents

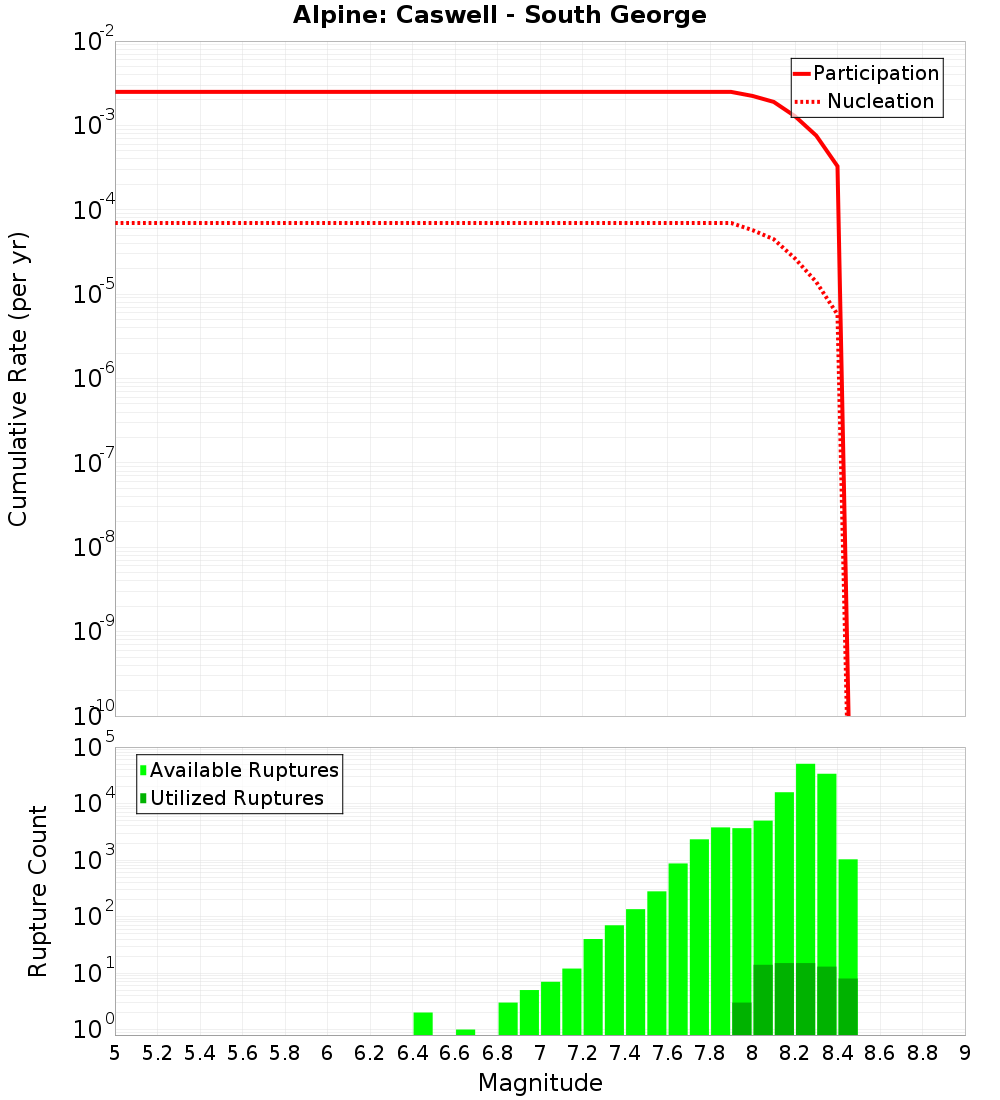

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Caswell, 0 km away
Alpine: George landward, 0.03 km away
Alpine: George seaward, 0.03 km away
Central Wedge 1 & 2 & 3, 9.36 km away
Madagascar, 12.23 km away
Alpine: George to Jacksons, 15.24 km away

Alpine: Caswell, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	0 km
Co-rupture Count	112,601
Co-rupture Rate	0.002491527

Alpine: George landward, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.03 km
Min Rate-Weighted Dist	0.03 km
Co-rupture Count	53,142
Co-rupture Rate	0.002068781

Alpine: George seaward, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.03 km
Min Rate-Weighted Dist	0.03 km
Co-rupture Count	64,437
Co-rupture Rate	4.2274615E-4

Central Wedge 1 & 2 & 3, 9.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?	true
Directly Connected?	false
Co-rupture Count	615
Co-rupture Rate	0.0

Madagascar, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?	true
Directly Connected?	false
Co-rupture Count	342
Co-rupture Rate	0.0

Alpine: George to Jacksons, 15.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?	true
Directly Connected?	false
Co-rupture Count	116,370
Co-rupture Rate	0.002491527
