Ariel Bank 2 Details
| Property | Value |
|---|---|
| Rupture Count | 243 |
| Ruptures Above Sect Min Mag | 237 |
| Ruptures w/ Nonzero Rates | 0 |
| Magnitude Range | [6.55, 7.52] |
| Length Range | [17, 157] km |
| Total Rate | 0.0 /yr |
| Multi-Fault Rate | 0.0 /yr (NaN) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 10 |
Table Of Contents
Along-Strike Values
Moment-Rates and b-Values

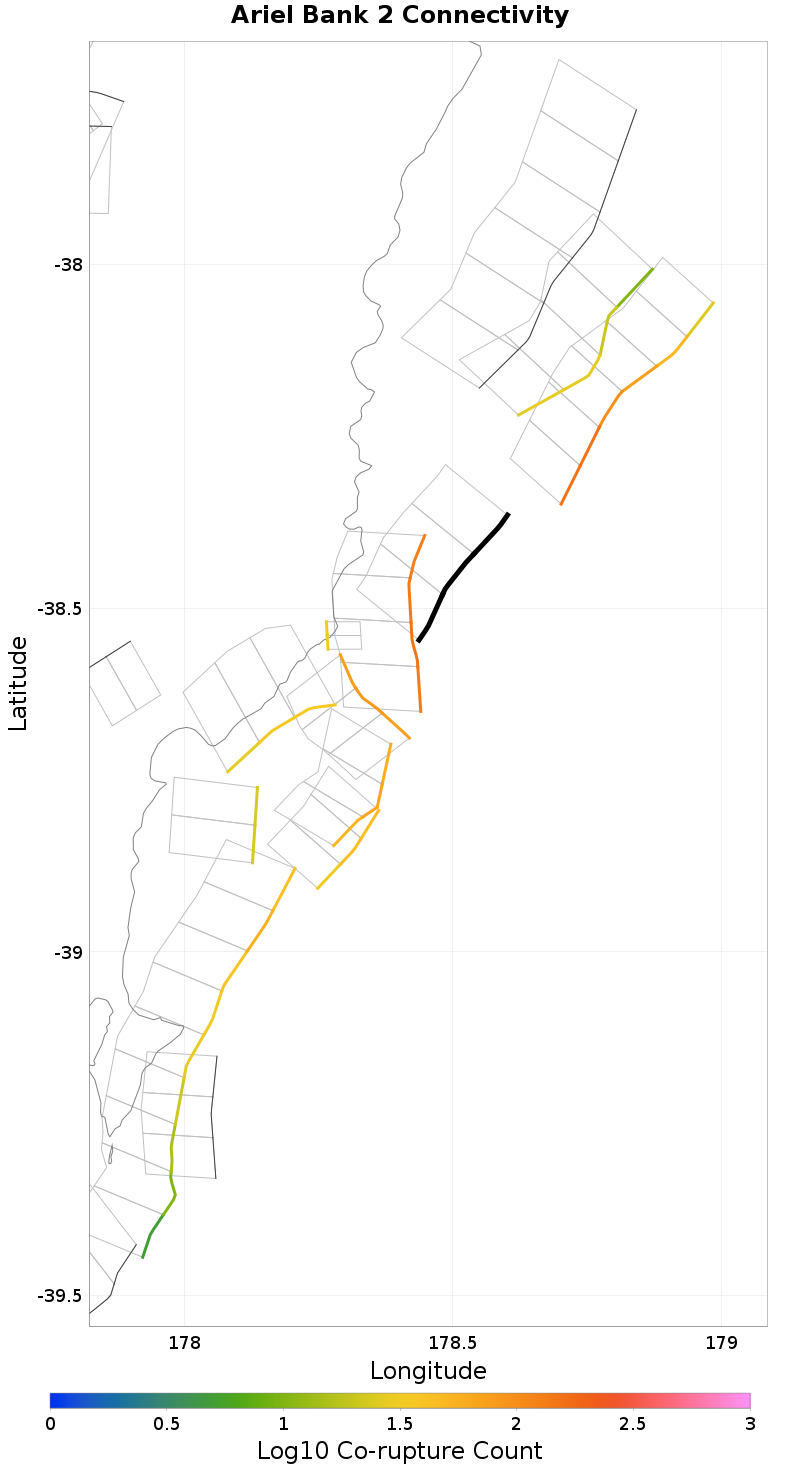

Connectivity
 |  |
|---|
Nearby Sections
Gable End North, 0.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.91 km |
| Co-rupture Count | 145 |
| Co-rupture Rate | 0.0 |
Pakarae, 3.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.93 km |
| Co-rupture Count | 30 |
| Co-rupture Rate | 0.0 |
Ruatoria South 3, 7.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.91 km |
| Co-rupture Count | 152 |
| Co-rupture Rate | 0.0 |
Te Ikaarongamai, 11.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.27 km |
| Co-rupture Count | 97 |
| Co-rupture Rate | 0.0 |
Gable End South, 12.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 34 |
| Co-rupture Rate | 0.0 |
Ruatoria South 4, 14.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 27 |
| Co-rupture Rate | 0.0 |
Houtunui, 16.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ariel Bank, 17.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 68 |
| Co-rupture Rate | 0.0 |
