Kahurangi Details
| Property | Value |
|---|---|
| Rupture Count | 423 |
| Ruptures Above Sect Min Mag | 416 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.83, 7.96] |
| Length Range | [23, 329] km |
| Total Rate | 1.8486232E-4 /yr |
| Multi-Fault Rate | 1.8486232E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

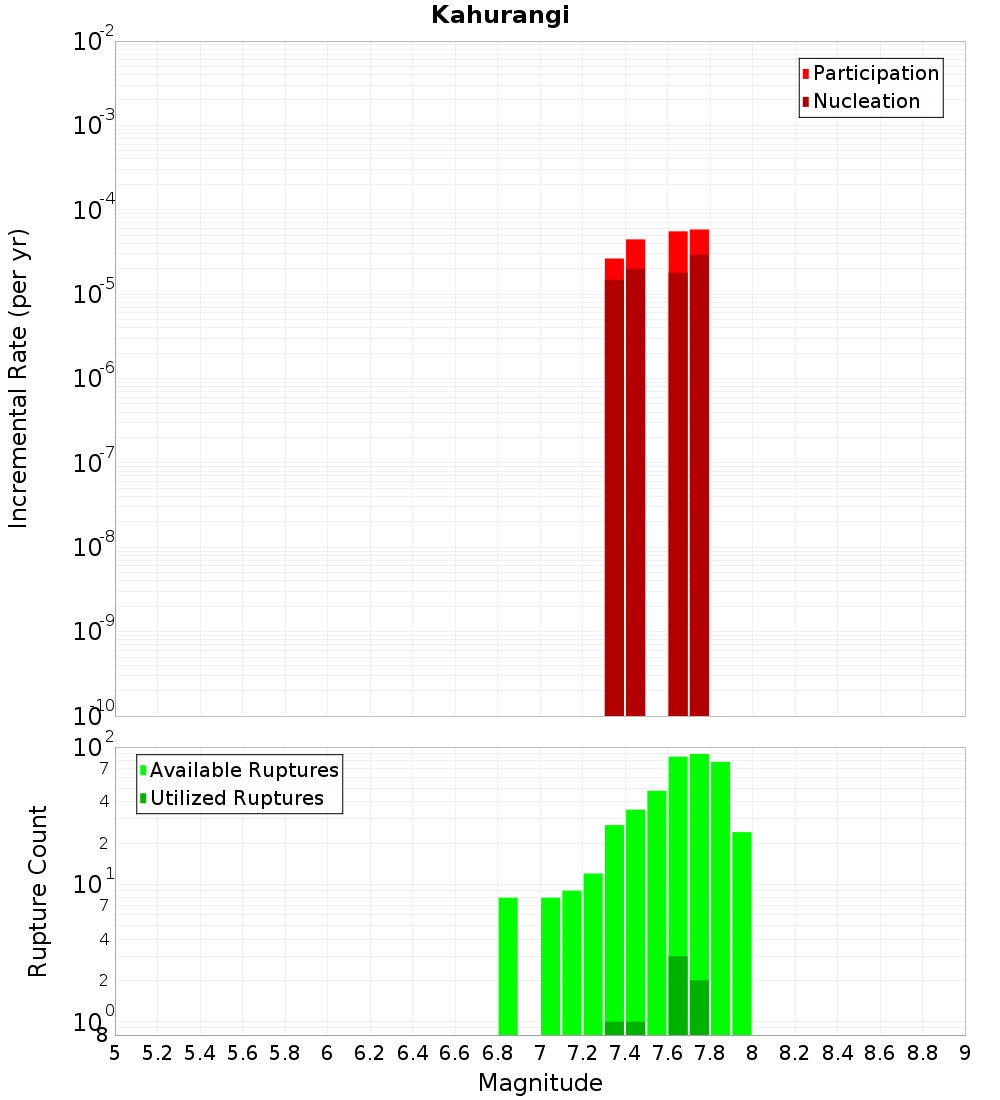

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

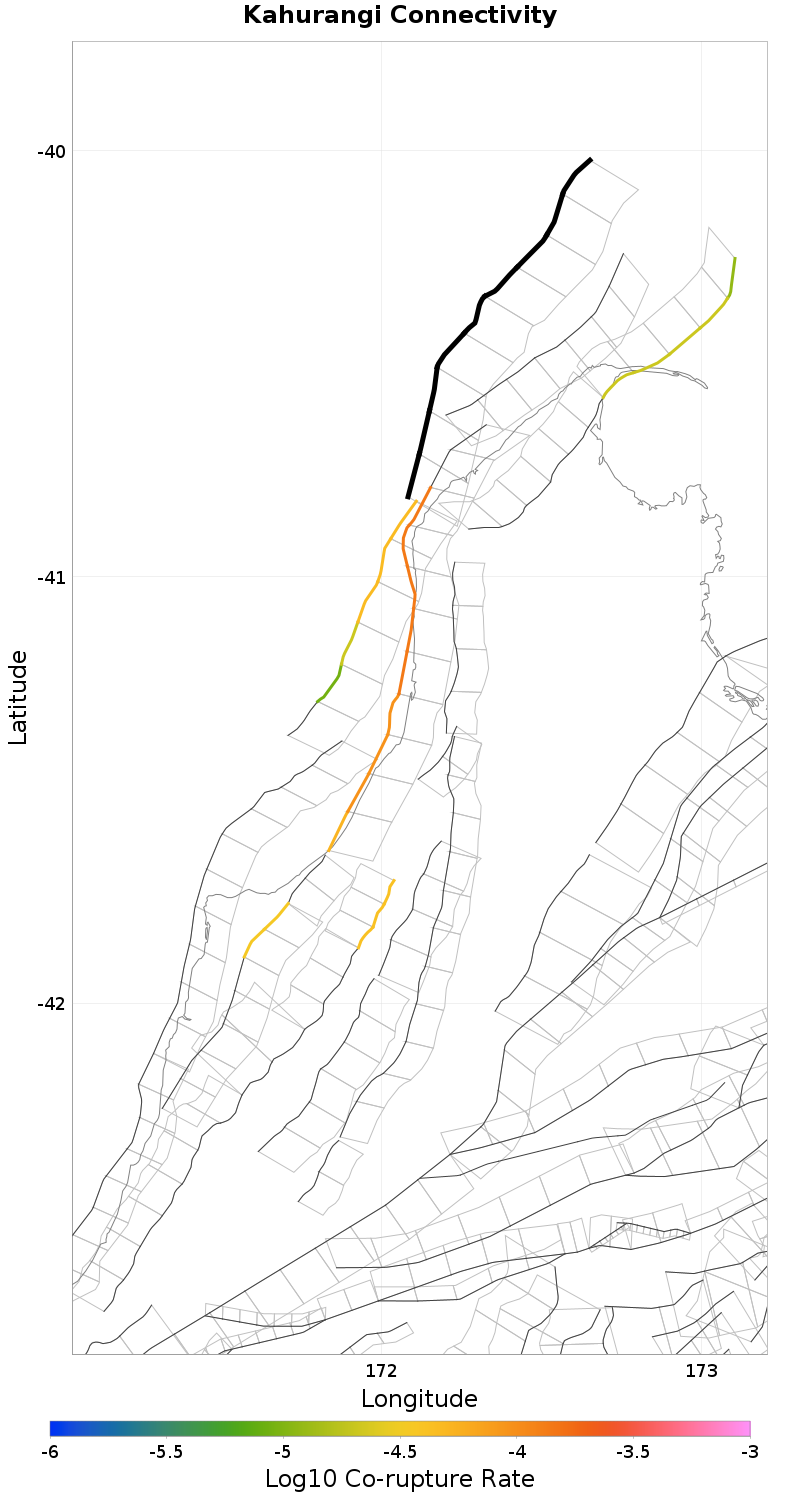

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Farewell, 0.22 km away |
| Kongahau, 0.26 km away |
| Wakamarama, 0.33 km away |
| Cape Foulwind 4, 0.34 km away |
| Kohaihai, 11.06 km away |
| Wakamarama Offshore, 14.24 km away |
Farewell, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.22 km |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
Kongahau, 0.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.26 km |
| Min Rate-Weighted Dist | 0.26 km |
| Co-rupture Count | 277 |
| Co-rupture Rate | 1.3789289E-4 |
Wakamarama, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.33 km |
| Co-rupture Count | 20 |
| Co-rupture Rate | 0.0 |
Cape Foulwind 4, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.34 km |
| Min Rate-Weighted Dist | 0.34 km |
| Co-rupture Count | 81 |
| Co-rupture Rate | 4.696943E-5 |
Kohaihai, 11.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 25 |
| Co-rupture Rate | 0.0 |
Wakamarama Offshore, 14.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 14.24 km |
| Min Rate-Weighted Dist | 14.24 km |
| Co-rupture Count | 41 |
| Co-rupture Rate | 2.0547992E-5 |
