Moonlight North Details
| Property | Value |
|---|---|
| Rupture Count | 9,427 |
| Ruptures Above Sect Min Mag | 9,421 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.83, 8.34] |
| Length Range | [23, 926] km |
| Total Rate | 8.0639154E-5 /yr |
| Multi-Fault Rate | 8.0639154E-5 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 83 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

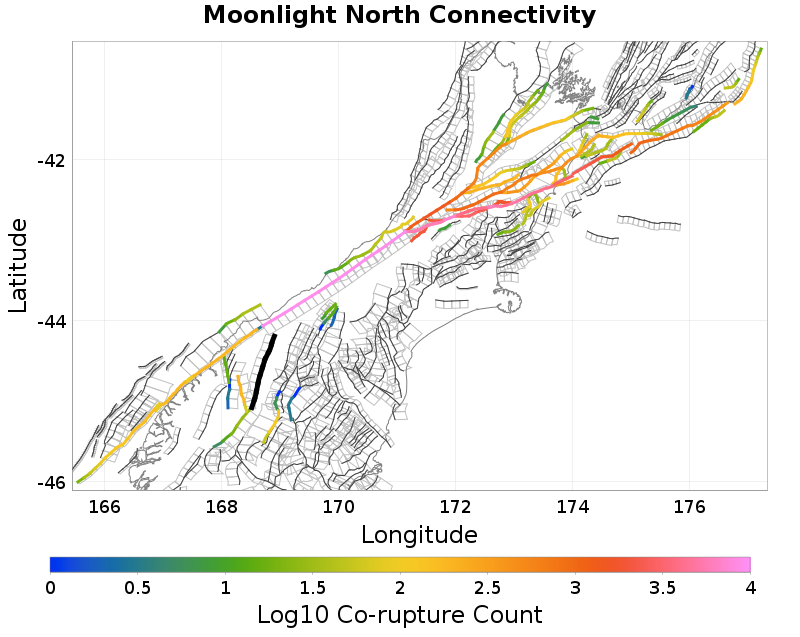

Connectivity
 |  |
|---|
Nearby Sections
West Wakatipu, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.2 km |
| Min Rate-Weighted Dist | 0.2 km |
| Co-rupture Count | 199 |
| Co-rupture Rate | 2.7522616E-5 |
Alpine: Jacksons to Kaniere, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.51 km |
| Min Rate-Weighted Dist | 1.51 km |
| Co-rupture Count | 9,105 |
| Co-rupture Rate | 3.1502568E-5 |
Moonlight South, 4.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.72 km |
| Min Rate-Weighted Dist | 4.72 km |
| Co-rupture Count | 28 |
| Co-rupture Rate | 4.9136586E-5 |
Livingstone, 7.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.91 km |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Alpine: George to Jacksons, 8.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.52 km |
| Co-rupture Count | 206 |
| Co-rupture Rate | 0.0 |
Barn, 13.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 13.98 km |
| Min Rate-Weighted Dist | 13.98 km |
| Co-rupture Count | 38 |
| Co-rupture Rate | 3.6206147E-5 |
Motatapu, 19.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
