Ohariu Details
| Property | Value |
|---|---|
| Rupture Count | 10,022 |
| Ruptures Above Sect Min Mag | 10,016 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.74, 8.18] |
| Length Range | [21, 540] km |
| Total Rate | 3.963559E-4 /yr |
| Multi-Fault Rate | 3.963559E-4 /yr (100.00%) |
| Directly-Connected Faults | 17 |
| All Co-Rupturing Faults | 88 |
Table Of Contents

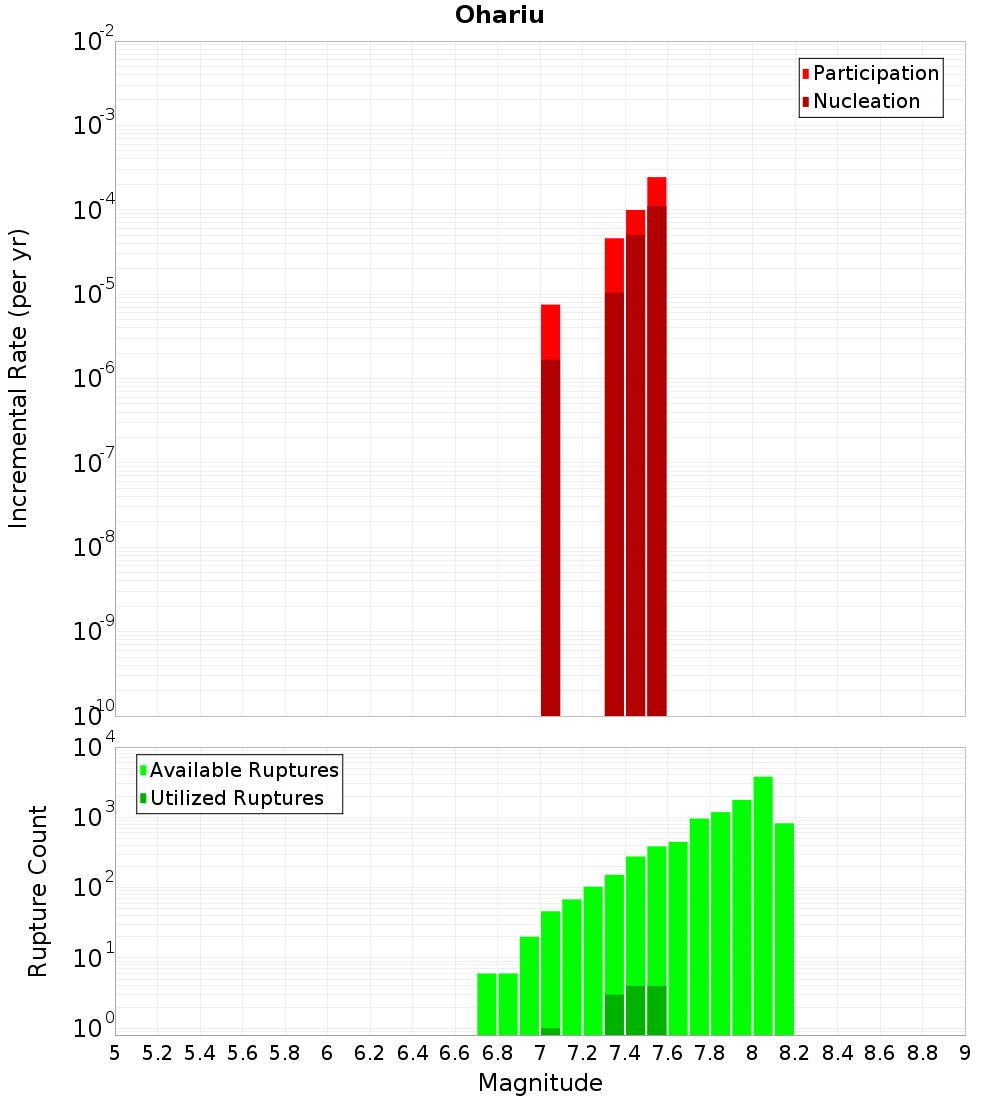

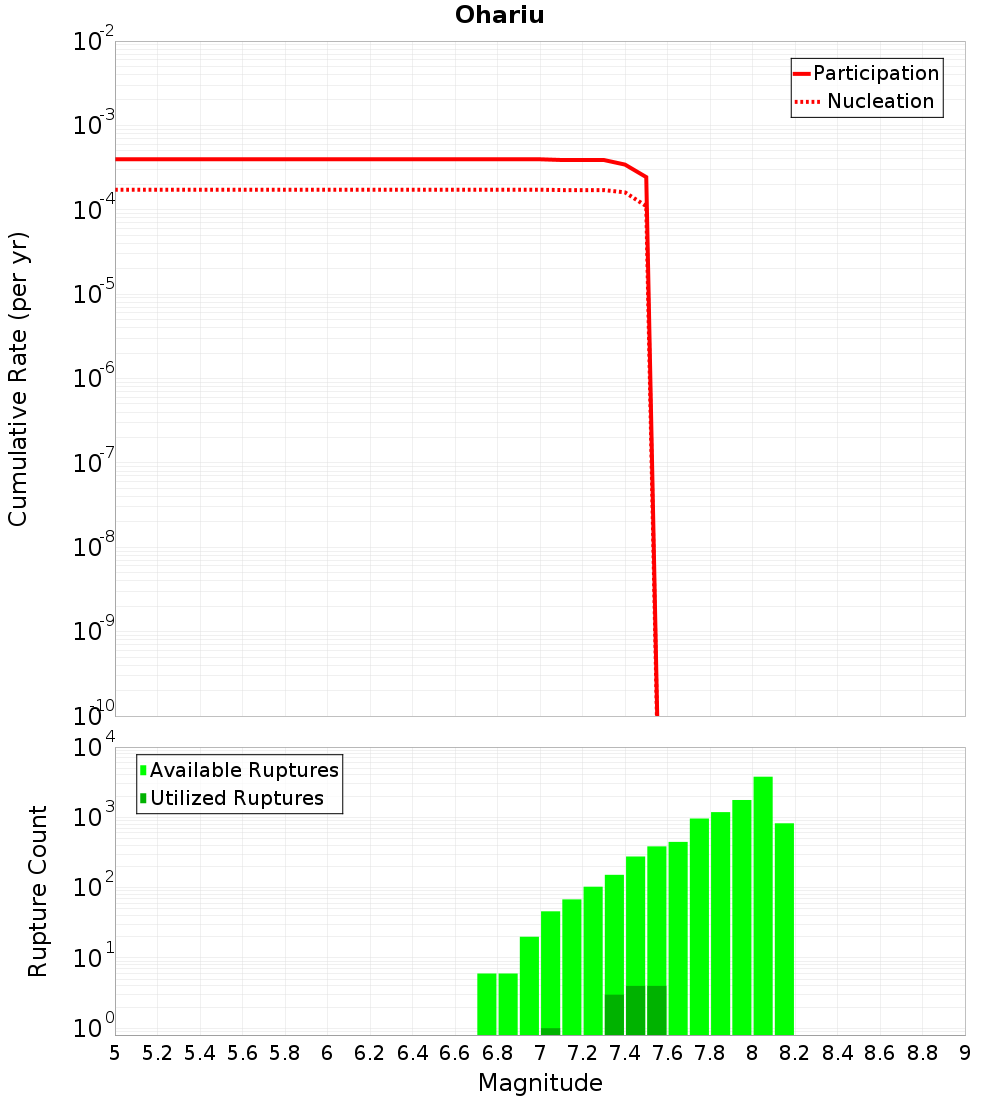

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

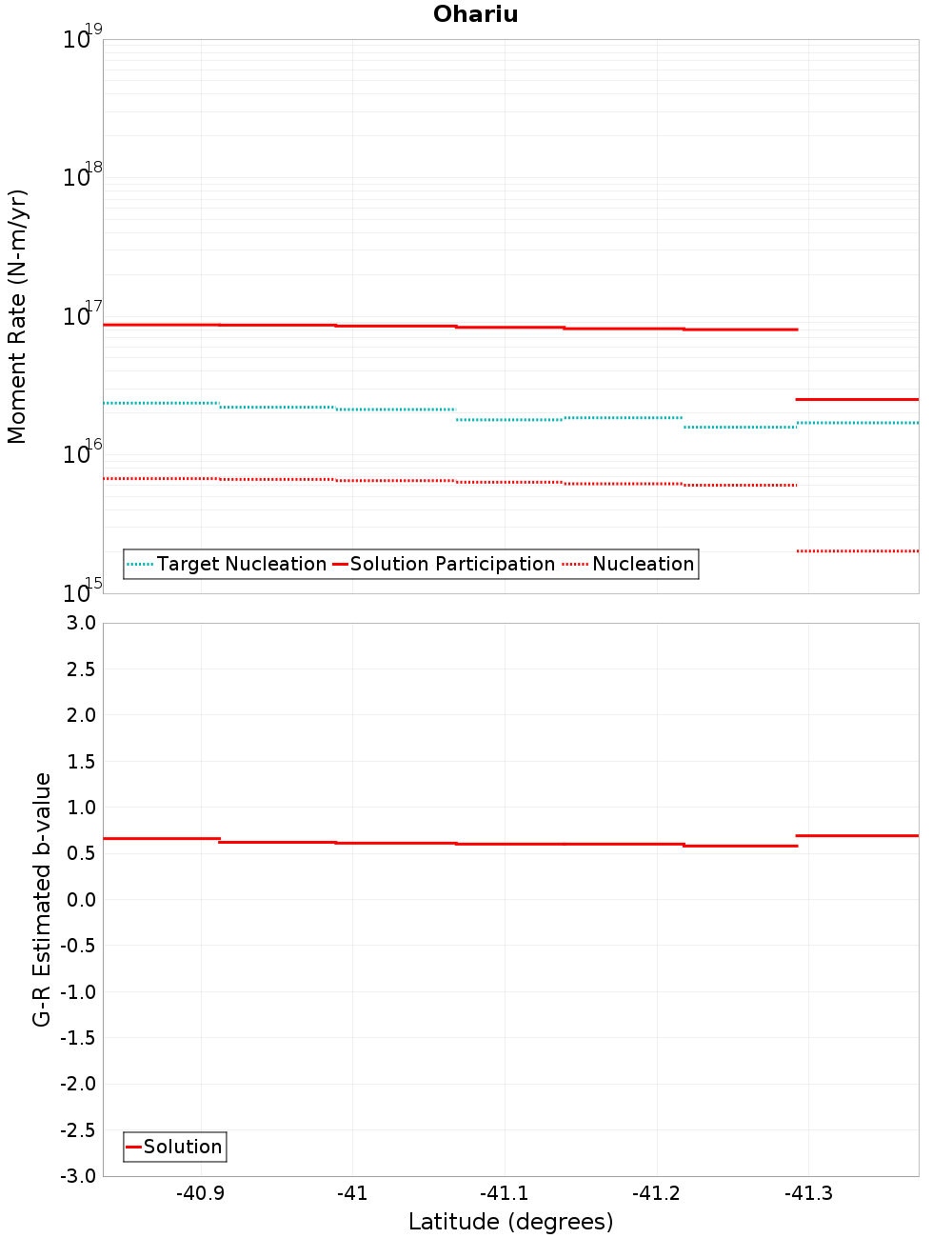

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Ohariu South 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 1,312 |
| Co-rupture Rate | 3.7233607E-5 |
Wellington Hutt Valley: 2, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.59 km |
| Min Rate-Weighted Dist | 4.59 km |
| Co-rupture Count | 484 |
| Co-rupture Rate | 1.340821E-4 |
Wellington Hutt Valley: 1, 1.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.7 km |
| Min Rate-Weighted Dist | 1.7 km |
| Co-rupture Count | 1,193 |
| Co-rupture Rate | 2.7669794E-5 |
Moonshine, 2.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.04 km |
| Co-rupture Count | 1,760 |
| Co-rupture Rate | 0.0 |
Whitemans Valley, 2.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.29 km |
| Co-rupture Count | 356 |
| Co-rupture Rate | 0.0 |
Pukerua - Shepherds Gully: 1, 2.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.91 km |
| Min Rate-Weighted Dist | 2.91 km |
| Co-rupture Count | 1,293 |
| Co-rupture Rate | 1.238408E-4 |
Pukerua - Shepherds Gully: 2, 2.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.91 km |
| Min Rate-Weighted Dist | 2.91 km |
| Co-rupture Count | 1,446 |
| Co-rupture Rate | 8.957218E-5 |
Pukerua - Shepherds Gully: 3, 3.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.18 km |
| Min Rate-Weighted Dist | 3.22 km |
| Co-rupture Count | 1,919 |
| Co-rupture Rate | 9.5638125E-6 |
Shepherds Gully - Mana, 3.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.79 km |
| Co-rupture Count | 227 |
| Co-rupture Rate | 0.0 |
Wellington Hutt Valley: 3, 3.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.96 km |
| Co-rupture Count | 261 |
| Co-rupture Rate | 9.5638125E-6 |
Northern Ohariu, 4.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.32 km |
| Min Rate-Weighted Dist | 4.32 km |
| Co-rupture Count | 7,023 |
| Co-rupture Rate | 2.9800148E-4 |
Wellington Hutt Valley: 4, 4.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.6 km |
| Co-rupture Count | 858 |
| Co-rupture Rate | 0.0 |
Otaki Forks: 1, 5.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.2 km |
| Min Rate-Weighted Dist | 5.2 km |
| Co-rupture Count | 1,943 |
| Co-rupture Rate | 7.820409E-5 |
Aotea - Evans Bay, 6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6 km |
| Co-rupture Count | 204 |
| Co-rupture Rate | 0.0 |
Akatarawa, 6.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 705 |
| Co-rupture Rate | 0.0 |
Ohariu South 1, 6.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.95 km |
| Co-rupture Count | 534 |
| Co-rupture Rate | 0.0 |
Otaheke South, 8.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.37 km |
| Co-rupture Count | 63 |
| Co-rupture Rate | 0.0 |
Okupe 1, 9.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 388 |
| Co-rupture Rate | 0.0 |
Poroutawhao, 11.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 0.0 |
Wairau 3, 11.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.37 km |
| Min Rate-Weighted Dist | 11.37 km |
| Co-rupture Count | 254 |
| Co-rupture Rate | 7.068462E-5 |
Otaki Forks: 2, 11.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,727 |
| Co-rupture Rate | 7.068462E-5 |
Otaheke North, 11.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 5, 12.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 622 |
| Co-rupture Rate | 0.0 |
Onepoto, 14.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairarapa: 1, 14.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairarapa: Needles, 15.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington: Tararua 1, 15.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Wellington: Tararua 3, 17.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 577 |
| Co-rupture Rate | 0.0 |
Fisherman 1, 17.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18 |
| Co-rupture Rate | 0.0 |
Wellington: Tararua 2, 18.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 558 |
| Co-rupture Rate | 0.0 |
Fisherman 3, 18.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mascarin, 19.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Fisherman 2, 19.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
