Omarama Saddle Details

PropertyValue
Rupture Count230
Ruptures Above Sect Min Mag227
Ruptures w/ Nonzero Rates2
Magnitude Range[6.72, 7.99]
Length Range[18, 255] km
Total Rate2.7373597E-5 /yr
Multi-Fault Rate2.7373597E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults21

Table Of Contents

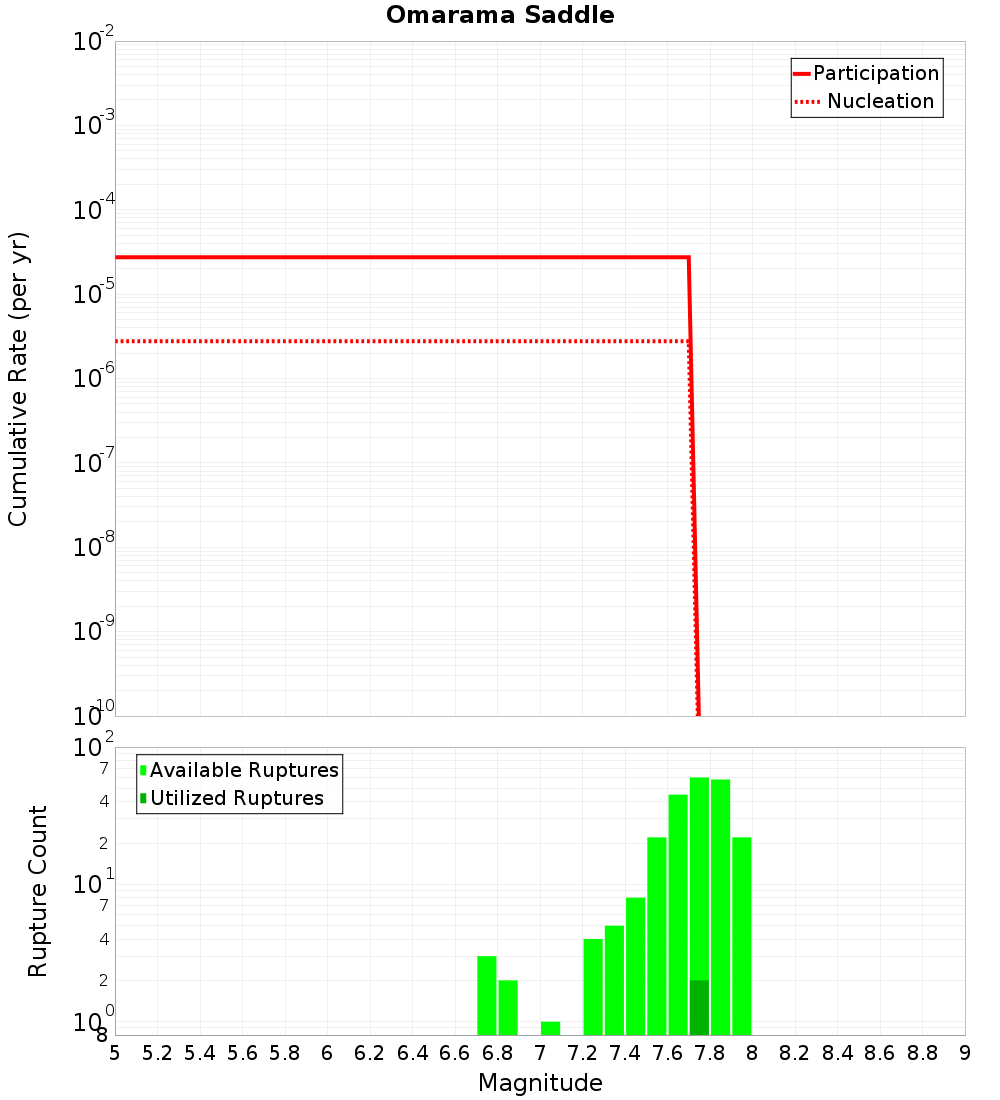

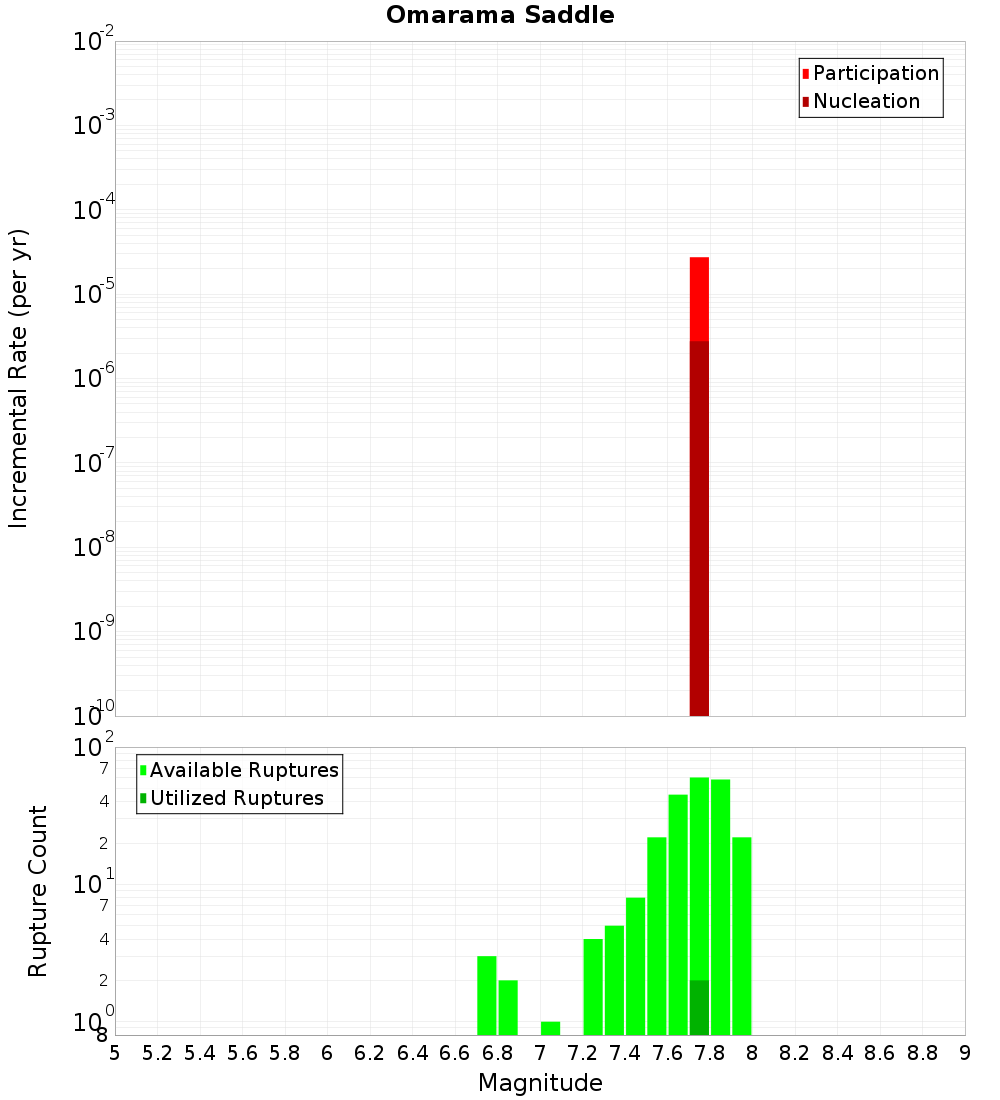

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

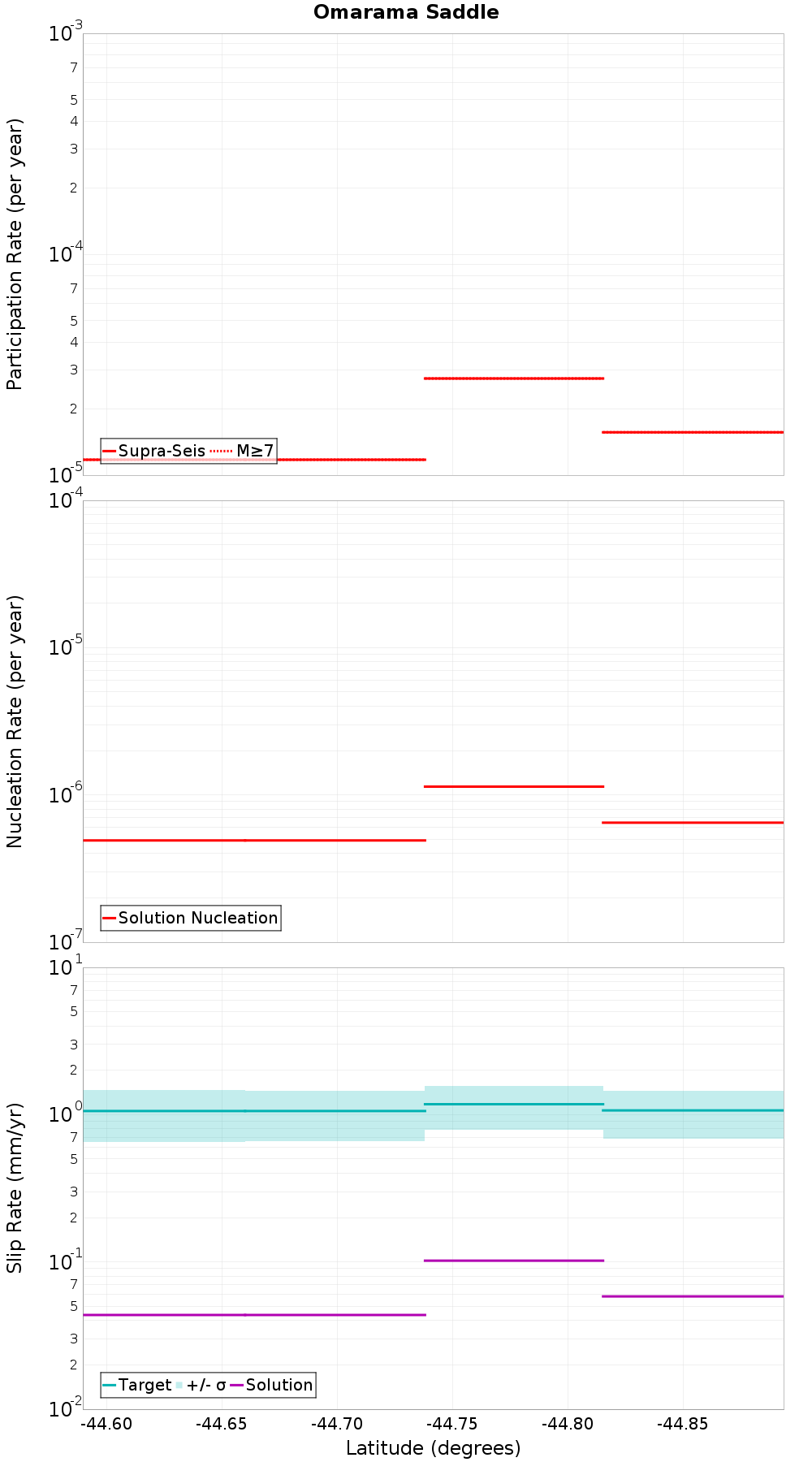

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hawkdun, 0.17 km awayMt Sutton, 7.02 km away
Raggedy - Blackstone, 0.32 km awayOstler South, 7.55 km away
Fern Gully, 0.42 km awayDromedary, 13.1 km away
Blue Lake, 1.09 km awayCluden, 13.48 km away
Gibson, 1.46 km awayMiddle Range, 14.06 km away
Garibaldi, 3.17 km awayWaitangi, 15.42 km away
Dunstan, 5.06 km awayWaihemo, 17.01 km away
Gimmerburn, 6.75 km awayGoodger, 17.61 km away
Falstone, 6.81 km awayKirkliston, 19.72 km away

Hawkdun, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raggedy - Blackstone, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.32 km
Co-rupture Count15
Co-rupture Rate0.0

Fern Gully, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Lake, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 1.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 3.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.17 km
Min Rate-Weighted Dist6.51 km
Co-rupture Count113
Co-rupture Rate2.7373597E-5

Dunstan, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Gimmerburn, 6.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.75 km
Min Rate-Weighted Dist6.75 km
Co-rupture Count218
Co-rupture Rate2.7373597E-5

Falstone, 6.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Sutton, 7.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler South, 7.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 13.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cluden, 13.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Middle Range, 14.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitangi, 15.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 17.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Goodger, 17.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 19.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
