Palliser - Kaiwhata Details

PropertyValue
Rupture Count15,931
Ruptures Above Sect Min Mag15,921
Ruptures w/ Nonzero Rates7
Magnitude Range[6.64, 8.40]
Length Range[18, 1,017] km
Total Rate2.6047832E-4 /yr
Multi-Fault Rate2.6047832E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults81

Table Of Contents

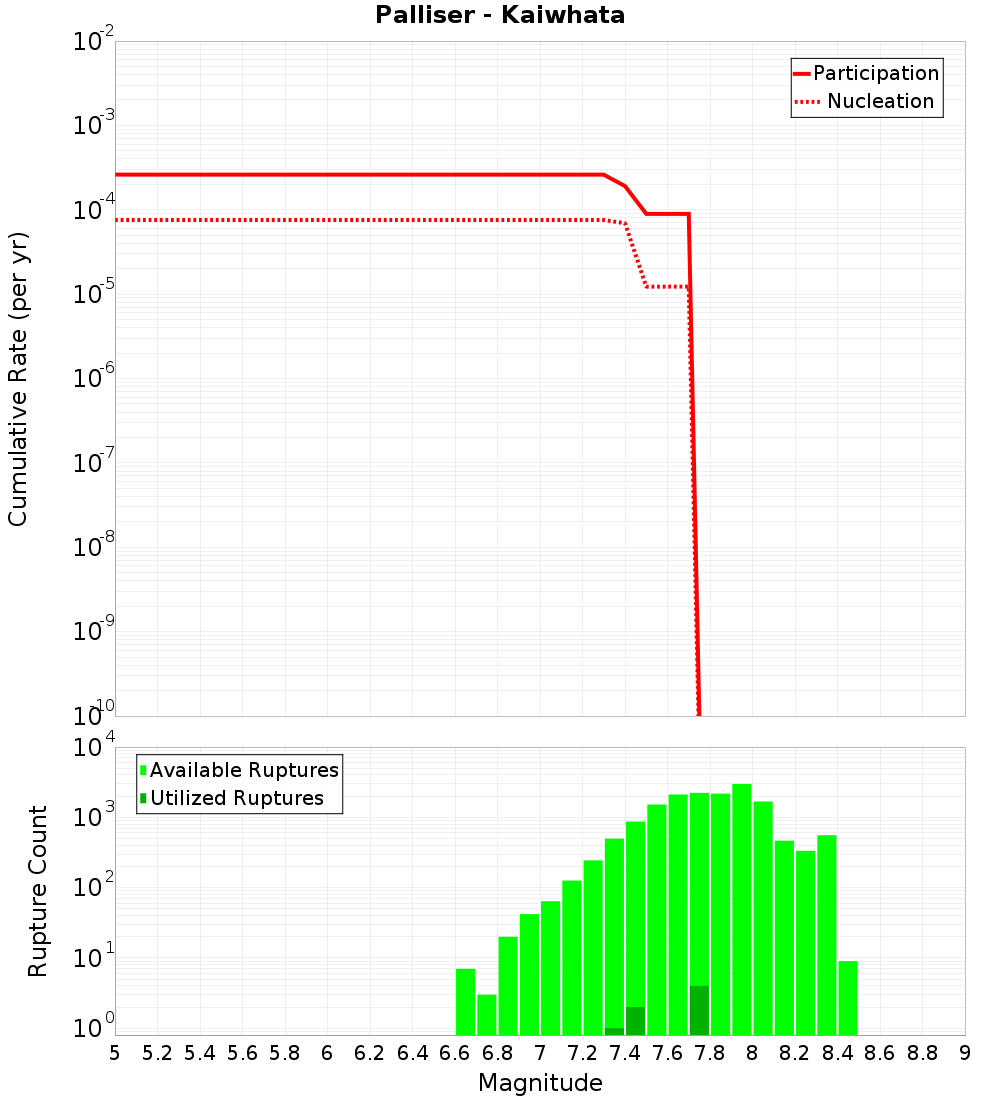

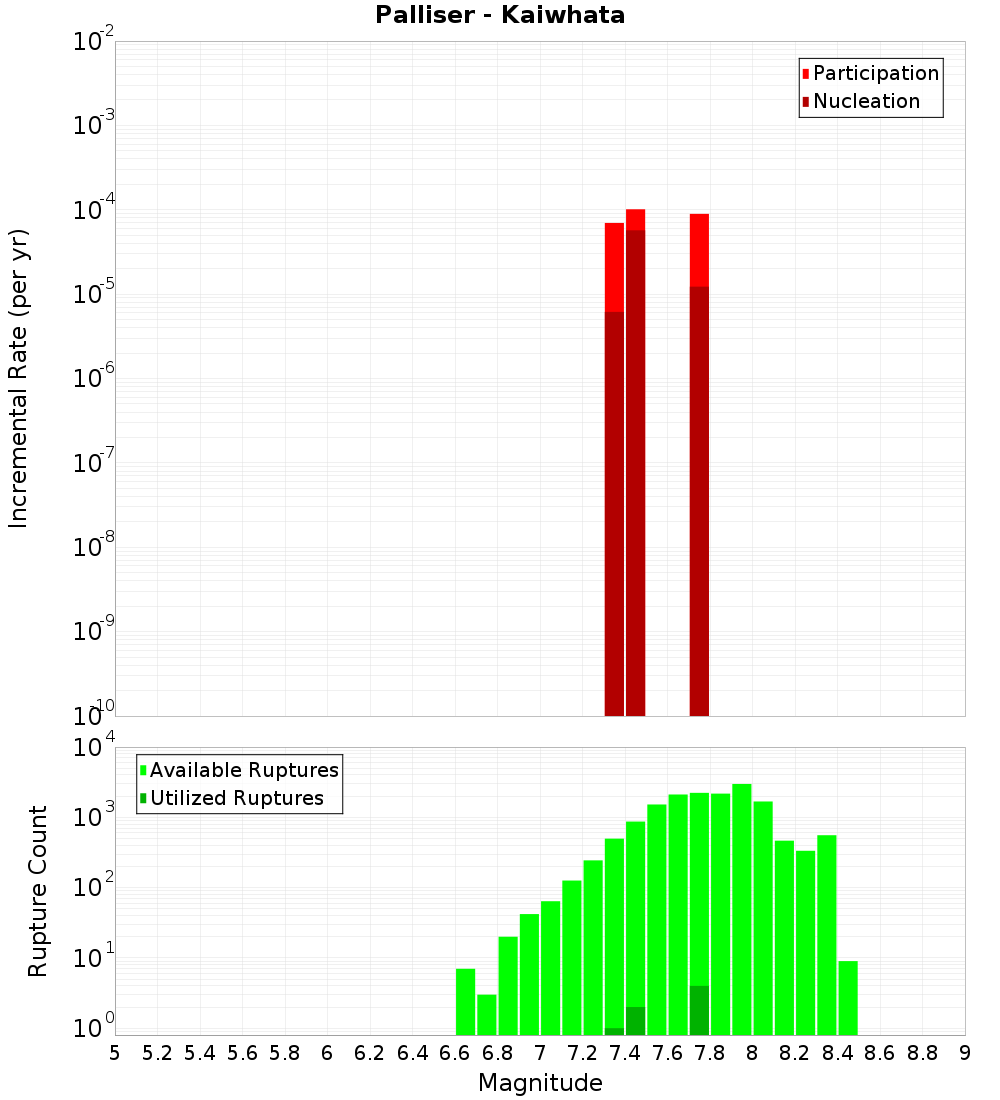

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Honeycomb, 1.24 km away
Uruti Basin, 1.36 km away
Riversdale, 3.26 km away
Otaraia, 3.3 km away
BooBoo, 4.22 km away
Uruti Point, 4.46 km away
Whareama Bank, 6.96 km away
Opouawe - Uruti, 8.63 km away
Dry River - Huangarua: 1, 12.51 km away
Pahaua, 13.66 km away
Riversdale North, 15.29 km away
Dry River - Huangarua: 3, 19.02 km away
Dry River - Huangarua: 2, 19.35 km away

Honeycomb, 1.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.93 km
Co-rupture Count63
Co-rupture Rate0.0

Uruti Basin, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.36 km
Min Rate-Weighted Dist1.36 km
Co-rupture Count9,797
Co-rupture Rate1.9069637E-4

Riversdale, 3.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.26 km
Co-rupture Count606
Co-rupture Rate0.0

Otaraia, 3.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.3 km
Min Rate-Weighted Dist3.3 km
Co-rupture Count1,322
Co-rupture Rate1.6929592E-4

BooBoo, 4.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.22 km
Min Rate-Weighted Dist4.22 km
Co-rupture Count9,590
Co-rupture Rate1.0944378E-4

Uruti Point, 4.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.46 km
Min Rate-Weighted Dist4.61 km
Co-rupture Count1,148
Co-rupture Rate5.152055E-5

Whareama Bank, 6.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count280
Co-rupture Rate0.0

Opouawe - Uruti, 8.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.63 km
Co-rupture Count5,260
Co-rupture Rate0.0

Dry River - Huangarua: 1, 12.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist12.52 km
Co-rupture Count66
Co-rupture Rate0.0

Pahaua, 13.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count627
Co-rupture Rate5.152055E-5

Riversdale North, 15.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count111
Co-rupture Rate0.0

Dry River - Huangarua: 3, 19.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count44
Co-rupture Rate9.951398E-5

Dry River - Huangarua: 2, 19.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
