Rangitaiki 1 Details

PropertyValue
Rupture Count1,325
Ruptures Above Sect Min Mag1,320
Ruptures w/ Nonzero Rates1
Magnitude Range[6.37, 8.10]
Length Range[9, 464] km
Total Rate1.4925821E-5 /yr
Multi-Fault Rate1.4925821E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults48

Table Of Contents

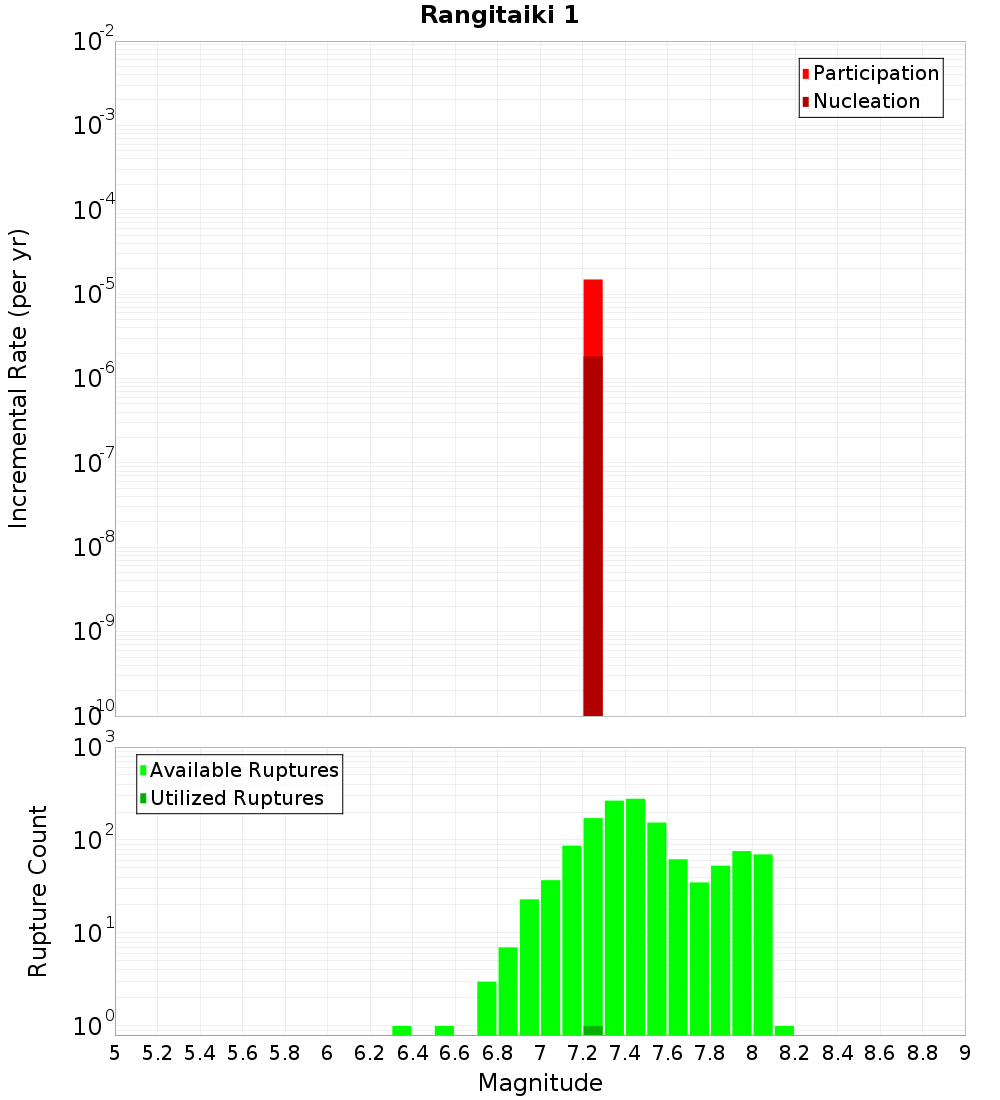

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

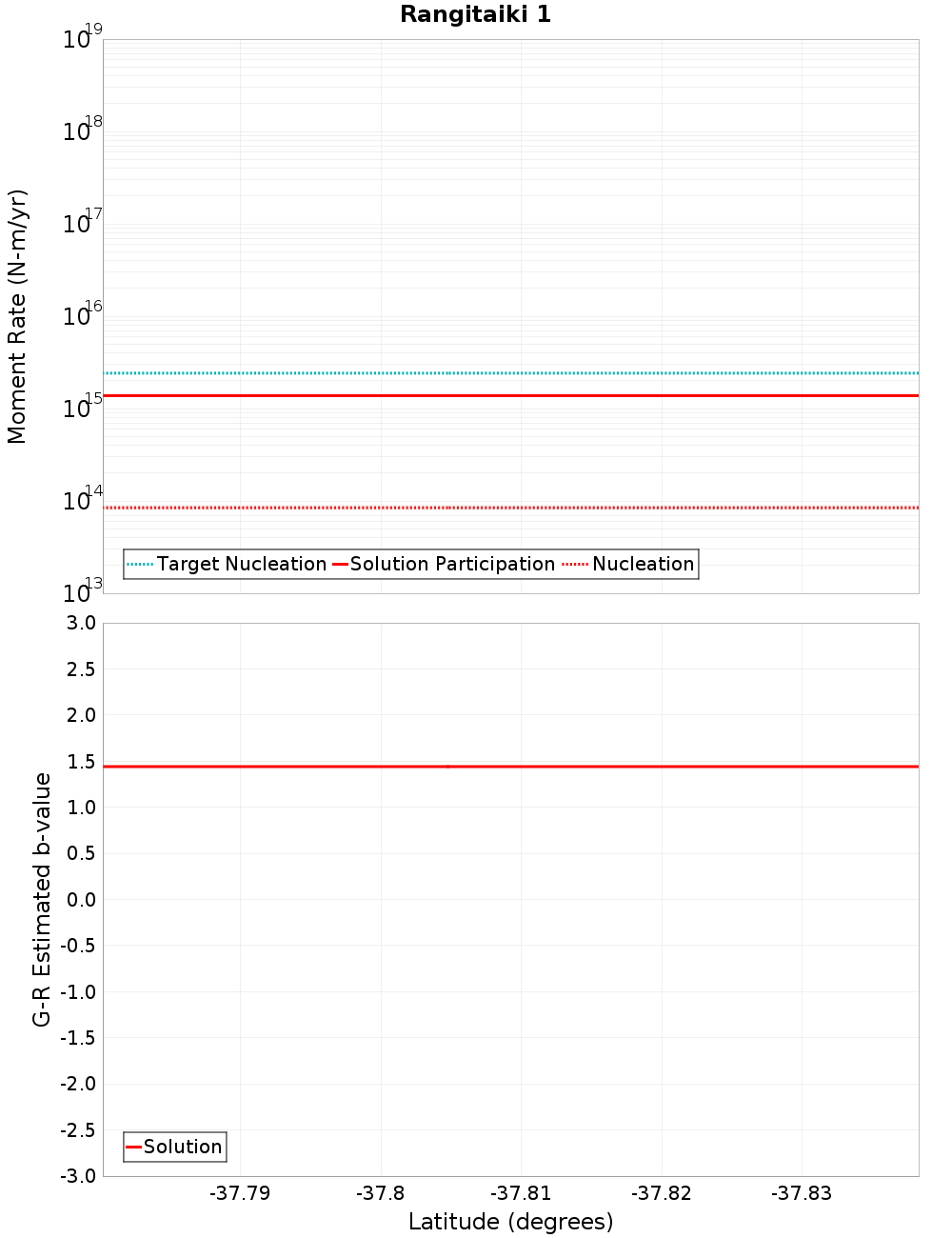

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2.05 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.8 km away
Matata, 9.11 km away
White Island 2, 9.52 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Whakatane: North, 11.12 km away
Waimana - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.74 km away
Edgecumbe 1987, 15.17 km away
Awakeri, 16.13 km away

Rangitaiki 2, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.74 km
Co-rupture Count1,181
Co-rupture Rate0.0

White Island 1, 2.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count213
Co-rupture Rate1.4925821E-5

Ohiwa 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count105
Co-rupture Rate0.0

Edgecumbe Coastal, 8.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.8 km
Min Rate-Weighted Dist8.8 km
Co-rupture Count1,173
Co-rupture Rate1.4925821E-5

Matata, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate1.4925821E-5

White Island 2, 9.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count258
Co-rupture Rate0.0

Waimana: North, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count605
Co-rupture Rate0.0

Whakatane: North, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count188
Co-rupture Rate1.4925821E-5

Waimana - Waikaremoana, 12.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 14.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count125
Co-rupture Rate0.0

Edgecumbe 1987, 15.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count567
Co-rupture Rate1.4925821E-5

Awakeri, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3
Connected?true
Directly Connected?false
Co-rupture Count444
Co-rupture Rate0.0
