Waikaka Details
| Property | Value |
|---|---|
| Rupture Count | 96 |
| Ruptures Above Sect Min Mag | 96 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.95, 8.05] |
| Length Range | [23, 308] km |
| Total Rate | 6.612259E-6 /yr |
| Multi-Fault Rate | 6.612259E-6 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 21 |
Table Of Contents

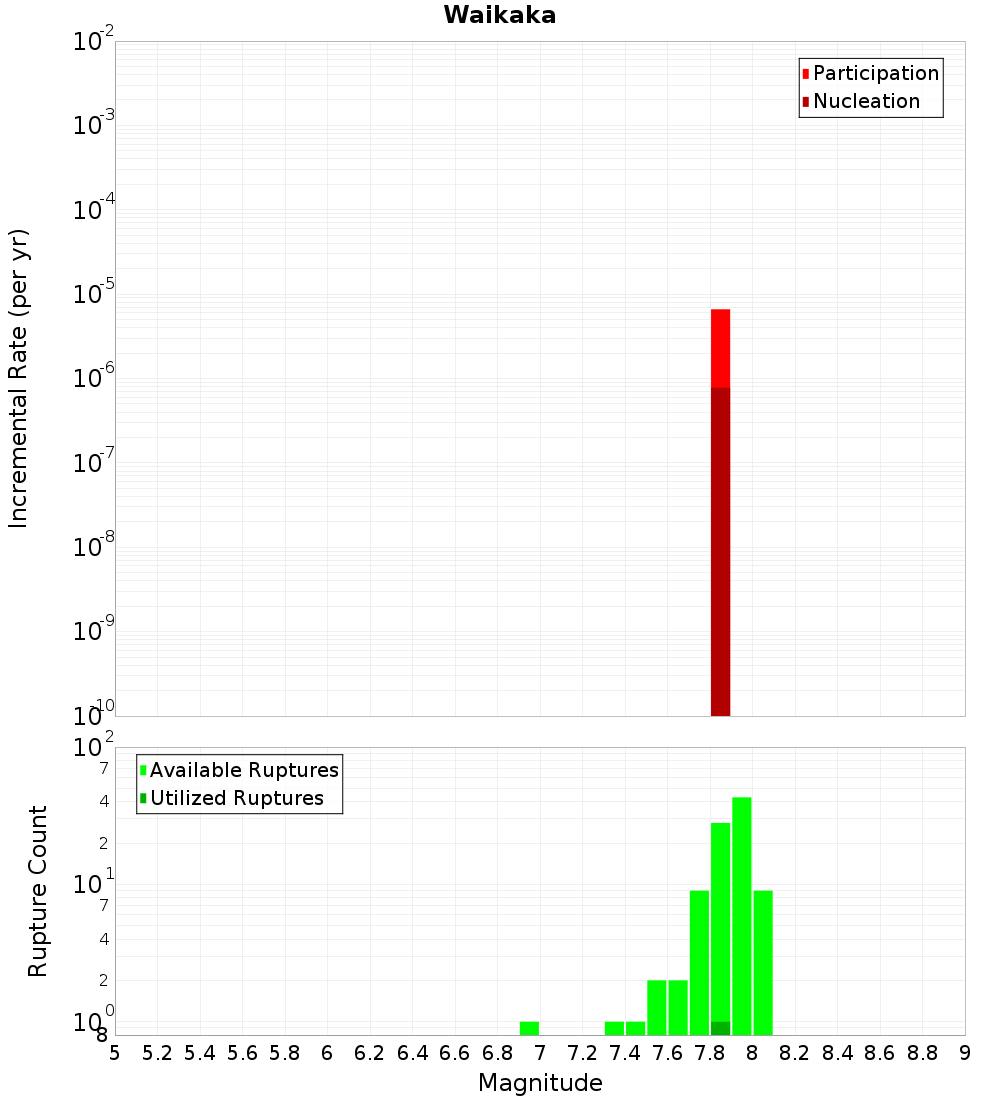

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

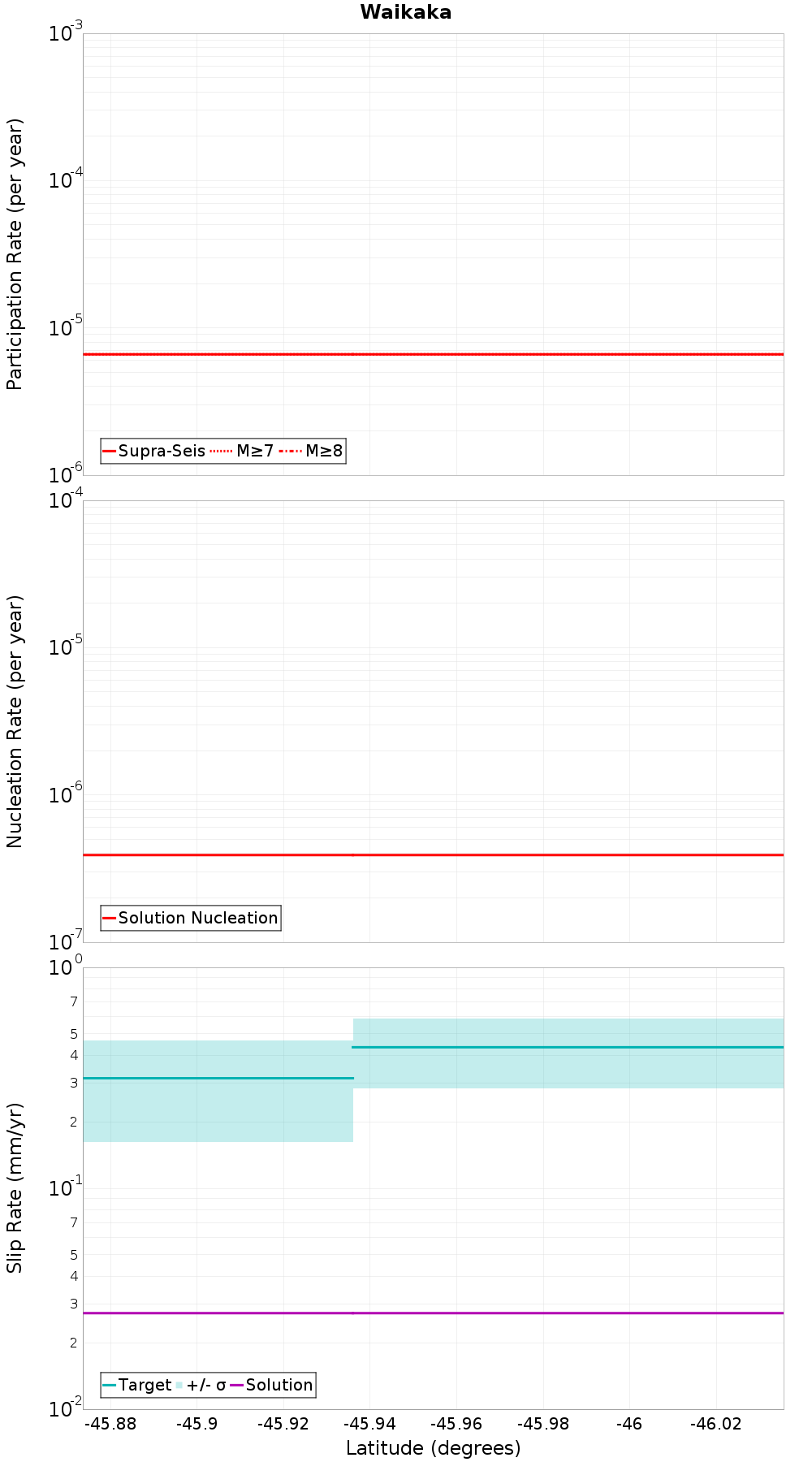

Along-Strike Values

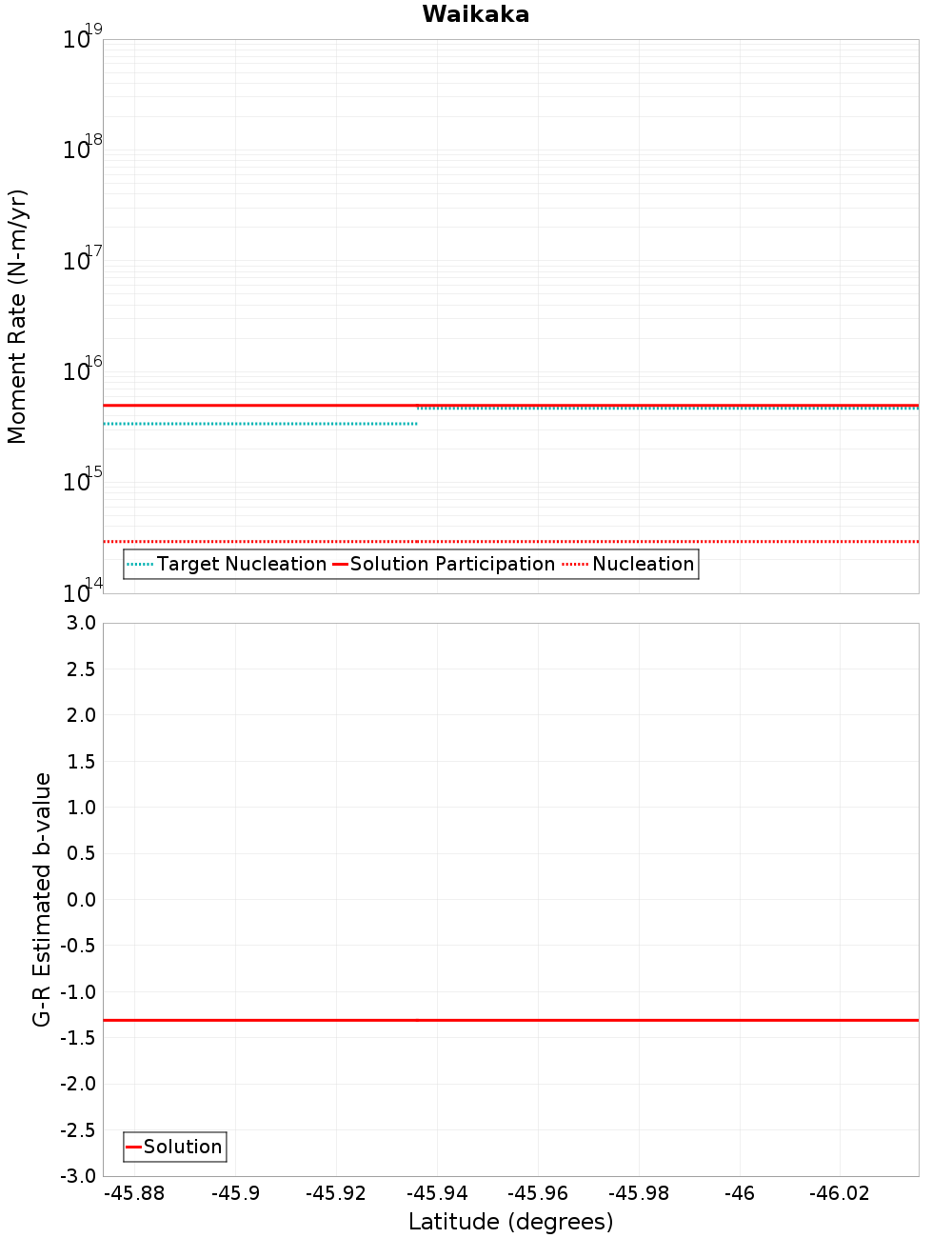

Moment-Rates and b-Values

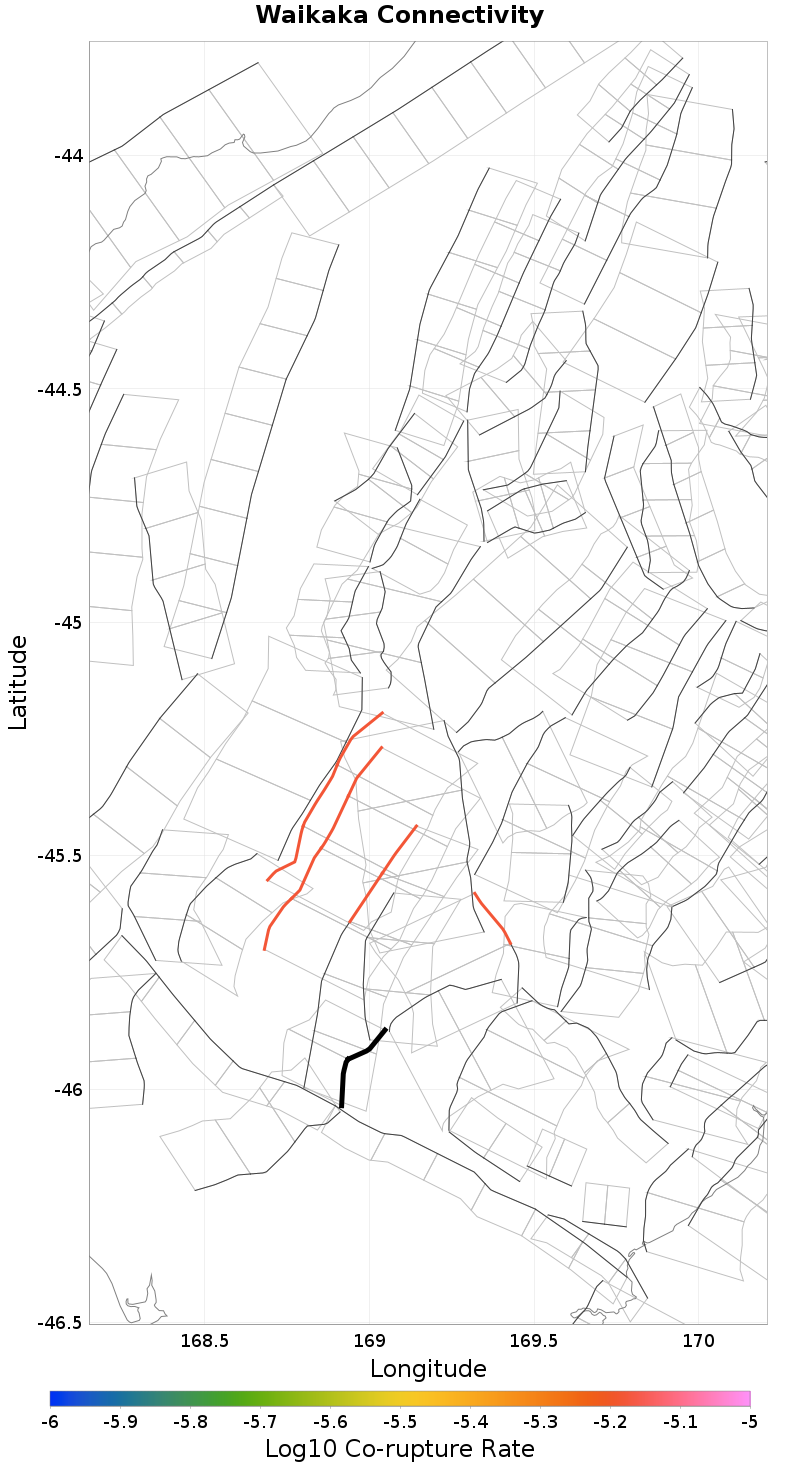

Connectivity
 |  |
|---|
Nearby Sections
Waikaia, 0.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 6.612259E-6 |
Hedgehope, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wendon Valley, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Hillfoot, 0.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Spylaw, 1.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hokonui, 1.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Garvie, 4.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.16 km |
| Min Rate-Weighted Dist | 4.16 km |
| Co-rupture Count | 95 |
| Co-rupture Rate | 6.612259E-6 |
Mid Dome, 14.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Teviot, 15.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 6.612259E-6 |
Old Man, 16.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 35 |
| Co-rupture Rate | 0.0 |
Roaring Lion, 18.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 55 |
| Co-rupture Rate | 6.612259E-6 |
