Waitaki Details
| Property | Value |
|---|---|
| Rupture Count | 85 |
| Ruptures Above Sect Min Mag | 82 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.64, 7.60] |
| Length Range | [18, 142] km |
| Total Rate | 1.4911199E-4 /yr |
| Multi-Fault Rate | 1.4911199E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 11 |
Table Of Contents

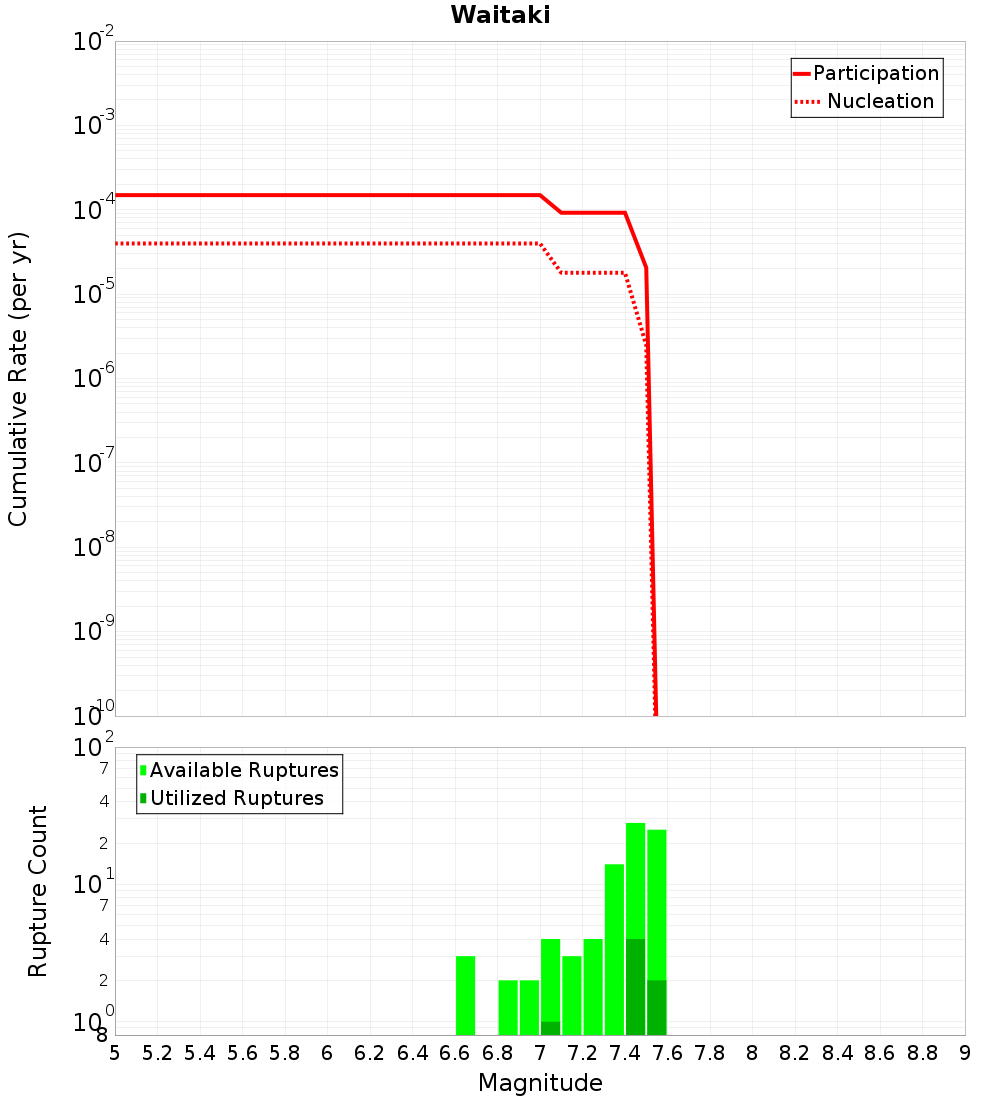

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

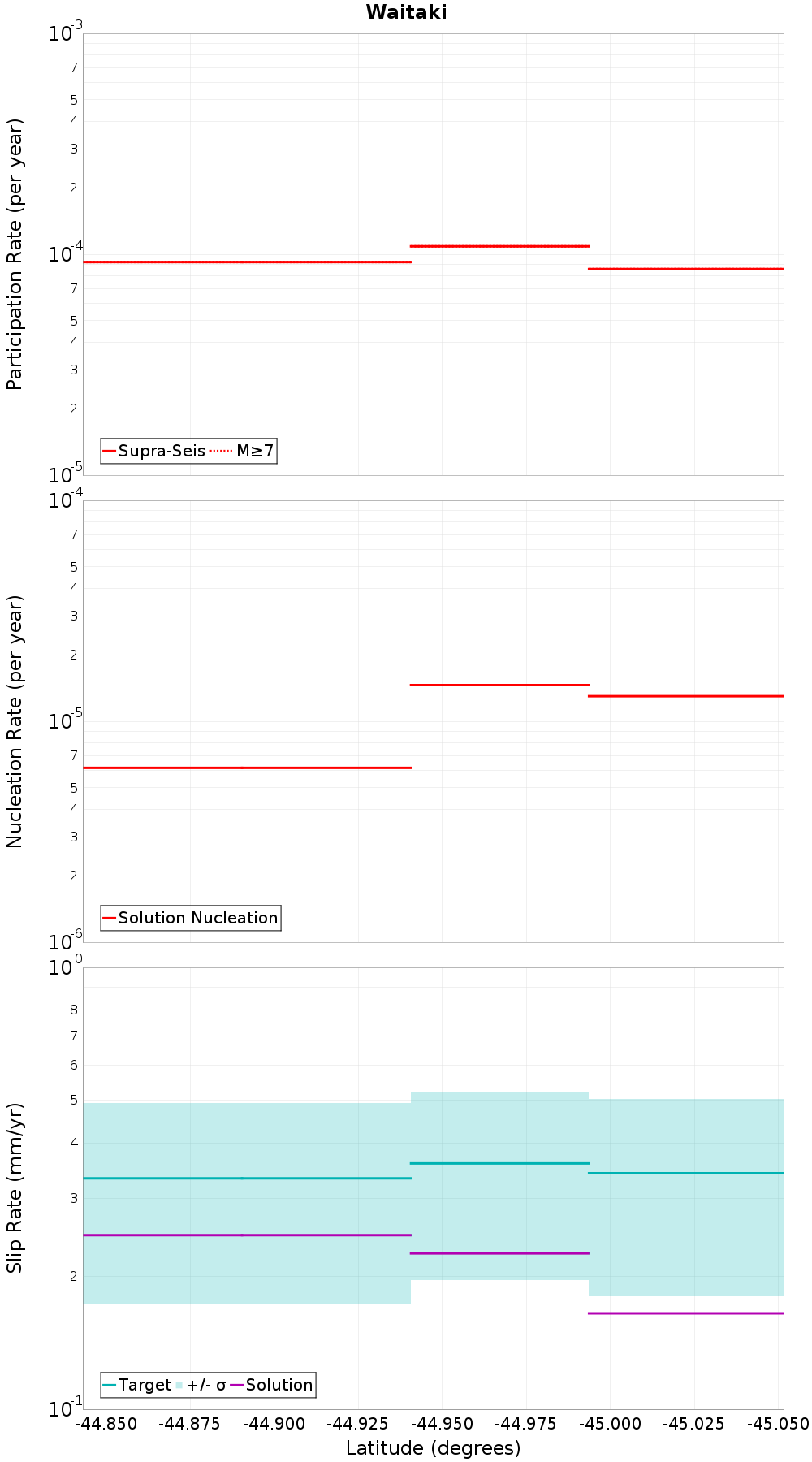

Along-Strike Values
Moment-Rates and b-Values

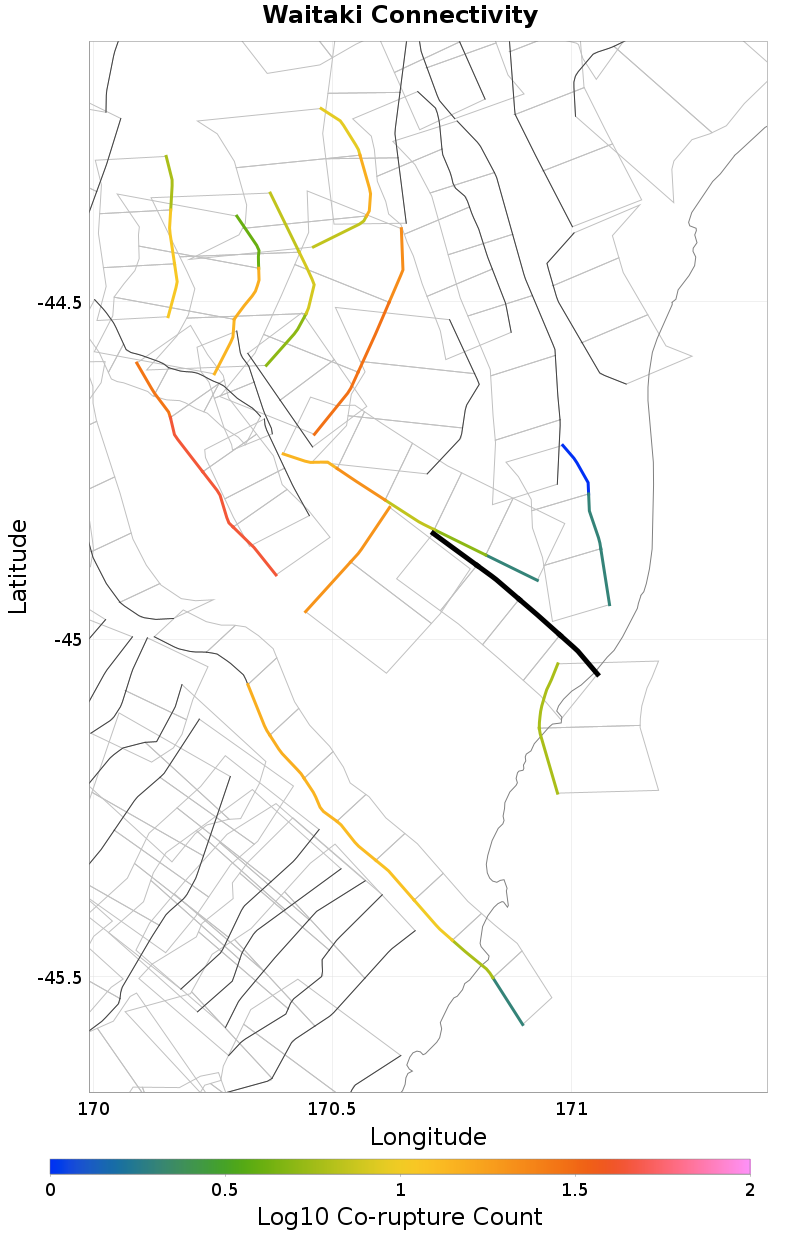

Connectivity
 |  |
|---|
Nearby Sections
Black Hill, 0.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.27 km |
| Min Rate-Weighted Dist | 0.27 km |
| Co-rupture Count | 20 |
| Co-rupture Rate | 2.890093E-5 |
Awamoa, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.34 km |
| Min Rate-Weighted Dist | 4.2 km |
| Co-rupture Count | 6 |
| Co-rupture Rate | 2.2964048E-5 |
Stonewall, 0.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.64 km |
| Min Rate-Weighted Dist | 6.25 km |
| Co-rupture Count | 21 |
| Co-rupture Rate | 3.129788E-5 |
Waimate, 8.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.24 km |
| Min Rate-Weighted Dist | 8.24 km |
| Co-rupture Count | 2 |
| Co-rupture Rate | 5.697294E-5 |
Campbell Hills, 9.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Middle Range, 13.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 13.11 km |
| Min Rate-Weighted Dist | 13.11 km |
| Co-rupture Count | 44 |
| Co-rupture Rate | 6.0841172E-5 |
Hunters, 16.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awahokomo, 19.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
