Waitotara 8 & 9 Details
| Property | Value |
|---|---|
| Rupture Count | 1,071 |
| Ruptures Above Sect Min Mag | 823 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.18, 7.23] |
| Length Range | [11, 123] km |
| Total Rate | 2.6765786E-4 /yr |
| Multi-Fault Rate | 2.6765786E-4 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 7 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

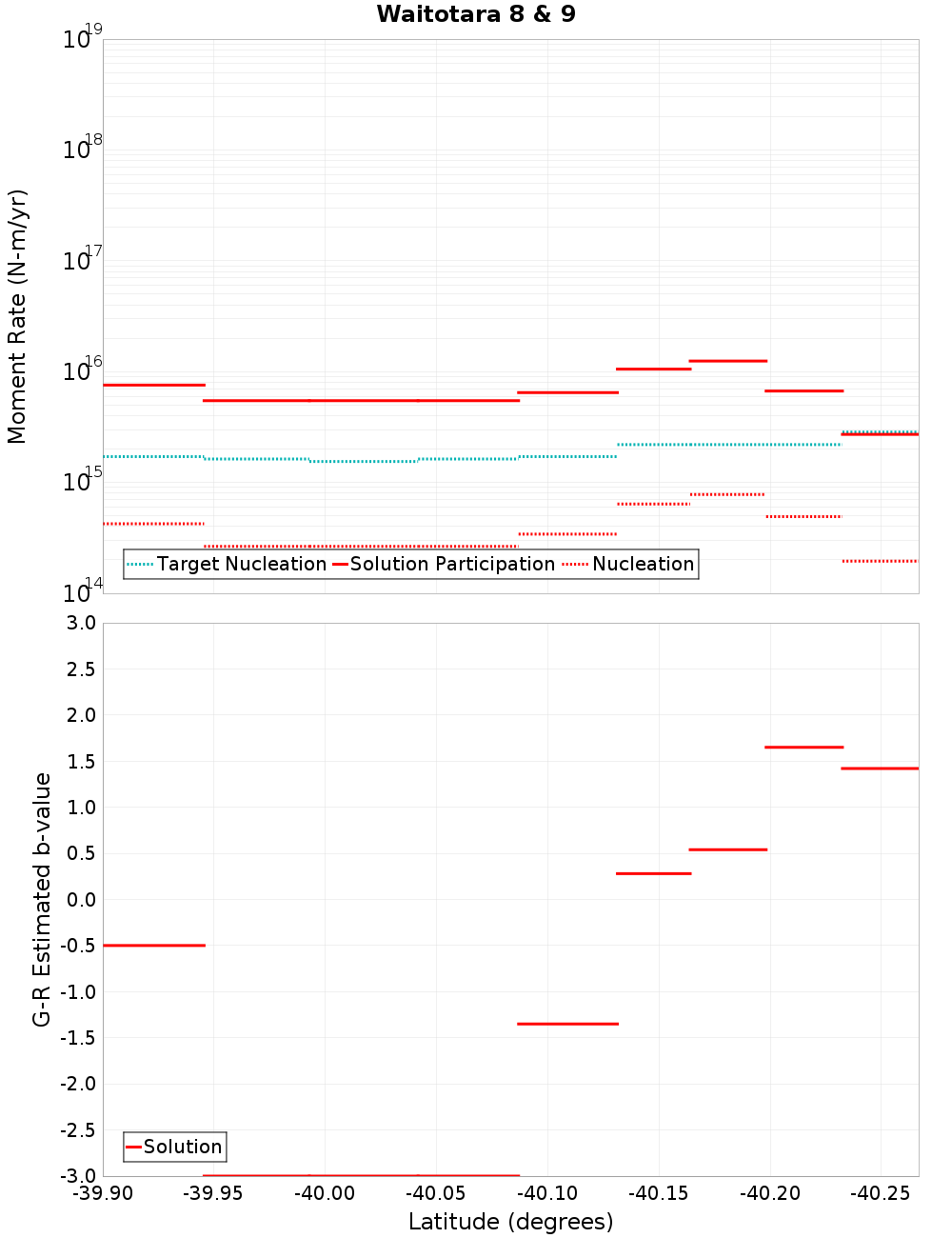

Along-Strike Values
Moment-Rates and b-Values

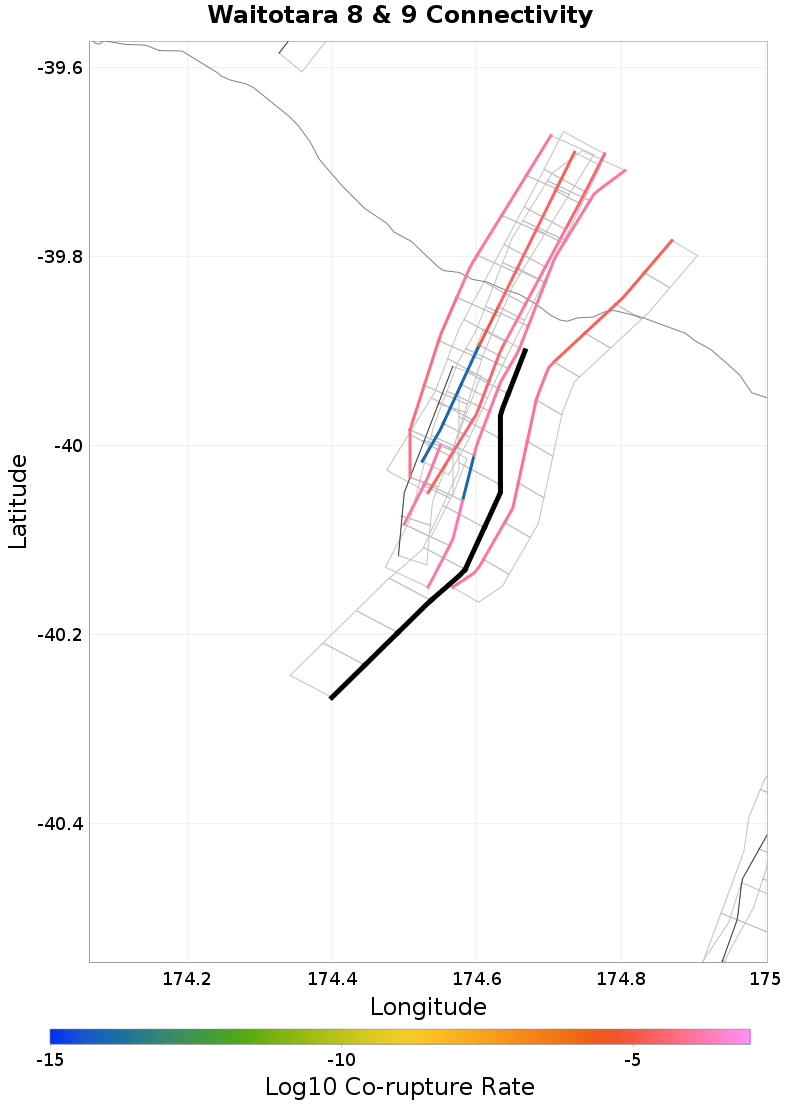

Connectivity
 |  |
|---|
Nearby Sections
Okaia 5, 0.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.22 km |
| Co-rupture Count | 210 |
| Co-rupture Rate | 0.0 |
Okaia 3, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.11 km |
| Co-rupture Count | 211 |
| Co-rupture Rate | 1.1472426E-4 |
Waverley - Okaia 1, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.29 km |
| Min Rate-Weighted Dist | 1.95 km |
| Co-rupture Count | 214 |
| Co-rupture Rate | 1.1098472E-4 |
Moumahaki - Okaia 4, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.15 km |
| Co-rupture Count | 436 |
| Co-rupture Rate | 2.746709E-5 |
Nukumuru - Waitotara 1-6, 0.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.55 km |
| Min Rate-Weighted Dist | 0.55 km |
| Co-rupture Count | 226 |
| Co-rupture Rate | 1.0089715E-4 |
Waitotara 10 & 11, 0.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.2 km |
| Min Rate-Weighted Dist | 1.24 km |
| Co-rupture Count | 527 |
| Co-rupture Rate | 2.4425704E-4 |
Ridge Road - Okaia 2, 2.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDc3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.25 km |
| Min Rate-Weighted Dist | 2.25 km |
| Co-rupture Count | 431 |
| Co-rupture Rate | 1.10835404E-4 |
