Alpine: Resolution - Charles Details

Property	Value
Rupture Count	44,006
Ruptures Above Sect Min Mag	44,005
Ruptures w/ Nonzero Rates	57
Magnitude Range	[6.63, 8.64]
Length Range	[10, 1,154] km
Total Rate	0.0011933435 /yr
Multi-Fault Rate	0.0011933435 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	84

Table Of Contents

Magnitude-Frequency Distribution

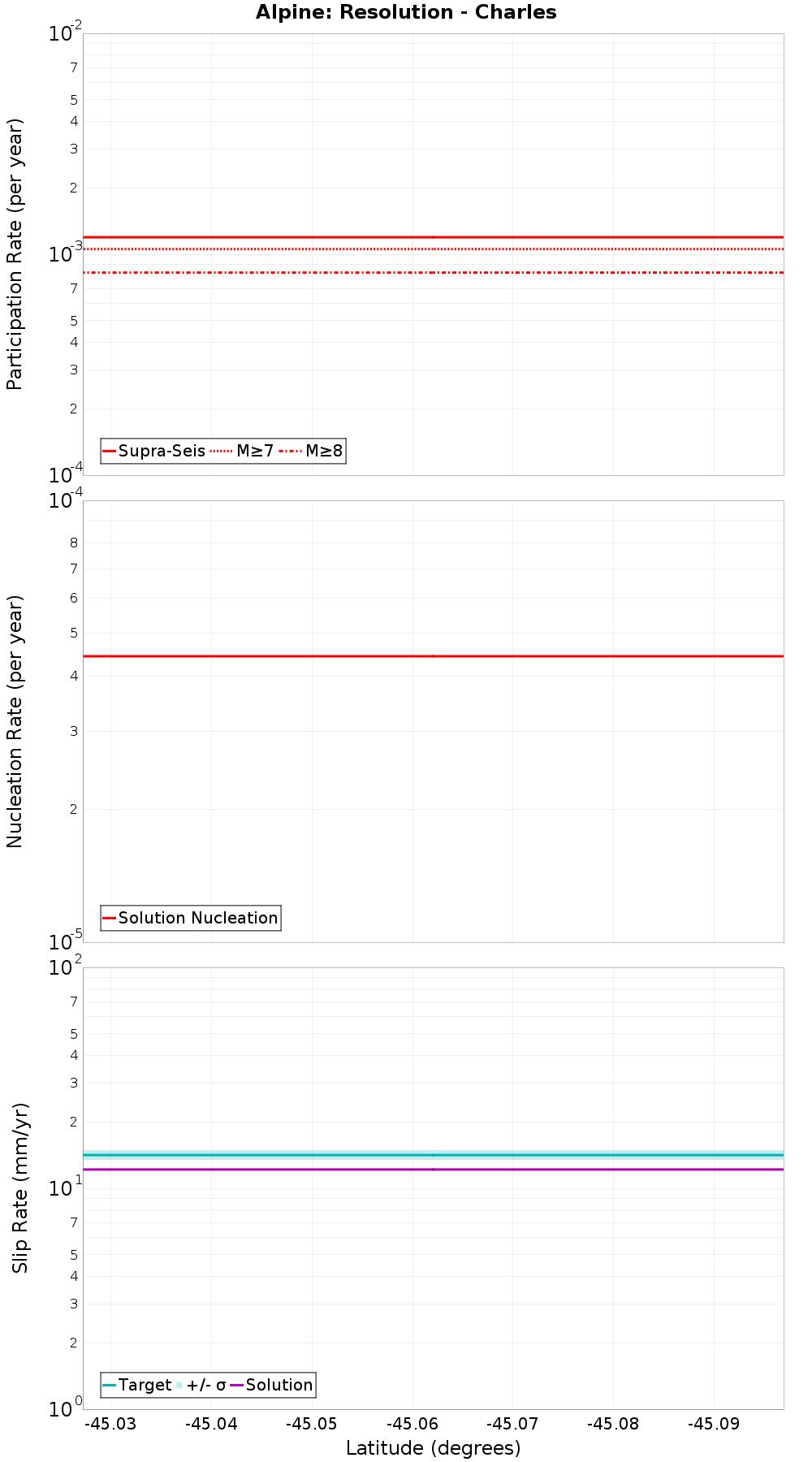

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

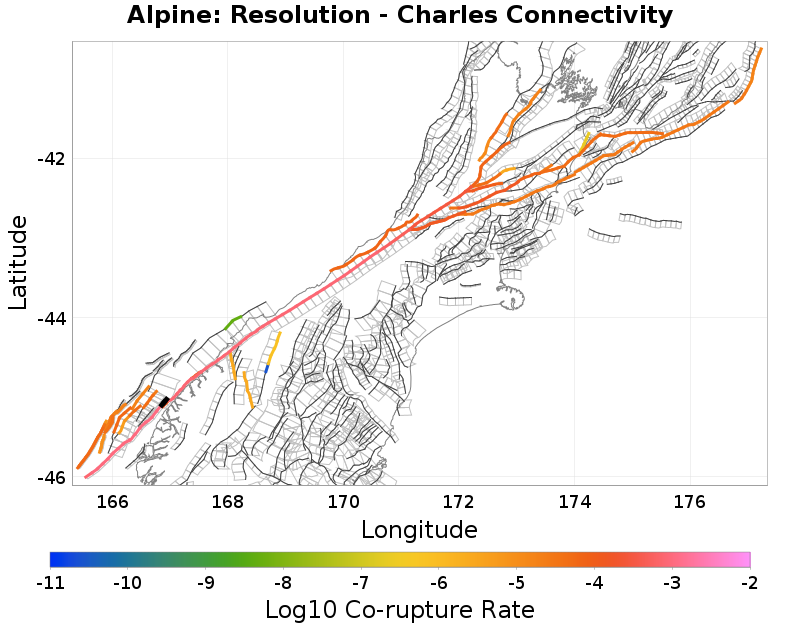

Connectivity

Nearby Sections

Fault Section
Alpine: Resolution - Dagg, 0 km away
Alpine: Nancy, 2.58 km away
Alpine: Caswell, 3.34 km away
Central Wedge 1 & 2 & 3, 3.34 km away
South Wedge 2, 4.8 km away
Central Wedge 4 - South Wedge 411, 6.29 km away
South Wedge 1, 10.6 km away
South Wedge 3-6-10, 18.31 km away

Alpine: Resolution - Dagg, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	0 km
Co-rupture Count	42,493
Co-rupture Rate	0.0010557354

Alpine: Nancy, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.58 km
Min Rate-Weighted Dist	2.58 km
Co-rupture Count	376
Co-rupture Rate	1.3760818E-4

Alpine: Caswell, 3.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.34 km
Min Rate-Weighted Dist	3.34 km
Co-rupture Count	43,589
Co-rupture Rate	8.2529004E-4

Central Wedge 1 & 2 & 3, 3.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.34 km
Co-rupture Count	277
Co-rupture Rate	0.0

South Wedge 2, 4.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	1,608
Co-rupture Rate	4.4248154E-5

Central Wedge 4 - South Wedge 411, 6.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	1,127
Co-rupture Rate	1.7710052E-5

South Wedge 1, 10.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	378
Co-rupture Rate	0.0

South Wedge 3-6-10, 18.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	4,017
Co-rupture Rate	4.994467E-5
