AmberBlyth Details

PropertyValue
Rupture Count835
Ruptures Above Sect Min Mag832
Ruptures w/ Nonzero Rates2
Magnitude Range[7.11, 8.29]
Length Range[24, 525] km
Total Rate2.0116926E-5 /yr
Multi-Fault Rate2.0116926E-5 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults44

Table Of Contents

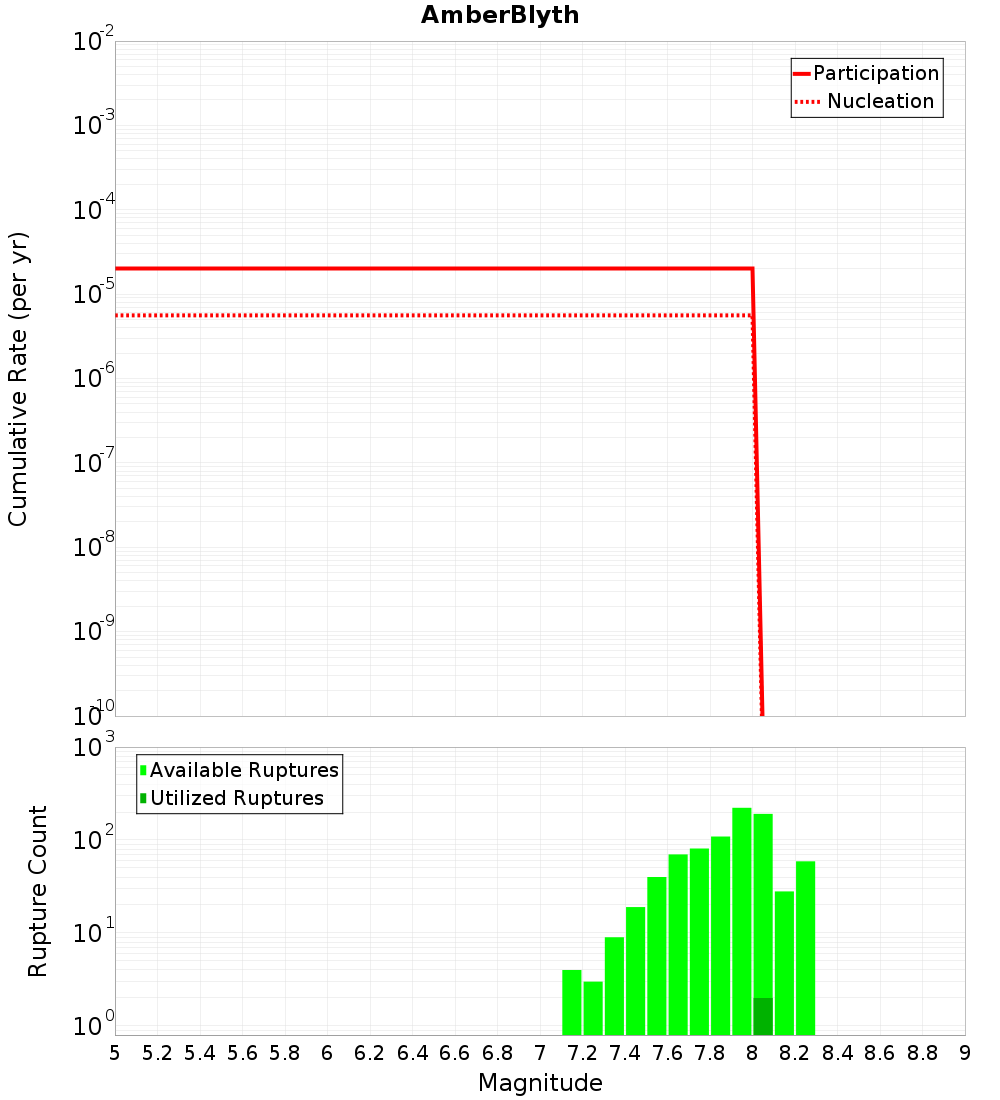

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

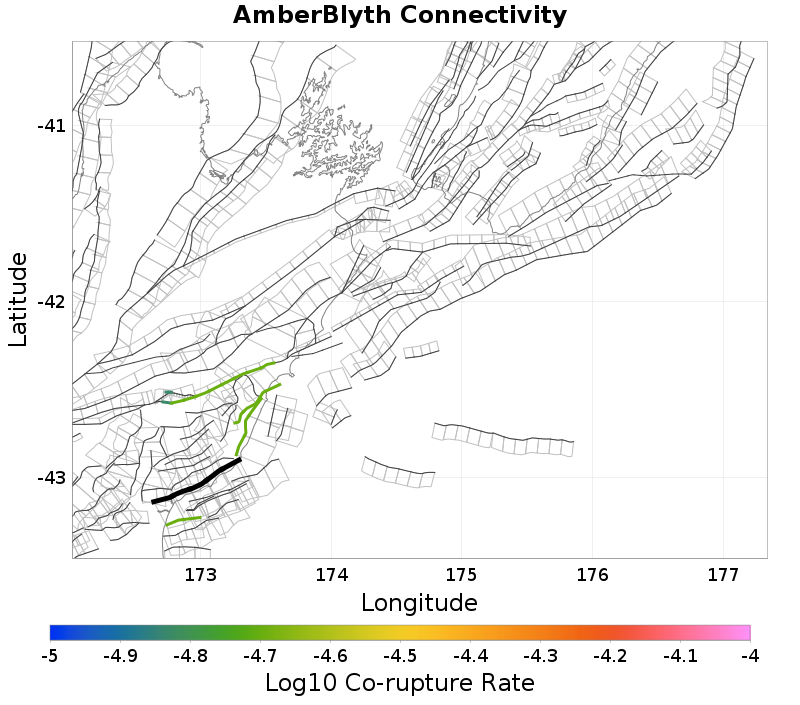

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Motunau, 1.43 km awayKaiwara South, 8.44 km away
OmihiLwrHuru, 1.99 km awayNorth Canterbury Shelf 4, 11.17 km away
Hawkswood, 3.15 km awayAlexander, 11.86 km away
Point Gibson, 3.19 km awayPegasus Bay, 13.58 km away
North Canterbury Shelf 2, 3.77 km awayMt Lawry, 14.29 km away
Boby Stream, 4.06 km awaySpringbank, 15.08 km away
Leithfield - NCVI - NCVII, 4.61 km awayMt Arden, 15.14 km away
Doctors, 5.77 km awayKaiwara North, 15.9 km away
North Canterbury Shelf 11, 6.61 km awayLowry, 16.84 km away
Starvation - Ashley, 7.86 km awayKnowles Top, 19.54 km away
Waikuku, 8.12 km away

Motunau, 1.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.43 km
Co-rupture Count97
Co-rupture Rate0.0

OmihiLwrHuru, 1.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.73 km
Co-rupture Count106
Co-rupture Rate0.0

Hawkswood, 3.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.15 km
Min Rate-Weighted Dist3.15 km
Co-rupture Count662
Co-rupture Rate2.0116926E-5

Point Gibson, 3.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.19 km
Co-rupture Count69
Co-rupture Rate0.0

North Canterbury Shelf 2, 3.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.77 km
Co-rupture Count41
Co-rupture Rate0.0

Boby Stream, 4.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.06 km
Co-rupture Count23
Co-rupture Rate0.0

Leithfield - NCVI - NCVII, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.61 km
Co-rupture Count81
Co-rupture Rate0.0

Doctors, 5.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 11, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate0.0

Starvation - Ashley, 7.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikuku, 8.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.12 km
Min Rate-Weighted Dist8.12 km
Co-rupture Count66
Co-rupture Rate2.0116926E-5

Kaiwara South, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 4, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Alexander, 11.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist11.86 km
Co-rupture Count20
Co-rupture Rate0.0

Pegasus Bay, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist13.58 km
Co-rupture Count41
Co-rupture Rate0.0

Mt Lawry, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 15.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Arden, 15.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara North, 15.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0

Lowry, 16.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Knowles Top, 19.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0
