Awanui Details

PropertyValue
Rupture Count1,545
Ruptures Above Sect Min Mag1,543
Ruptures w/ Nonzero Rates3
Magnitude Range[7.35, 8.37]
Length Range[32, 500] km
Total Rate3.805531E-5 /yr
Multi-Fault Rate3.805531E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults46

Table Of Contents

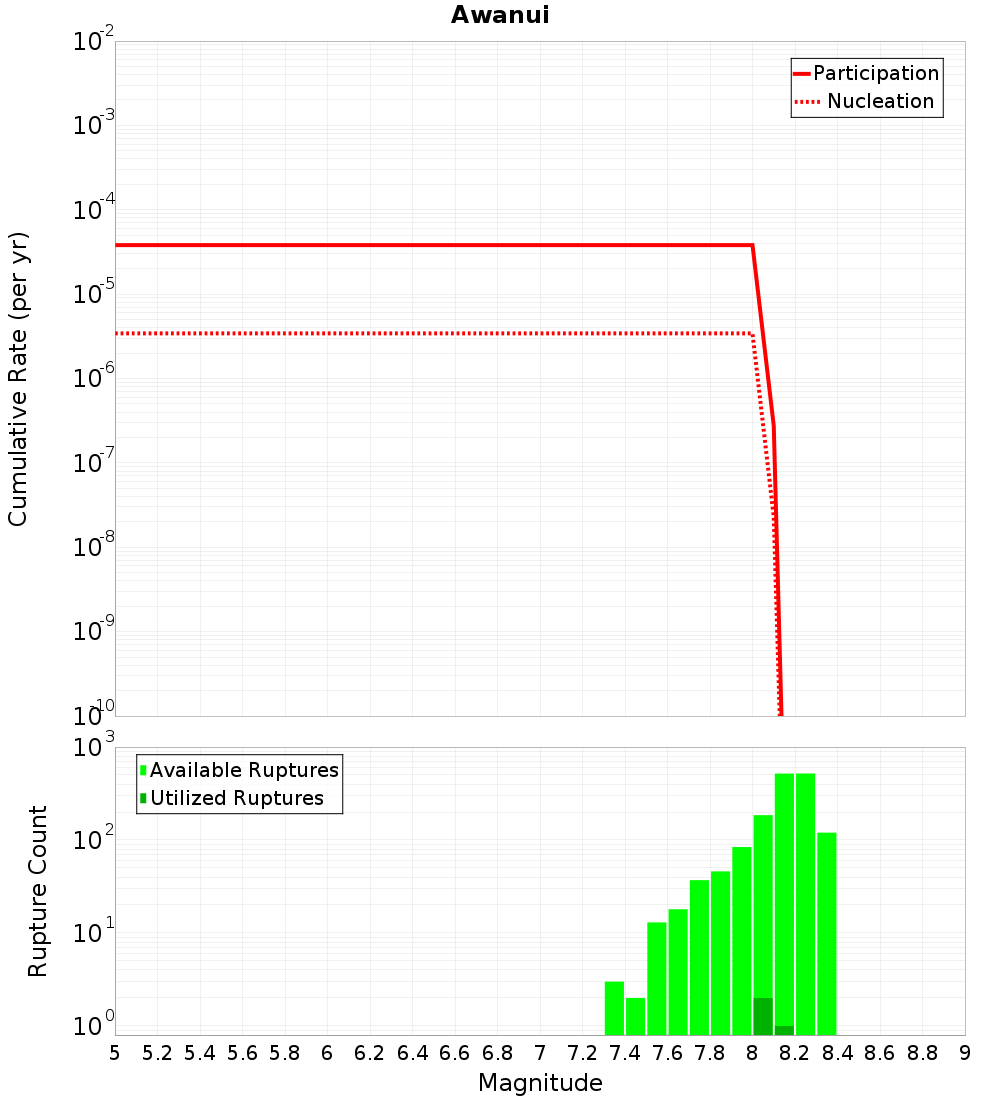

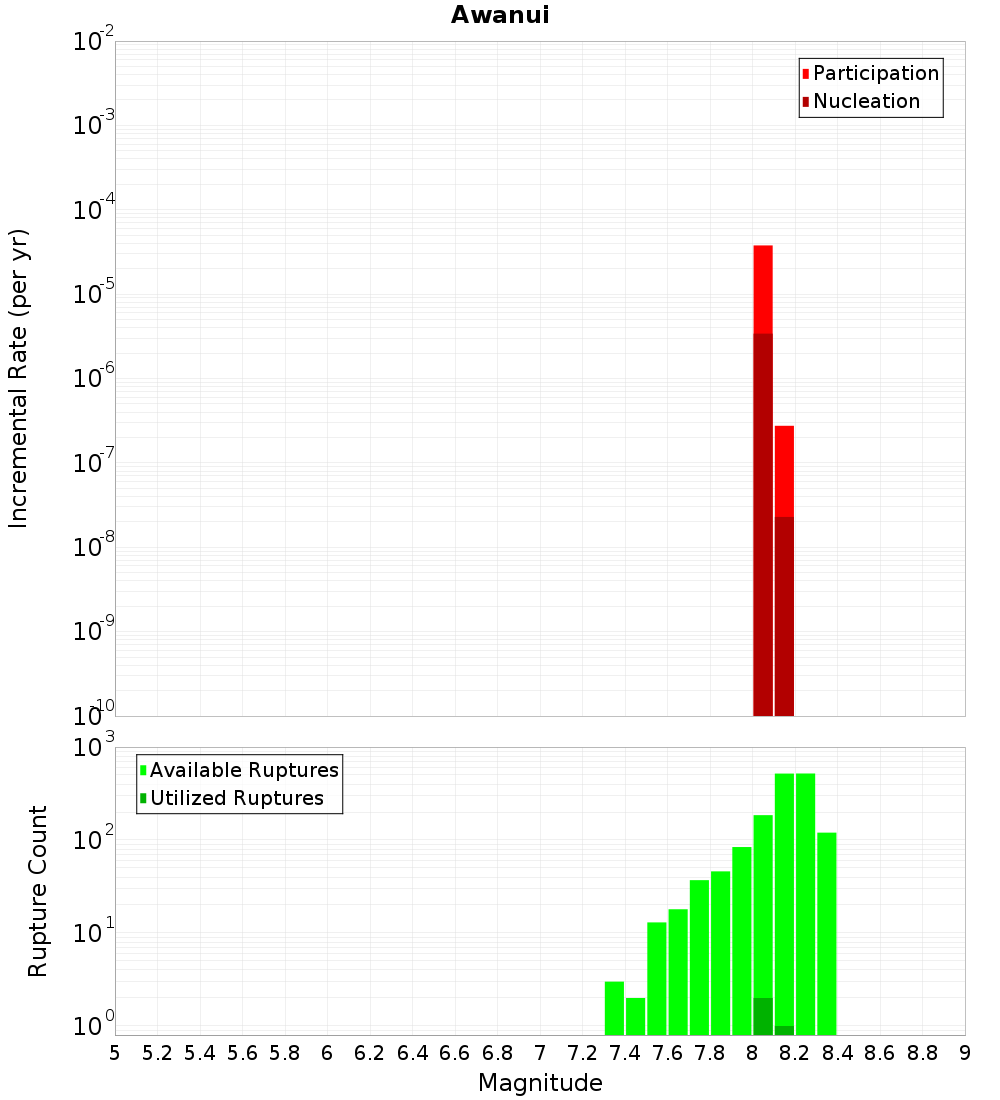

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

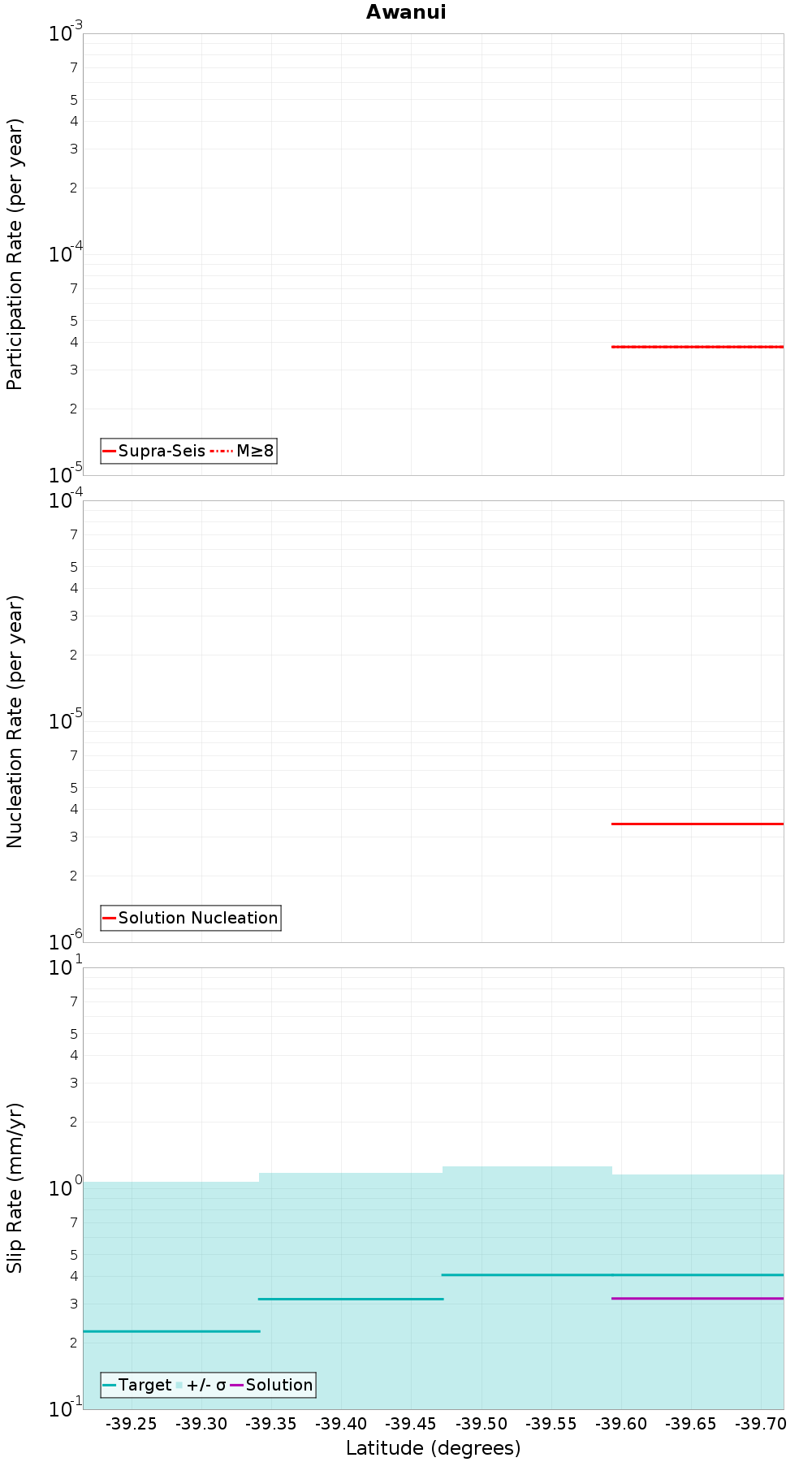

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

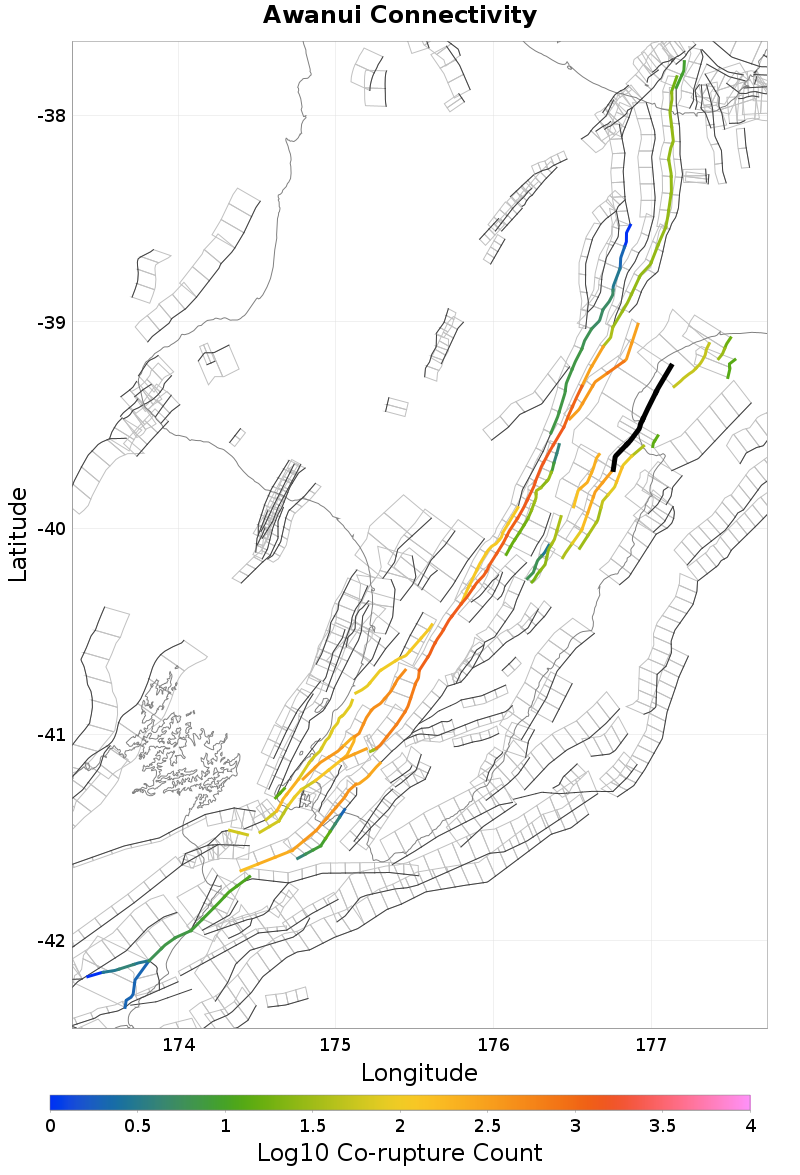

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waipukurau - Poukawa, 0 km awayRuahine: North, 14.79 km away
Te Heka, 0.13 km awayWhakatane: South, 15.26 km away
Patoka - Rangiora, 0.4 km awayWaimana: South, 15.3 km away
Tukituki Thrust, 3.54 km awayRuahine: Central, 15.72 km away
Hawke Bay 1, 4.64 km awayWaiotahi: South, 16.94 km away
Hawke Bay 8, 6.83 km awayWakarara, 17.7 km away
Mohaka: North, 7.77 km awayKidnappers Ridge, 18.2 km away
Mohaka: South, 9.59 km awayWaimarama 1 & 2, 19.68 km away

Waipukurau - Poukawa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Co-rupture Count307
Co-rupture Rate0.0

Te Heka, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.13 km
Min Rate-Weighted Dist0.13 km
Co-rupture Count223
Co-rupture Rate3.805531E-5

Patoka - Rangiora, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.4 km
Co-rupture Count744
Co-rupture Rate0.0

Tukituki Thrust, 3.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.54 km
Co-rupture Count196
Co-rupture Rate0.0

Hawke Bay 1, 4.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.64 km
Co-rupture Count52
Co-rupture Rate0.0

Hawke Bay 8, 6.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Mohaka: North, 7.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist7.77 km
Min Rate-Weighted Dist11.26 km
Co-rupture Count1,136
Co-rupture Rate3.805531E-5

Mohaka: South, 9.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count1,389
Co-rupture Rate0.0

Ruahine: North, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Whakatane: South, 15.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 15.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate3.805531E-5

Ruahine: Central, 15.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: South, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wakarara, 17.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0

Kidnappers Ridge, 18.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimarama 1 & 2, 19.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
