Elliott Details

Property	Value
Rupture Count	12,413
Ruptures Above Sect Min Mag	12,411
Ruptures w/ Nonzero Rates	9
Magnitude Range	[7.12, 8.62]
Length Range	[24, 958] km
Total Rate	2.281739E-4 /yr
Multi-Fault Rate	2.281739E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	133

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

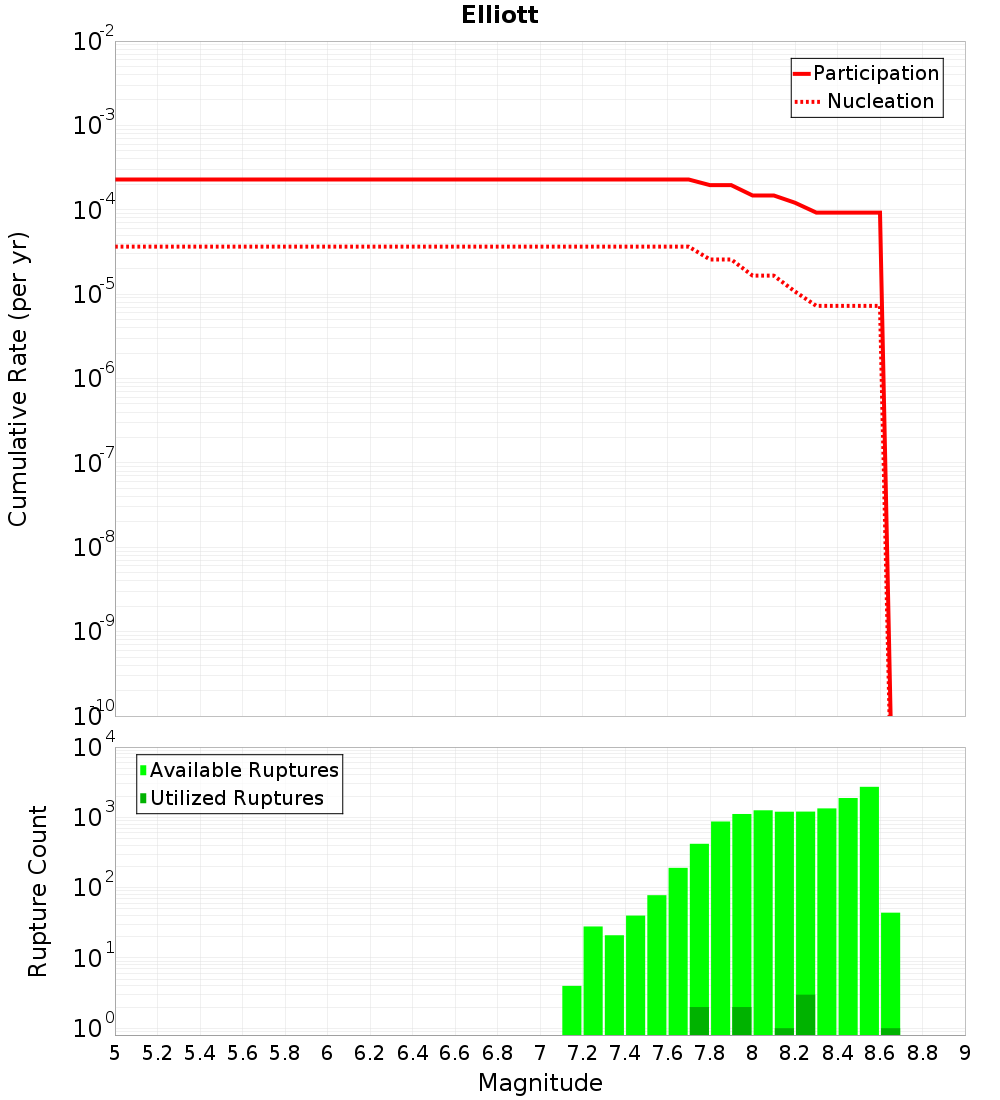

Magnitude-Frequency Distribution

Incremental	Cumulative

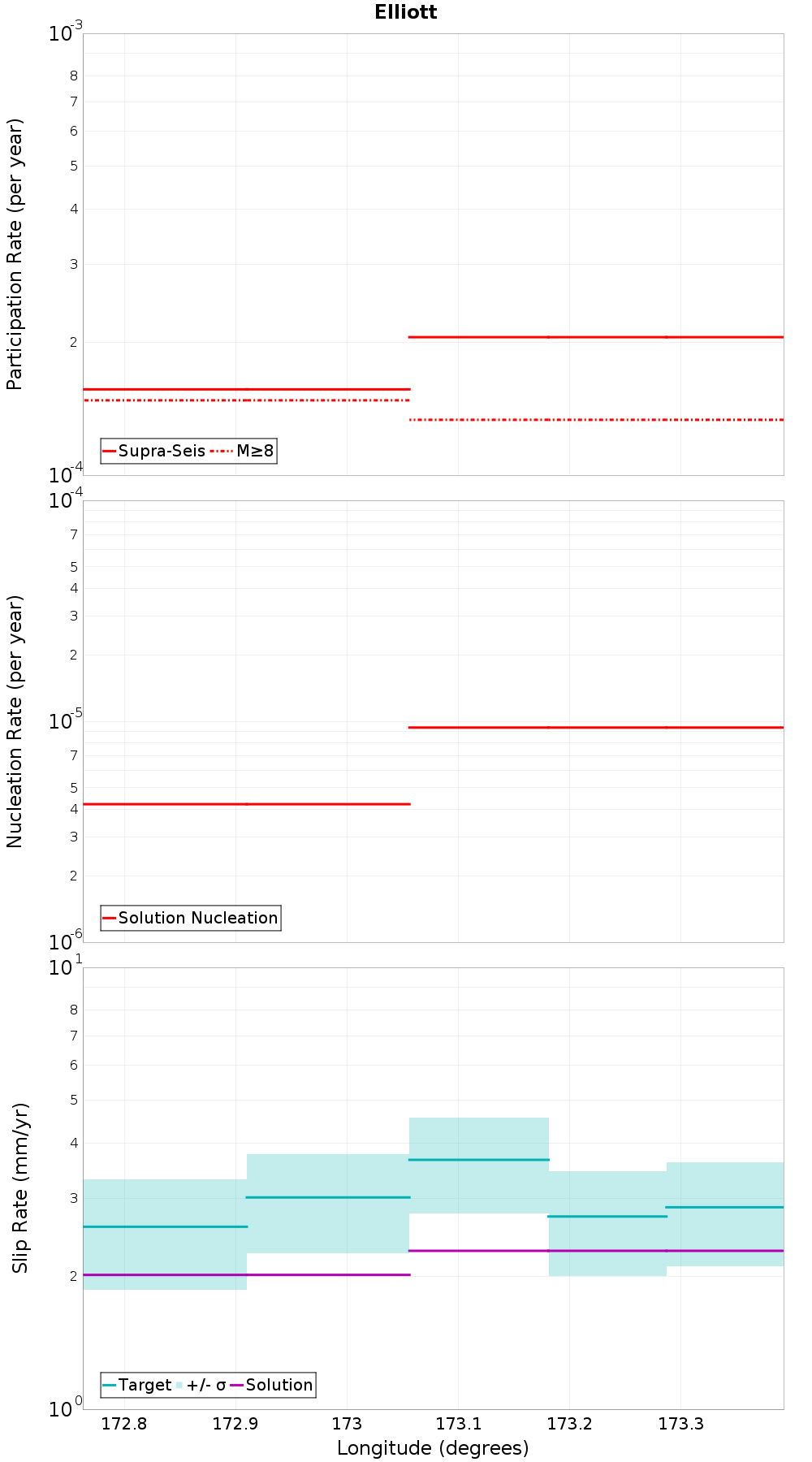

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Clarence: Central, 0 km away	Leader: North, 10.47 km away
Clarence: Northeast, 0.02 km away	Hope: Conway, 11.08 km away
Fowlers, 0.12 km away	Hanmer, 12.46 km away
Clarence: Southwest, 0.33 km away	Hope: Hanmer NW, 12.52 km away
Fidget, 3.22 km away	StoneJug, 14.23 km away
Jordan, 5.77 km away	Hope: Hanmer SE, 14.69 km away
Barefell, 8.42 km away	Leader: Central, 16.7 km away
Awatere: Northeast 1, 9.04 km away	Hope: Hanmer SW, 17.88 km away
Awatere: Southwest, 10.28 km away	Alpine: Springs Junction to Tophouse, 19.5 km away

Clarence: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.05 km
Min Rate-Weighted Dist	0.05 km
Co-rupture Count	381
Co-rupture Rate	8.696209E-6

Clarence: Northeast, 0.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.02 km
Min Rate-Weighted Dist	0.02 km
Co-rupture Count	4,982
Co-rupture Rate	1.9868294E-4

Fowlers, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.12 km
Min Rate-Weighted Dist	0.12 km
Co-rupture Count	2,625
Co-rupture Rate	2.848039E-5

Clarence: Southwest, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.33 km
Min Rate-Weighted Dist	0.33 km
Co-rupture Count	5,532
Co-rupture Rate	3.5364894E-5

Fidget, 3.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.22 km
Co-rupture Count	2,437
Co-rupture Rate	0.0

Jordan, 5.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	702
Co-rupture Rate	9.256946E-5

Barefell, 8.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Awatere: Northeast 1, 9.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	134
Co-rupture Rate	0.0

Awatere: Southwest, 10.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	0.0

Leader: North, 10.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	10.47 km
Min Rate-Weighted Dist	10.47 km
Co-rupture Count	197
Co-rupture Rate	7.175916E-5

Hope: Conway, 11.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	11.08 km
Min Rate-Weighted Dist	12.25 km
Co-rupture Count	3,572
Co-rupture Rate	1.15551935E-4

Hanmer, 12.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	1,108
Co-rupture Rate	0.0

Hope: Hanmer NW, 12.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	861
Co-rupture Rate	0.0

StoneJug, 14.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Hanmer SE, 14.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	2,040
Co-rupture Rate	9.256946E-5

Leader: Central, 16.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	95
Co-rupture Rate	7.175916E-5

Hope: Hanmer SW, 17.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	2,014
Co-rupture Rate	9.256946E-5

Alpine: Springs Junction to Tophouse, 19.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	11
Co-rupture Rate	0.0
