Poulter Details
| Property | Value |
|---|---|
| Rupture Count | 1,348 |
| Ruptures Above Sect Min Mag | 1,343 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.77, 8.24] |
| Length Range | [16, 410] km |
| Total Rate | 3.7779316E-4 /yr |
| Multi-Fault Rate | 3.7779316E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 44 |
Table Of Contents

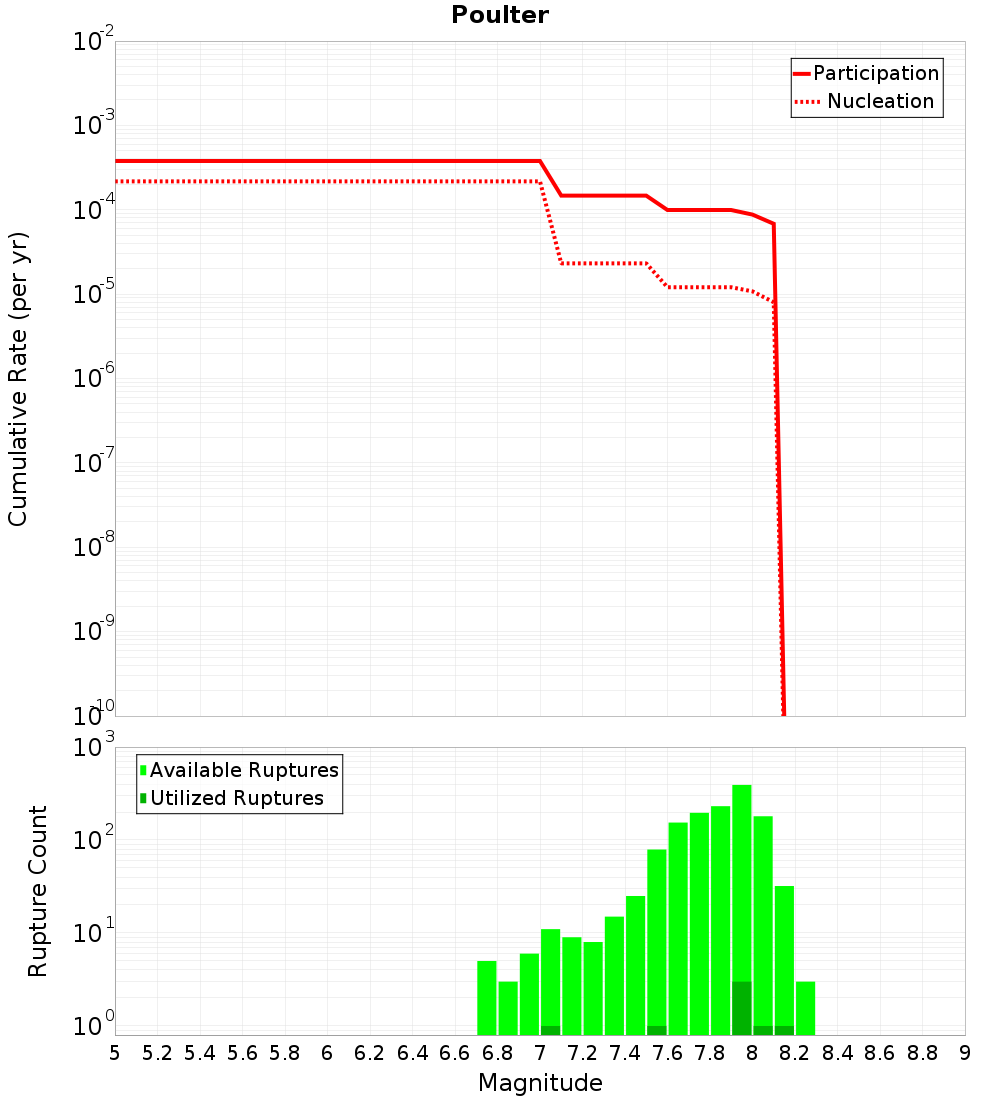

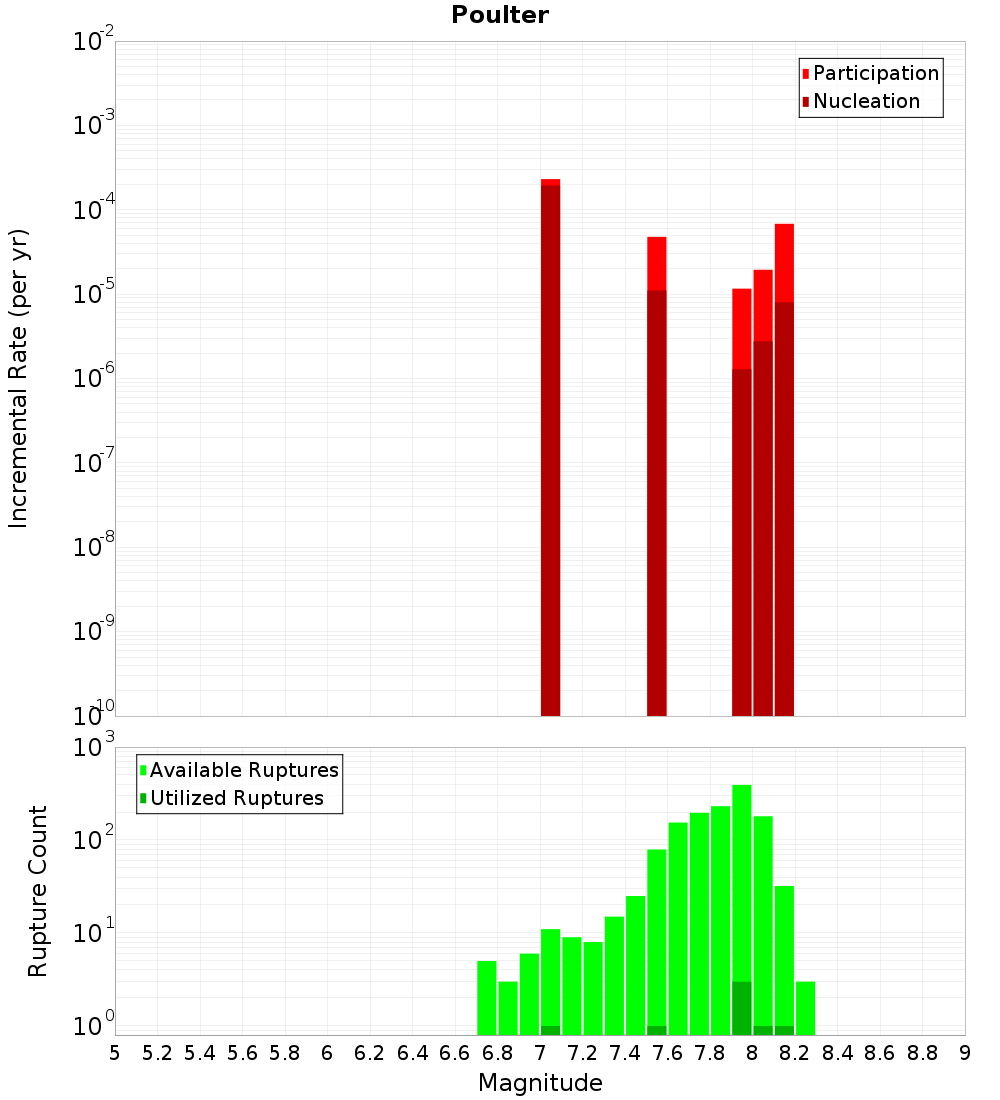

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

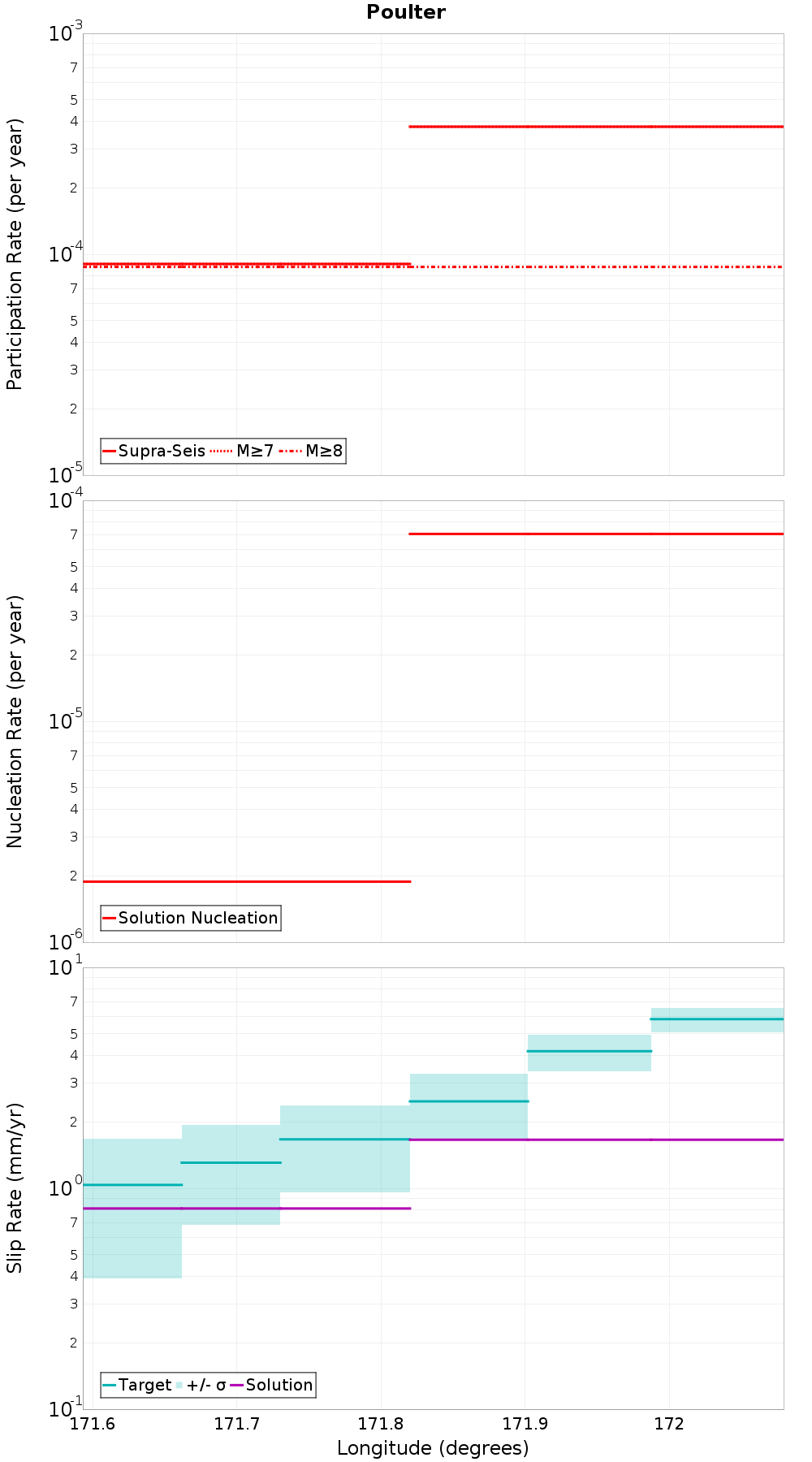

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Kakapo, 5.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.65 km |
| Min Rate-Weighted Dist | 5.65 km |
| Co-rupture Count | 872 |
| Co-rupture Rate | 2.738202E-6 |
Hope: Hurunui, 7.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 342 |
| Co-rupture Rate | 5.661067E-5 |
Hope: Hope River, 7.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 301 |
| Co-rupture Rate | 5.661067E-5 |
Cheeseman, 9.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.19 km |
| Co-rupture Count | 240 |
| Co-rupture Rate | 0.0 |
Kelly, 9.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.51 km |
| Min Rate-Weighted Dist | 9.78 km |
| Co-rupture Count | 391 |
| Co-rupture Rate | 2.8745423E-4 |
Hope: Taramakau, 9.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Esk North, 9.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Sailor, 11.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.28 km |
| Min Rate-Weighted Dist | 11.74 km |
| Co-rupture Count | 111 |
| Co-rupture Rate | 2.738202E-6 |
Browning Pass, 14.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 14.55 km |
| Min Rate-Weighted Dist | 14.55 km |
| Co-rupture Count | 219 |
| Co-rupture Rate | 8.7600725E-5 |
Clarence: Southwest, 15.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 36 |
| Co-rupture Rate | 0.0 |
Alpine: Kaniere to Springs Junction, 17.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 147 |
| Co-rupture Rate | 8.7600725E-5 |
