Roaring Meg Details
| Property | Value |
|---|---|
| Rupture Count | 132 |
| Ruptures Above Sect Min Mag | 131 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [7.02, 8.20] |
| Length Range | [20, 243] km |
| Total Rate | 4.4251563E-5 /yr |
| Multi-Fault Rate | 4.4251563E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 24 |
Table Of Contents

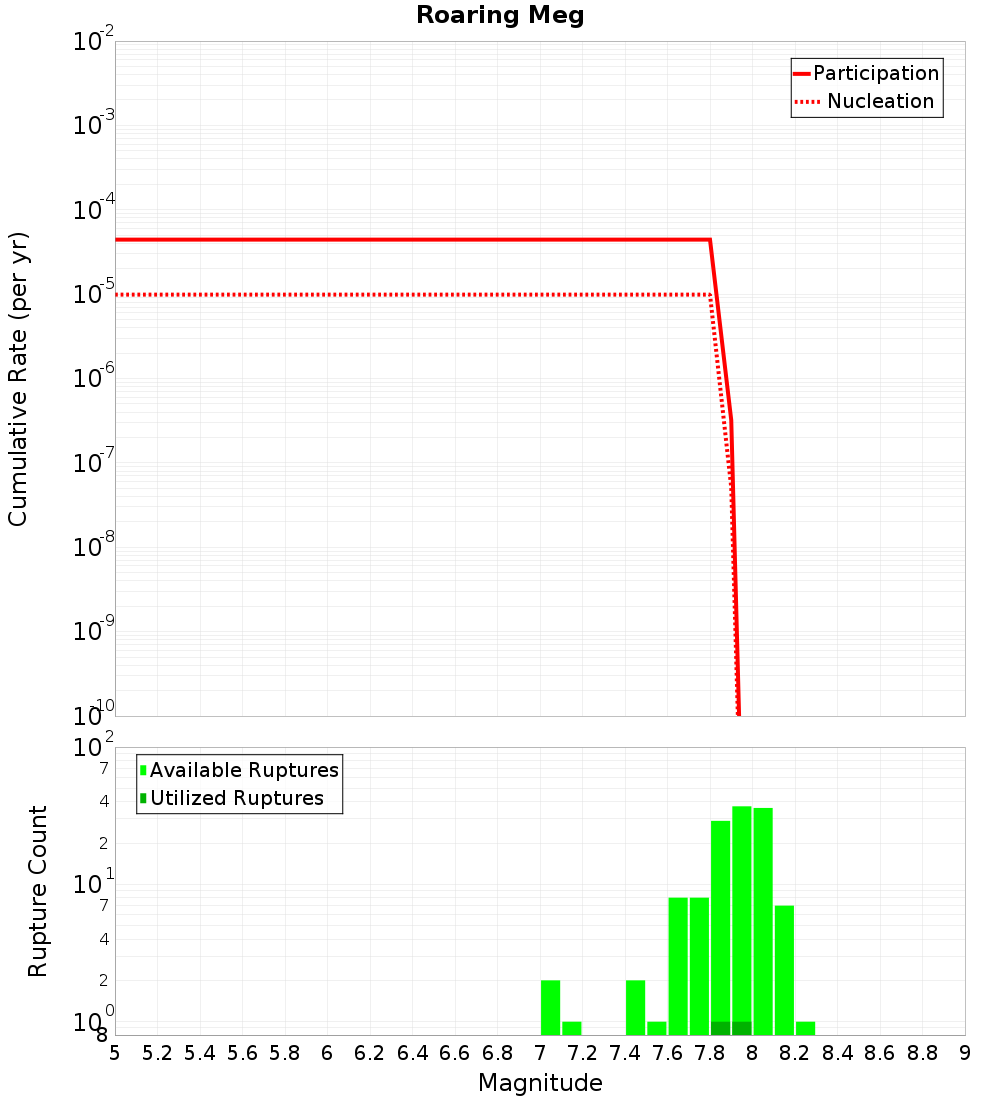

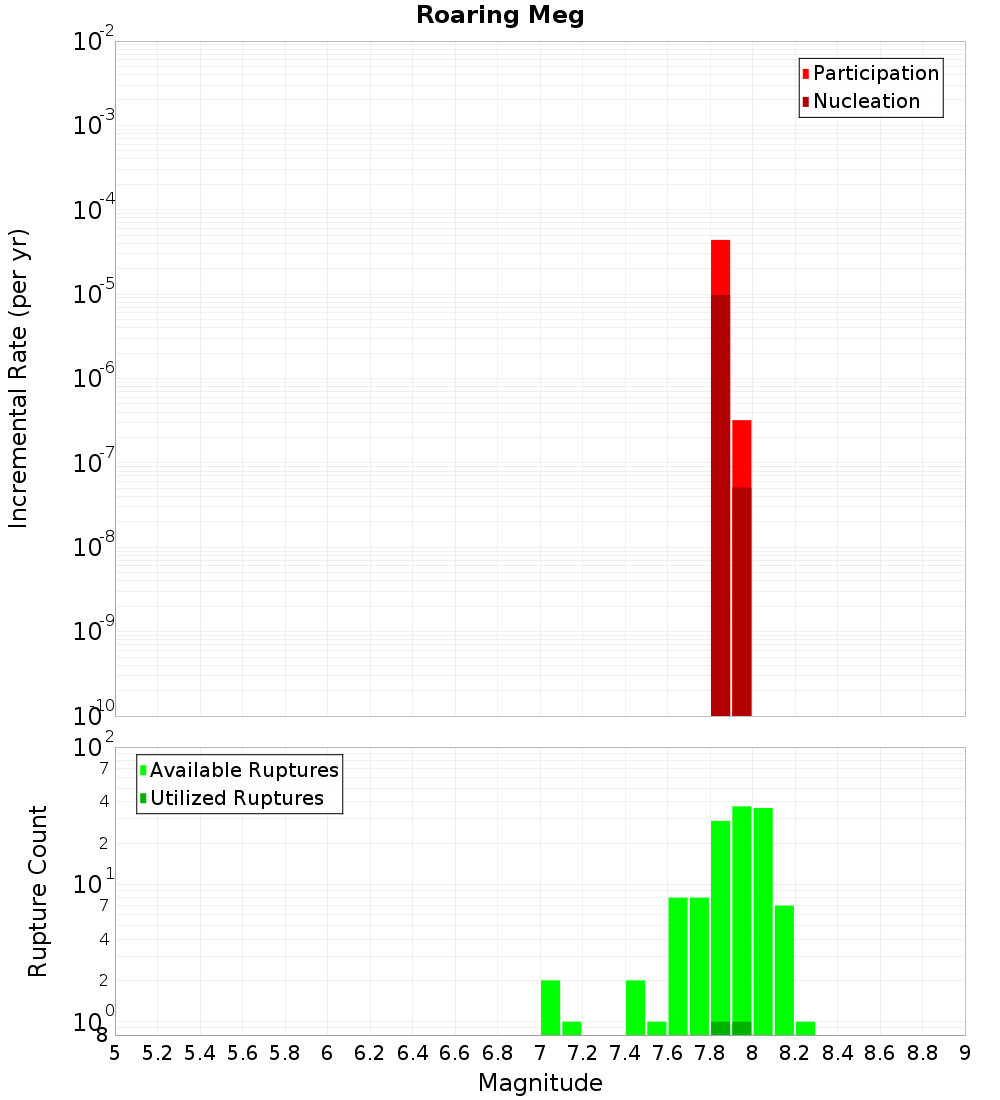

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

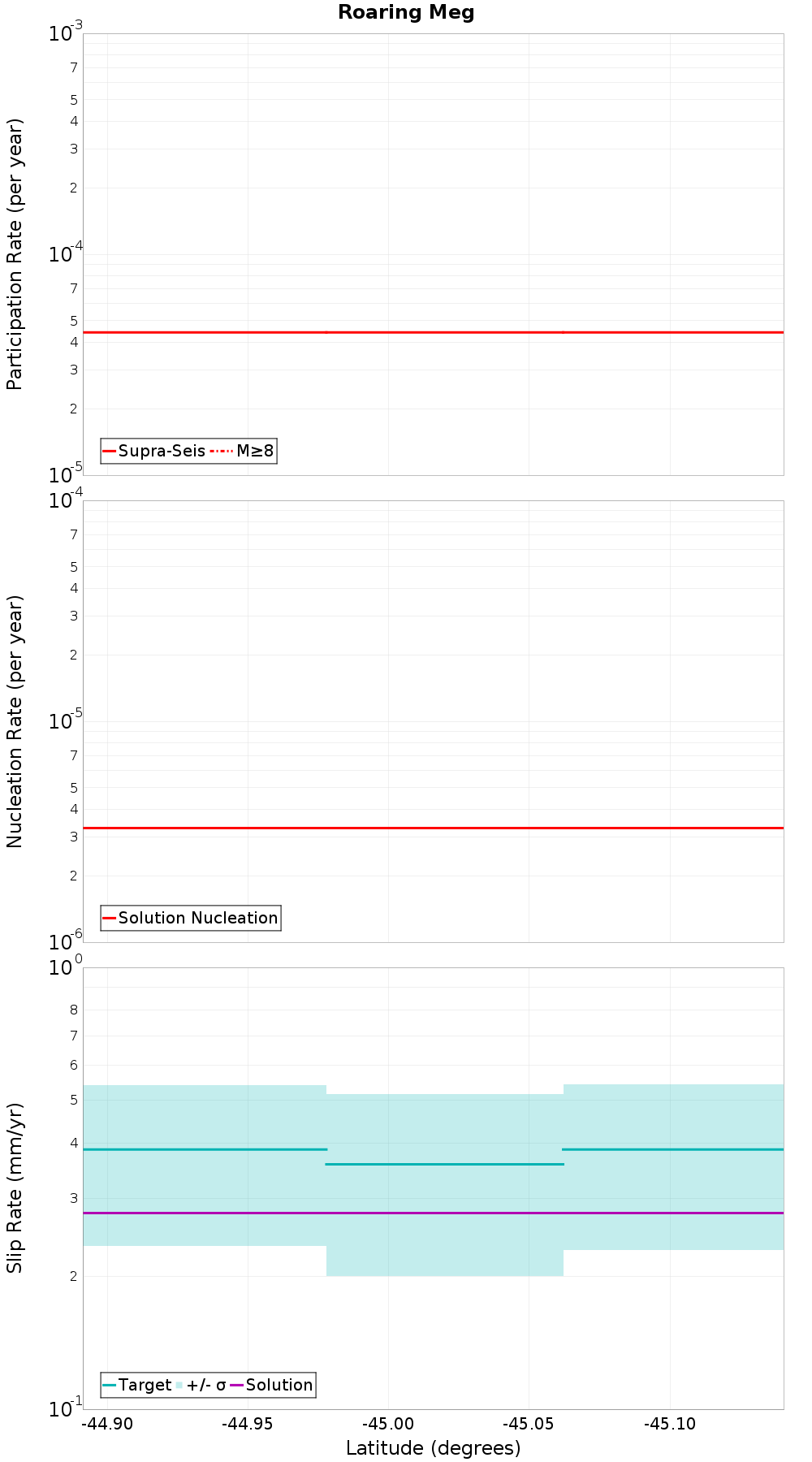

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Pisa, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.18 km |
| Min Rate-Weighted Dist | 4.58 km |
| Co-rupture Count | 122 |
| Co-rupture Rate | 4.4251563E-5 |
Paddys Ridge, 0.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 4.3930995E-5 |
NW Cardrona South, 2.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
NW Cardrona North, 3.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Nevis, 5.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.46 km |
| Min Rate-Weighted Dist | 5.46 km |
| Co-rupture Count | 13 |
| Co-rupture Rate | 4.3930995E-5 |
Roaring Lion, 6.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.05 km |
| Co-rupture Count | 51 |
| Co-rupture Rate | 0.0 |
Dunstan, 10.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Old Man, 11.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 35 |
| Co-rupture Rate | 0.0 |
Motatapu, 13.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Garvie, 14.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 21 |
| Co-rupture Rate | 0.0 |
