Ruahine: North Details

Property	Value
Rupture Count	26,950
Ruptures Above Sect Min Mag	26,947
Ruptures w/ Nonzero Rates	31
Magnitude Range	[7.11, 8.48]
Length Range	[24, 655] km
Total Rate	4.30521E-4 /yr
Multi-Fault Rate	4.1849344E-4 /yr (97.21%)
Directly-Connected Faults	7
All Co-Rupturing Faults	112

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

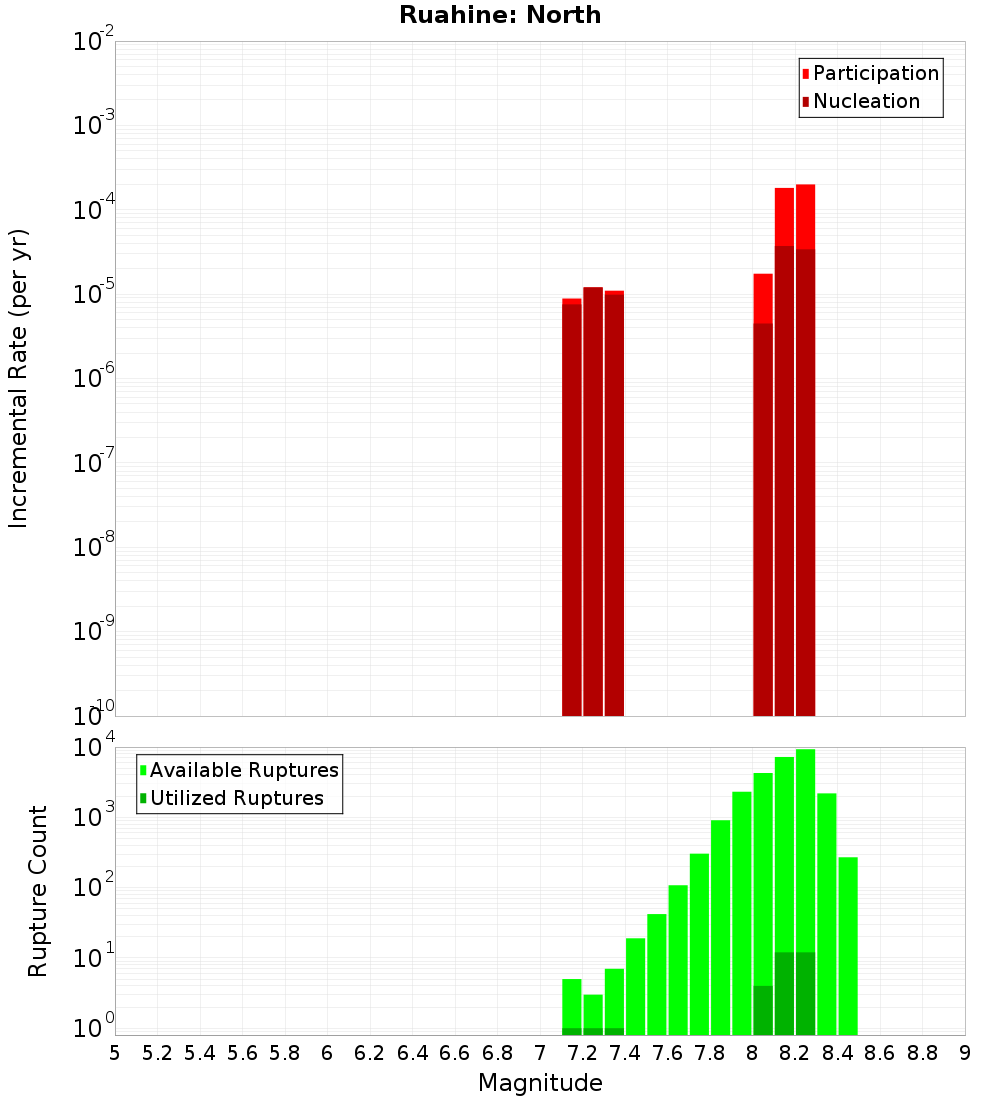

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.63 km away
Mohaka: South, 4.35 km away
Wakarara, 4.93 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.06 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away
Awanui, 14.79 km away

Waiohau: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	0 km
Co-rupture Count	9,281
Co-rupture Rate	2.2769491E-4

Ruahine: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	0 km
Co-rupture Count	19,033
Co-rupture Rate	2.4236327E-4

Kaweka, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	1.83 km
Co-rupture Count	241
Co-rupture Rate	0.0

Wheao: South, 2.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.63 km
Min Rate-Weighted Dist	2.63 km
Co-rupture Count	9,614
Co-rupture Rate	1.00813435E-4

Mohaka: South, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.35 km
Min Rate-Weighted Dist	4.35 km
Co-rupture Count	6,042
Co-rupture Rate	1.9526522E-4

Wakarara, 4.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.93 km
Min Rate-Weighted Dist	4.93 km
Co-rupture Count	200
Co-rupture Rate	1.9856068E-5

Mohaka: North, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	273
Co-rupture Rate	0.0

Patoka - Rangiora, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	26
Co-rupture Rate	0.0

Te Whaiti South, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	9.06 km
Min Rate-Weighted Dist	9.06 km
Co-rupture Count	8,441
Co-rupture Rate	1.01298545E-4

Whakatane: South, 11.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	327
Co-rupture Rate	0.0

Waimana: South, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	121
Co-rupture Rate	0.0

Awanui, 14.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	0.0
