South Wedge 3-6-10 Details

PropertyValue
Rupture Count10,445
Ruptures Above Sect Min Mag10,442
Ruptures w/ Nonzero Rates27
Magnitude Range[6.87, 8.59]
Length Range[19, 892] km
Total Rate2.829961E-4 /yr
Multi-Fault Rate2.829961E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults61

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

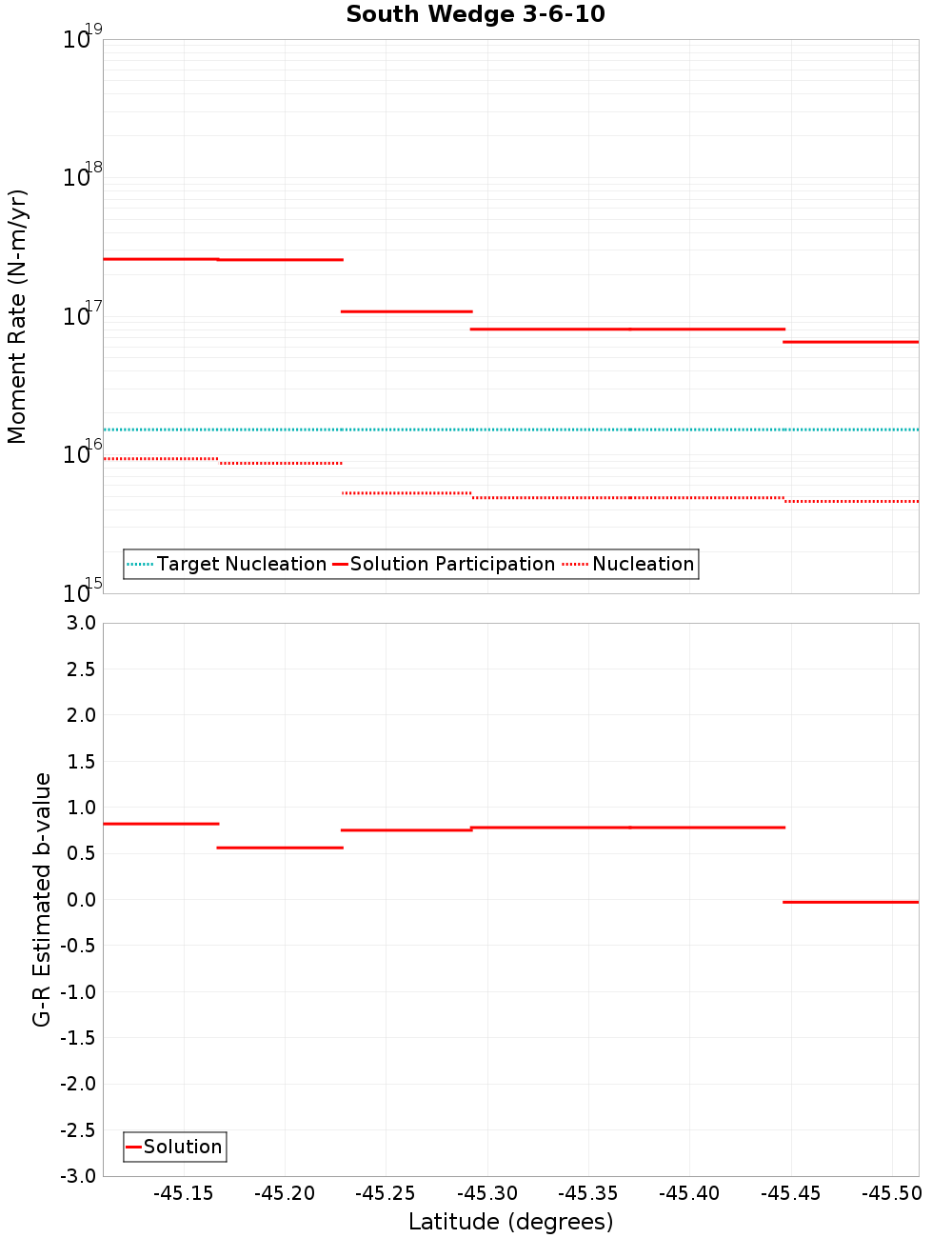

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Resolution - Five Fingers, 0.3 km away
South Wedge 5, 0.46 km away
Alpine: Resolution - Dagg, 1.76 km away
Central Wedge 4 - South Wedge 411, 1.81 km away
South Wedge 2, 2.13 km away
South Wedge 1, 4.1 km away
Caswell 211, 12.71 km away
Caswell High 5, 12.89 km away
Caswell High 3, 13.11 km away
Caswell High 4, 15.34 km away
Caswell High 67, 16.91 km away
Caswell High 1, 18.06 km away
Alpine: Nancy, 18.23 km away
Alpine: Resolution - Charles, 18.31 km away

Alpine: Resolution - Five Fingers, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.3 km
Co-rupture Count67
Co-rupture Rate0.0

South Wedge 5, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.46 km
Min Rate-Weighted Dist1.34 km
Co-rupture Count2,542
Co-rupture Rate2.311901E-4

Alpine: Resolution - Dagg, 1.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.76 km
Min Rate-Weighted Dist3.89 km
Co-rupture Count6,605
Co-rupture Rate5.2208245E-5

Central Wedge 4 - South Wedge 411, 1.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.81 km
Min Rate-Weighted Dist1.81 km
Co-rupture Count2,396
Co-rupture Rate7.4036594E-5

South Wedge 2, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.13 km
Min Rate-Weighted Dist2.26 km
Co-rupture Count3,165
Co-rupture Rate1.03723E-4

South Wedge 1, 4.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.1 km
Min Rate-Weighted Dist4.1 km
Co-rupture Count600
Co-rupture Rate1.0036059E-4

Caswell 211, 12.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count767
Co-rupture Rate9.109923E-5

Caswell High 5, 12.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?true
Min Co-Rupture Dist12.89 km
Min Rate-Weighted Dist12.98 km
Co-rupture Count1,431
Co-rupture Rate4.125707E-5

Caswell High 3, 13.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count358
Co-rupture Rate2.1727162E-6

Caswell High 4, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count634
Co-rupture Rate0.0

Caswell High 67, 16.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count1,348
Co-rupture Rate4.125707E-5

Caswell High 1, 18.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count175
Co-rupture Rate0.0

Alpine: Nancy, 18.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count2,560
Co-rupture Rate2.2635768E-6

Alpine: Resolution - Charles, 18.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDcy
Connected?true
Directly Connected?false
Co-rupture Count4,017
Co-rupture Rate4.994467E-5
